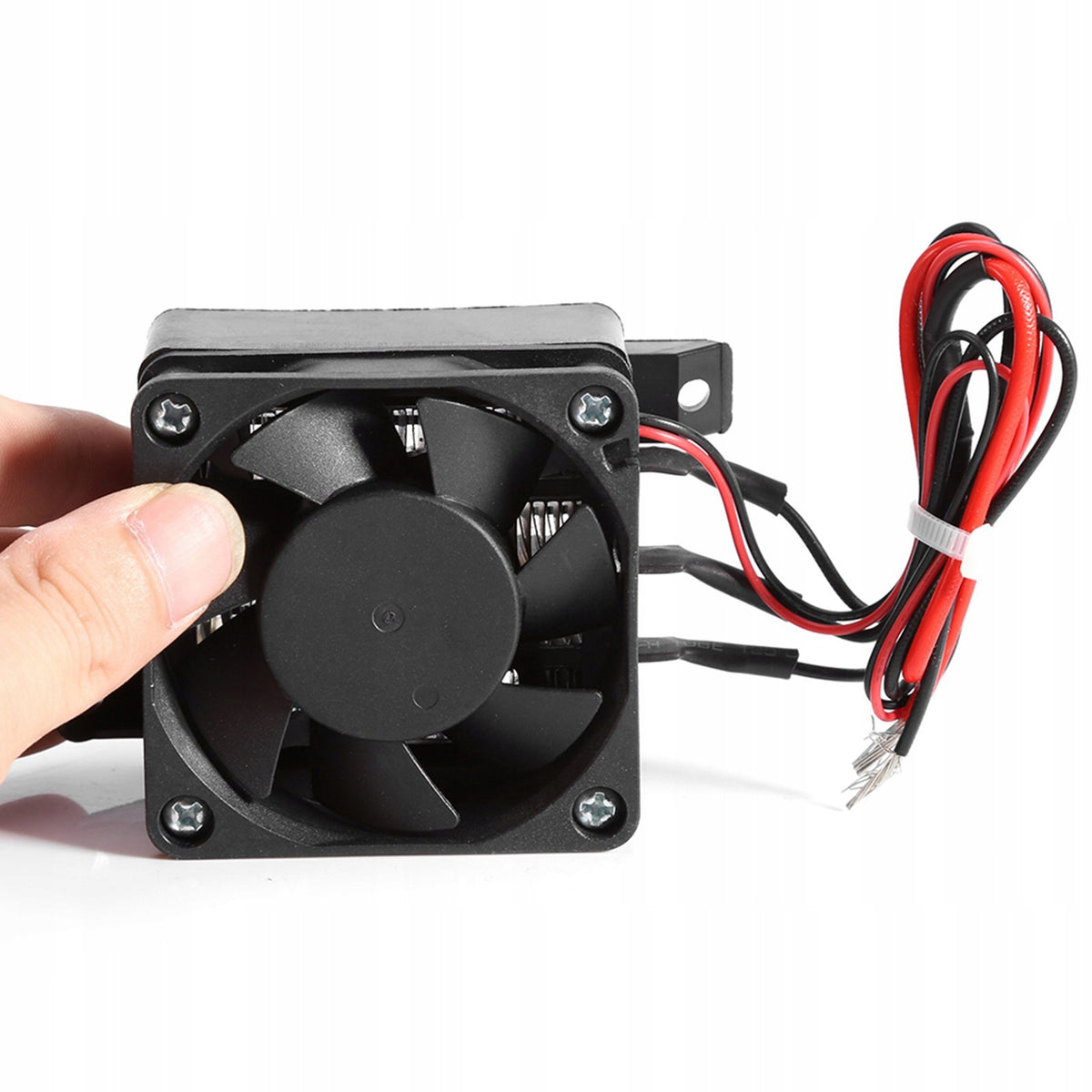

Automobilinis šildytuvas 12V 180W

Trumpai apie prekę

Prekė: Automobilinis šildytuvas 12V 180W. Kategorija: Oro šildytuvai.

• Gamintojas: no brand
• Modelis: INNA

Characteristics:

1. With insulator on the surface, safe to use, high reliability.

2. Fast heat up, long service life. With mounting holes, easy to install.

3. It adopts heat-resistant silicone wire as lead wire, red wire for "+" and black wire for "-".

4. This system saves energy when the heater increases the environmental temperature, the power will gradually decrease in certain ranges.

5. Applicable to heater, humidifier, air conditioning and other commonly used equipment.

Specifications:

Color: Black

Optional Type: #1 Rated Voltage: 12V Rated Power: 180W (15A)

Mounting hole distance: approx. 87mm to 3.4"

Mounting hole diameter: approx. 4mm, 0.16"

Product Size: approx. 60 x 60 x 42mm.2.4" x 2.4" x 1.7"

Environmental temperature range: -5~65℃

Package weight: approx. 160g

Quantity: 1ks

Package included in the price:

1 x PTC Heater

PTC Air Heater with Fan Series Product Instructions:

1. When bare wire extends from the heater, the positive and negative electrodes are not distinguished. Please enter the rated voltage and sufficient current.

2. When the bare wire extends from the fan, the red is the positive electrode and the black is the negative electrode. Please enter the rated voltage and sufficient current.

3. The heater can be used in a very humid air environment. It does not matter if a small amount of water drops splash on the surface of the heater, but they can not be submerged

liquid.

4. The insulation of the black radiator bracket is resistant to high temperatures, but the metal part is conductive. Attention should be paid to safety during use.

5. The life of the heater fan is 3~5 years, 20000~30000 hours.

6. The heater is equipped with a 230℃ chip. When the fan blows, the surface temperature of the heater is about 100℃. When the fan breaks down and stops rotating, please stop using the fan

heating to avoid potential safety hazards.

7. When the heater is used for the first time, there may be a slight smoke or odor that is caused by the oil stain and volatility of the heat conductive adhesive left by the pressing of the aluminum wave. This is normal and will disappear in a short time.

8. The power of the product is related to the mode of use, heat dissipation conditions, environmental temperature and other factors. The rated power given by us refers to the power measured in

ambient temperature 24℃. Under these conditions, the air temperature at 5cm from the outlet is about 50℃ Celsius. (when the ambient temperature drops, the heater power will be

raise. )

9. When used in a small enclosed space, after working for some time, when the ambient temperature near the heater rises, the energy consumption of the heater gradually decreases, which is the energy efficiency characteristics of the PTC products themselves.

10. Safety, stability, energy saving, environmental protection and long service life are the most important advantages of PTC products. Normal use 5000 to 10000 hours, power attenuation is about 15%. (Unlimited switch time)
