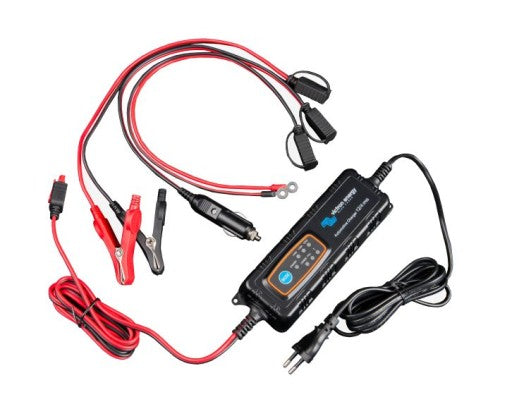

Automobilinis įkroviklis Victron 12V 4A/0.8A

Trumpai apie prekę

Prekė: Automobilinis įkroviklis Victron 12V 4A/0.8A. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Victron energy
• Modelis: BPC120480034R

Commercial No.: Blue Power 12V 4A / 0.8A

Code: BPC120480034R

Voltage: 12V

Charging Voltage: 14.4V / 14.7V

Charging Current: 4A / 0.8A

Min. Battery voltage: 2V

Supported Capacity: 1.2-120Ah

Maintenance: up to 140Ah

Sealing: IP65 (Water and Dust Resistance)

Charging process:5-step fully automatic

Supported technologies: Liquid electrolyte, Maintenance-free,CA/CA, EFB, AGM, GEL

Dimensions: 185mm (Length) 61mm (Width) 42mm (Height)

Package contents: charger, crocodiles, quick coupler M8, cigarette lighter plug Cig Plug

Condition: New

Waterproof, battery consumption limitation: Storage mode, various output cable terminations.

Reduced battery consumption with reduced operation: Storage mode

Storage mode is activated whenever the battery is not used for 24 hours. In this mode, the voltage is reduced to 13,2 V to minimize gassing and corrosion at the positive poles. Once a week, the voltage is raised to the absorption voltage to recharge the battery. This prevents electrolyte delamination and sulfurization - the main causes of premature battery consumption.

Five LEDs indicating charging status and operating mode.

When the AC input is connected, the LED STANDBY lights up, without passing the voltage to the output. When connected to the battery (battery voltage must exceed 8,5V), charging is initiated by pressing the MODE button and selecting one of the three charging modes:

• 1. Current limitation 0,8A and absorption voltage 14,4V. The red LED "<14Ah" lights up
• 2. Current limitation 4A and absorption voltage 14,4V. The red LED "<14Ah" lights up

Application: wet batteries (standard), AGM, gel. Ambient temperature from 10 to 35°C.

• 3. Current limitation 4A and absorption voltage 14,7V. The red “COLD” diode lights up.

Application: wet batteries (standard), AGM, gel. Ambient temperature below 10°C or when the battery requires a higher charging voltage. Until the battery is fully charged, the red CHARGE LEDs light up. When the battery is fully charged, the red FULL LED will light up.

If connected in reverse polarity, the red LED will light up “! ” after pressing the MODE button. If the LED STANDBY continues to light up after pressing the MODE button, it means that the connection with the battery is interrupted. Charger when AC power is turned on, it is always on in STANDBY mode.

Victron products are characterized by several features that make them unique on the market:

• safe for people: easy to install, resistant to sparking and short circuit and reverse polarity, no need to remove the battery for charging.
• safe for vehicles: regulate charging parameters, so they do not pose a risk of damage to the electrical and electronic equipment of the vehicle
• fully automatic: the microcomputer controls the entire charging process, so that the user does not have to supervise anything or be an expert on batteries
• good for the battery: equipped with a unique desulphurisation function that allows you to restore the life of discharged batteries. The charging voltage and current are computer stabilized, which allows you to extend the battery life (the fluctuations in charging parameters are less than 2%, while in traditional rectifiers they reach up to 400%).
• efficient: the control system can charge the battery 100%, so there is no effect of gradual loss of capacity by the battery
• durable: suitable for outdoor use (IP65), operate at temperatures of -20 to +40 degrees Celsius.
• high-quality products: devices that work reliably for many years.

Specifications
