Automobilinis įkroviklis FRONIUS ACCTIVA Professional 35A 61224

Trumpai apie prekę

Prekė: Automobilinis įkroviklis FRONIUS ACCTIVA Professional 35A 61224. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Fronius
• Modelis: 4,010,361,650

BATTERY CHARGING SYSTEMS

Unsurpassed solutions thanks to unsurpassed technology

The ability to store energy is a technique that has fascinated people for a long time. For more than half a century, Fronius has been researching, designing and manufacturing battery charging systems that set the standards of the future.

Fronius offers a full spectrum of rectifiers with a clocked primary circuit specifically for car starter batteries and traction batteries. This means that Fronius devices work not thanks to conventional thyristors, but with much smaller and lighter electronic power systems.

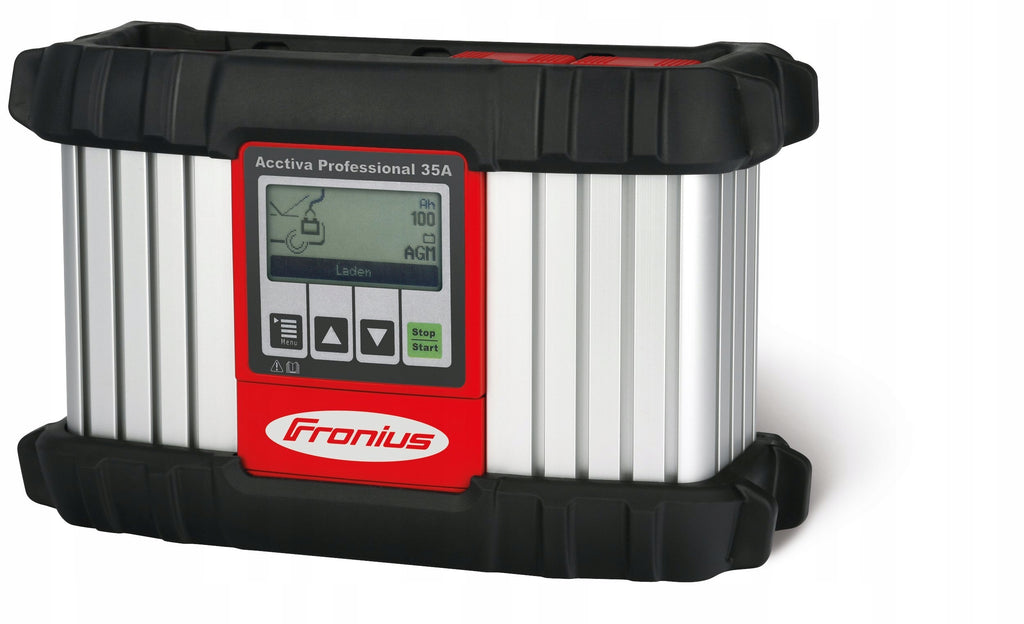

Rectifier ACCTIVA Professional 35A

Battery voltage 6 V / 12 V / 24 V

Charging current 35 A

Intelligent battery charging system with clear user menu on LCD graphic display is the optimal tool for the car technician. In addition to the basic function, automatic charging, this system provides constant voltage during diagnosis, software updates and ensures that after service work, the battery is fully charged

Do you want to see how the Fronius rectifier will work in your car showroom or workshop?

We will provide you with such a device for testing free of charge!

Ask for details

Technical data:

• ACCTIVA Professional 35A
• Battery voltage 6 V / 12 V / 24 V
• Charging current 35 A (output current 35A - at 7,2 V; 35A - at 14,4 V; 35A - at 28,8 V)
• Battery capacity 3 - 350 Ah
• Mains voltage +/- 15% 230 V
• IUoU/IU charging characteristics
• Degree of protection IP 40 (horizontal) / IP 44 (vertical)
• Dimensions 270 x 168 x 100 mm / 9.72 x 6.38 x 3.46 in.
• Weight without wires 2.0 kg / 4.63 lb.
• CE Certificate Mark
• Network security 16 A
• Electromagnetic interference emission class (EMC) B
• Cooling convection and fan

Product Information:

• Completely automatic charging thanks to Plug & Charge
• Easy operation and highest operational safety thanks to the animated graphic display. All functions and charging data can be clearly set and read on the display
• Device menu in Polish (to choose from)
• Self-recognition and selection of battery voltage in case of 6 V, 12 V and 24 V
• Durable, compact housing for flexible use in the workshop
• Pluggable charging cables and mains cables (different lengths)
• Edge guard for durability and protection against paint damage
• For charging. Recharging conventional lead-acid, lead-calcium/silver or non-woven batteries (AGM, MF) and maintenance-free lead-gel batteries without disconnecting the terminals from the power supply system in the car
• Optional USB interface for charging system software updates ensures long-term use, also in the future
• Application of Active Inverter Technology
• Total safety of the vehicle, vehicle electronics and battery thanks to ensuring the safety of electronics, the use of short-circuit protection, electronic protection against pole changes, thermal overload protection.

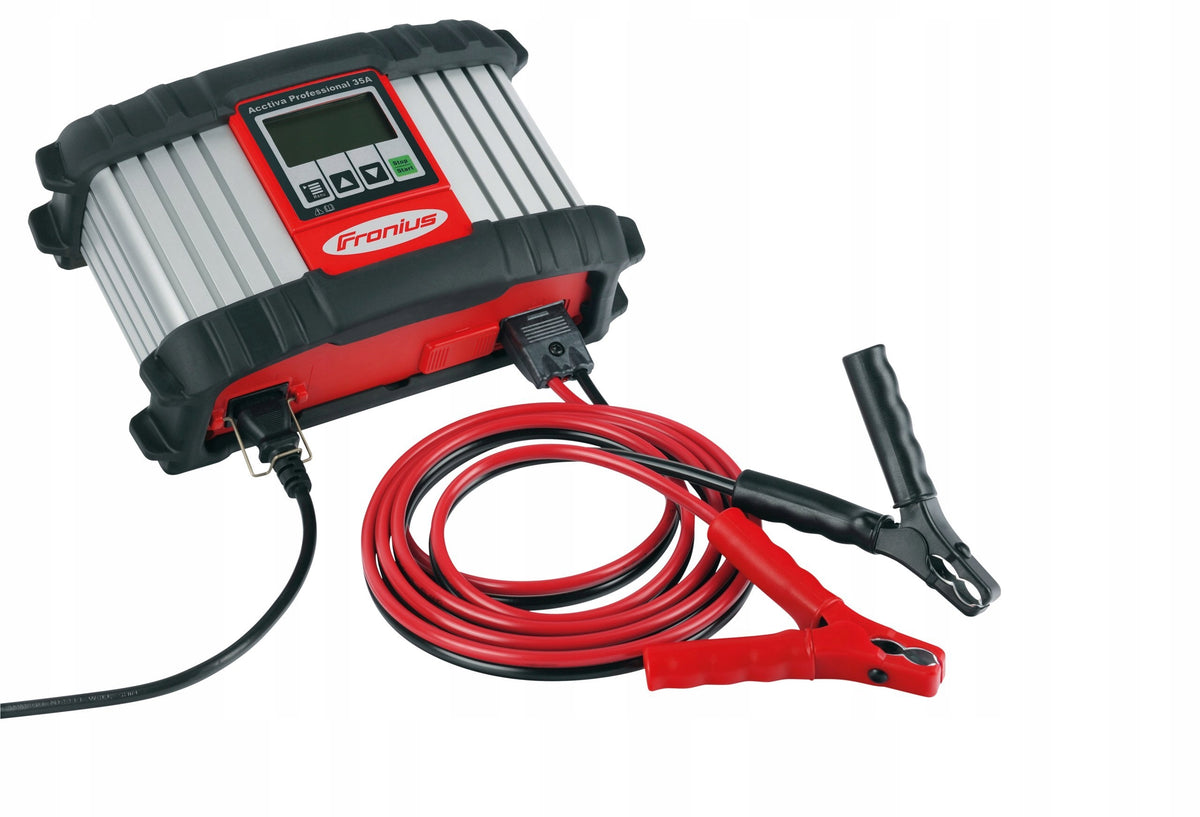

Scope of delivery:

• ACCTIVA Professional 35A Rectifier
• Protective plastic edges up and down
• EU power cord length: 2 m
• 10 mm2 battery charging cable with terminals length: 2,5 m / terminals 80 A
• Instruction manual in Polish
• Packaging

The set includes accessories available in the store for products of the ACCTIVA Professional 35A group

Recommended areas of application:

Ideal for workshops for cars, trucks, buses, motorcycles, technical vehicles, construction and agricultural machinery

Main features and capabilities:

Landing:

automatic charging and buffering of parallel receivers during limited service time

Diagnosing and updating software:

in buffer mode, during diagnostics and software updates, the device can simultaneously power additional receivers in a parallel system. The battery charging system provides current up to 35 A.

Battery Replacement:

The maintenance mode maintains the power supply in the car while the battery is changed, so you can keep all the settings of the on-board computer.

Power supply mode provides external power without battery support.

The recharge mode regenerates deeply discharged batteries.

Security:

• Electronic protection against pole conversion
• Protection against thermal overload
• Safety exemption
• Electronics safety
• Short-circuit protection

FREQUENTLY ASKED QUESTIONS

Fronius makes everything as easy as possible - thanks to products that are reliable, efficient and user-friendly at the same time. After all, the design of battery charging systems is a complex topic that raises many questions, below is an overview of the answers to the most important related to charging batteries.

What does "Electronics Safety" mean for Fronius rectifiers?

All Fronius rectifiers are safe for electronics, i.e. With its adjustable input voltage, the battery can be charged in the vehicle. Secondly, they do not contain peak voltages that could damage the vehicle’s electronic systems.

Why does Fronius use adjustable characteristics in rectifiers?

All Fronius charging characteristics are regulated (controlled) by a microprocessor and therefore adapt to the state of charge of the battery.

In the case of traction devices (Selectiva), there are many characteristics, because battery technology plays an important role here. Using these characteristics, all common types of batteries can be charged.

For comparison: most ordinary 50 Hz rectifiers do not have adjustable charging characteristics. This means that the batteries are overcharged and the charging times are significantly extended. In addition, these rectifiers are not safe for electronics.

Why are Fronius rectifiers so small and weigh so little?

Active Inverter Technology is the so-called high frequency technology. This means that the standard network frequency (50 Hz) is raised x times, so that the transformer can be many times smaller and lighter. For this reason, it is possible to maintain the small size and weight of our rectifiers.

Why is every seventh charge free in Fronius rectifiers?

Thanks to Active Inverter Technology, the efficiency factor (up to 96%) is much higher compared to ordinary 50 Hz rectifiers. This results in energy savings of 20 to 30%. After 6 charges, the energy savings compared to 50 Hz rectifiers are so high that 7 charges are as if free.

Why are there two series of Fronius devices available?

There are two types of batteries: starter and traction. Both types of batteries require, due to their different characteristics, also different charging techniques. For this reason, Fronius offers the Acctiva series of starter battery devices and the Selectiva series for traction or drive batteries.

Are the Fronius battery charging systems available in individual versions?

All Fronius rectifiers are also available in OEM versions. The following individual options are currently available:

Appearance in accordance with the Customer's Corporate Design Housing versions according to the Customer's request Software versions according to the Customer's request

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Model	4,010,361,650
Parametry	Brand	Fronius
Parametry	Maximum amperage	35 A
Parametry	Product weight with unit packaging	2.5 kg
Parametry	EAN (GTIN)	9007947406262
Parametry	Batteries included	no
Parametry	Packaging status	original
