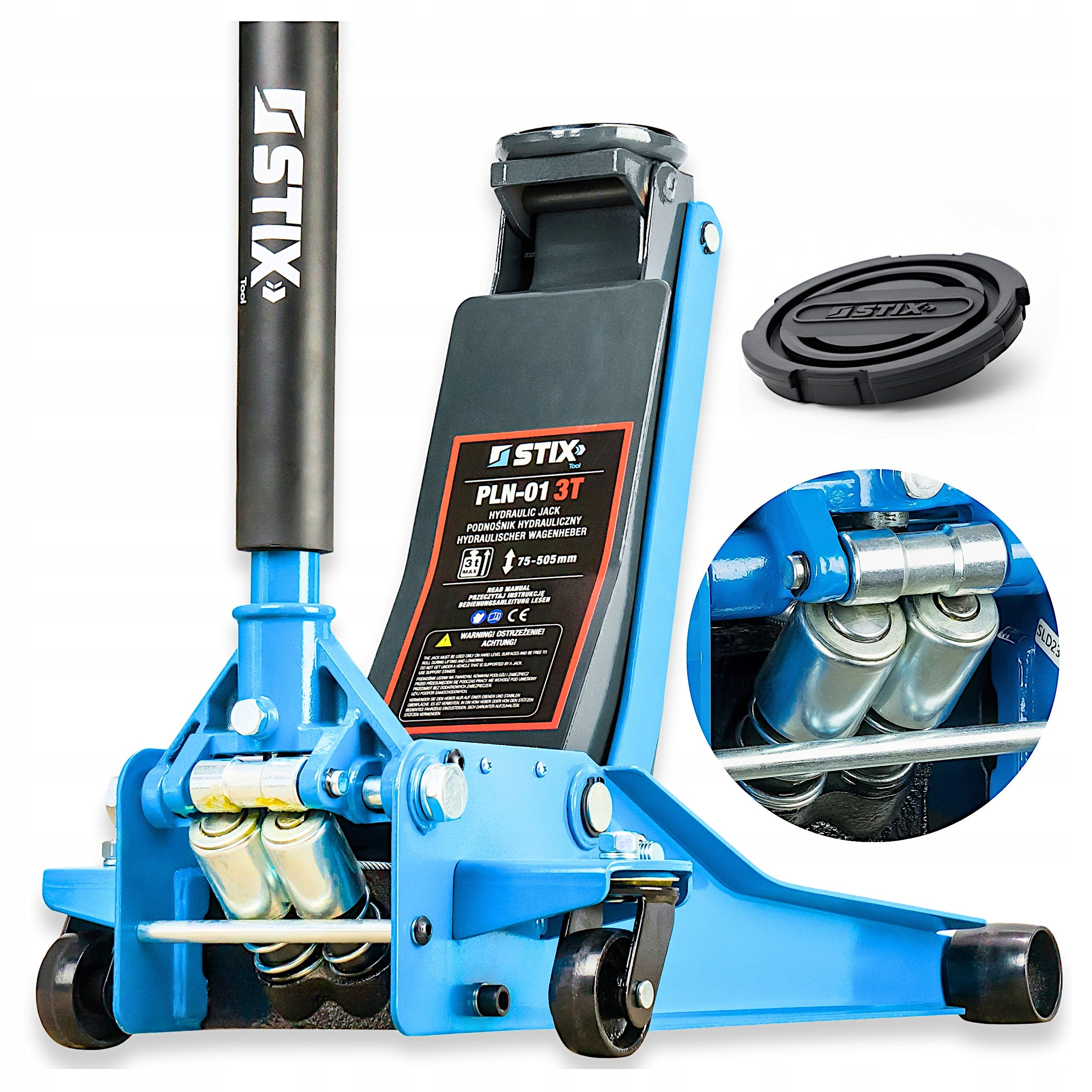

Automobilinis hidraulinis domkratas ŻABA PLN-01 3T 75-505mm Stix

Trumpai apie prekę

Prekė: Automobilinis hidraulinis domkratas ŻABA PLN-01 3T 75-505mm Stix. Kategorija: Dėmių valikliai (varlytės).

• Gamintojas: Stix
• Modelis: 23-03-54063

The PLN-01 hydraulic "trolley" jack with a lifting capacity of 3T is designed for lifting one axle of a vehicle. A minimum height of 75 mm allows it to work with cars with lowered suspensions, and a maximum height of 505 mm provides a large working range. The 28 kg construction makes it suitable for more intensive workshop work.

Catalog Number: 23-03-54063

Manufacturer: Stix Tool

Model: PLN-01

Quantity: 1 piece

⚙️ Technical Specifications

• Jack Type: Hydraulic
• Maximum Lifting Capacity: 3000 kg (3 metric tons)
• Maximum Lifting Height: 505 mm
• Minimum Lifting Height: 75 mm
• Lever Length: 1050 mm
• Net Weight: 28 kg
• Package Dimensions: 700 x 390 x 200 mm

The PLN-01 is a hydraulic car jack with a maximum lifting capacity of 3000 kg.

Designed for lifting vehicles at factory support points, it is suitable for servicing passenger cars, SUVs, and selected light commercial vehicles. The solid construction and efficient hydraulic system ensure stable and safe operation in garage and workshop conditions.

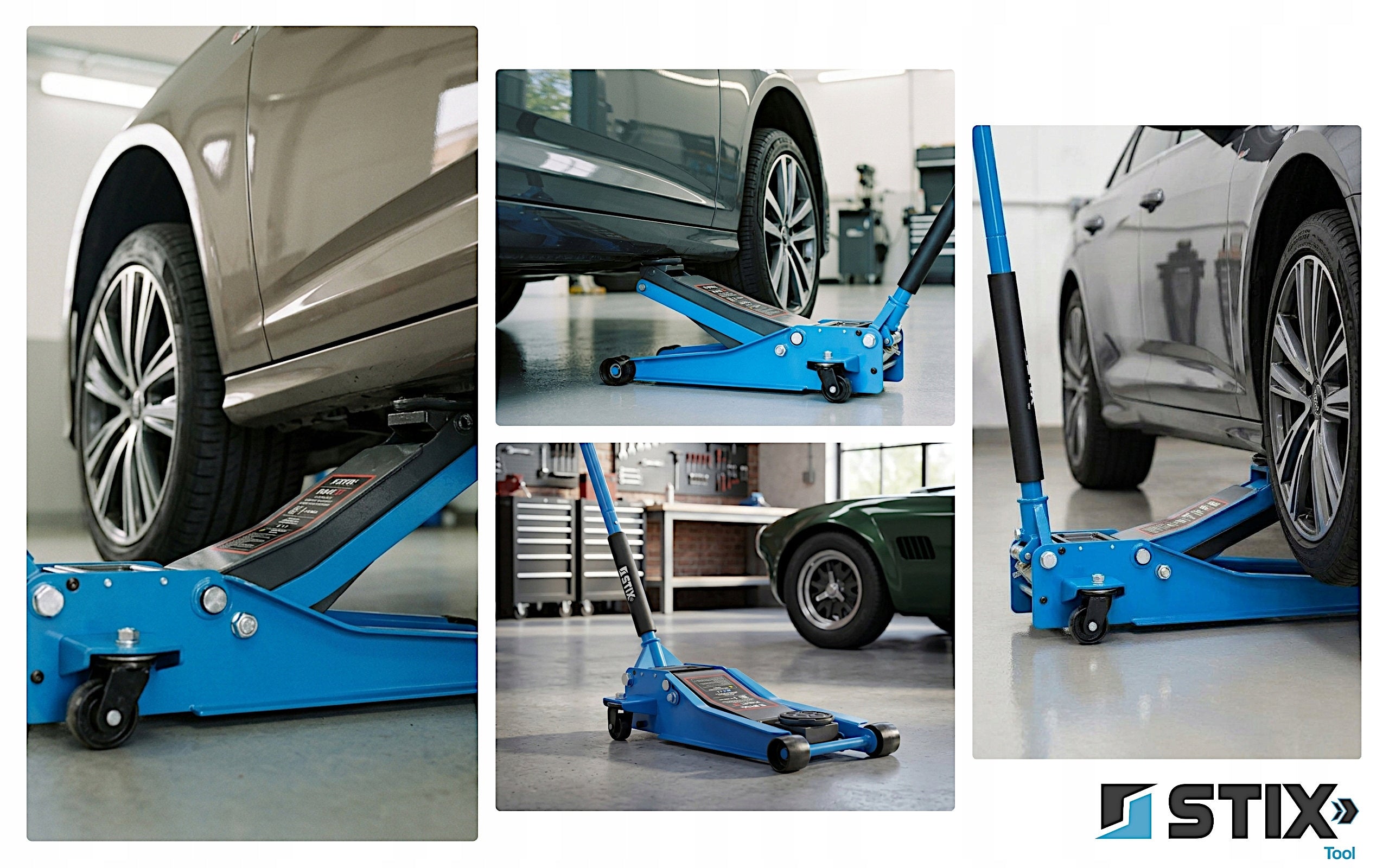

➡ 75 mm low profile lift – for cars with reduced ground clearance

✅ The minimum height of 75 mm allows the lift to be inserted under vehicles with reduced suspension. Thanks to this, the model can be used both for standard passenger cars and sports cars.

✅ Lifting range up to 505 mm allows you to get the right working space for standard service work.

➡ Dual hydraulic cylinder – fast lifting

The Model PLN-01 is equipped with a double hydraulic cylinder (dual pump system), which allows for quick lifting of the vehicle with less effort. The design allows you to reach the maximum lifting height in about 8 full lever movements.

This solution reduces working time compared to standard single-piston jacks.

Lowering is done via a valve controlled by a rotary knob, which allows for controlled and precise lowering of the vehicle without the use of additional tools.

➡ Ergonomic operation and stable design

The steel lever with a length of 1050 mm consists of two segments, which facilitates transport and storage. The long length increases the mechanical lever, so lifting heavier vehicles requires less operator effort.

The lift is equipped with solid metal wheels – the front fixed wheels provide stability during the overrun, while the rear swivel wheels allow precise maneuvering under the vehicle.

➡ Reinforced construction for more intensive use

The body is made of solid steel elements protected by a protective coating resistant to oils and workshop dirt.

The weight of 28 kg indicates a more massive design compared to lighter garage models, which translates into stability and durability during regular operation.

➡️ What distinguishes the PLN-01 3T model?

✅ Leverage - 3000 kg

✅ Low profile - 75 mm

✅ Lifting range - 75 – 505 mm

✅ Double hydraulic cylinder (dual pump)

✅ Maximum height - in approx. 8 lever movements

✅ Leverage - 1050 mm (2 segments)

✅ Drain knob for precise lowering

✅ Stable construction - 28 kg

✅ Metal wheels (including rear swivel wheels)

➡️ Why choose the PLN-01 model?

The PLN-01 3T is a model with an increased working range and reinforced construction compared to 2.5T jacks. It offers a higher lifting height, a longer lever, and a double hydraulic cylinder, which translates into faster and more convenient handling of heavier vehicles.

The jack is designed only for lifting and lowering vehicles. After lifting the vehicle, appropriate workshop stands must be used.

➡ FAQ - Frequently Asked Questions

1. Does 3T mean that it lifts a vehicle weighing 3 tons?

• No. 3000 kg is the maximum load when lifting one axle of the vehicle.

2. Is it suitable for SUVs?

• Yes – the 75 to 505 mm range allows you to work with most SUVs when lifting axles.

3. Is it suitable for cars with lowered suspension?

• Yes – the minimum height of 75 mm allows you to slide under vehicles with low clearance.

4. Is the lever foldable?

• Yes – it consists of two segments facilitating transport.

5. Can you work under a car based solely on a lift?

• No. After lifting, workshop supports should be used.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Product weight with unit packaging	30 kg
Parametry	Brand	Stix
Parametry	Manufacturer code	23-03-54063
Parametry	EAN (GTIN)	5907747637061
Parametry	Lifting capacity	3000 kg
Parametry	Minimum lifting height	75 mm
Parametry	Maximum lifting height	505 mm
