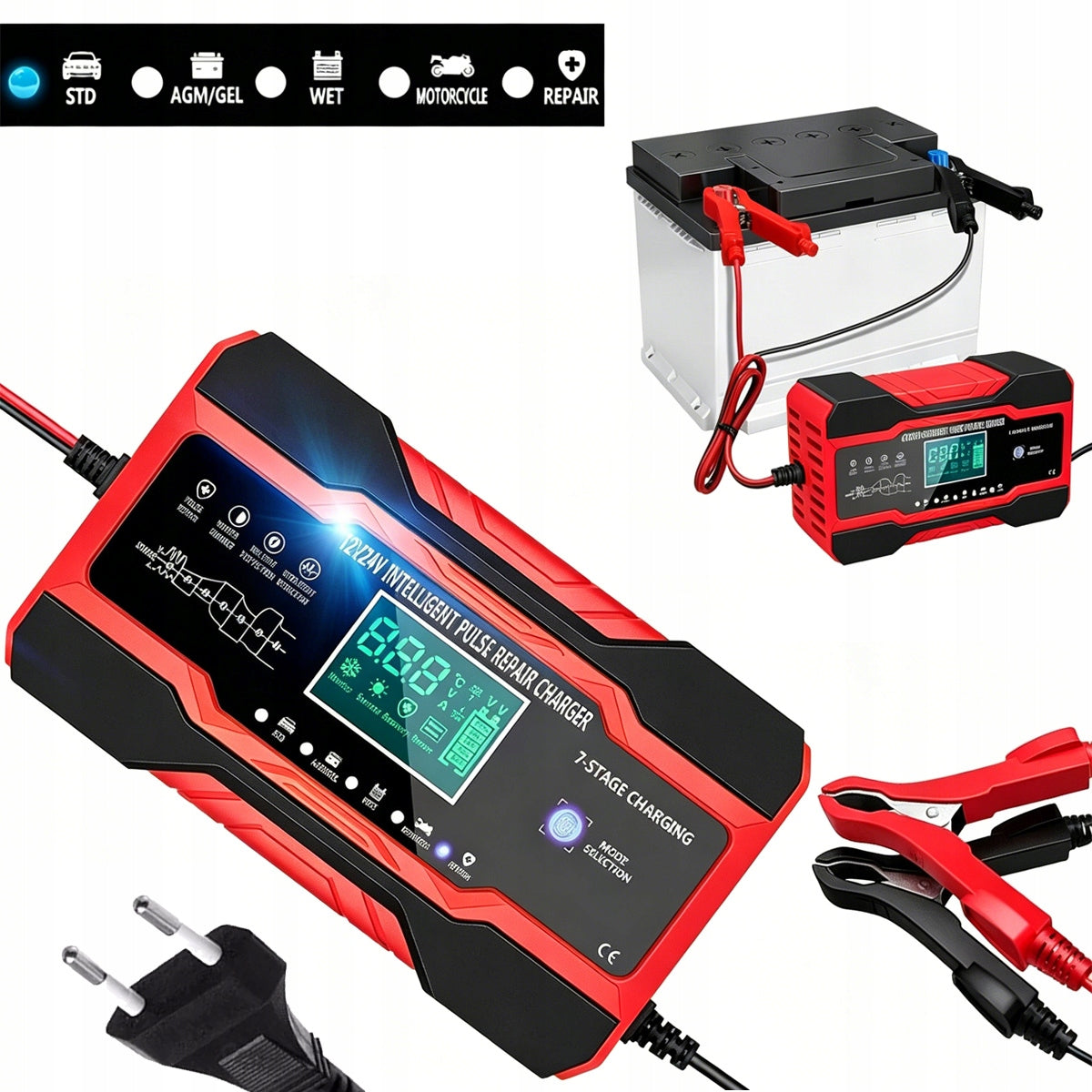

Automobilinis akumuliatoriaus įkroviklis 12V/24V, 10A, išmanus

Trumpai apie prekę

Prekė: Automobilinis akumuliatoriaus įkroviklis 12V/24V, 10A, išmanus. Kategorija: Baterijų įkrovikliai.

• Gamintojas: no brand
• Modelis: 6921782138719

➡ Displays voltage, current, temperature, power percentage, repair, termination, shutdown, reverse/incorrect state and desulfurization – all at a glance. Touch buttons provide greater mode switching sensitivity, simple operation and ease of use.

➡ universal charging 12V 10A, 24V 5A, 180W, faster performance, free switching 12V, 24V; suitable for charging and repairing batteries of passenger cars, motorcycles, large trucks, agricultural vehicles, ordinary lead-acid/maintenance-free batteries/AGM/GLE/EFB, water batteries/lead-acid batteries/motorcycle batteries, etc. (Lithium battery charging is prohibited! )

➡ High quality ABS insulation housing, flame retardant and high temperature resistant, robust and durable. Intelligent integrated circuit has many security features and is more reliable to use. 8 functions: pulse repair, temperature detection, memory mode, overvoltage protection, intelligent detection, reverse connection protection and automatic stop at full power.

➡ With temperature recognition, 2 different charging modes in winter and summer, intelligently detect the ambient temperature, and the charger automatically adjusts the charging voltage to the ambient conditions.

➡ Repair function, activates and maintains the battery and solves power supply/no charging/high internal resistance problems. Using high and low frequency pulse repair technology, it provides an effective effect of activating the repair of undervoltage batteries and accumulators that cannot be charged after a long period of inactivity, so that your batteries will look like new!

7-Step Charging:

• ☑ ①Sulphurization
• ☑ ②Support charging
• ☑ ③Direct current charging
• ☑ ④Direct voltage charging
• ☑ ⑤Battery Current Detection
• ☑ ⑥Compensating charging
• ☑ ⑦Support charging (Note: start-stop mode/water battery) is 6-step).

• Color: Red
• Output cable length: 60 cm
• Input cable length: 80 cm
• Input Voltage: AC: 110-220 V (50-60 Hz)
• Input power: 180 W
• Output voltage: 12 V-15,5 V/24 V-31 V (automatic voltage compensation -15℃~45℃)
• Output current: DC = 12 V 10 A/24 V 5 A (max. )

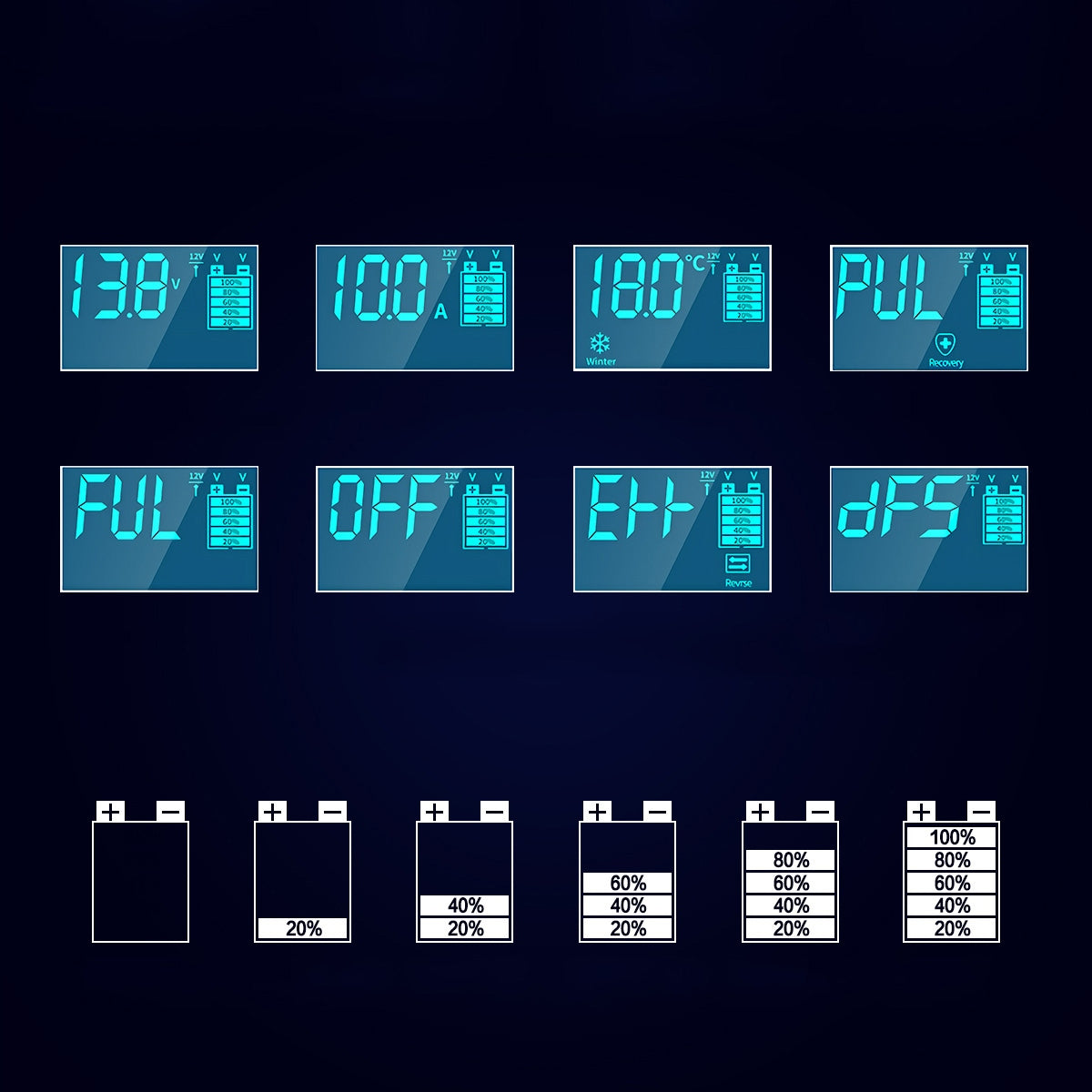

• Display: Voltage, Current, Temperature, Repair, Termination, Reversal, Battery Percentage
• Thermal protection: 65°C +/- 5°C
• Application: 12V 2Ah-150Ah lead-acid battery (lithium batteries are prohibited); 24V 2Ah - 100Ah lead-acid battery (lithium batteries are prohibited)
• Compliance with standards: CE, FCC, RoHS
• Implementing standard: T/TCDZ 0001-2019
• Dimensions: 158 x 95 x 62 mm
• Touch Switching Technology: Yes
• Reverse Polarity Protection: Yes
• Output Short Circuit Protection: Yes
• Protection against connection to a socket other than the battery: Yes
• Overheating Protection: Yes
• Short Circuit Protection: Yes
• Overcurrent Protection: Yes
• Overheating Protection: Yes
• Fire Protection: Yes
• Low Voltage Protection: Yes
• Overvoltage Protection: Yes
• Reverse Polarity Protection: Yes
• Electric shock protection: Yes
• Cooling: Fan

• 1 x Car Charger
• 1 x User Manual

Winter mode: In winter, when it is cold and the temperature is low, the internal resistance of the battery is large, and the voltage is low, and the normal voltage is insufficient. The charger in winter mode automatically increases the charging voltage to fully charge the battery. In summer, when it is hot, the battery voltage increases. Charging at normal voltage is easy to overcharge and damage the battery. The charger in summer mode lowers the charging voltage to prevent the battery from overcharging.

Make sure you select MODE mode before connecting the battery, otherwise the MODE button will be locked!
