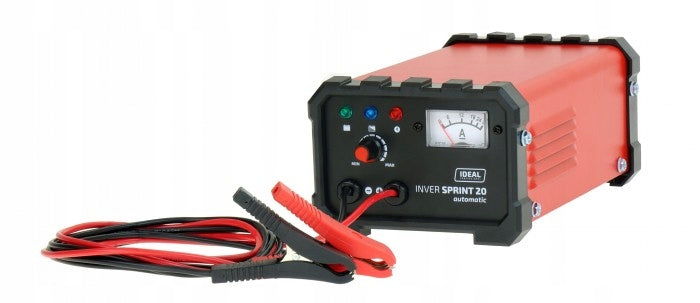

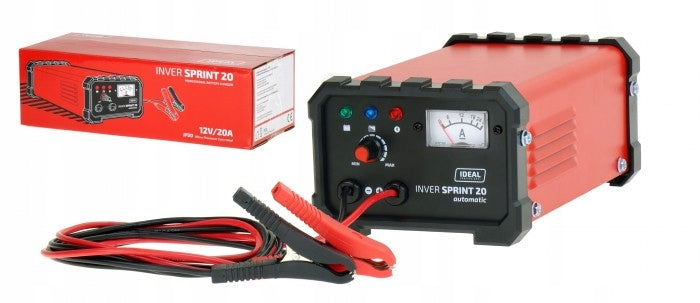

Automatinis inverteris–lįgintuvas IDEAL Inver Sprint 20, 20A, 12V

Trumpai apie prekę

Prekė: Automatinis inverteris–lįgintuvas IDEAL Inver Sprint 20, 20A, 12V. Kategorija: Baterijų įkrovikliai.

• Gamintojas: IDEAL
• Modelis: INVER SPRINT 20A 12V AUTOMATIC

Rectifier for charging 12 volt acid batteries. 230V power supply, 12V charging voltage, 20A charging current.

Technical parameters

INVERT SPRINT 20A 12V AUTOMATIC is an inverter rectifier for charging 12 volt acid batteries.

The device is equipped with an analogue display of charging current.

The rectifier automatically selects the optimal current and charging voltage, and stepless adjustment allows even more accurate positioning of the rectifier.

When the battery reaches full charge, the rectifier automatically lowers the current and output voltage to the maintenance charge level, keeping them until the rectifier is disconnected.

Physical parameters

The device is equipped with protection against short-circuit poles, overload and reverse polarity.

Power supply parameters

Single-phase power supply 230V. The device is equipped with a power plug.

Equipment

Delivery includes a device with professional output wires and pole terminals with a length of 140 cm.

• Overload protection in the device 5 A
• Rated power supply voltage 230V; 50/60Hz (1ph)
• Power 280 W
• Degree of protection IP 20
• Weight 1,4 kg
• Overall dimensions L x W x H 240x120x90 mm
• Package dimensions L x W x H 315x135x100 mm
• Charging voltage 12 V
• Charging current 20 A
• Degrees of charging current adjustment Gradually
• Rated battery capacity Ah 15h (min/max) 30/300
