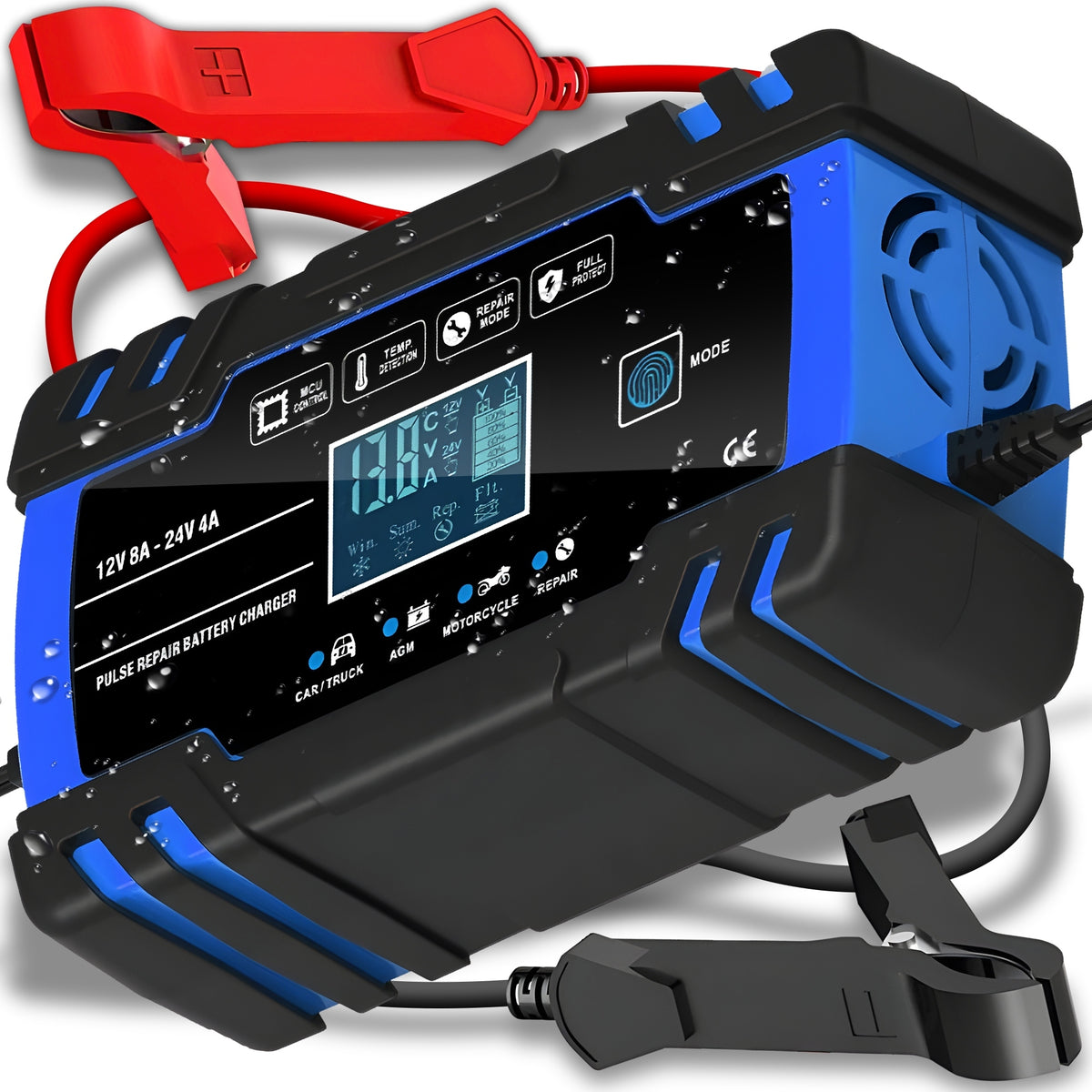

Automatinis akumuliatorių lygintuvas su remonto funkcija, 12V/24V

Trumpai apie prekę

Prekė: Automatinis akumuliatorių lygintuvas su remonto funkcija, 12V/24V. Kategorija: Baterijų įkrovikliai.

• Gamintojas: INTMIX
• Modelis: 11162

✅ Poland DISTRIBUTION

✅ LATEST MODEL FOR 2023.

✅ BATTERY REPAIR MODE

✅ FAST CHARGING 12V and 24V

✅ AUTOMATIC SUMMER AND WINTER MODE

✅ EASY TO READ LCD DISPLAY

✅ MODERN MICROPROCESSOR

✅ MULTIPLE SECURITY SYSTEMS

✅ SMALL SIZE

✅ FOR BATTERIES FROM 4Ah TO 150Ah

✅ FOR CARS, MOTORCYCLES, BOATS AND OTHER VEHICLES WITH 12V OR 24V BATTERY

Note that this presented battery generates current up to 8A, this guarantees fast charging of each 12V and 24V battery. You won't find that much power at other competitive rectifier auctions.

✅ PASSENGER CARS

✅ TRUCKS

✅ MOTORCYCLES

✅ BOATS

✅ FORKLIFT TRUCKS

✅ MOWERS

✅ BICYCLES

✅ TOYS

✅ ALARMS

✅ AND MANY OTHERS

➡ LATEST VERSION OF AUTOMATIC RECTIFIER WITH BATTERY REPAIR FUNCTION

⚠ WHAT'S NEW IN THE LATEST VERSION

• FASTER CHARGING
• MORE MODERN PROCESSOR
• LARGER LCD DISPLAY
• EVEN MORE SECURITY SYSTEMS

✅ FAST CHARGING

✅REPAIRING 12V and 24V BATTERIES

✅EASY TO USE

✅LCD DISPLAY

✅COMPACT

➡ WORKS WITH START & STOP BATTERIES

➡ FITS ALL 12V and 24V BATTERIES FROM 4Ah TO 150Ah

This rectifier is equipped with an automatic charging function, which means that it is extremely easy to use.

When connected to the battery, it adjusts the charging parameters itself, eliminating the need for manual setting.

1. protection against overcharging
2. fire protection
3. surge protection
4. protection against overheating
5. protection against incorrect connection of connectors
6. Induction protection
7. connectors isolated with a thick layer of PVC
8. air cooling
9. thick wires

The automatic charger has a practical and intuitive control panel. Its operation is similar to that of a mobile phone, which makes it easy to use.

A clear display provides the user with all information, for example:

1. Temperature.
2. Battery charge level expressed in volts.
3. Charging intensity level expressed in amperes.
4. Information about the complete charge of the battery.
5. Battery repair mode.
6. Poorly installed connectors (plus confused with the minus on the battery clamps).
7. The rectifier does not charge.
8. battery level indicator.

1. CAR/TRUCK - for charging large batteries (maximum current load 12V - 8A, 24V - 4A)
2. AGM - for charging AGM, Gel and other batteries
3. MOTORCYCLE - for charging small batteries (current load will not exceed 1,5 A)
4. REPAIR - battery repair mode

The MODE button is used to change operating modes.

Repair mode is aimed at regenerating batteries that have lost their capacity. repair mode helps to restore the correct internal structure of the battery. Thanks to this, you can extend the life of a poorly functioning battery. Instead of replacing the battery with a new one, the repair mode gives you the chance to restore its efficiency and continue using it for a longer period of time.

The rectifier is equipped with an intelligent microprocessor which, in the event of undesirable situations that may result in danger and threat to health and life, cuts off power.

➡ Processor protects against:

• Short circuit.
• Overcurrent.
• Overheating.
• With fire.
• Too little tension.
• Too much tension.
• Reverse connection of cables.
• Stroke.

• Specialized charger optimized for charging batteries with the Start & Stop system, which is a solution increasingly common in new cars.
• On the one hand, this system provides many benefits, e.g. It minimizes exhaust emissions, but on the other hand it uses the battery very intensively. You can also charge the battery used in the Start & Stop system with a rectifier.

If the rectifier detects the temperature:

• above 29°C - summer mode is activated
• below 11°C - winter mode is activated

Depending on the detected temperature, an adequate icon will be highlighted on the screen and the rectifier will optimally charge the connected vehicle / device.

✅ BUILT-IN FAN

The rectifier is equipped with a fan that ensures the correct operating temperature of the device and prevents overheating.

✅ STRONG HOUSING MADE OF DURABLE ABS PLASTIC

The rectifier is equipped with a thick housing made of durable ABS plastic, which is characterized by high resistance to cracks and low and high temperature.

With this device, you can charge or repair various types of 12V and 24V batteries without needing extensive technical knowledge.

• Passenger cars
• Trucks
• Children's toys
• Emergency power source
• Battery-powered lawnmowers
• Battery-powered trimmers

• SLA Batteries
• VRLA Batteries
• AGM Batteries
• Gel Batteries
• Lead-acid Batteries
• Wet-cell Batteries

* And other devices that use 12V or 24V batteries for operation

1. Connect the RED charging clamp to the + POSITIVE clamp on the battery.

2. Connect the BLACK charging terminal to the vehicle chassis or engine block. DO NOT CONNECT IT DIRECTLY TO THE BATTERY. (Do not attach clamps to carburetor, fuel lines, painted or tin body parts)

3. Insert the plug into the electrical outlet and turn on the rectifier.

1. Car battery charging (30-150Ah) - (12V - max. charging current 8A) / (24V - max. charging current 4A).
2. Charging AGM or calcium battery.
3. Small capacity battery charging (6-30Ah) - max. charging current 1,5A.
4. Battery repair: repair of old, sulfured batteries (not all batteries are repairable).

• Power supply: 230V AC.
• Output voltage: 12/24V.
• Output voltage without load: 13,8V.
• Initial minimum voltage: >2V.
• Output current: 12 V 8 A, 24 V 4 A.
• Power under load max.: 130W.
• No-load power: 3,2W.
• Air cooling (fan).
• Battery level indicator.
• Voltage and charging intensity indicator.
• Ambient temperature sensor (if temp. It will drop below 10 degrees Celsius rectifier will increase the charging voltage if temp. will rise above 29 degrees Celsius rectifier will reduce the charging voltage).
• Indication of poor battery connection/contact contamination/battery damage.
• Dimensions: 17x10x5,5cm.
• Length. power cord: about 115 cm.
• Length. wires with clamps: about 70 cm.

Specifications
