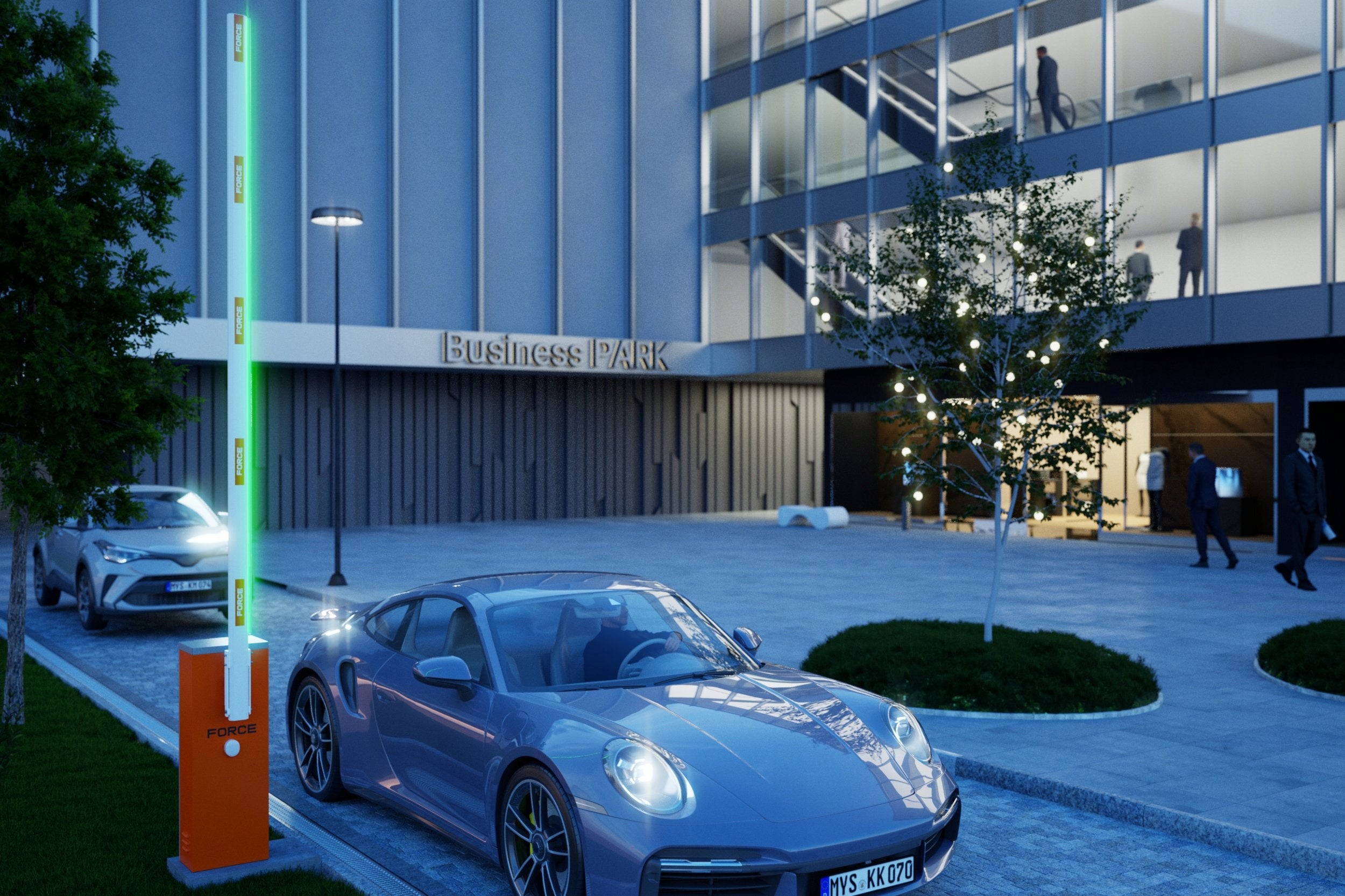

Automatinė užtvara BARRIER FORCE GR5000 su 6 m strėle ir integruotu eismo šviesoforu

Trumpai apie prekę

Prekė: Automatinė užtvara BARRIER FORCE GR5000 su 6 m strėle ir integruotu eismo šviesoforu. Kategorija: Kietieji diskai.

• Gamintojas: Force
• Modelis: GR5000
• Įtampa: 230 V

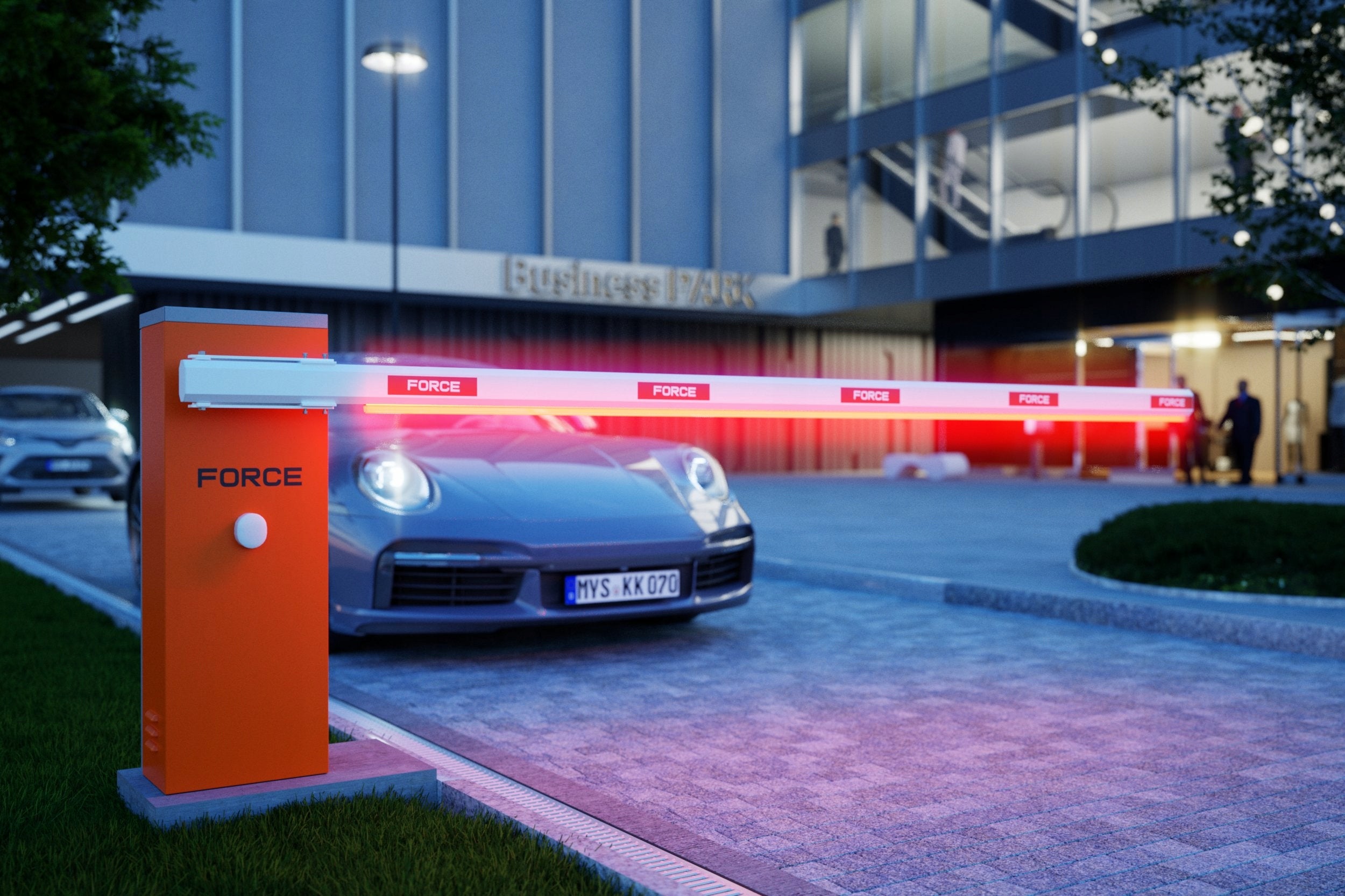

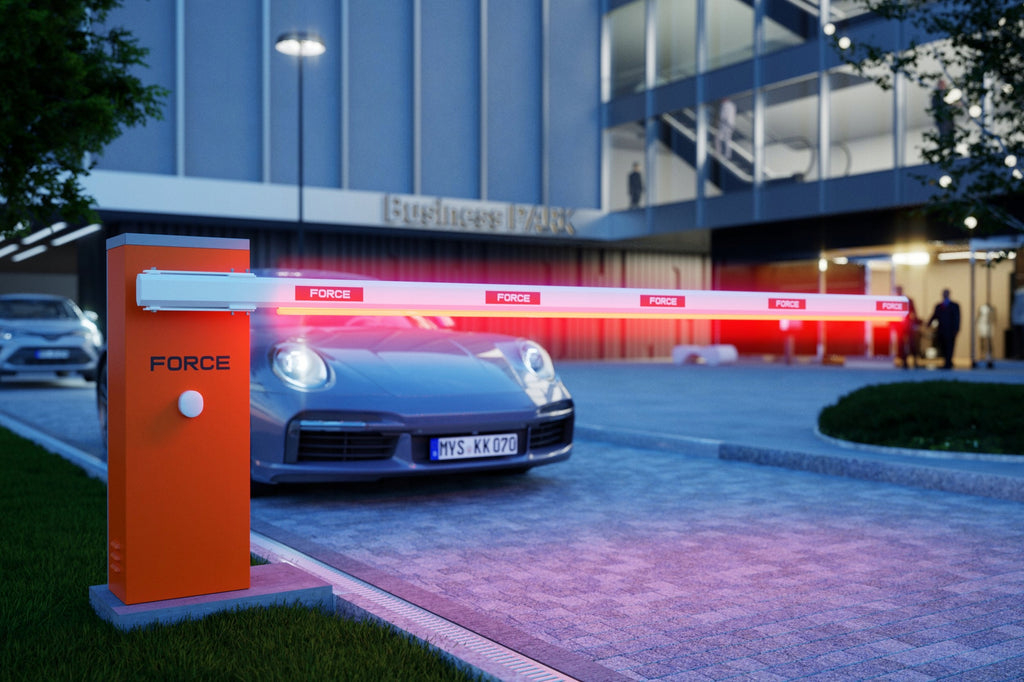

The FORCE GR5000 barrier is designed for private, public and industrial applications. The highly efficient brushless Brushless motor used in the barrier is characterized by a high operating frequency of 100% which means that GR5000 can be used for very intensive work. Brushless technology guarantees quality, performance and durability. Another strong feature of the FORCE GR5000 barrier is the opening speed from 1,5 - 5 seconds.

A big advantage of the FORCE GR5000 barrier is the rich equipment as standard. Factory built-in are, among others:

• semaphore barrier beam lighting in red and green,
• built-in emergency power charging card
• built-in overcurrent circuit breaker
• built-in radio receiver with an antenna outside the outline of the barrier housing

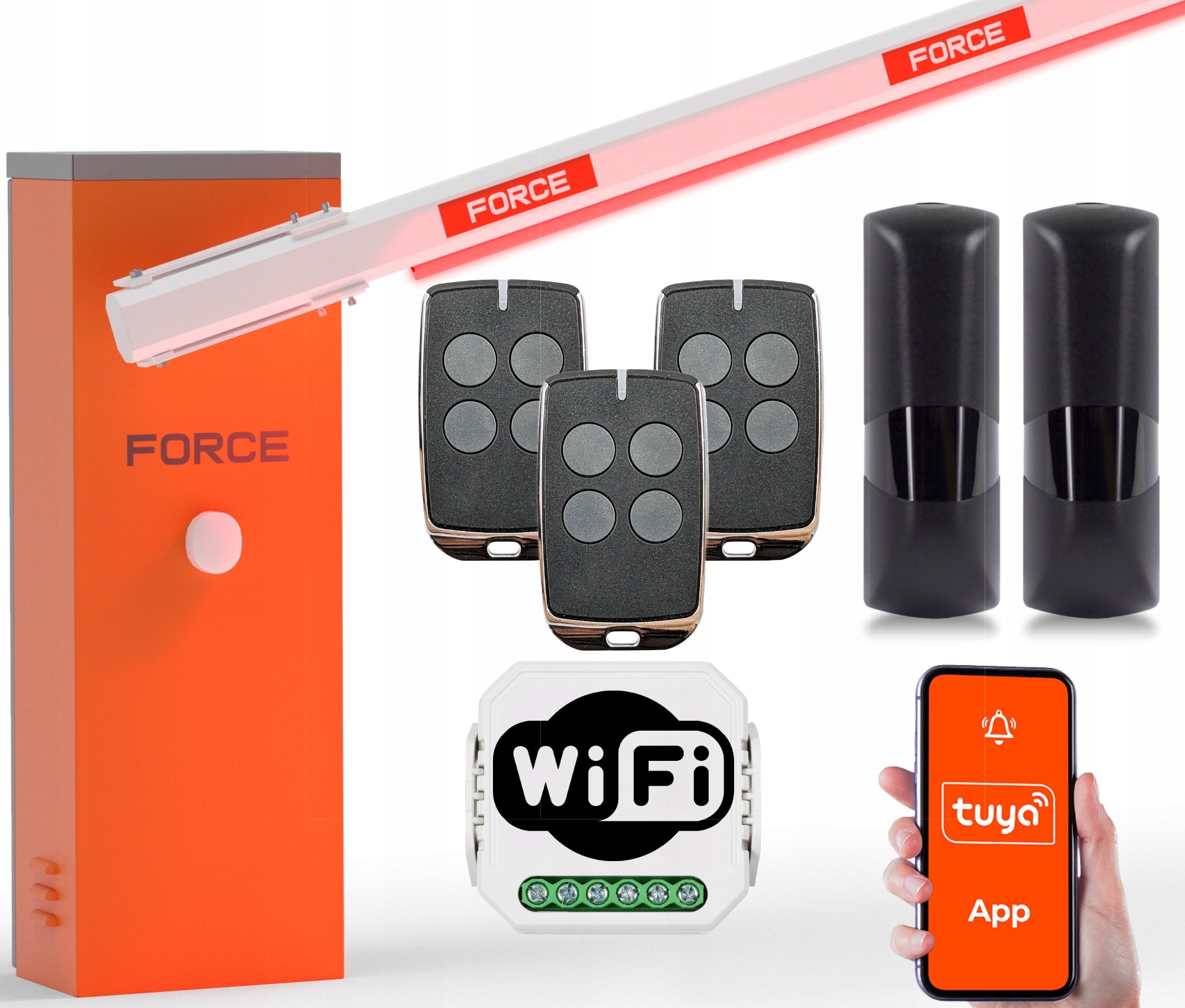

The set includes:

• Electromechanical barrier FORCE GR5000 with brushless motor
• 6000mm octagonal aluminum arm with impact-absorbing rubber protective strip and reflective stickers
• Semaphore LED Barrier Arm Lighting System with Red and Green Light
• Balancing springs of the barrier arm
• Control panel with display
• Built-in radio receiver
• Output antenna beyond the outline of the barrier housing
• 3x Remote control
• Overcurrent circuit breaker
• Built-in emergency power charging card
• WiFi controller - allowing you to control the barrier using a mobile phone
• Built-in induction loop detector

SECURE YOUR PARKING

• SAFETY AND CONTROL- secure your entrance to the parking lot, property or housing estate against unauthorized persons,
• PARKING COMFORT- Get more comfort of entering the parking lot - just press the button on the remote control to open or close the barrier,
• CONVENIENT OPERATION- you will open the exit without leaving the car,
• PARKING SPACE- thanks to securing the parking lot with a barrier, you can be sure that you will always find a parking space - people without permission will not be able to enter the parking lot,
• MANY APPLICATIONS- automatic barrier FORCE GR5000 was created to control and operate parking lots, collective garages, private roads and properties, industrial facilities, etc.,
• PROTECT YOUR PROPERTY- unauthorized persons will not park on the premises of your company, store, road or property and you will not have to apply additional security,
• SAVE TIME AND MONEY- thanks to the automatic barrier, you do not have to supervise the parking lot or hire employees, it will save you time and money.

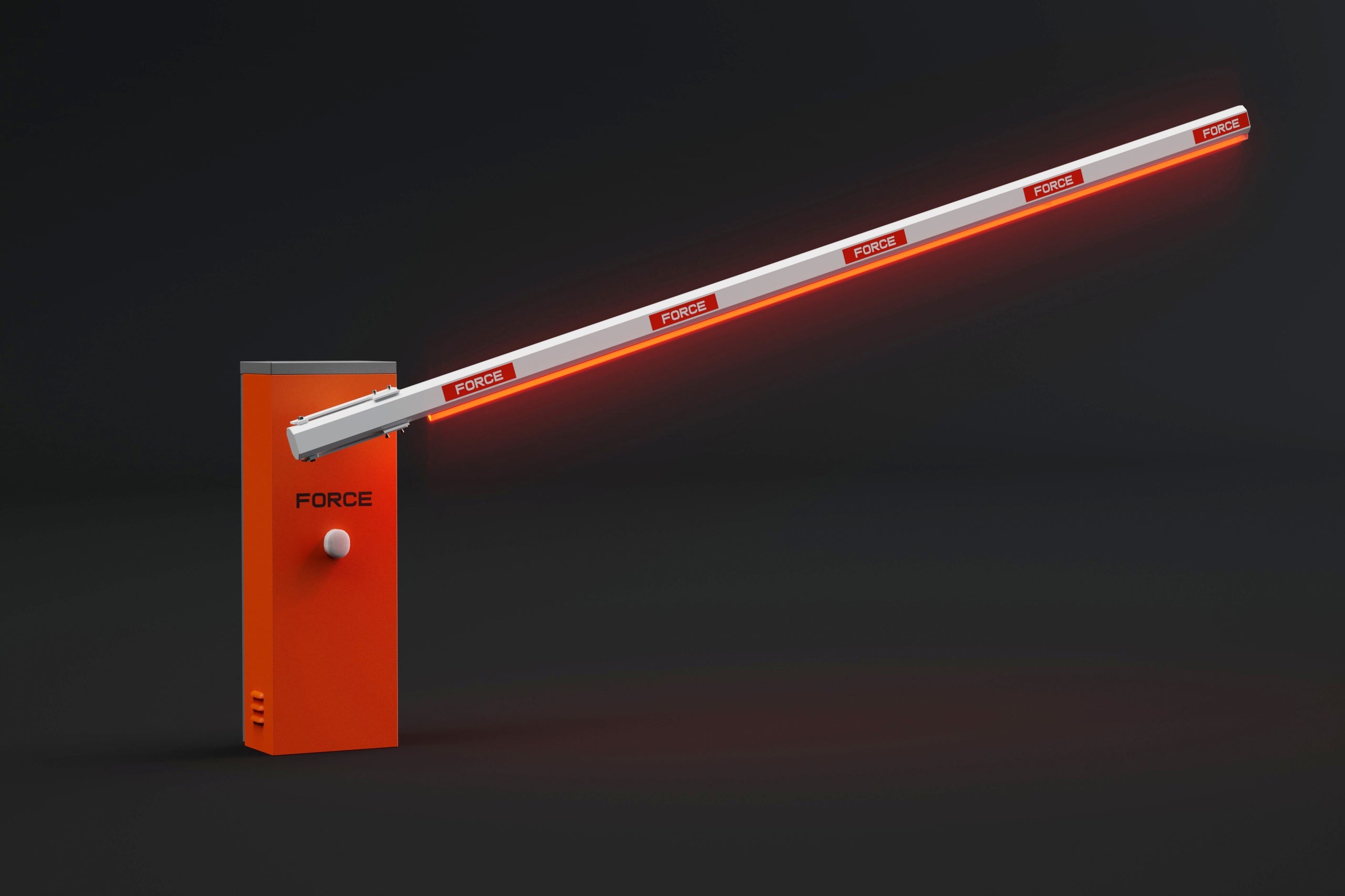

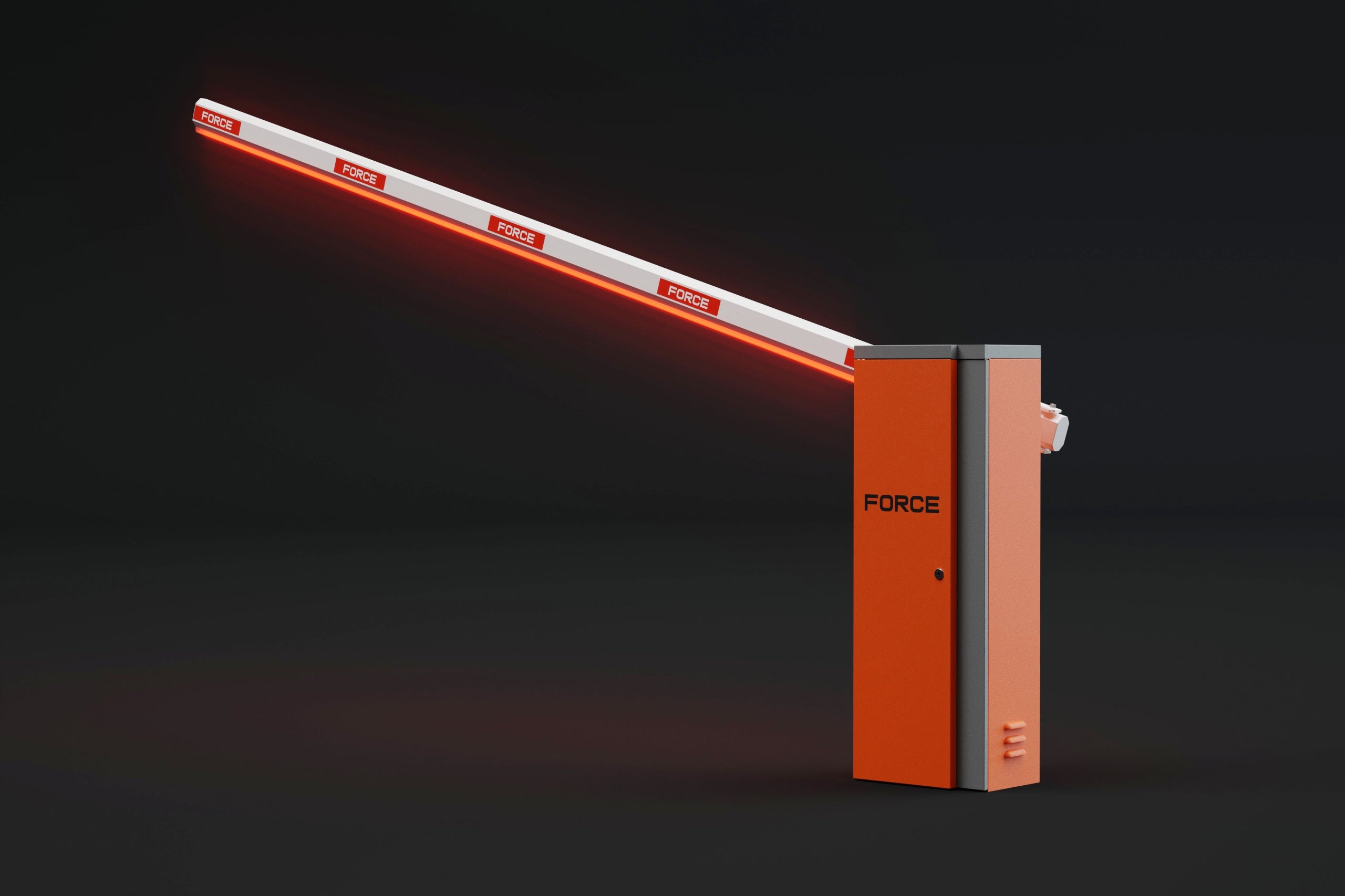

Integrated barrier beam lighting semaphore

• semaphore lighting (red-green light) built into the barrier arm
• when the barrier beam is lowered, during lifting or falling, the barrier beam is illuminated with a red light (default information for drivers "Stop").
• After opening the barrier, the lighting of the barrier beam changes to green (this is the default information for the driver that he can pass through the passage).

FORCE GR5000 barrier is a robust and durable device that features:

• QUIET OPERATION- the barrier operates quietly and smoothly, making it very comfortable to use,
• ADVANCED TECHNOLOGY- brushless DC motor combined with a control panel equipped with a display provides convenient operation and adjustment to individual needs
• STRENGTH–steel barrier housing, powder coated provides high strength and resistance to weathering and corrosion,
• LONG SERVICE LIFE- long service life (up to 5 million cycles) will ensure trouble-free use for a long time,
• HIGH DURABILITY- thanks to the high quality barrier does not require frequent maintenance, solid construction of the housing and springs minimizes the risk of repairs,
• FOR MANY USERS- you can register up to 100 remote controls
• TEMPERATURE RESISTANT- wide operating temperature range ensures smooth operation regardless of the weather,
• EXCELLENT VISIBILITY- The clear color of the housing and reflective elements of the arm make the barrier visible even in low light conditions,
• SAFETY- in case of encountering an obstacle, the arm will change the direction of movement to the opposite, so as not to damage the vehicle
• PROTECTION- rubberized barrier arm increases the safety of use,
• ANTI-COLLISION PROTECTION- exceptional safety function- When the vehicle accidentally hits the barrier arm, the anti-collision mechanism rotates the arm to minimize damage to the vehicle and the barrier,
• EASY INSTALLATION- installation and configuration is described in detail in the attached instructions, so that the installation will run smoothly,
• INDIVIDUAL CUSTOMIZATION- The barrier arm can be shortened on its own and adapted to narrow passages,
• ACTION IN CASE OF POWER FAILURE- the barrier can work even after power failure after connecting an external battery [the barrier has the ability to install batteries that will allow the device to work after power failure (parameters: 2x gel battery | 12V | 9Ah) the battery is not part of the set]
• EXTERNAL CONTROL- it is possible to install a button for external control,
• INTEGRATION WITH ACCESS CONTROL- you can easily integrate the barrier with other access control systems or parking ticket office

TECHNICAL CHARACTERISTICS:

• Model: GR5000

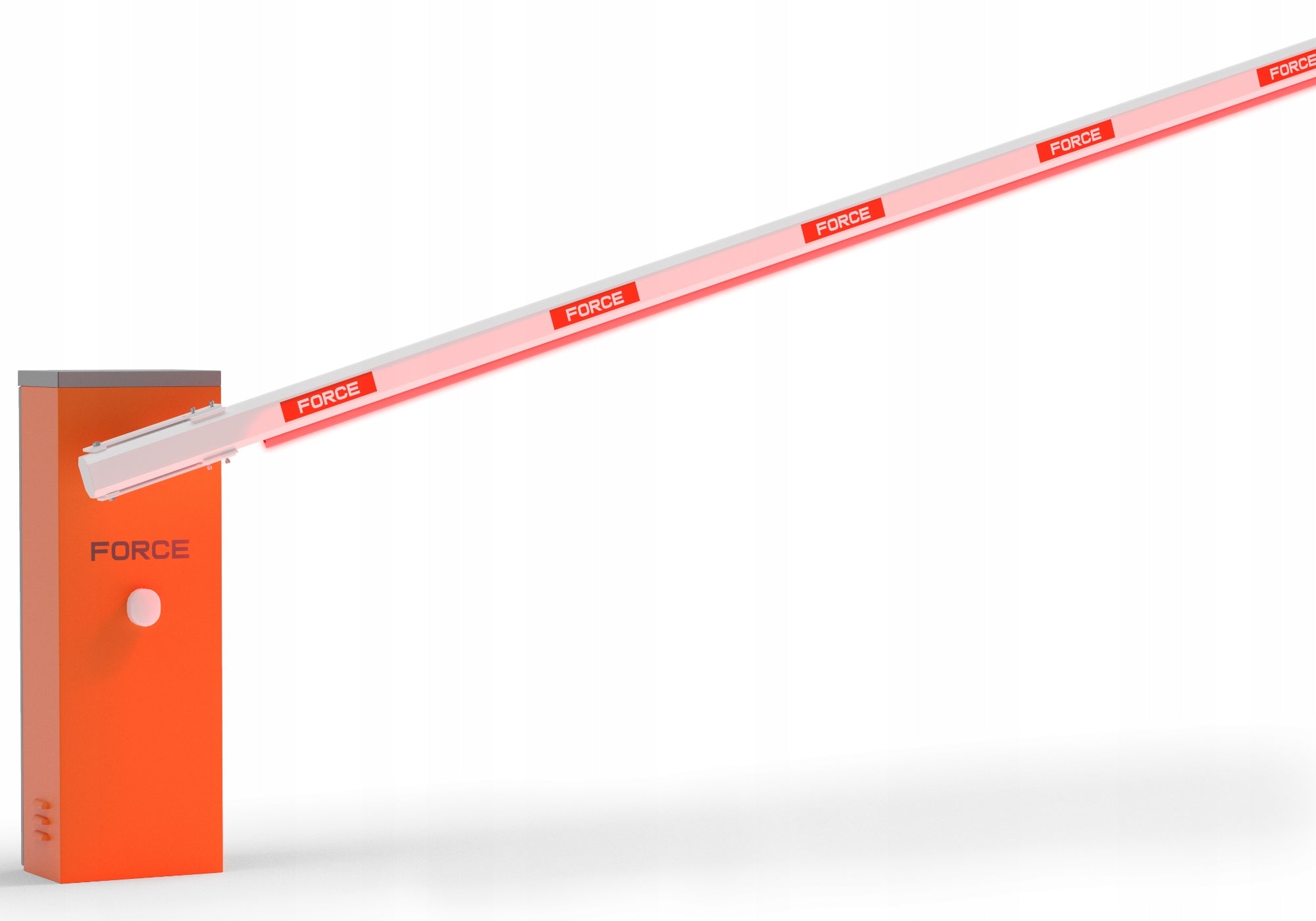

• Arm length: Octagonal boom 100x 45mm, ≤6m
• Opening/closing time: 3,5 sec.
• Transmission factor: 1:120
• Maximum power: 250W
• Power supply: AC110-240v ± 15%
• Outside housing: Sheet metal body 1,5 mm
• Dimensions (W x L x H ): 240 x 330 x 960 mm
• Net weight: 42 kg
• Operating temperature range: -40~+60°C (at temperatures below -20° it should be equipped with an electric hob)
• Principle of operation: 24V brushless DC motor
• Protection system (IP): 54 (suitable for outdoor use)
• Isolation class: F
• Relative humidity: ≤85%
• Engine speed: 1500 revolutions/min
• Lifetime: 5 million cycles
• Noise level: < 55 dB
• Anti-corrosion protection: Powder coating (Orange color)

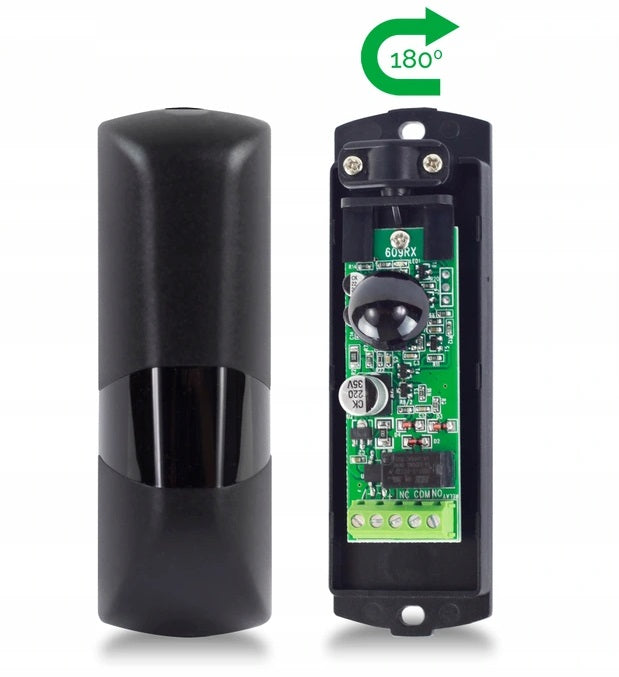

Technical specification:

• Dimensions: 108mm x 35mm x 30mm
• Power Supply: 12-24V DC/AC
• Range: max 15meters
• Current Consumption: RX 15Ma - TX 30mA
• Relay: 1A max 36V
• Frequency: 1,92Khz
• Wavelength: 940nm
• Operating temperature: -20 to +55°C
• Viewing angle: 180 degrees (adjustable)
• Operation: from all angles (vertical and level)
• Weight: 105g
• Pins for mounting included

Convenient to install, because on narrow metal posts you can mount them on the planes of the post from the outside (from the side of the road) and only turn the electronics element 90 degrees towards the second photocell so that the photocells "see" each other.

Four-channel elegant remote control in metal-plastic housing. The remote operates on a variable-code frequency of 433,92MHz.

• Frequency: 433,92 MHz
• Number of Buttons: 4
• Housing: chrome-plated metal with plastic
• Battery: NM27 12V (included)
• Dimensions: 33 x 9 x 60 mm
• Weight: 26 g

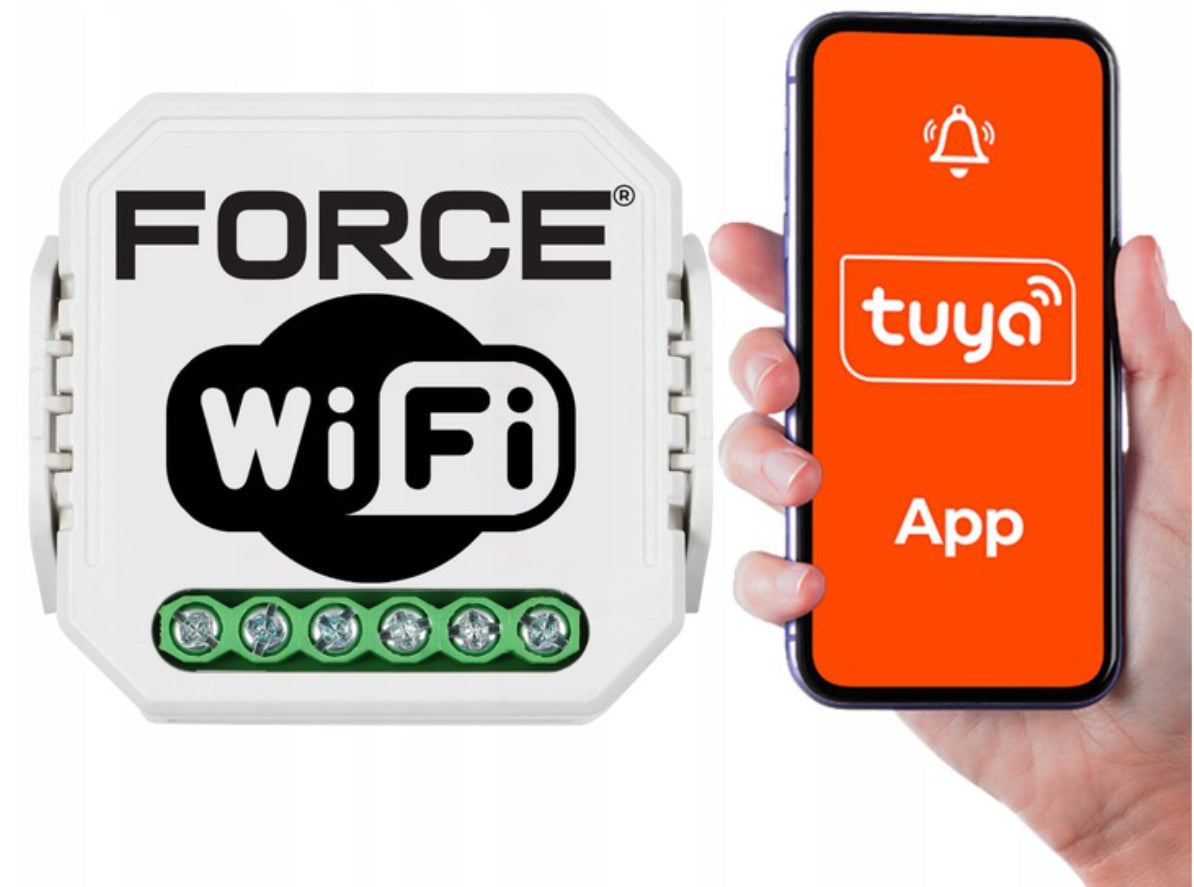

You can control the barrier with your phone from anywhere in the world through the TUYA application, which is available for your smartphone and tablet (Android and iOS, Play store and AppStore). You no longer need to be in close proximity to the barrier to open or close it. From anywhere you will let in the courier, supplier or guest, while accidental or unwanted vehicles will no longer park on your property.

With the help of the WiFi driver and Tuya application, it is also possible to control other FORCE m.in devices using the phone. automatic entrance and garage door, video intercom, alarm, automatic door locks, sockets, bulbs, controllers, etc.

Thanks to the included sensors that can be mounted on the barrier, we can observe in the application whether the barrier is closed or open.

The application is available in Polish
