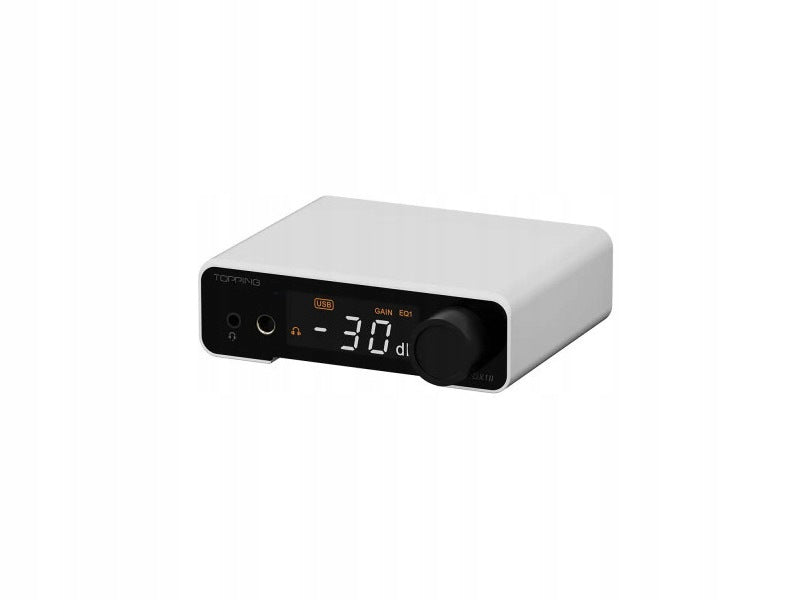

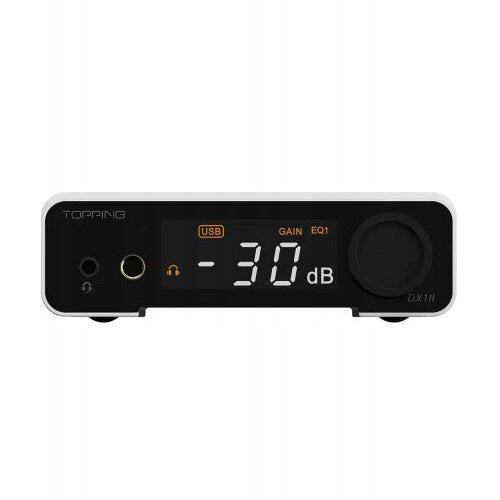

Ausinių stiprintuvas ir DAC TOPPING DX1 II su DSP, pritaikytas žaidimams

Trumpai apie prekę

Prekė: Ausinių stiprintuvas ir DAC TOPPING DX1 II su DSP, pritaikytas žaidimams. Kategorija: Ausinių stiprintuvai.

• Gamintojas: Topping
• Modelis: DX1II

TOPPING DX1 II –DAC, Headphone Amplifier and DSP (Gaming Ready) Processor

Audiophile DAC, balanced amplifier and DSP (Gaming Ready) processor

Desktop powerhouse in a pocket-sized format

TOPPING DX1 II is an uncompromising combo device that completely redefines the concept of compact desktop audio equipment. This 275-gram titanium combines the capabilities of a reference digital-to-analog converter (DAC), a powerful fully balanced headphone amplifier and a precision DSP processor with an extensive 10-band PEQ equalizer. At the heart of the digital processing chip is the sensational ESS SABRE ES9039Q2M chipset, which provides crystal clear sound and extremely high dynamics of 128 dB, reducing distortion (THD+N) to a completely inaudible ceiling below 0.00007%.

The real phenomenon of the DX1 II is its power and amplification section. The device does not require an external power supply (so-called. cubes) – draws energy directly from the USB connector of the computer. Despite this, it can deliver monstrous power up to 1000 mW per channel (at 32 Ω) from a balanced 4.4 mm output! This is absolutely enough to control almost any headset, including power-hungry planars, while maintaining the completely "black" (noise-free) background necessary to use high-sensitivity in-ear monitors (IEMs). Additionally, the microphone support in popular headsets makes it the ultimate weapon for music lovers, streamers, and professional esports players.

Key Technologies and Capabilities

• ✔ DAC ESS ES9039Q2M and XMOS XU-316: The next-generation 16-core USB interface decodes dense files without shortness of breath. The design provides full support for music in lossless PCM format up to 32-bit/384kHz and DSD256 native files, ensuring authentic holography and reproduction of the smallest details.
• ✔ 10-Band Hardware PEQ (DSP Processor): The device can apply advanced sound filters without straining Windows. The TOPPING Tune app and intuitive Home Web platform allow you to align the bandwidth of any headphones, add deep bass or expose your opponent’s steps (in your Gaming profile).
• ✔ Hi-Fi Voice Chat (TRRS Connector): Rarity in audiophile equipment. The front 3.5mm port supports 4-pole plugs, which means it supports signal from microphones built into gaming headsets and in-ear headphones (with conversion up to 24-bit/192kHz). Perfect for tournament games, streaming or video meetings!
• ✔ Powerful Power 2 x 1000 mW (Balanced): The 4-channel, fully balanced architecture of the output section generates stunning power reserves from the Pentaconn 4.4 mm connector (and a powerful 800 mW from the 3.5 mm connector). Say goodbye to quietly playing headphones, despite being powered by only 1 USB cable.
• ✔ Gaming Ready - UAC 1.0/2.0 switch: The rear slider allows you to hardware lower the USB protocol to the UAC 1.0 standard. In this way, the Topping DX1 II turns into an outstanding audiophile "plug & play" sound card for Sony PlayStation 5 and Nintendo Switch consoles, which the competition's equipment often does not allow.
• ✔ Comprehensive Pre-Amp Hub (Optics, RCA and 4.4mm OUT): The DX1 II is equipped with independent Optical Input and Output (SPDIF) and rear line outputs (Balanced 4.4 mm and standard RCA). With the included remote control, you can conveniently adjust the volume of the active desktop speakers connected to it.

Detailed technical data

• Drill system (DAC): ESS SABRE ES9039Q2M
• USB Processor: 16-core XMOS XU-316 chip
• DSP Corrector: Hardware Advanced 10-Band PEQ Equalizer (set by TOPPING Tune software)
• Supported formats (USB): PCM up to 32-bit / 384 kHz, Native DSD up to DSD256
• Supported formats (Optical Connector): PCM up to 24-bit / 192 kHz, DSD64 (via DoP)
• Digital Inputs: 1x USB-C (Audio + Power Supply), 1x Optical SPDIF
• Headphone Outputs (Front Panel): 1x Balanced 4.4 mm (Pentaconn), 1x Unbalanced 3.5 mm TRRS
• TRRS connector for microphone: The 3.5 mm jack can collect signal from built-in headset microphones (signal up to 24-bit / 192 kHz)
• Pre-Amp Outputs (Rear Panel): 1x Balanced 4.4 mm Line Out, 1x Unbalanced RCA (L/R), 1x Digital Optical SPDIF
• Distortion (THD+N): Below 0.00007% @ 1kHz
• Dynamic range and SNR: 128 dB (Balanced output) | Crosstalk between channels: -140 dB
• Output power (4.4 mm BAL socket): 1000 mW x 2 at 32 Ω | 230 mW x 2 at 300 Ω (THD+N < 1%)
• Output power (3.5 mm SE socket): 800 mW x 2 at 16 Ω (THD+N < 1%)
• Background noise level: Just 0.9 Vrms (in Low Gain mode) - ideal for high-performance in-ear headphones
• Power Supply: Bus-Powered device, powered directly by a cable from the USB-C input
• Dimensions: Very compact, just approx. 10.0 cm (W) ) x 10.0 cm (depth. ) x 3.2 cm (H) )
• Weight: Approx. 275 g
• Includes: TOPPING DX1 II device, Remote control (IR), USB-A to USB-C connection cable, USB-C to USB-C cable, User manual / Information card
