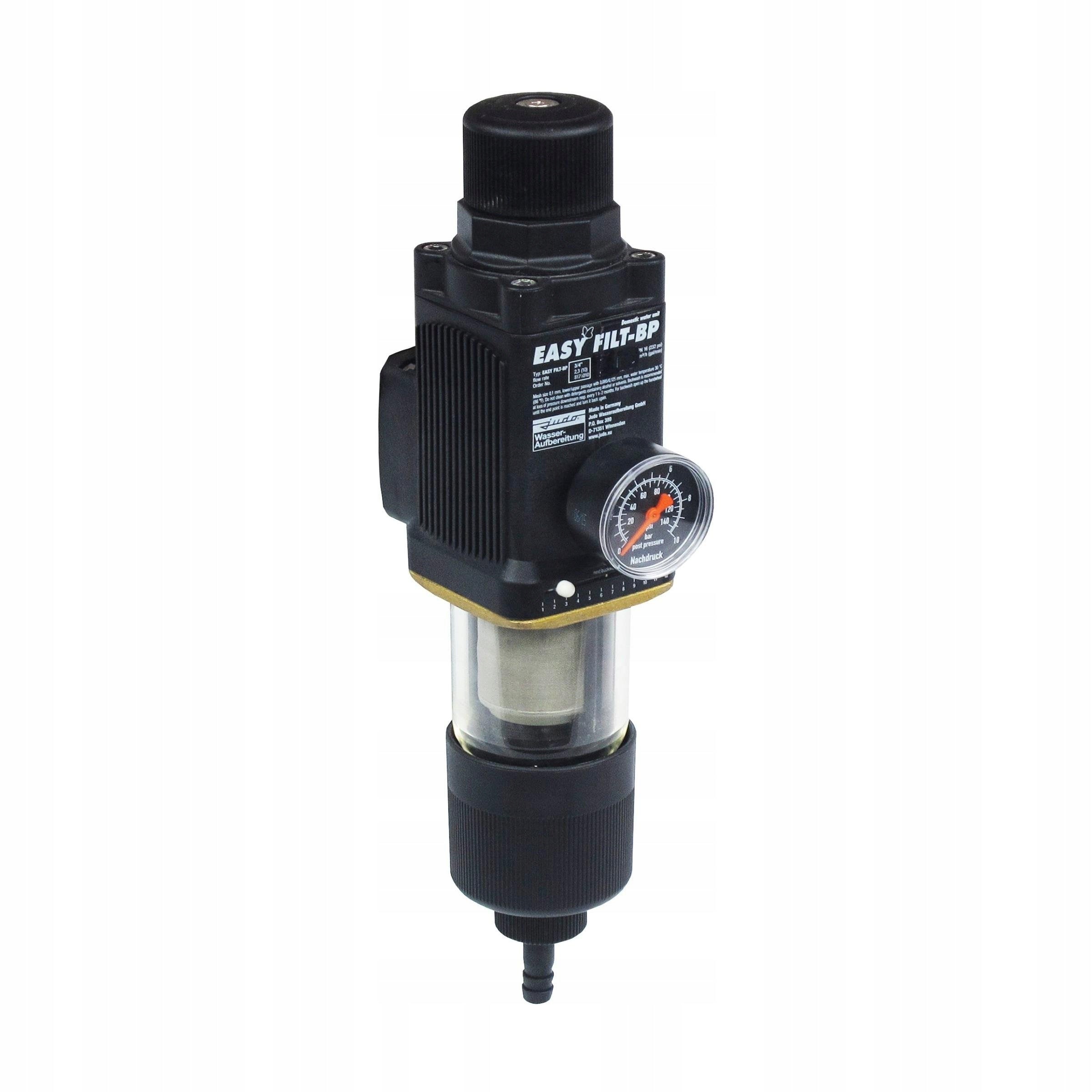

Atbulinio plovimo filtras JUDO Easy Filt-BP 1

Trumpai apie prekę

Prekė: Atbulinio plovimo filtras JUDO Easy Filt-BP 1. Kategorija: Vandens filtrai ir minkštikliai.

• Gamintojas: no brand
• Modelis: JUDO Easy Filt-BP 1
• Talpa: 1 l

• All products offered by us are completely NEW and are subject to the full GUARANTEE of the manufacturer.
• We offer only proven and fully functional products!
• We provide very efficient after-sales service. If you have a question, at any time you can call or write.

P04189

Application Backwash filter JUDO EASY FILT-BP with built-in pressure reducer is dedicated for installation in installations with cold water, as well as in all other installations where the temperature of water and the environment does not exceed 30º C. This filter is designed for installation in a drinking water system for filtration and pressure reduction. The maximum permissible pressure at the entrance to the filter should not exceed 10 bar. We also offer other filters, including those with a silver-coated cartridge and without a pressure reducer. They are also available in versions with automatic backwashing that do not require any interference in the filtration process.

Features and benefits

• Economy: no need to replace the cartridge and minimal water consumption for backwashing.
• Efficiency of cleaning: backwashing is carried out using a vacuum rotary system that does not require cutting off the water supply.
• Hygiene: no need to replace the cartridge means no need to open and no possibility of air entering the interior.
• Protection and efficiency: the built-in pressure reducer with adjustable range of 1,5-6 BAR allows you to save water effectively.
• Versatility: Can be used in vertical and horizontal wires.

Construction and execution

The filter body is made of high-quality plastic, PN 16 with a threaded brass housing.

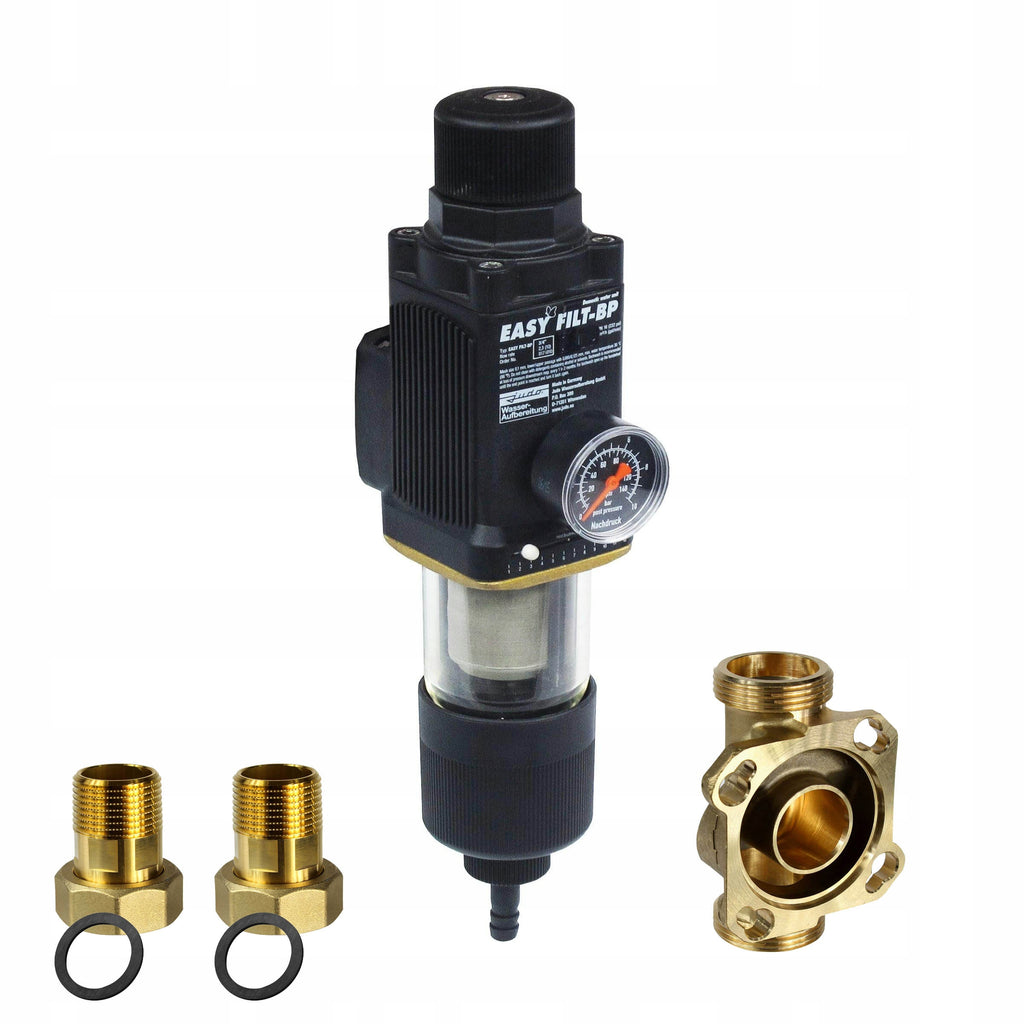

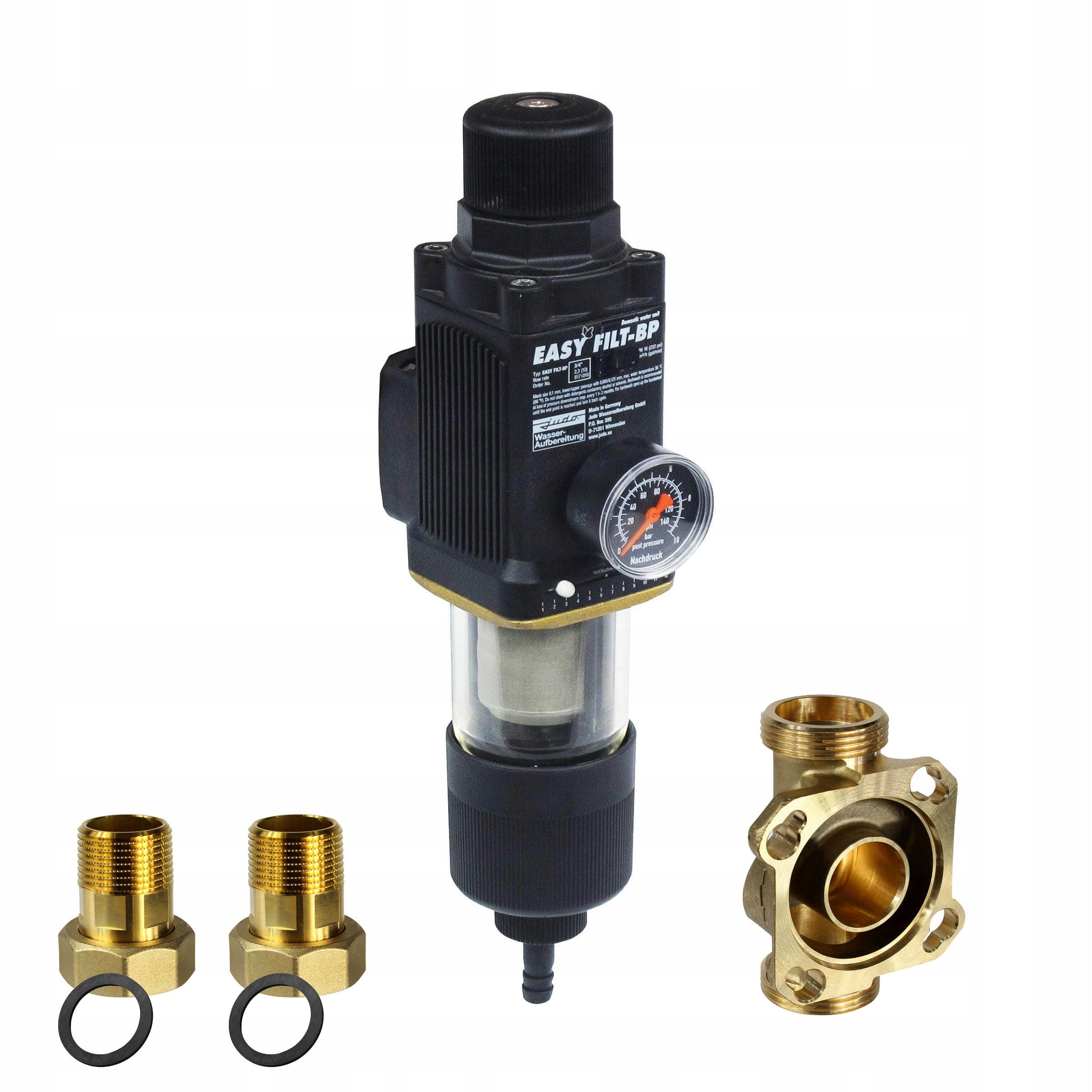

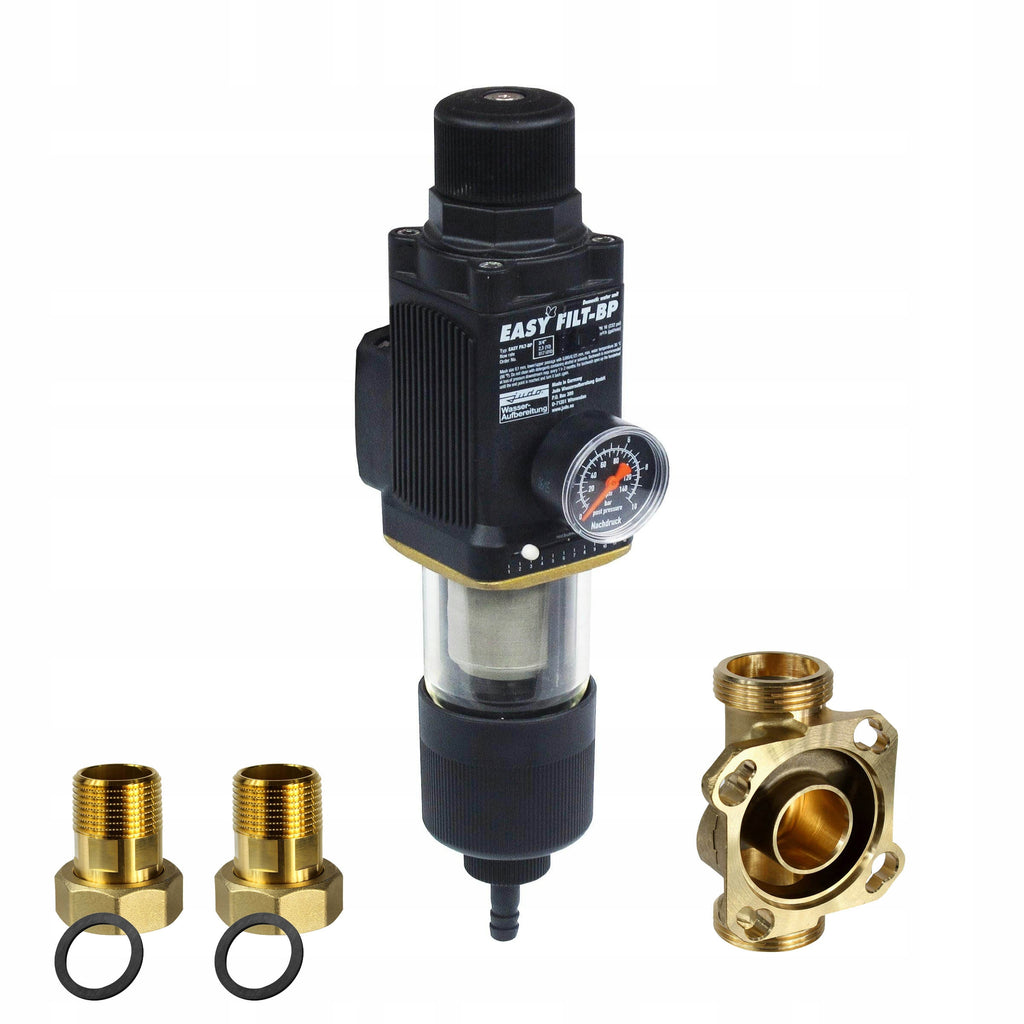

Stainless steel filter cartridge with a nominal filtration accuracy of 100 microns. It has a large knob for backwashing and cleaning the transparent filter housing. Integrated pressure reducer pre-set to 4 bar (possibility of adjusting the outlet pressure in the range of 1,5-6 bar). Additional cover with a zipper reminding about the date of the next backwash, the top cover is removable. Includes a set of 1" half-screws with gaskets. Mounting flange with patented "Bajonett" connection and the possibility of mounting the filter on a horizontal and vertical pipeline.

Why is it worth filtering water? Small particles in the water mean big problems in installation.

The number of damages caused every year in unprotected pipelines, fittings and equipment is very large. The causes of these problems are often small particles of sand and debris entering the installation along with water from waterworks or wells. An additional risk is unfortunately the failure of water supply networks, which often causes uncontrolled entry of undesirable elements into the water. Such molecules form dangerous electrochemical compounds that cause corrosion, rust deposition and even tearing of the pipe. These particles can also lead to serious damage to faucets, fittings and heating elements, as well as other household appliances for water.

Therefore, when we do not have a guarantee that the water supplied will always be crystal clear, we recommend using mechanical filters JUDO with backwash EASY FILT for the entire facility. These filters are easy to install and for a relatively low price provide security for much more expensive devices throughout your home. An important feature of the filter with backwash system is that does not require unscrewing the entire body as with a classic housing with a cartridge. This saves a lot of time and does not require troublesome unscrewing and reassembly, thus maintaining the durability of seals and screws, eliminating the risk of possible leaks.

• Security parameters: Yes
• Label-color: Gold

Basic parameters

• Filtering accuracy [micron]: 100
• Nominal flow [m³/h]: 3,6

Connections

• Type of input connection(s): Thread [inch]
• Dimension of connection in.: 1
• Input thread type: Z - external
• Type of output connection(s): Thread [inch]
• Dimension of connection output: 1
• Thread type output: Z - external

Advantages / Contraindications

• Liquid temperature max. [°C]: +30
• Pressure max. [BAR]: 10
• Backwash system: Yes
• Built-in pressure regulator: Yes
• Manometer: Yes

Dimensions and weight

• Length [mm]: 195
• Width [mm]: 80
• Height [mm]: 429
• Weight [kg]: 3,1

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Kind	filter
Parametry	Capacity	1 l
Parametry	Manufacturer code	8171011
Parametry	EAN (GTIN)	4038097030309
Parametry	Dominant color	black
Parametry	Model	JUDO Easy Filt-BP 1
