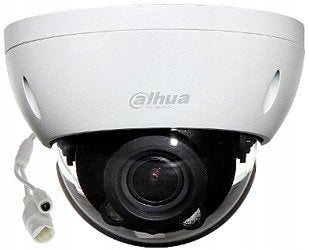

Apsaugos IP kamera DAHUA IPC-HDBW2230R-VFS, atspari vandalizmui

Trumpai apie prekę

Prekė: Apsaugos IP kamera DAHUA IPC-HDBW2230R-VFS, atspari vandalizmui. Kategorija: IP kameros.

• Gamintojas: no brand
• Modelis: Dahua IPC-HDBW2230RP-ZS Kamera kopułkowa IP

Standard:

TCP/IP

Converter:

1/2.8" Progressive Scan Exmor CMOS

Matrix size:

2.1 Mpx

Resolution:

1920 x 1080 - 1080p ,

1280 x 1024 - 1.4 Mpx

1280 x 960 - 1.3 Mpx

1280 x 720 - 720p

Lens:

2.8 ... 12 mm

Viewing angle:

• 92 ° ... 28 ° (manufacturer's data)
• 104° ... 27° (our tests)

Signal/Noise Ratio (S/N):

> 50 dB

IR illuminator range:

30 m

RS-485 interface:

Memory card slot:

Micro SD card support up to 128GB (local storage possible)

Image compression method:

H.265 / H.264 / MJPEG

Emergency Inputs/Outputs:

Audio:

Bitrate:

86 ... 5632 kbit/s @ H.265

216 ... 9216 kbit/s @ H.264

Network interface:

10/100 Base-T (RJ-45)

Network protocols:

HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/IPv6, QoS, UPnP, NTP, Bonjour, IEEE 802.1x, Multicast, ICMP, IGMP

Memory clock speed Number of online users:

20

ONVIF:

16.12

Access from mobile phone:

Port: 37777 or cloud access (P2P)

• Android: Free gDMSS Plus App
• iOS (iPhone): Free iDMSS Plus App

Default IP address:

192.168.1.108

Default administrator login/password:

admin / admin

Access ports via www:

80, 37777

Access ports via PC app:

37777

Access port via mobile application:

37777

ONVIF port:

80

RTSP URL:

rtsp://admin:admin@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream

rtsp://admin:admin@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream

WEB Server:

Built-in

Main stream transmission speed:

25 fps @ 1080p

Selected functions:

• 3D-DNR - Digital Noise Reduction in Images
• WDR - 120 dB - Wide range of lighting dynamics
• ICR - Mechanical Infrared Filter
• BLC - configurable reverse light compensation
• HLC - Strong light compensation (point)
• Day/night mode (color/b&w/auto)
• Customizable privacy zones

Handheld Vacuum Cleaner:

• PoE (802.3af),
• 12 V DC / 450 mA

Power Consumption:

≤ 5.4 IN

Case:

Dome - Metal

Color:

240mm

Vandal-proof:

IK10

Leak-proof class:

IP67

Operating Temperature:

-30 °C ... 60 °C

charger, docking station

0.43 kg

Dimensions:

Ø 122 x 89 mm

Supported languages:

English, Polish

Manufacturer / Brand:

DAHUA

Guarantee:

3 years

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	EAN (GTIN)	6939554936968
Parametry	Manufacturer code	IPC-HDBW2230RP-ZS
Parametry	Brand	no brand
Parametry	Model	Dahua IPC-HDBW2230RP-ZS Kamera kopułkowa IP
