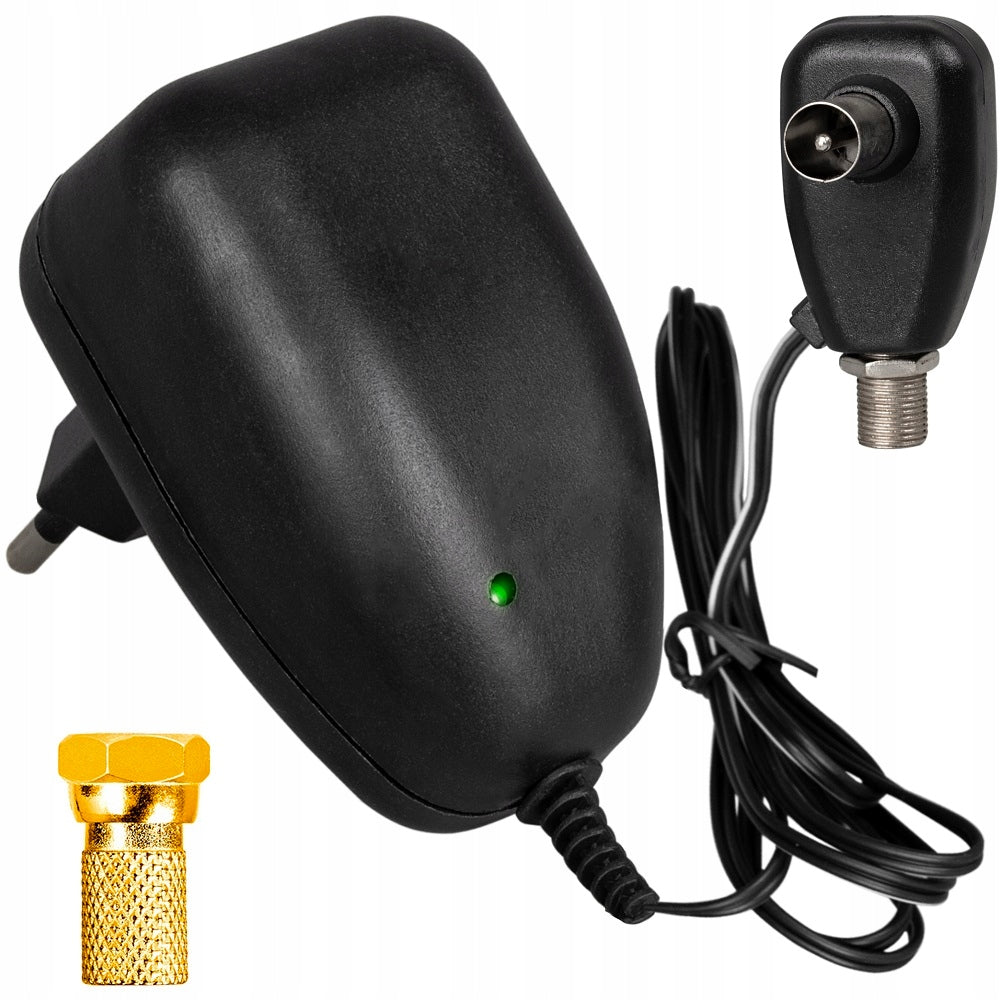

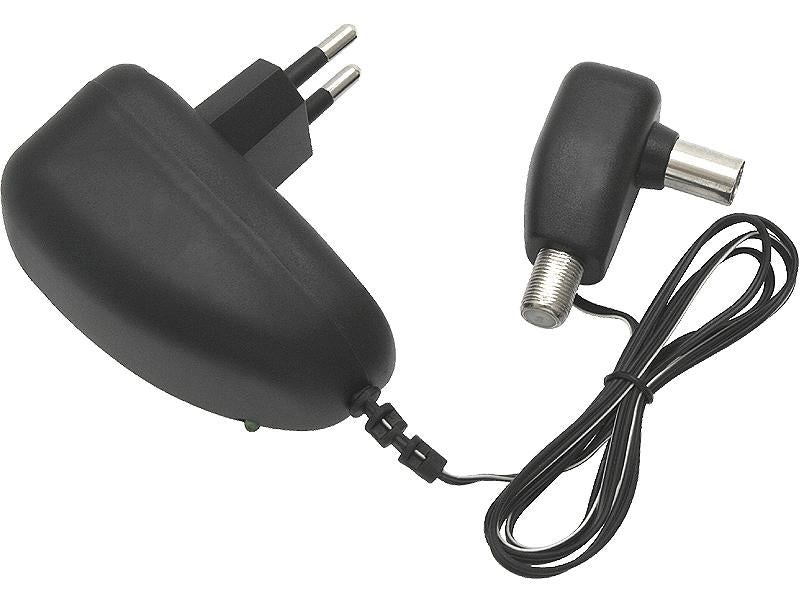

Antenos maitinimo šaltinis 12V DVB-T2 stiprintuvas F jungtis VAYOX

Trumpai apie prekę

Prekė: Antenos maitinimo šaltinis 12V DVB-T2 stiprintuvas F jungtis VAYOX. Kategorija: Stiprintuvai.

• Gamintojas: Vayox
• Modelis: Zasilacz antenowy z gniazdem F VZ-3/01

• Antenna power supply designed to power antenna amplifiers.

• The power supply is designed for continuous operation, after mounting the coaxial cable to the splitter and connecting the power to the mains socket, it can remain switched on.

• Correct operation of the PSU is signaled by the LED on the PSU housing.

• In the case of faulty connection of the coaxial cable to the splitter or the amplifier output (short-circuit of the braid and the inner cable), the control diode does not light.

• The protections that this power supply has been equipped with minimize the risk of overheating of the device.

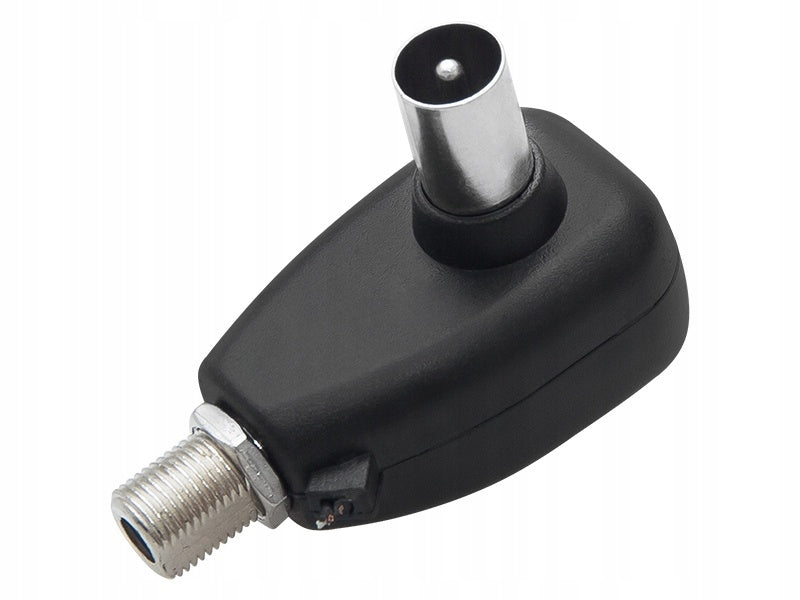

• The power supply separator has been equipped with an F socket , which makes it much easier to connect the antenna cable to the power supply. The set also includes an F gold CU plug.

• Antenna power supply with voltage separator , used to power antenna amplifiers in DVB-T antennas.
• Once the coax cable has been mounted to the splitter and power has been applied to the AC outlet, it can remain on. Correct operation of the PSU will be signaled by the indicator diode on the housing.
• In case of incorrect connection of the antenna cable to the separator or the amplifier output (short circuit between the braid and the internal cable), the control diode does not light.

• Supply voltage - AC 230~50Hz
• Output voltage - DC 12V 100mA
• Max load - 100mA

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Vayox
Parametry	Model	Zasilacz antenowy z gniazdem F VZ-3/01
Parametry	Product weight with unit packaging	0.15 kg
Parametry	EAN (GTIN)	5902689079955
Parametry	Manufacturer code	Zasilacz z gniazdem F VZ-3/01
