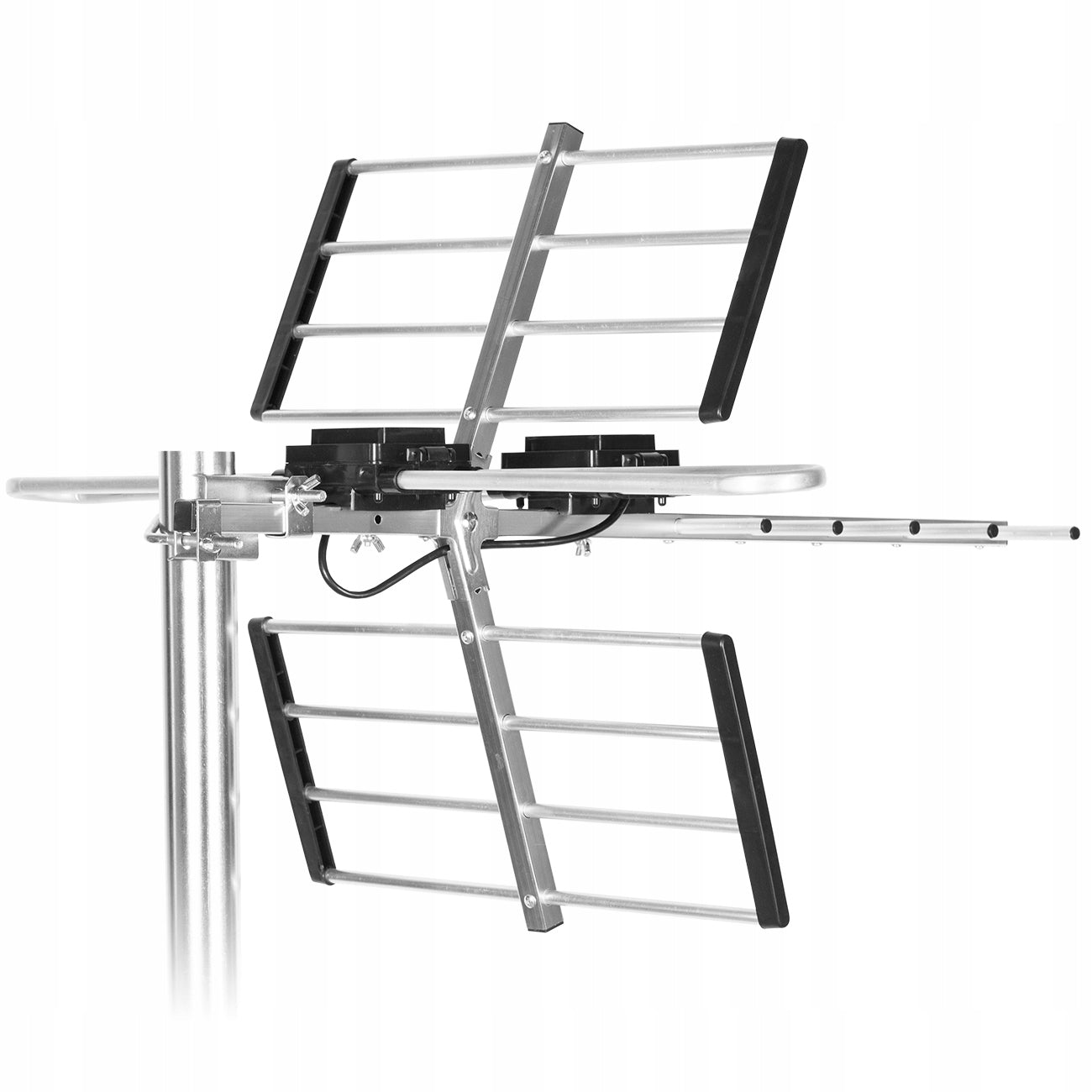

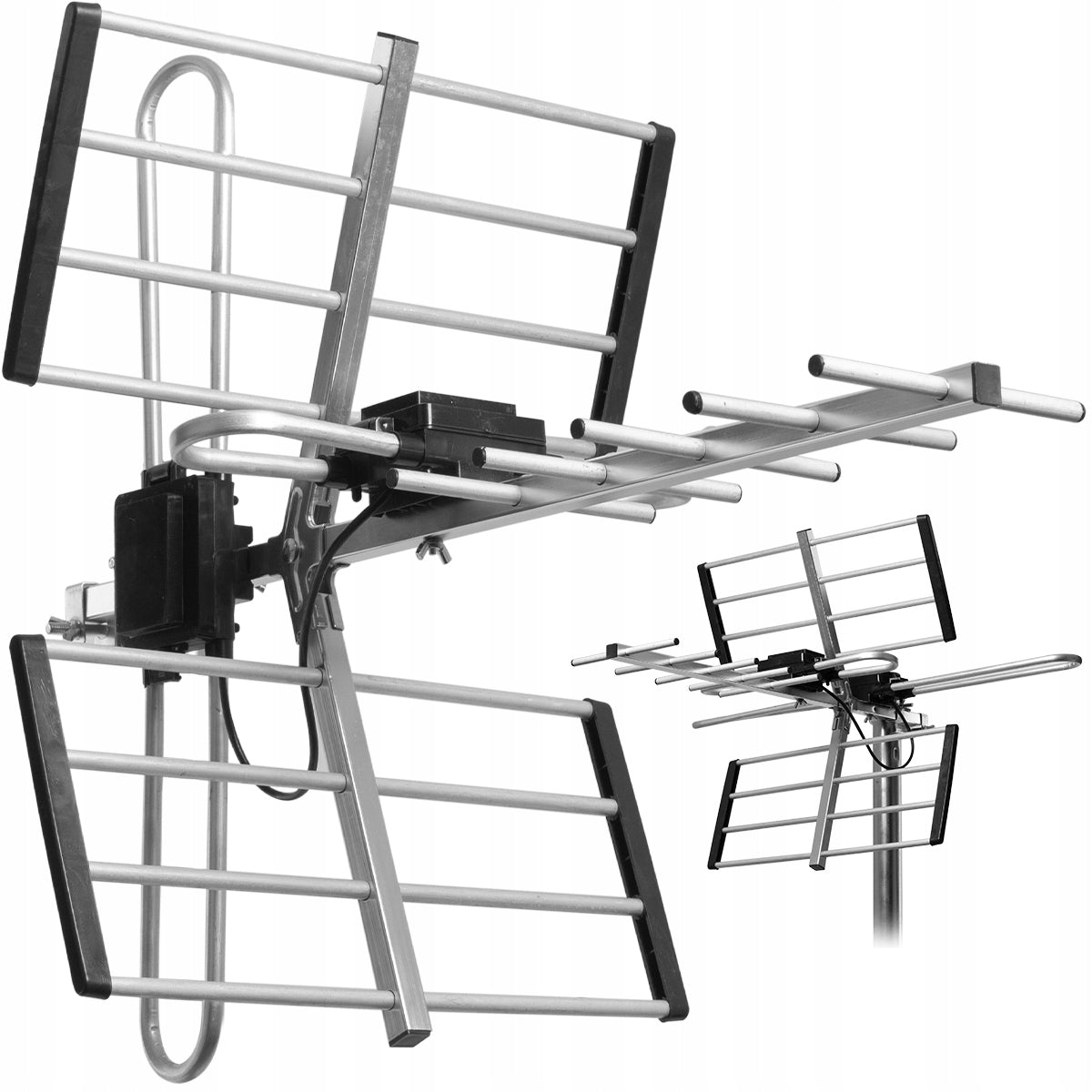

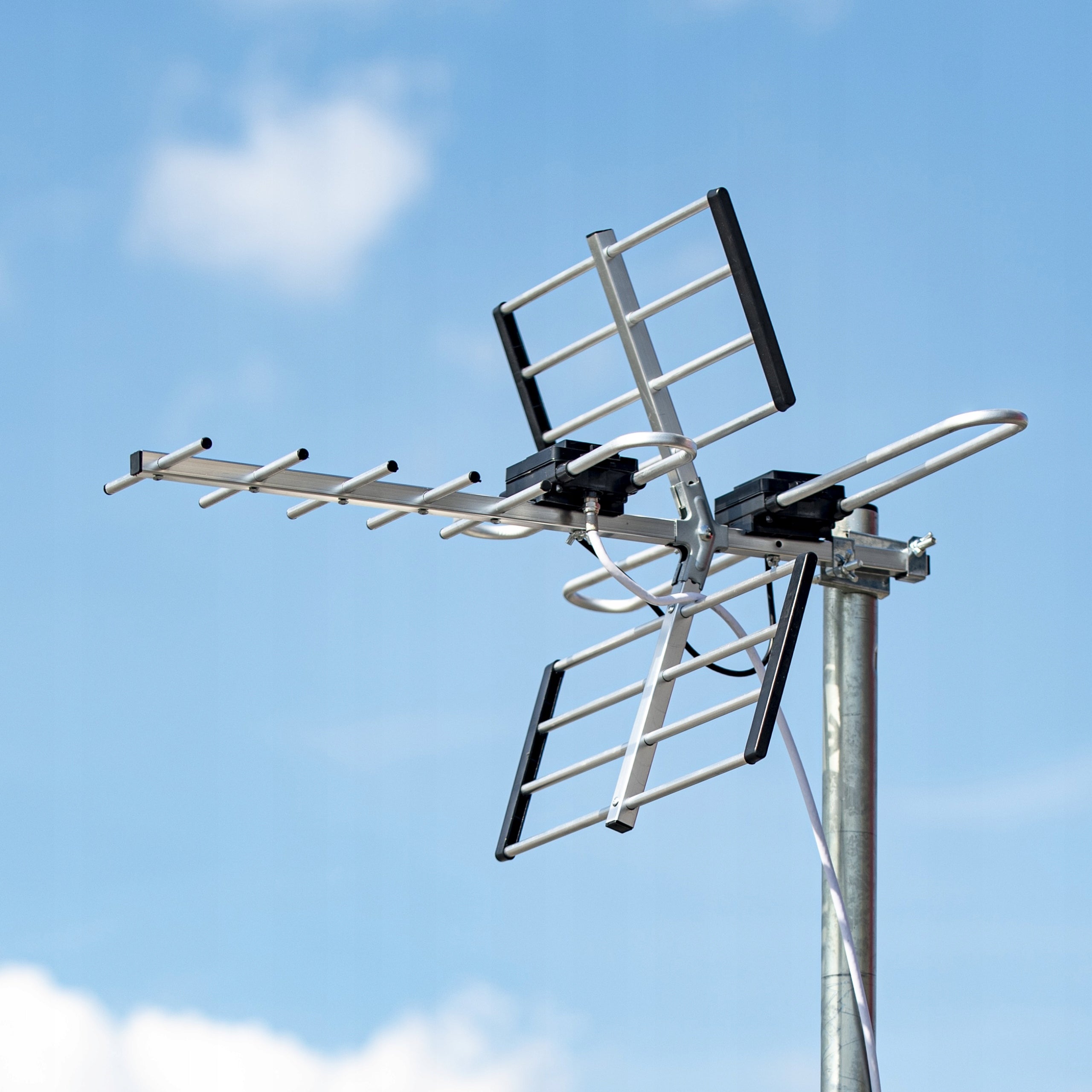

Antena DVBT2 televizijai VAYOX, kryptinė, išorinė, 4K, LTE, MUX8

Trumpai apie prekę

Prekė: Antena DVBT2 televizijai VAYOX, kryptinė, išorinė, 4K, LTE, MUX8. Kategorija: Antenos.

• Gamintojas: Vayox
• Modelis: Antena DVB-T2 kierunkowa zewnętrzna VA1600
• Spalva: black

✅Antenna adapted to receive the latest H.265 DVB-T2 encoding

✅Receives all MUX 1,2,3,4 and 8

UHF and VHF enables MUX 1, MUX 2, MUX 3, MUX 4 and MUX 8 reception

• For mounting on outdoor - resistant to water and UV radiation
• Ideal for areas with difficult reception conditions
• Effective range up to 80km (depends on transmitter strength)
• Combo: possibility to change dipole to vertical or horizontal polarization
• Antenna adapted to receive DVB-T2 channels
• Foldable durable construction
• Length 60 centimeters
• Compatible with Full HD TV 4K
• Impedance: 75 Ohm
• Connector Type: F
• Assembly without tools
• VHF energy gain: 12-18dB
• UHF energy gain: 10-16dB
• 16 elements
• Built-in LTE filter
• Ability to amplify the antenna through an additional amplifier and power supply

The COMBO directional antenna for terrestrial TV reception enables MUX8 reception in two V and H polarities. Now even more reliable, by adding an LTE filter, eliminating interference from mobile networks.

✅MUX-1, MUX-2, MUX-3, MUX-8

✅MUX8 in horizontal and vertical polarization

• VHF band 174-230 MHz
• UHF band 470-790 MHz

✅The antenna allows reception in horizontal or vertical polarization, just screw the dipole in the position corresponding to the polarization of the transmitter in your region

• Vertical polarization
• Horizontal polarization

✅The antenna just needs to be set towards the transmitter connect the cable to the TV or decoder and that's it!!! You do not need additional elements

The combo antenna was designed with Polish in mind. The market makes it ideal for our conditions. Antenna adapted to receive channels in the highest 4K resolution and the latest H.265 DVB-T2 encoding.

You do not need a power supply to connect our antenna. The built-in symmetrizer has a gain of 18dB and provides an effective range of up to 80km (range depends on the power of the transmitter)

If the antenna power is not enough in your area you do not need to replace the antenna with a larger just buy an additional amplifier twisted to the f socket + antenna power supply antenna range increases then to 140km

Set with amplifier and power supply available at another auction

LTE filter- LTE filter eliminates interference from mobile networks providing high-speed Internet services in the 800 MHz band, the end of the TV band is located in the immediate vicinity of the LTE 800 MHz band. This may result in interference with the reception of digital terrestrial television. On the TV screen, the picture may stop, colored bars and squares may appear. The antenna offered at this auction, thanks to the LTE filter, cuts unwanted signals above 790 MHz, and thus is resistant to the above-described interference from the LTE network.

The lightweight design of the antenna and the aluminum construction make our antenna extremely resistant to

• Wind
• UV radiation

Hermetically sealed antenna box protects against moisture entering the symmetrizer

The antenna is made of aluminium

The length of our antenna is 60cm ideal for locations with limited space (eg balcony, mast)

Assembling our antenna is incredibly simple and requires no tools. The entire assembly should take no more than 5 minutes.

You don't need to use any tools; all parts fit together perfectly and are securely assembled.

Remember!!! Before starting assembly, check the assembly instructions, which clearly and legibly describe everything step-by-step.

• Built-in F-connector allows for quick and hassle-free installation.
• Built-in antenna clamp allows for quick attachment of the antenna to the antenna mast.

in Poland digital terrestrial television transmitters are divided into those broadcasting in vertical or horizontal polarization. The 1600 COMBO antenna, through a very well thought-out design, has been adapted to receive both vertical and horizontal polarization.

If you do not know in what polarity your nearest transmitter broadcasts, you can easily check on the Internet by typing in the search engine: dvbt range map.

You will also check in which direction it is best to direct the antenna in your area and whether you are within the range of all multiplexes

This antenna allows you to get the highest image quality thanks to the new antenna design. Very high antenna efficiency, even at considerable distances from the transmitter. Meets the requirements of modern TV sets, i.e. PLASMA, LCD and LED. The image received digitally by the antenna exceeds the quality of transmission of satellite TV programs. Athena has a sealed symmetrizer housing made of high-quality plastic, which prevents deterioration of reception caused by weather conditions.

It is made of high-quality aluminum for a long antenna life. This model is a completely innovative design. The antenna is designed for demanding customers and is used to receive all standards of terrestrial television, i.e. digital DVB-T, DVB-T2 , H.264 MPEG-4/AYC, and in the future H.265 and radio programs.
