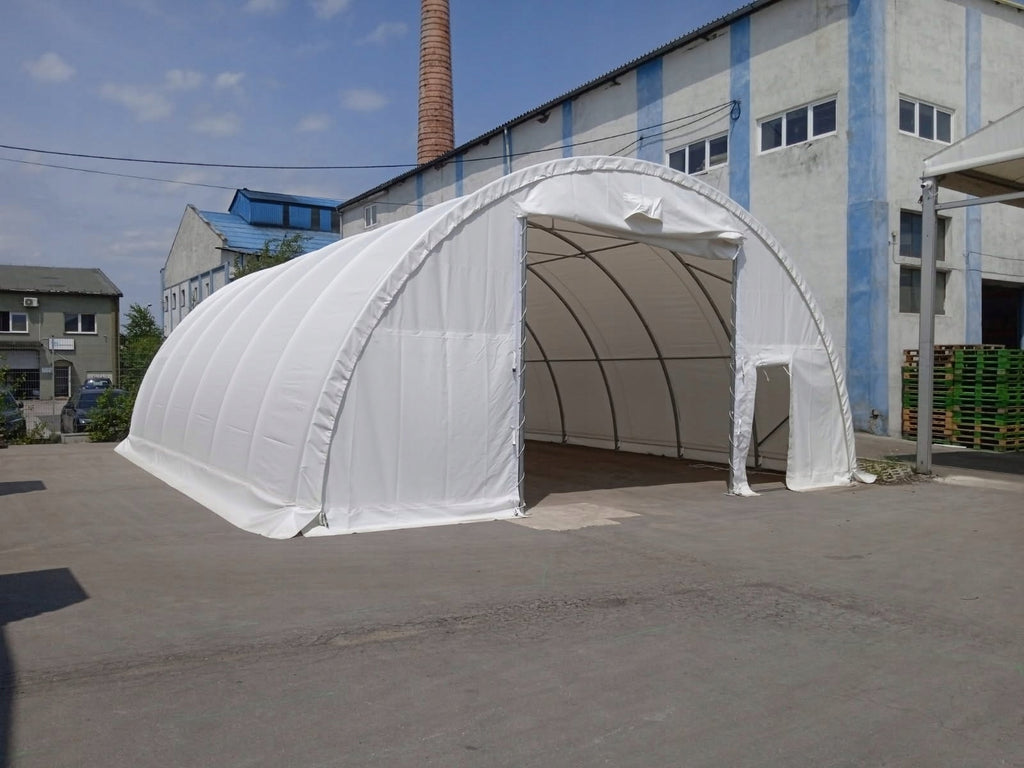

Angaras Hala Łukowa 9,15x12 m, 4,5 m aukščio – pastogė, garažas, sandėliavimo palapinė

Trumpai apie prekę

Prekė: Angaras Hala Łukowa 9,15x12 m, 4,5 m aukščio – pastogė, garažas, sandėliavimo palapinė. Kategorija: Paviljonai ir palapinės.

• Gamintojas: no brand
• Modelis: Hala łukowa Rolnicza Przemysłowa 9,15x12m4,5h
• Ilgis: 12 m
• Plotis: 9.15 m
• Aukštis: 4.5 m
• Spalva: white

• Type: Arc Hall
• Length: 12 m
• Width: 9,15 m
• Height: 4,5 m
• Construction: Galvanized steel approx. Ø42x70 mm, wall approx. 2 mm
• Tarpaulin: PVC approx. 610 g/m², white
• UV Resistance: Yes
• Gate: 3,5 × 3,5 m, EasyUp system
• Side door: 1,0 × 2,0 m
• Assembly: Ground/Concrete (Anchors Included)
• Application: Warehouse, agriculture, industry
• Ventilation: Yes, in the gable walls
• Color: White
• Total weight: 890kg

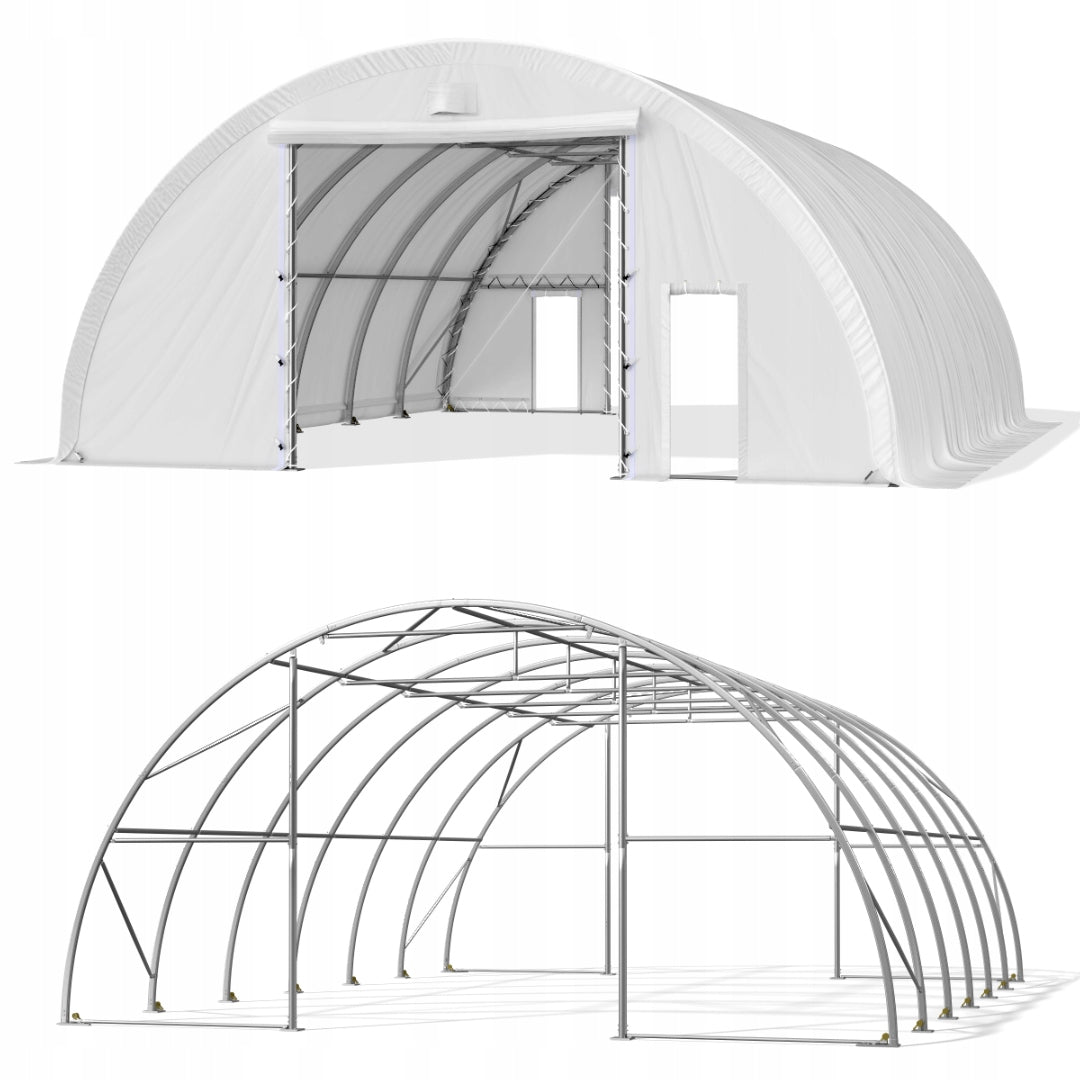

Arc hall 9,15x12 m with PVC tarpaulin 610g/m². Galvanized steel, height 4,5 m, gate 3,5x3,5 m. Resistant to UV and weather conditions (wind force up to 80km/h, snow load up to 0,28 kPa). Universal use. Ideal for machinery, feed, warehouse.

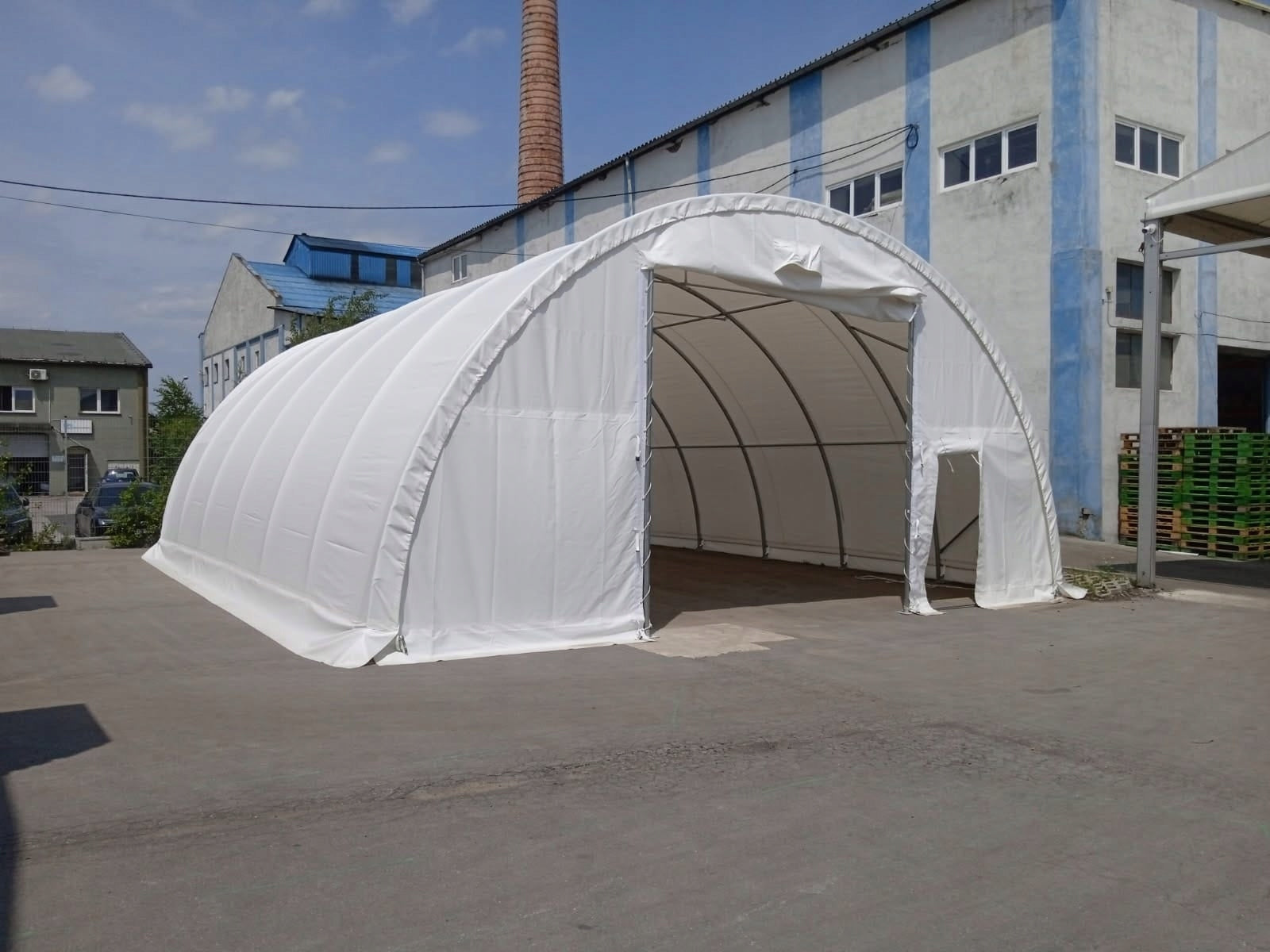

Arched storage hall 9,15x12 m – reliable space wherever you need it

Looking for a reliable and sturdy storage space? Our arch hall with dimensions of 9,15 m × 12 m is a solution that combines durability, flexibility and quick installation. Ideal for agriculture, industry, logistics and more.

Features that distinguish our hall:

• Dimensions: 9,15 m (width) × 12 m (length) × 4,5 m (height)
• Steel construction: Galvanized, steel pipes approx. Ø42x70 mm, wall thickness approx. 2 mm – ensure stability even in difficult conditions
• Tarpaulin: durable PVC tarpaulin approx. 610 g/m² in white, resistant to UV, rain and tears
• Main gate: 3,5 × 3,5 m – easy opening and closing system
• Side door: additional entrance 1,0 × 2,0 m
• Installation: possible both on the ground and on concrete – in the set you will find anchors
• Additional reinforcements: tension belts and steel cables for increased wind resistance
• Ventilation: ventilation hole system for improved air circulation

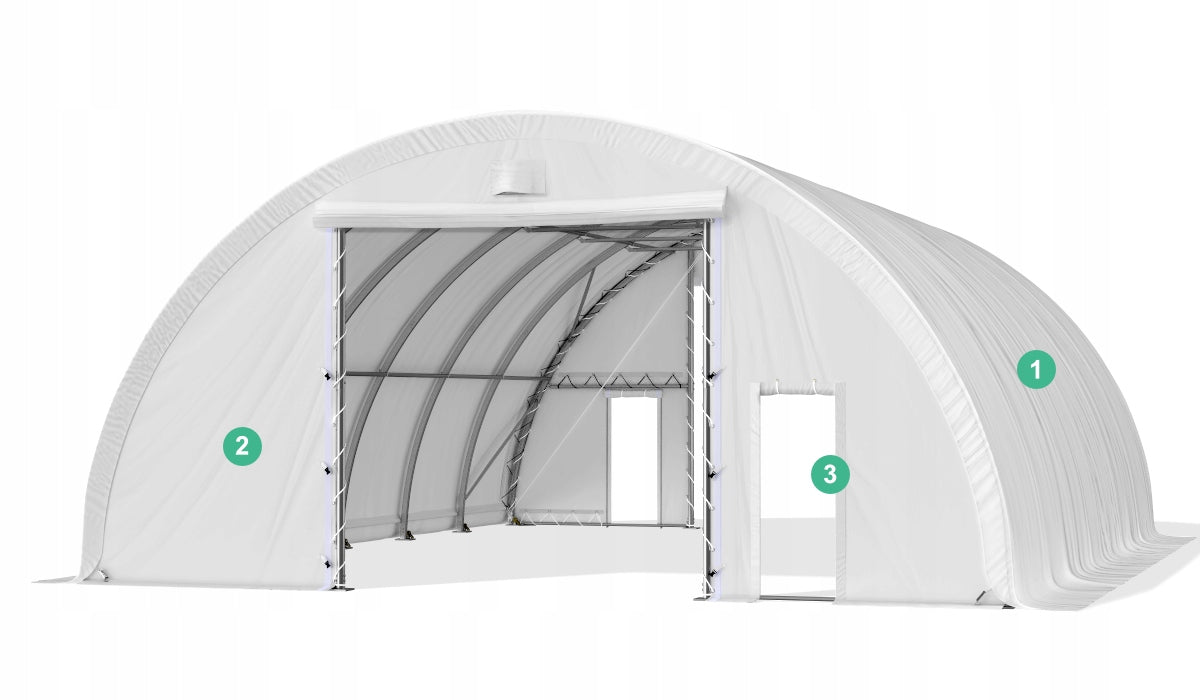

1- Roof/gate plating PVC approx. 610 g/m², 2 - Main gate: 3,5 × 3,5 m, 3 - Side door: 1,0 × 2,0 m

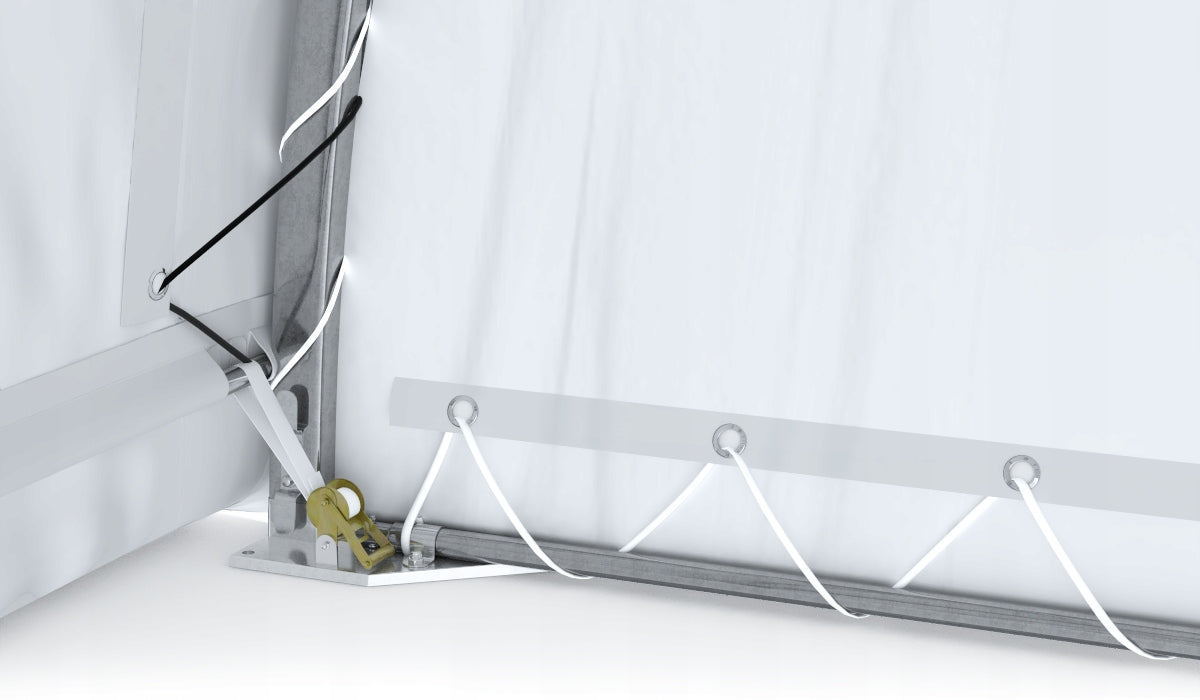

Thanks to the internal tensioning system, the PVC material is evenly stretched, which prevents the formation of folds and water reservoirs. The effect? The hall not only works reliably, but also looks professional – perfectly smooth tarpaulin surface is a showcase of quality and attention to detail.

1. PVC layer with varnish
2. Mesh embedded between PVC layers
3. PVC layer with varnish

Tarpaulin with a thick material guarantees tightness and durability. It is resistant to UV rays and temperature fluctuations.

Temperature range: -15°C to 45°C

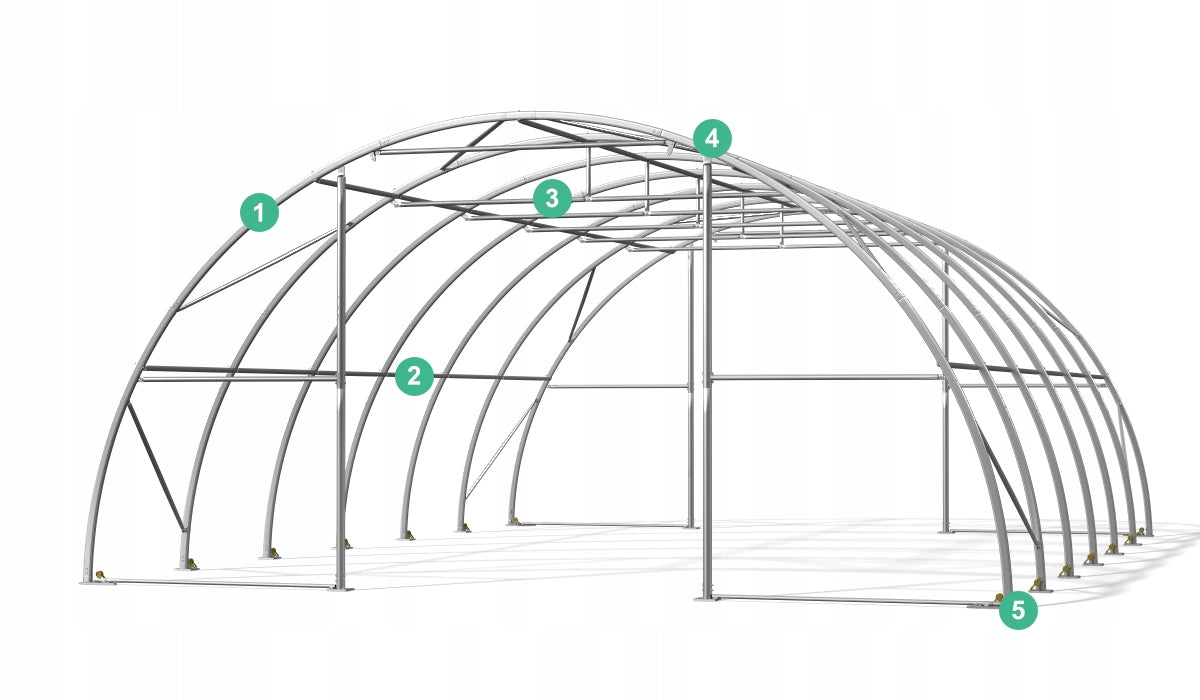

1 - Arc construction pipes fi approx. 42x70x2.0mm, 2 - Payment fi approx. 40x1.5mm, 3 - Reinforced roof structure, 4 - Strong screws on joints passing through, 5 - Foot

* presented dimensions counted from the center of the profiles

Durable structural connections guarantee excellent stability of the entire hall. Thanks to the use of self-control nuts and carefully selected screws, installation requires minimal maintenance in the future.

Vertical pipes were made in a plug-in system, and their connection is carried out using double M8 screws, which increases the rigidity of the structure.

Horizontal steel pipes, on the other hand, are attached directly to vertical arches with solid M10 screws, ensuring durable and reliable joining of elements.

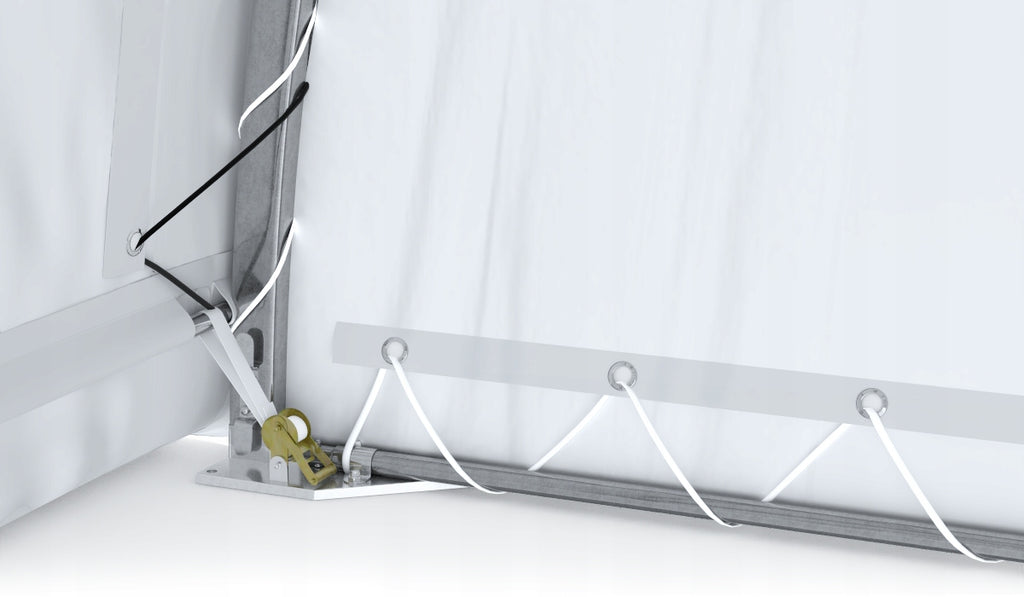

The tension system provides exceptional stability of the entire structure, effectively counteracting deformation under the influence of strong wind or snow. Thanks to the precise tension of the material, the tarpaulin remains perfectly matched, which translates into greater safety and durability of the hall in all weather conditions.

The set includes:

✔ Set of steel elements

✔ Tarpaulin with ready-made mounting holes

✔ Gate and side door

✔ Tensioning and anchoring system

✔ Step-by-step assembly instructions

What can you use it for?

• Storage of machinery, vehicles, feed
• Warehouse of building materials
• Seasonal or year-round roofing
• Workshop, carport, garage, commercial facility
• Shelter for boats or gardening equipment

Why is it worth it?

• Multi-season durability – protection against rain, snow (0.28 kPa) and UV rays
• Modularity and mobility – you will put it where you need it right now
• Looks professional, works effectively
