Analoginė kamera CADDX Ratel 2 (raudona)

Trumpai apie prekę

Prekė: Analoginė kamera CADDX Ratel 2 (raudona). Kategorija: Dronai ir multikopteriai.

• Gamintojas: CADDXFPV
• Modelis: MN01-2000R

⬇ See more ⬇

The CADDX Ratel 2 analog camera (red) is a lightweight and durable FPV camera designed for high image quality and reliable operation in demanding conditions. Thanks to its wide field of view, Super WDR technology and very good low-light operation, it is perfect for freestyle and racing flights.

The most important features of the product:

• lightweight construction – only 5,9 g
• magnesium and aluminium alloy metal housing
• Starlight 1/1,8" sensor for good visibility in low light
• wide viewing angle FOV 165°
• 1200TVL resolution
• Super WDR technology and 3DNR noise reduction
• NTSC/PAL support and 4:3 and 16:9 formats
• power supply range 4,5 to 36V

The camera is equipped with a high-end 2,1 mm lens with low distortion, inspired by the solutions used in DJI air units. The reinforced design enhances impact resistance, while the full casing helps protect the interior from dust and splashes.

Specification:

• Model: Ratel 2
• sensor: Starlight 1/1,8"
• lens: 2,1 mm
• Video output: CVBS
• minimum lighting: 0.0001 LUX
• day/night mode: Auto / Colour / B&W / EXT
• operating temperature range: -20°C to +60°C
• dimensions: 19 × 19 × 20 mm

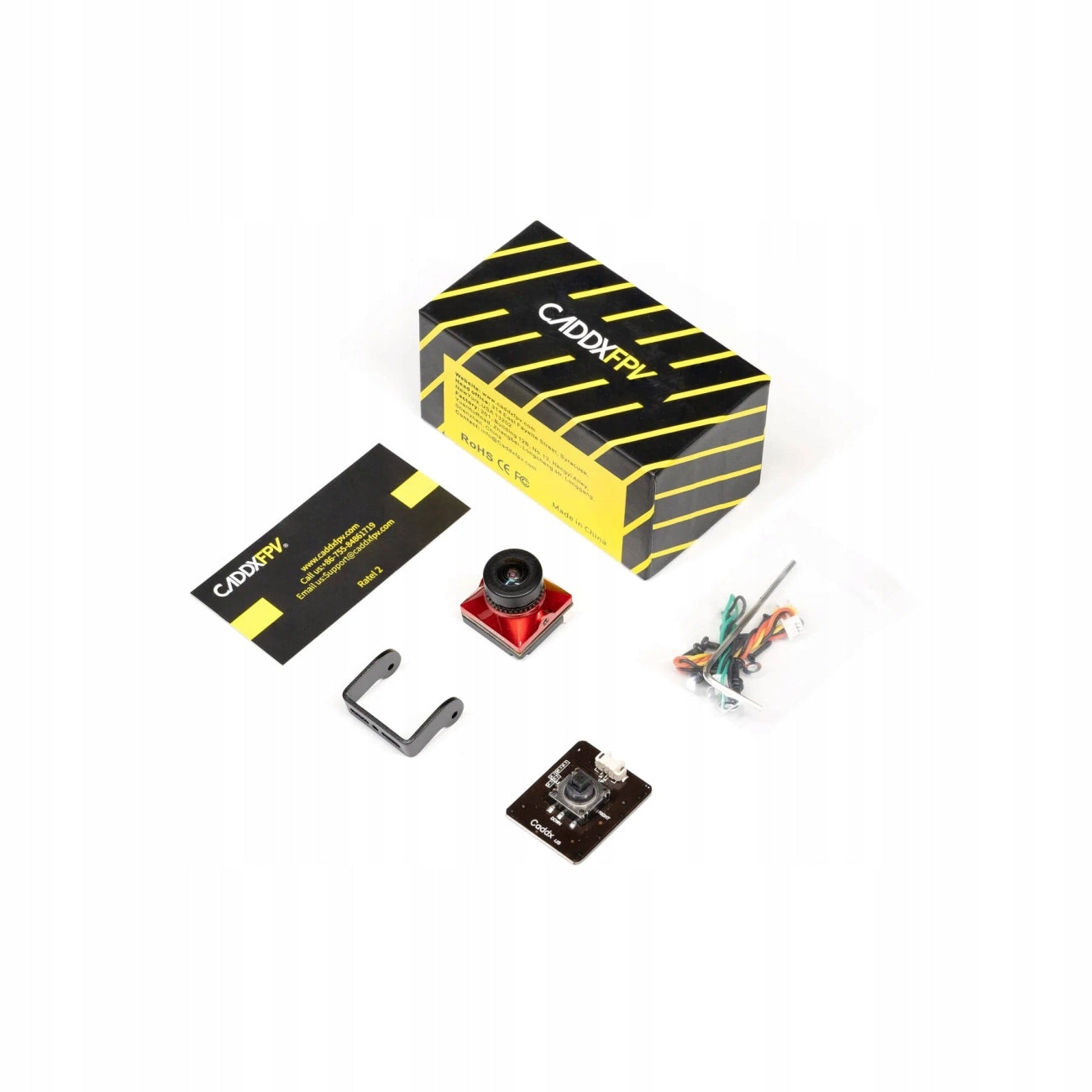

Set Composition:

• CADDX Ratel 2 camera – 1 pc.
• menu plate – 1 pc.
• 2-pin silicone cable – 1 pc.
• 3-pin silicone cable – 1 pc.
• Allen wrench 1,5 mm – 1 pc.
• warranty card – 1 pc.
• set of screws – 1 pc.
