Trumpai apie prekę
Prekė: Ammeteris TELWIN Dynamic 620. Kategorija: Baterijų įkrovikliai.
- Gamintojas: Telwin

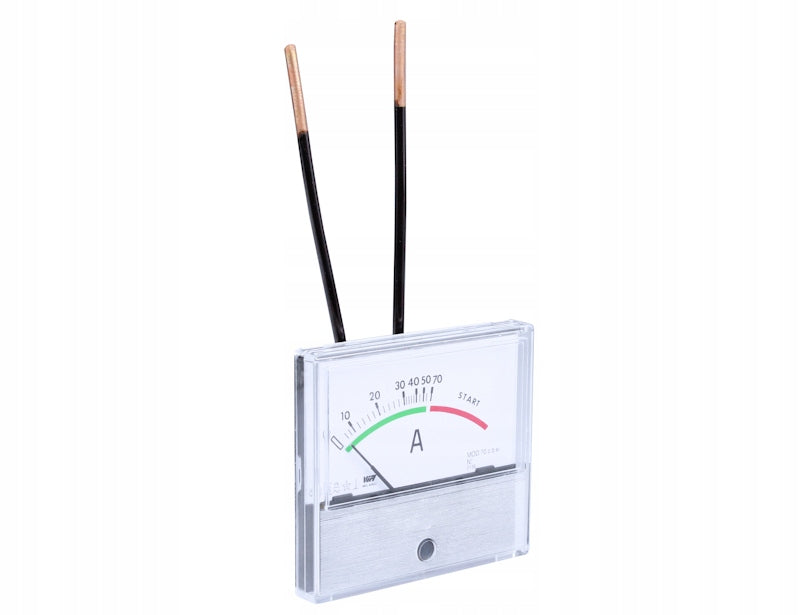

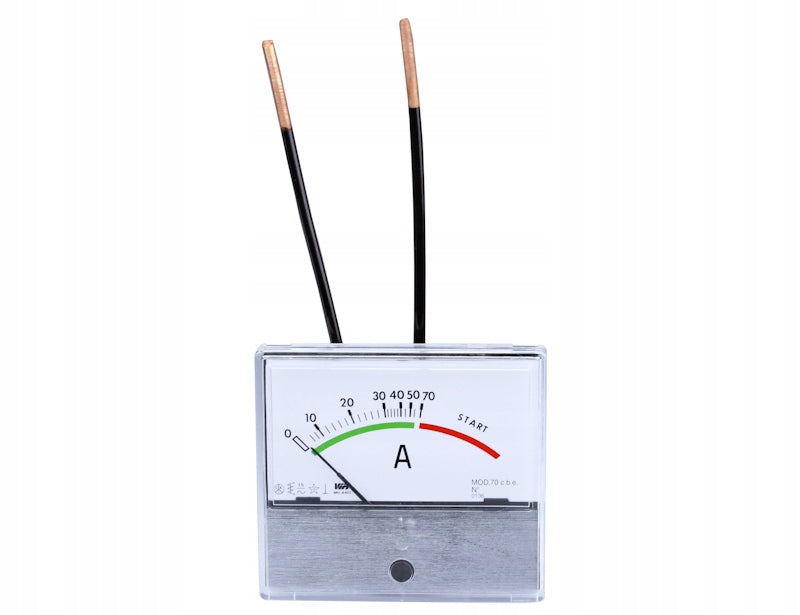

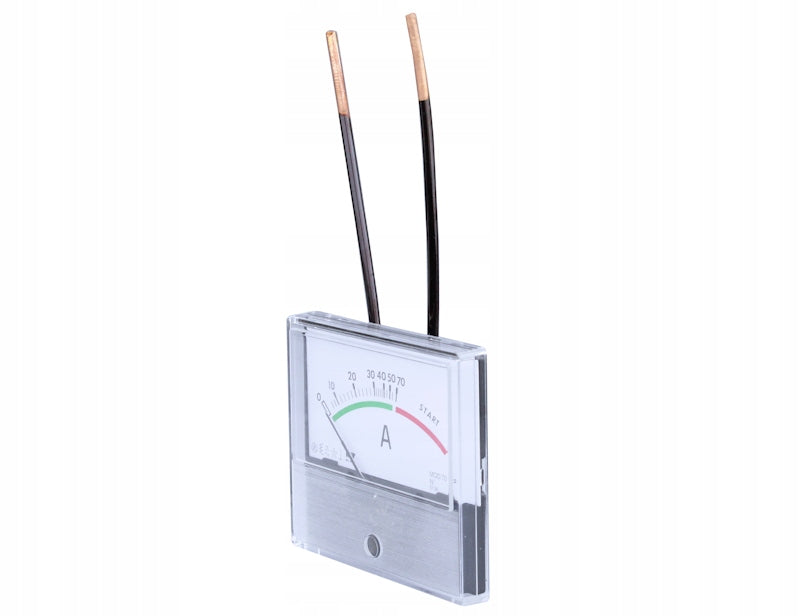

DYNAMIC 620 ammeter
works with rectifiers for charging and starting the TELWIN brand.
Original charging current meter and rectifier start-up support for charging TELWIN DYNAMIC 620 batteries. It has an electromagnetic alternating current measurement system 50Hz in the measurement class 1,5. It can be used in other devices in alternating current measurement systems 50Hz. Insulation voltage 2kV.
TECHNICAL PARAMETERS
- Rated current max. (charging/starting - 3s): 90 A / 570 A - 3s
- Rated current (charging/starting - 3s): 70 A / 360 A - 3s
- Insulation voltage: 2 kV
- Measurement class: 1,5
PHYSICAL PARAMETERS
Dimensions: 91 x 82 x 30 mm
Operating temperature (max): -15°C to +55°C
Current connectors (with body coil): 6 mm²
Thermal attachment sleeves: Ø 4
APPLICATION:
Rectifier with start DYNAMIC 620 TELWIN
DELIVERY INCLUDES
Dynamic 620 ammeter
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With a VAT invoice |
| Parametry | Brand | Telwin |
| Parametry | Maximum amperage | 70 A |
| Parametry | EAN (GTIN) | 8004897678061 |
| Parametry | Batteries included | no |
