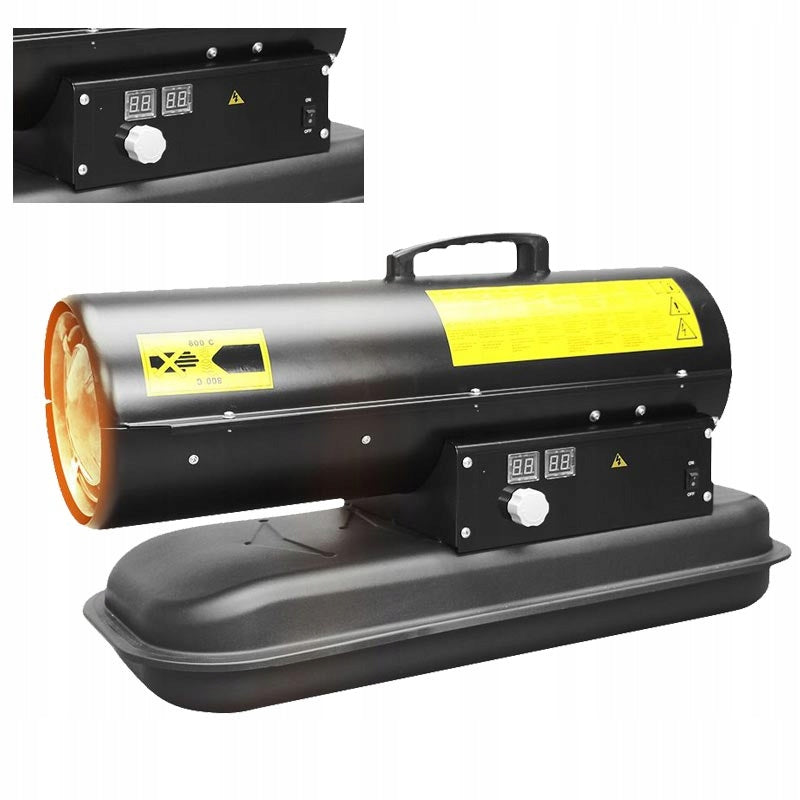

Alyvos radiatorius NEO TOOLS 20 kW 90-080

Trumpai apie prekę

Prekė: Alyvos radiatorius NEO TOOLS 20 kW 90-080. Kategorija: Oro šildytuvai.

• Gamintojas: NEO TOOLS
• Modelis: 90-080

The oil heater is used to heat rooms such as halls, warehouses, construction sites, etc. The design of the device allows for easy portability of the device. As fuel for heating is used kerosene or diesel. The combustion chamber is made of stainless steel and includes fan cooling. A flame sensor is used to increase safety. In the absence of oil, the heater cuts off the power supply. The oil level display allows you to easily identify the amount of fuel left. In addition, the heater includes a manual thermostat that allows you to set the temperature and displays the current temperature. The product is IPX4 rated, which means it can also be used in light rain.

• Power 20kW
• 19l tank
• fuel consumption 1,9l/h
• air flow 550 m3/h
• without wheels

• Packaging material carton
• Fuel Type Diesel / Kerosene
• Fuel tank capacity 19 l
• Fuel consumption 1.9 l/h
• IPX4 rating
• Power 20 kW
• Air flow 550 m3/h

Before choosing a heater, it is necessary to determine the necessary minimum heating power for a given room.

Formula for calculating the required heat output

V – volume of the room to be heated (W x L x H) q m³

ΔT – temperature increase required (°C)

K – thermal insulation coefficient

K=3,0-4,0 Simple building made of wood or corrugated sheet - Non-insulated

K=2,0-2,9 Simple structure, single layer of bricks, straight windows and roof - Poor insulation

K=1,0-1,9 Standard construction, double layer of bricks, few windows, standard closed roof - Medium insulation

K=0,6-0,9 Advanced construction, double insulated brick, few double windows, solid foundation, roof of well insulating materials - Good insulation

Example: heat output required

144 x 23 x 4 = 13 248 kcal/h

• 1 kW/h = 860 kcal/h
• 1 kcal/h = 3,97 Btu/h
• 1 kW/h = 3412 Btu/h
• 1 Btu/h = 0,252 kcal/h

Now you can choose the device that best suits your needs.

- WELL-PROTECTED GOODS

- BRAND NEW

- COMPLETE ORIGINAL EQUIPMENT

- ORIGINAL PACKAGING

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	NEO TOOLS
Parametry	Kind	oil
Parametry	Heating power	20 kW
Parametry	Product weight with unit packaging	17 kg
Parametry	Manufacturer code	90-080
Parametry	Energy efficiency class	brak klasy energetycznej
Parametry	Range of energy efficiency classes	no energy class
