Aliuminio plokštė CNC frezavimo stalui 240x200 mm su kreipiančiosios dangteliu

Trumpai apie prekę

Prekė: Aliuminio plokštė CNC frezavimo stalui 240x200 mm su kreipiančiosios dangteliu. Kategorija: Frezavimo staklės.

• Gamintojas: Regmag
• Modelis: BM-18

🔧 Aluminum mounting plate for milling table

The technical CNC aluminum alloy mounting plate is designed for the construction or modernization of the milling table and stable assembly of a compatible milling machine.

✔ Aluminium plate 5 mm thick

✔ Center bore 31 mm and measuring scale

✔ Guide, cover and dust extraction connection included

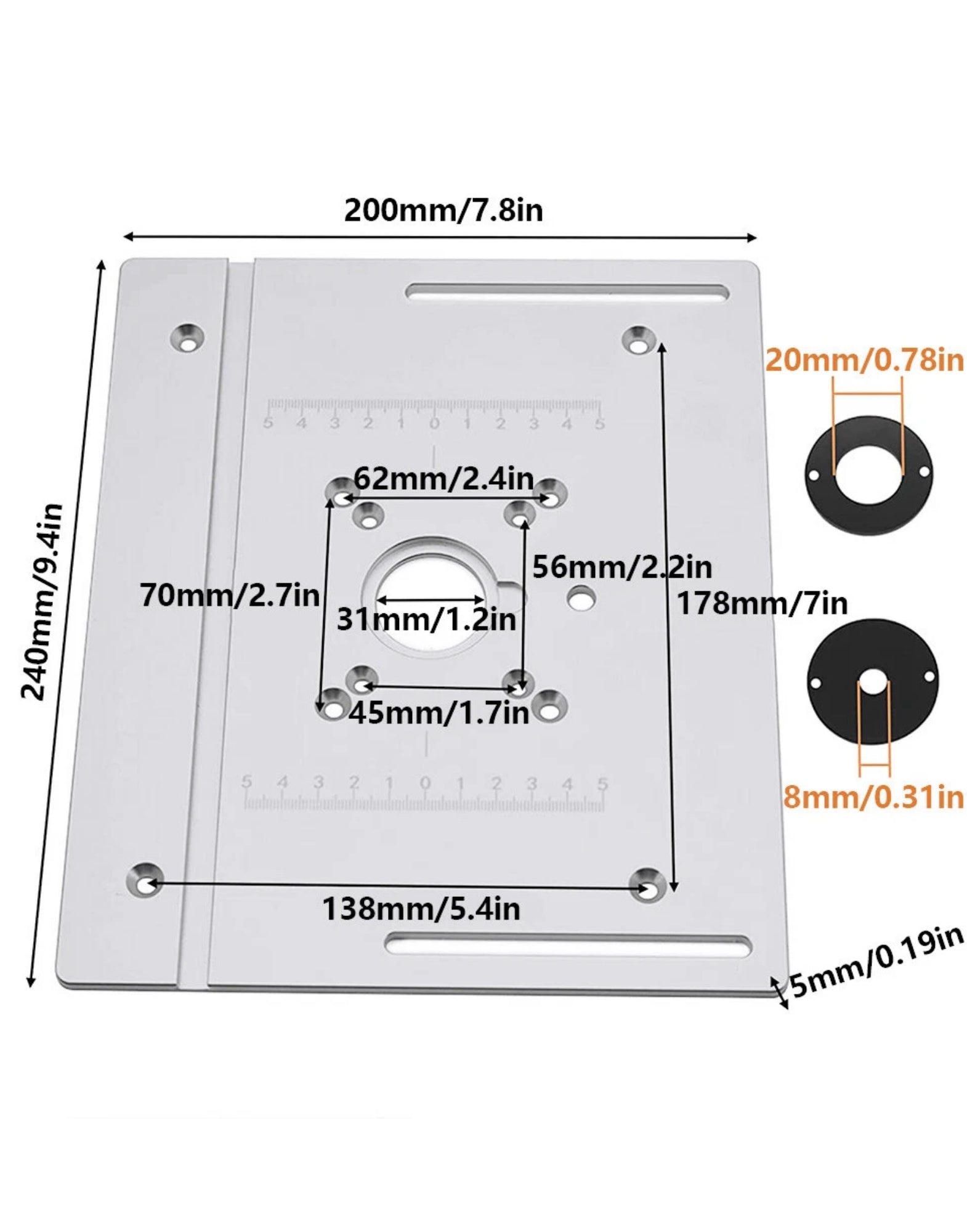

Technical specification

The following parameters should be compared with the dimensions of your milling machine and the planned table design.

• Product type: mounting plate for milling table
• Material: CNC aluminum alloy
• Plate dimensions: 240 × 200 mm
• Plate thickness: 5 mm
• Center bore diameter: 31 mm
• Mounting hole spacing: 62 × 70 mm
• Mounting hole spacing: 56 × 45 mm
• Extraction connection hole: 35 mm
• Weight of the set: about 1180 g
• Color: silver
• Purpose: assembly of milling machine in milling table / DIY workshop stand

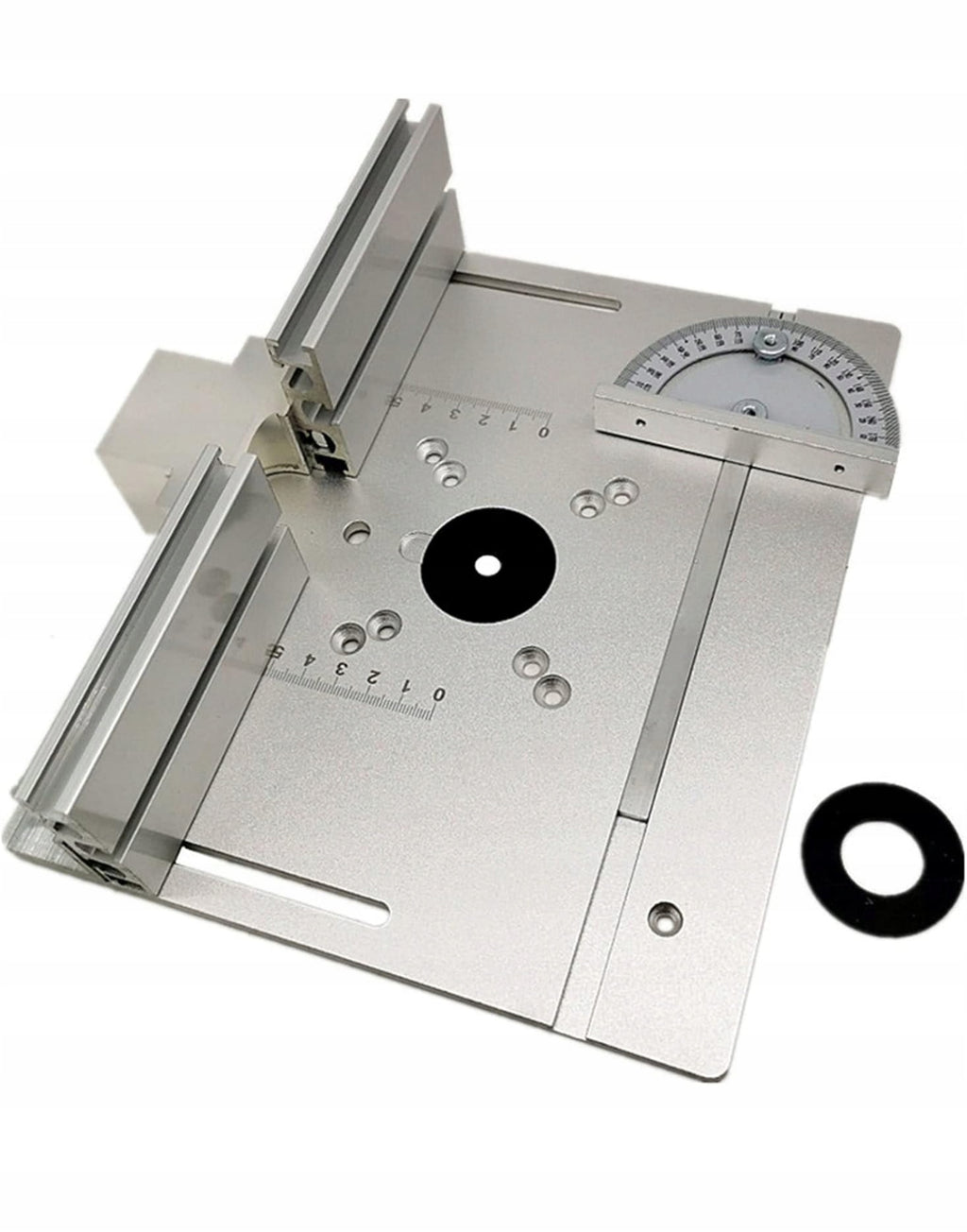

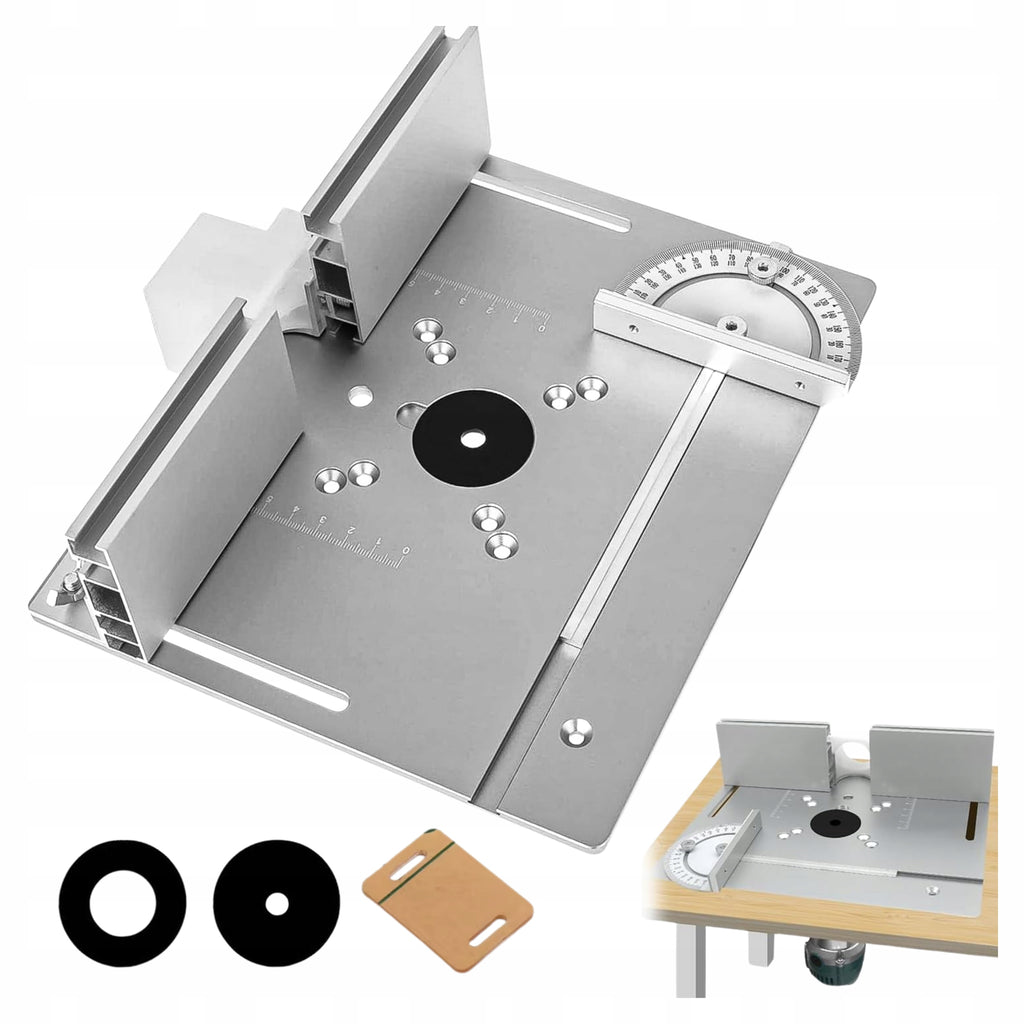

Contents of the set

• 1x mounting plate for milling table
• 1x rear guide
• 1x angle ruler
• 1x transparent cover
• 2x reduction ring
• 1x set of mounting elements
• 1x Allen key
• 1x connection pipe for dust extraction

Product Features

• Body made of CNC machined aluminum alloy
• Thickness 5 mm for increased plate stiffness
• Central opening for easy setting of the milling machine
• Two spacings mounting holes to check compatibility
• Readable scale measuring on the surface of the plate
• Adjustable guide for setting the material
• Transparent work area cover
• Possibility of connecting dust extraction
• Mounting elements and key included
• Construction designed for carpeting and workshop

⚙ Principle of operation and installation

The mounting plate acts as an adapter between the milling machine and the milling table top. The milling machine is mounted from the bottom of the plate, and the cutter passes through a center hole with a diameter of 31 mm.

After installing the plate in the worktop , the user can guide the workpiece along the surface of the table, using the guide to set the distance and direction of work. The 35 mm connection allows you to connect the dust extraction, if your extraction system is compatible with this dimension.

Please check before purchasing:

• set of milling machine mounting holes,
• diameter of the milling machine base,
• possibility of mounting the milling machine from the bottom of the plate,
• conformity of the diameter of the extraction connection with the vacuum cleaner or extractor used.

Application

• Construction of own milling table
• Modernisation of milling station
• Milling the edges of wooden elements
• Making guide grooves and cutters
• Machining of furniture elements
• Painting and modeling work
• DIY workshop projects

🛠 What sets this set apart?

• Aluminum CNC construction – a plate made of aluminum alloy provides a stable working base and resistance to typical workshop working conditions.
• The thickness of the plate 5 mm – increased rigidity reduces the susceptibility to bending during proper installation in the countertop.
• Guide and measuring scale – facilitate the setting of the material and perform repetitive machining operations.
• Dust extraction connection – allows you to connect a compatible chip and dust extraction system from the work area.
• Complete mounting kit – the set includes the elements needed to prepare the basic milling station.

❓ FAQ – technical questions

Does the plate fit any milling machine?

No. Before buying, compare the spacing of the milling machine mounting holes with the dimensions 62 × 70 mm and 56 × 45 mm given in the specification.

What is the thickness of the plate?

The plate is 5 mm thick.

Does the kit include a guide?

Yes. The set includes a rear guide and an angle ruler.

Can I connect dust extraction?

Yes. The set has a connection hole for extraction with a diameter of 35 mm.

What material is the disc made of?

The plate is made of CNC machined aluminum alloy.

Is the product suitable for the construction of a milling table?

Yes. The product is designed for installation in the worktop and the construction of your own milling station.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Regmag
Parametry	Milling machine type	edge
Parametry	Power supply	mains
Parametry	Manufacturer code	BM-18
Parametry	EAN (GTIN)	5906893922069
Parametry	Batteries included	no
Parametry	Packaging status	original
Parametry	Customs tariff code	84678900
