Aliumininės rampos 2,5 m, 1750 kg keliamoji galia

Trumpai apie prekę

Prekė: Aliumininės rampos 2,5 m, 1750 kg keliamoji galia. Kategorija: Rampos.

• Gamintojas: no brand
• Modelis: 70X25NB

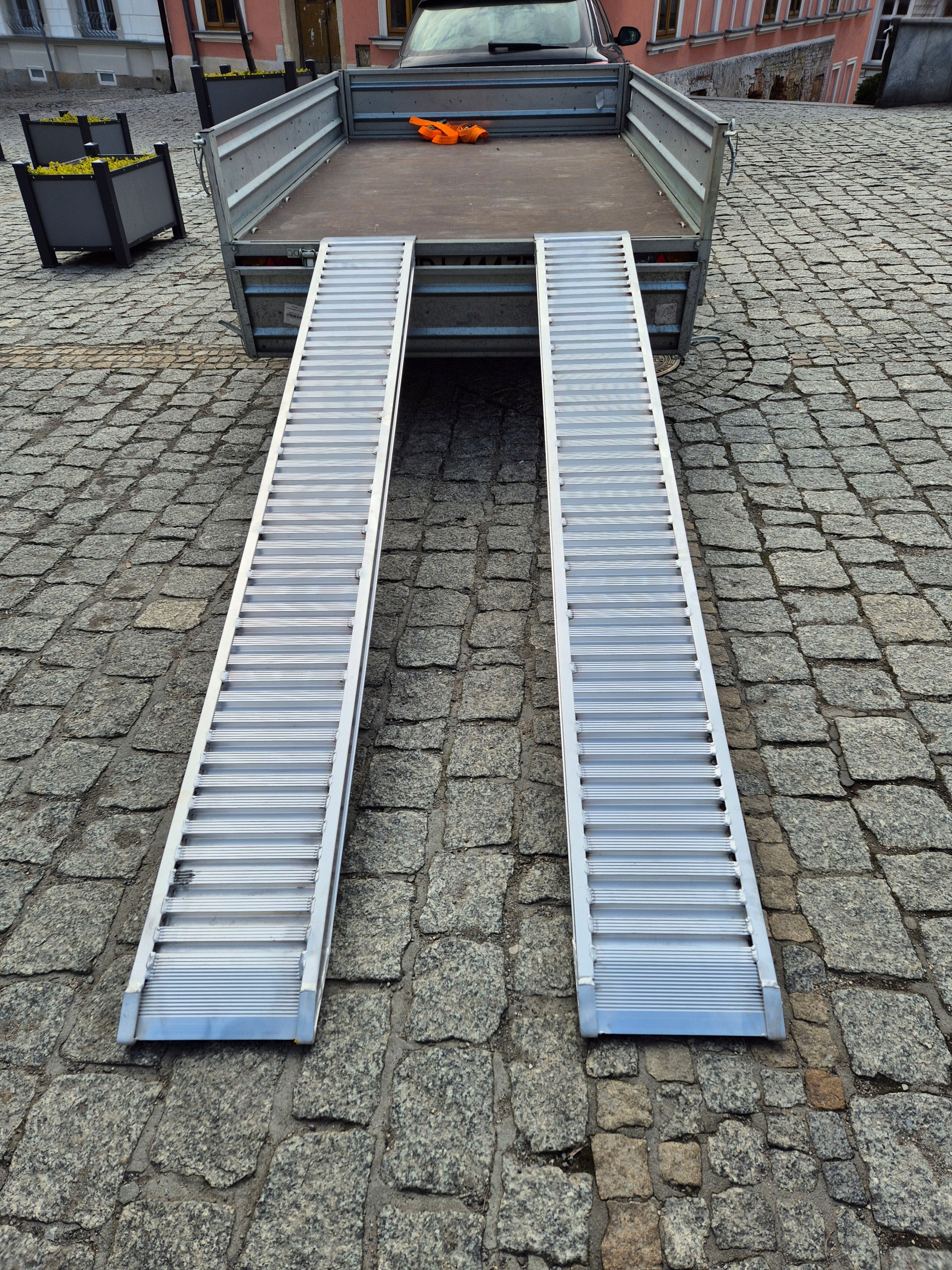

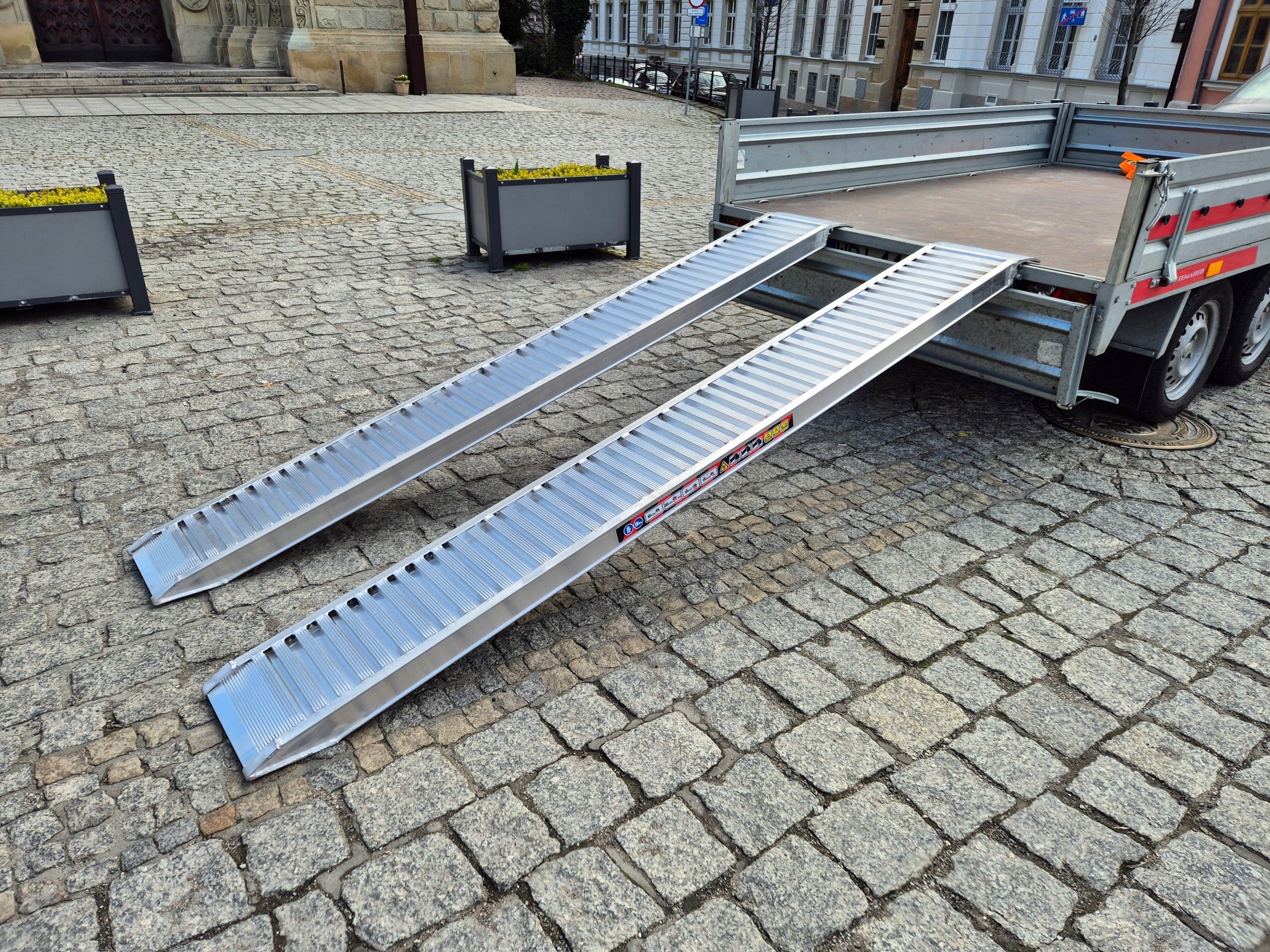

Professional loading ramps model 70/25NB made entirely of ultra-light aluminum profiles. The 70mm profile and non-slip floor with a width of 300mm are responsible for the lifting capacity.

Ideal for loading all construction machinery, mini excavators, cars, agricultural machinery and all other equipment within the limits of 1750kg.

The ramps are made of aluminum alloy EN_AW 6082 which makes the product extremely light and resistant to external conditions. They do not corrode, after use it is enough to wash them with running water.

In the RA.70/25NB model, the minimum width of wheels/tracks should be 200mm, and the slope should not exceed 30%

✅ Slope 30% = approx. 16,7°

1. Security of loading

• Above 30% increases the risk of slipping of the machine, especially on wet or soiled surfaces.
• There may be loss of grip, especially for machines with small or no wheels.
• Crawlers do better, but they also have their limitations.

⚙ Technical specification:

• Total length: 2500 mm
• External width: 300 mm
• Internal width (usable): 240 mm
• Invasions without edges (limiters) side
• Weight of the set (2 pieces): 27 kg
• Material: structural aluminium EN AW-6082 T6
• Surface: non-slip inrun floor

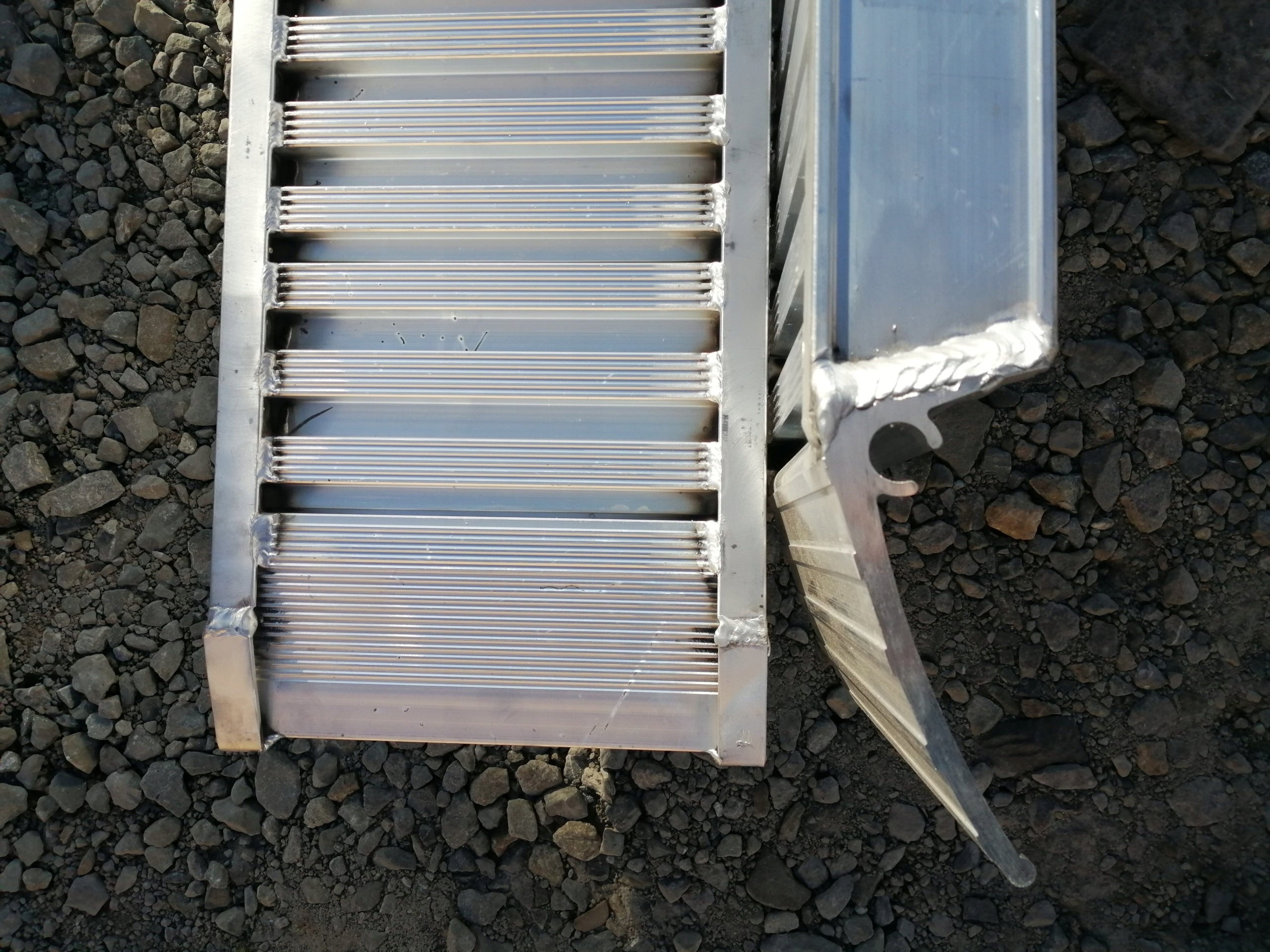

• Finish: fin + tongues for locking – stable support on the loading platform (we also have other endings in the offer, e.g. tooth or sleeve)
• All photos represent the actual appearance of the product
• European product with the necessary certificates in accordance with EU standards.

⚖ Load capacity per pair:

With different wheelbase/track length:

• 1000 mm – 1600 kg*
• 1500 mm – 1750 kg*
• 2000 mm – 1750 kg*

*Capacity per pair with even load and appropriate wheelbase/track length.
