Akumuliatorių keitimo keltuvas elektriniams ir hibridiniams automobiliams TC1500

Trumpai apie prekę

Prekė: Akumuliatorių keitimo keltuvas elektriniams ir hibridiniams automobiliams TC1500. Kategorija: Žirkliniai keltuvai.

• Gamintojas: Techwar
• Modelis: TC1500

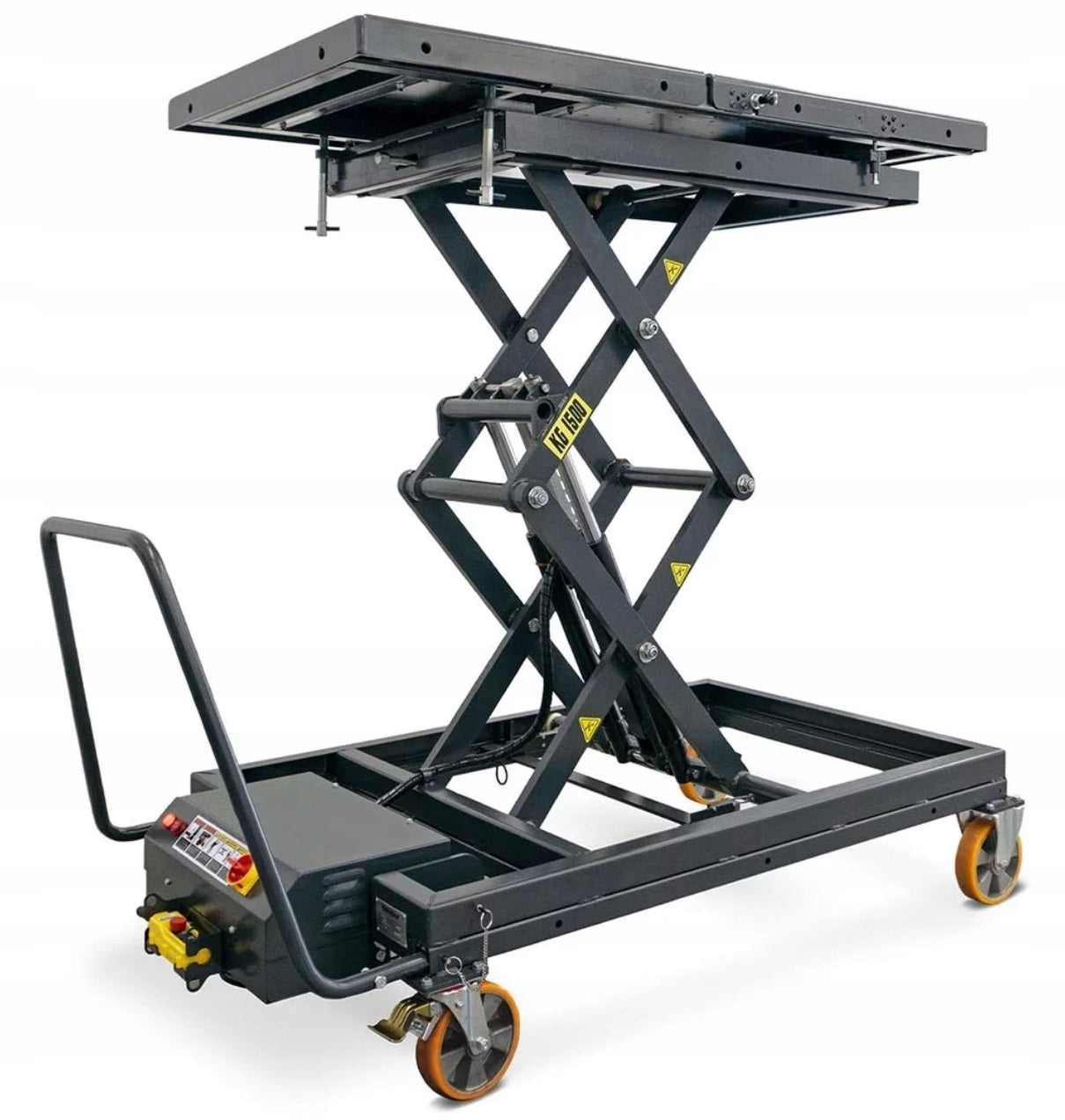

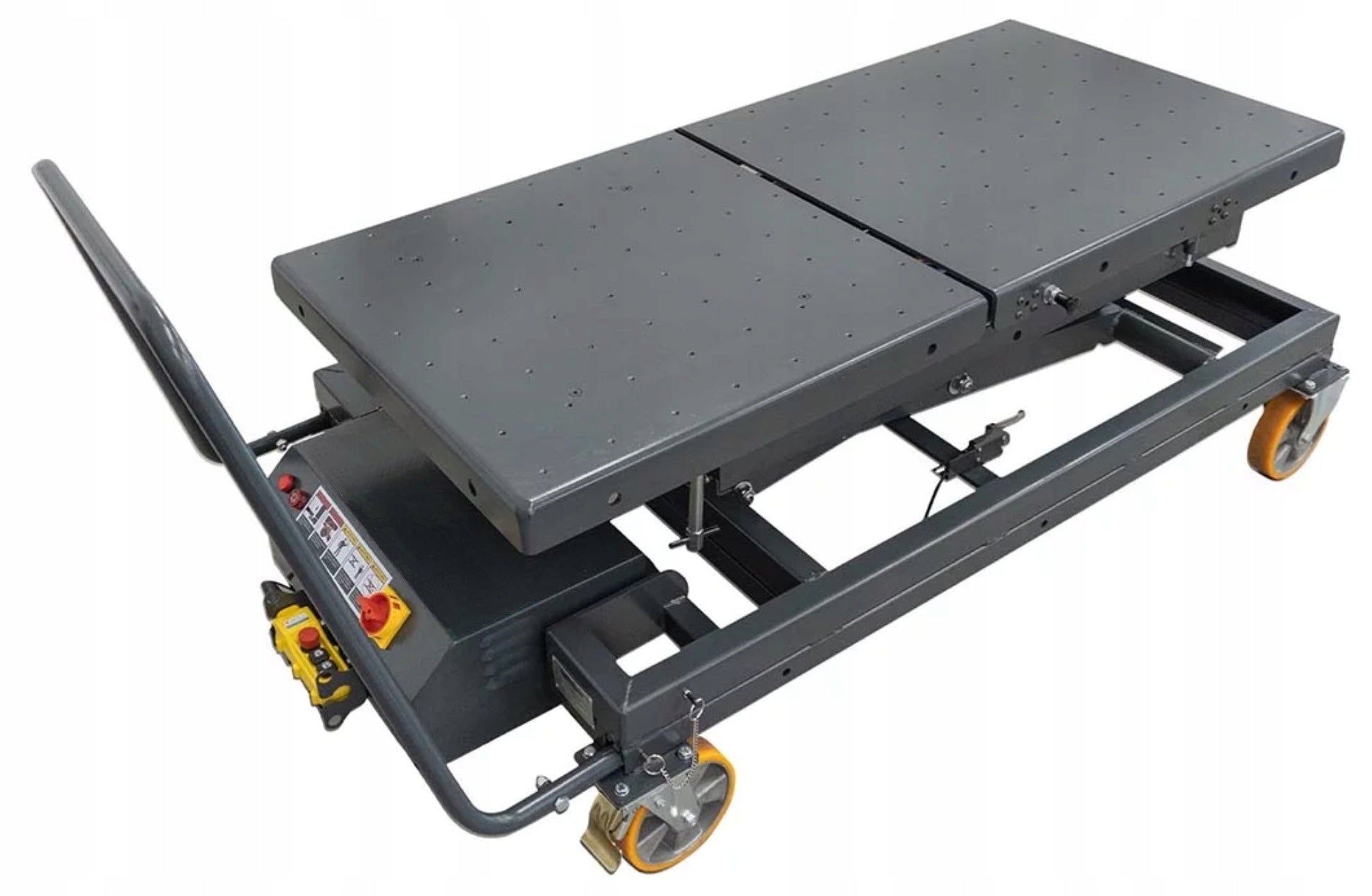

Techwar TC1500 Platform lift for batteries, HV batteries

The TC1500 platform lift is designed for disassembly and assembly of HV batteries in electric vehicles.

The lift can also be used to disassemble and assemble various other components, such as:

engines, gearboxes, fuel tanks, suspensions, chassis components drive systems.

Technical data:

• Lifting capacity: 1500 kg
• Drive: electrohydraulic remote control
• Overall length: 2030 mm
• Overall width: 1060 mm
• Lifting height: 670-2019mm
• Table width: 800 mm
• Table length: 1740-2070 mm
• Engine power: 0,75 kW
• Power supply: 230V/1phase/50Hz
• Colour: anthracite RAL 7016
• Weight: 563kg

Product Features:

The work table can be precisely adjusted in the longitudinal and transverse direction and tilted +/- 3°

Easy and precise adjustment of the table height with the remote control.

Numerous threaded holes facilitate the installation of specialized adapters and tools.

Table top with 136 threaded holes M10 and hole arrangement 100 x 100 mm

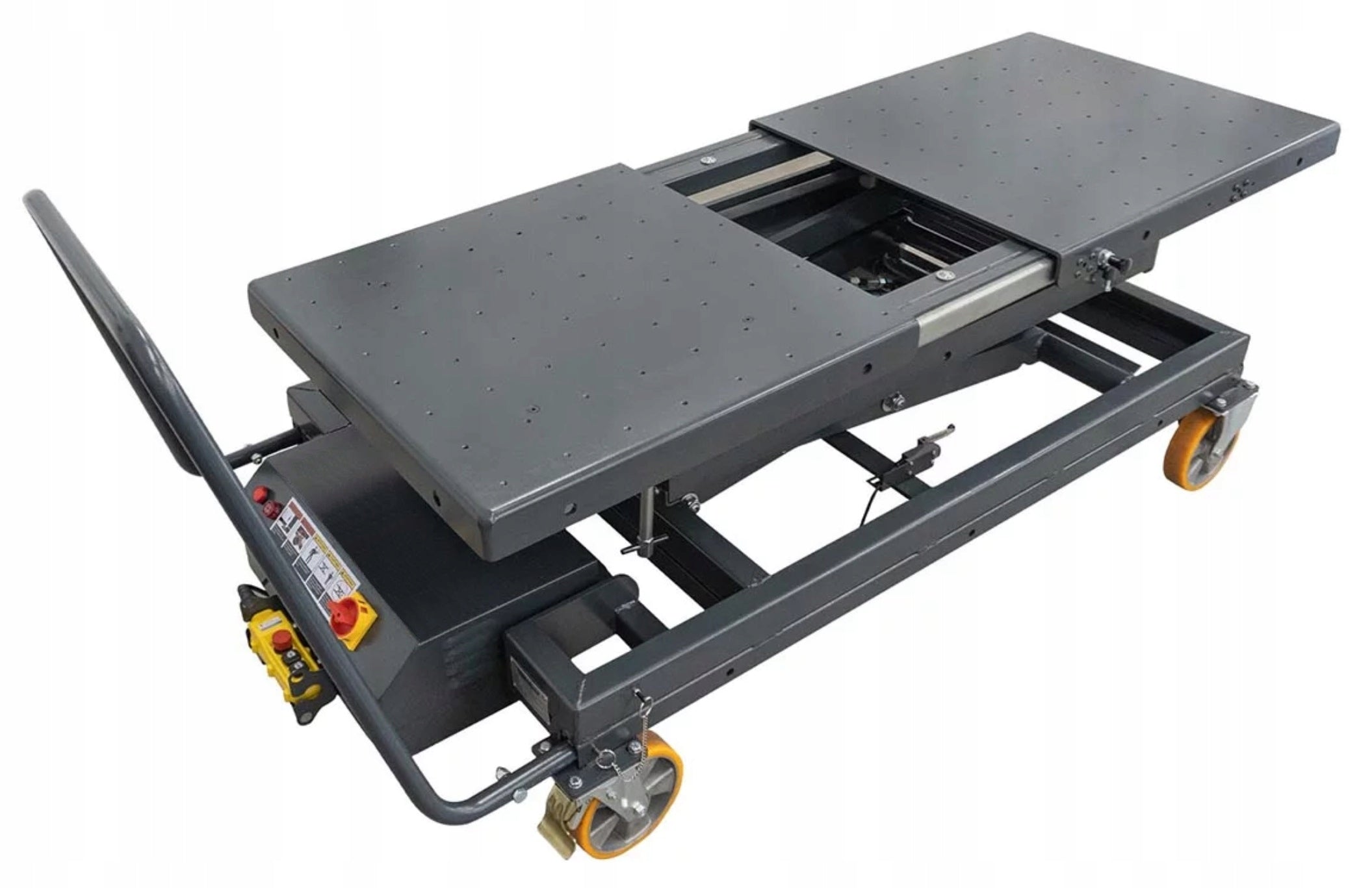

Split and extendable work table - the smaller part can be extended by 330 mm.

Extremely high stability allows you to maneuver the table under load.

The lift is equipped with large, solid wheels with a brake.

It can also be used as a workbench.

The TC1500 weighs 563 kg, making it stable enough yet portable when needed.

Thanks to these parameters, the lift is an excellent solution for car workshops and places dealing with the operation of electric vehicles, where not only effective, but also safe work related to the assembly and disassembly of various vehicle components is required.

Optional equipment:

• Set of 8 adapters for batteries – TC1200-AD
