Akumuliatorių išlyginimo įrenginys Weldman Charge 200, 12/24V, 400Ah

Trumpai apie prekę

Prekė: Akumuliatorių išlyginimo įrenginys Weldman Charge 200, 12/24V, 400Ah. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Weldman
• Modelis: CHARGE 200

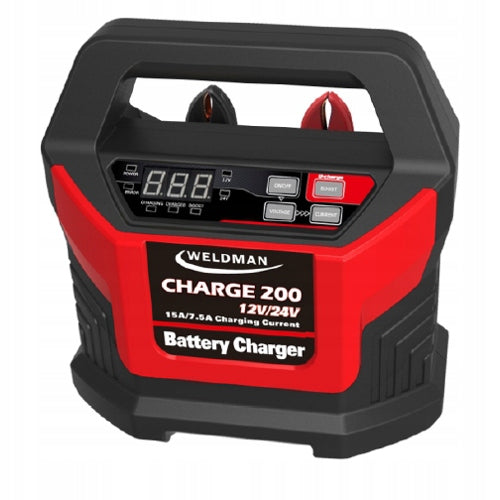

✅ Weldman CHARGE 200 is a versatile rectifier designed to charge various types of lead-acid batteries (WET, MF, CA, EFB, GEL, AGM), supporting 12V and 24V voltages.

✅ The device is distinguished by intuitive LED indicators that inform about the charging status and various stages of operation, and advanced protection against sparking, reverse polarity, short circuit, overheating and overcharging.

✅ The rectifier has compact dimensions (16 x 24 x 25 cm) and light weight (1,6 / 2,1 kg), making it easy to store and transport. It features a BOOST function for fast charging and a desulphurisation function, increasing the efficiency and lifespan of the batteries. The 8-degree charging process ensures accuracy and efficiency, protecting the battery from damage.

✔ Weldman CHARGE 200 is the perfect choice for those looking for a reliable and easy-to-use rectifier for a variety of batteries.

➡ The Weldman CHARGE 200 rectifier uses an innovative 8-degree charging process that guarantees optimal charging parameters for different types of batteries. Each step of the process is precisely designed to maximize battery performance and life:

1. Diagnostics: The process begins with a detailed analysis of the battery, verifying its state of charge and the correctness of connections with the rectifier.
2. Desulfurization: At this stage, the rectifier identifies sulphurized batteries and applies a pulsating current of low voltage and high intensity (up to 10 minutes) to remove sulphate from the battery plates, restoring its original capacity.
3. Analysis: Checking that the battery is not damaged and that it is capable of accepting charging current, which prevents the damaged batteries from charging.
4. Soft start: If the battery is functional, low current charging (about 15%) begins, gradually increasing its value.
5. Primary charging: At this stage, the battery is charged with a maximum current, automatically adjustable intensity, until it reaches 80% of its capacity.
6. Final charging: Charging continues with decreasing current and constant voltage until the full, 100% capacity of the battery is reached.
7. Analysis: The process ends with a test lasting about 2 minutes, checking whether the battery level is maintained after charging.
8. Pulsing: The last stage involves monitoring the battery voltage and maintaining its charge at 95-100% capacity through periodic pulses of charging current.

✔ Thanks to this advanced process, the Weldman CHARGE 200 rectifier not only ensures efficient charging, but also ensures long-term maintenance of battery health.

1. LED Information Diodes:

• Power supply: Indicates that the device is connected to a power source.
• Alarm (ERROR): Indicates an error or problem.
• Charging (CHARGING, CHARGE): Informs about the ongoing charging process.
• Charging (CHARGED, FULL): Indicates a full charge of the battery.
• Fast Charging (BOOST): Indicates the activation of fast charging mode.
• Charging current voltage: Indicates the current charging voltage.

2. Function buttons:

• Fast charging function (BOOST): Allows you to activate the fast charging mode.
• Charging current (CURRENT): Allows you to choose the right charging current.
• Charging current voltage (VOLTAGE): Allows you to adjust the charging voltage.
• Main switch (ON/OFF): Used to turn the device on and off.

✔ The Weldman CHARGE 200 rectifier combines advanced technology with intuitive operation, making it an ideal solution for a wide range of battery charging needs.

✅ Technical parameters:

• Working voltage: The rectifier operates at a standard mains voltage of 230 V / 50Hz.
• Charging voltage: The device supports batteries with voltages of 12 V and 24 V.
• Power consumption: The maximum current consumption is 2,5 A.
• Charging current: Selectable from 2 / 4 / 6 / 8 / 10 / 15 A for 12 V and 3,5 / 7,5 A for 24 V.
• Battery capacity: The rectifier is compatible with batteries with a capacity of 2 to 400 Ah for 12 V and 14 to 200 Ah for 24 V, and also supports maintenance of all types of batteries.
• Charging process: It uses a 8-degree fully automatic charging process.
• Working temperature: The device is designed to operate at temperatures from 0 to +40 °C.
• Isolation class: IP 20, which provides an adequate level of protection.
