Akumuliatorių įkroviklis Mastervolt ChargeMaster 12/25-3, 25A, 3 išėjimai

Trumpai apie prekę

Prekė: Akumuliatorių įkroviklis Mastervolt ChargeMaster 12/25-3, 25A, 3 išėjimai. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Mastervolt
• Modelis: ChargeMaster 12/25-3

Battery charger (25A), 3 charging outputs

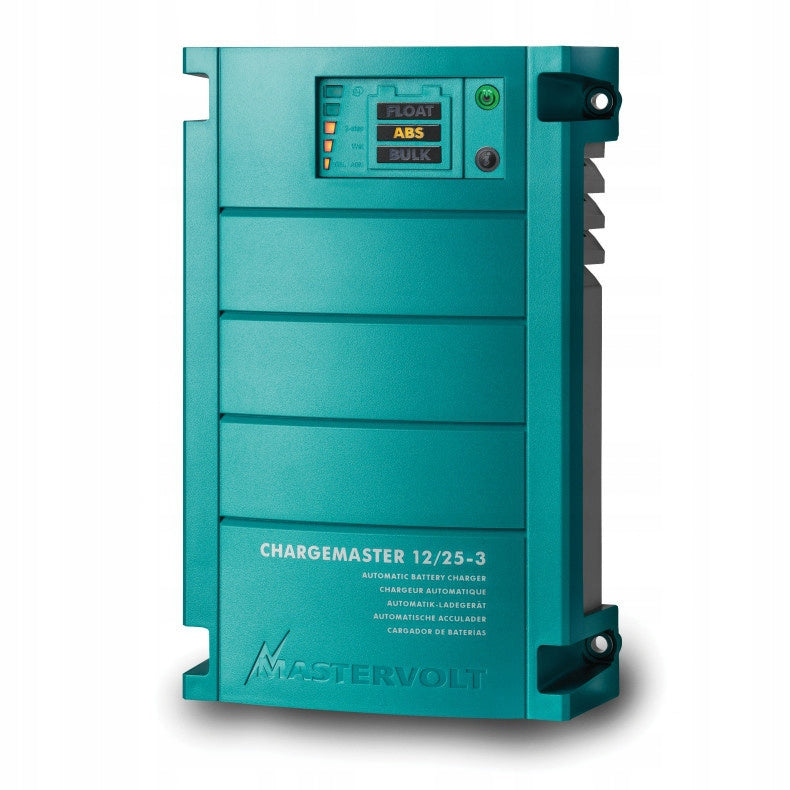

Mastervolt ChargeMaster 12/25-3 [44010250]

Mastervolt offers battery chargers that provide safety, reliability and charging speed so that the batteries maintain their charge and long service life.

ChargeMaster is a solution suitable for recreational or semi-professional use. It is easy to install, includes a detailed display, and is easy to control with three buttons. ChargeMaster can safely charge multiple battery banks at the same time.

• 3-Step+ charging technology for fast and complete charging.
• Safe and full charging thanks to standard security solutions.
• The memorization function prevents overcharging in case of power supply instability.
• Clear control panel.
• Easy installation.
• Built-in functionality system (MasterBus) in combination with other Mastervolt products.

Mastervolt provides you with power to your electrical system without weak cells, reliable and quiet. Whether for leisure or professional solutions, with Mastervolt products you always get power you can rely on.

ChargeMaster series chargers can charge most batteries as soon as they are connected anywhere in the world. ChargeMaster guarantees fast and complete battery charging wherever you are. Chargers in this series can charge multiple battery banks simultaneously thanks to their combined functionality. What’s more, all ChargeMaster chargers can be easily connected to the MasterBus network with just one cable and one connection. You also get the option of central, local and remote monitoring and configuration of your system. The ChargeMaster series of chargers consists of many models to guarantee perfect battery charging in any situation and at any time.

General specification:

Nominal output voltage: 12 V

Total charging current: 25 A

Number of Battery Banks: 3

Charging current on the second bank: 25 A

Charging current on third bank: 25 A

Battery Capacity Range: 50-250 Ah

Nominal input voltage: 120/230 V (90-265 V), 50/60 Hz

AC Connection: 2m AC Cable

Powers your system without batteries: Yes

LED Display

Dimensions, H. x width x depth: 234x132x60 mm

Weight: 1.8 kg

Fastening: 4x screws

Certificates:

CE, E-mark, ABYC A-31, SAE J1171/ISO 8846 ignition protection, UL including FCC Class B marine supplement

Charging characteristics: IUoUo, automatic 3-step+ for gel/AGM/wet/lithium-ion

Charging Voltage Volume: 14.4V

Charging voltage absorption: 14.25 V

Absorption time: 4 hours

Charge voltage Float (wet batteries): 13.25 V

Liquid (Float) charging voltage (gel/AGM batteries): 13.8 V

Temperature compensation

-30 mV/ °C

-17 mV/ °F

Voltage Compensation: Automatic

Current consumption (DC side): < 2 mA

Full load consumption (230 V AC): 450 W

Current Control Function: No

Power factor control: ≥ 0.98

Temperature range (temp. ambient): -25 °C to 60 °C, oversize > 40 °C

Degree of protection: IP23

Cooling:

Vario fan

Volume level: < 52 dBA per 1 meter

Security

Above temperature, before overload, before short circuit, high battery status, low battery status

MasterBus Compatibility: Yes

CSI/DC alarm:

Yes, using Multipurpose Contact Output (product code 77030500)

Downloadable

Instruction in English - ChargeMaster (PDF file):

Specifications
