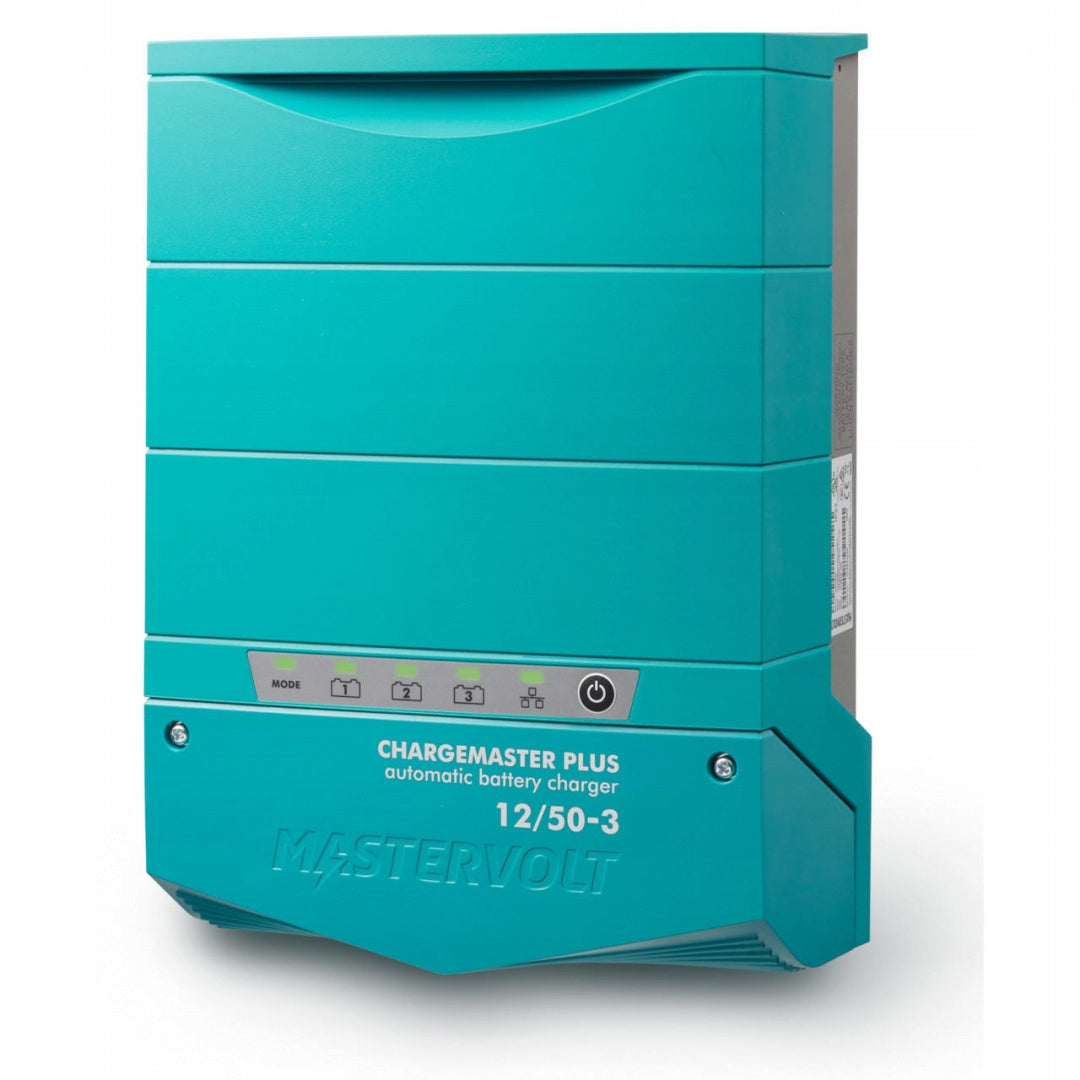

Akumuliatorių įkroviklis 12V 50A Mastervolt ChargeMaster Plus 12/50-3

Trumpai apie prekę

Prekė: Akumuliatorių įkroviklis 12V 50A Mastervolt ChargeMaster Plus 12/50-3. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Mastervolt
• Modelis: ChargeMaster Plus 12/50-3 CZone

12V 50A battery charger, charging up to 3 batteries

Mastervolt ChargeMaster Plus 12/50-3 CZone

Comprehensive "All-in-one" solution for faster and safer charging

ChargeMaster Plus is a complete range of battery chargers that provide both efficient and reliable performance in all conditions. This new generation of battery chargers offers multiple functions in one compact device. ChargeMaster Plus reduces costs and simplifies the system and eliminates the need for additional battery chargers.

With its most battery-friendly architecture, ChargeMaster Plus can charge multiple batteries with different chemical specifications, dimensions and voltages using a fast and safe 3-step+ charging method. Different battery sizes can be combined, as the pre-float function eliminates the risk of overcharging smaller batteries. The lithium-ion battery charging profile is included, as well as flexibility in terms of a custom, user-defined profile.

Global charging

ChargeMaster Plus charges almost any combination of two or three batteries quickly and safely and can handle all possible voltages and network frequencies around the world.

Plug-and-Play Battery Charger

The new ChargeMaster Plus models can achieve full functionality as part of a complete MasterBus or CZone system, or can also be used as a convenient standalone plug-and-play charger.

Optimal performance

The new ChargeMaster Plus can communicate directly with Mastervolt Lithium Ion, MasterShunt or system display batteries for real-time adjustment and optimal performance.

The charger can withstand high temperatures and significant voltage fluctuations. This makes the charger perfect for the toughest marine or mobile environments. In addition, ChargeMaster Plus is CE, ABYC, UL, cULus, SAE, CEC/DOE, ISO and ACMA certified.

Features and Benefits:

• Improved cooling technology ensures very low noise levels throughout the power range
• For use as a standalone charger or as part of a complete system.
• Automatic power distribution, maximum charging current possible at each output
• All 3 outputs provide maximum current*
• Pre-float eliminates the risk of overloading.
• Automatic current distribution - distribution of charging current based on the state of the battery.
• Compatible with network frequencies and voltages around the world.
• Smaller and lighter than the previous model.

*Total charging current must not exceed the maximum value of the model.

Technical specification

Communication & monitoring

Communication interfaces

MasterBus, CZone, NMEA

General specification

Nominal voltage output: 12 V

Max. charging current per base output: 50 A

Total charging current: 50 A at 14,25 V

Max. AC current (230 V / 120 V): 3.5 A / 7.1 A

Number of battery banks: 3 (max.)

Battery Capacity Range: 200-400 Ah

Nominal input voltage: 120/240 V (80-275 V) 50/60 Hz

Power Supply Mode: Yes

Galvanic Insulation: Yes

Display/readings

LED Display

Dimensions, H. x width x depth: 291 x 210 x 105 mm

Weight: 2,5 kg

Compatibility

CE, CEC, DOE, ABYC, UL1236, cULus, SAE J1171, ISO 8846, ACMA

Technical specification

Charging characteristics

IUoUo, automatic / 3-step+ for gel/AGM/flooded/lithium-ion + user-defined option

Temperature compensation

-30 mV/°C / -38 mV/°F; temperature sensor included

DC Voltage Compensation

Yes, via automatic compensation or MasterShunt

Power consumption (DC side)

< 2 mA (MasterBus off)

Current Control Function

Yes, by MasterBus or CZone

Power factor control: > 0,98

Temperature range (temp. ambient): -25 °C to 70 °C, lowering > 40 °C, 80% power at 60°C °C

Cooling: vario fan

Degree of protection: IP23, with vertical mounting

Security

against excessive temperature, overload, short circuit, high/low battery voltage, ignition protection

Charger Status Interface (Emergency Contact)

Yes, using Multipurpose Contact Output (product code 77030500)
