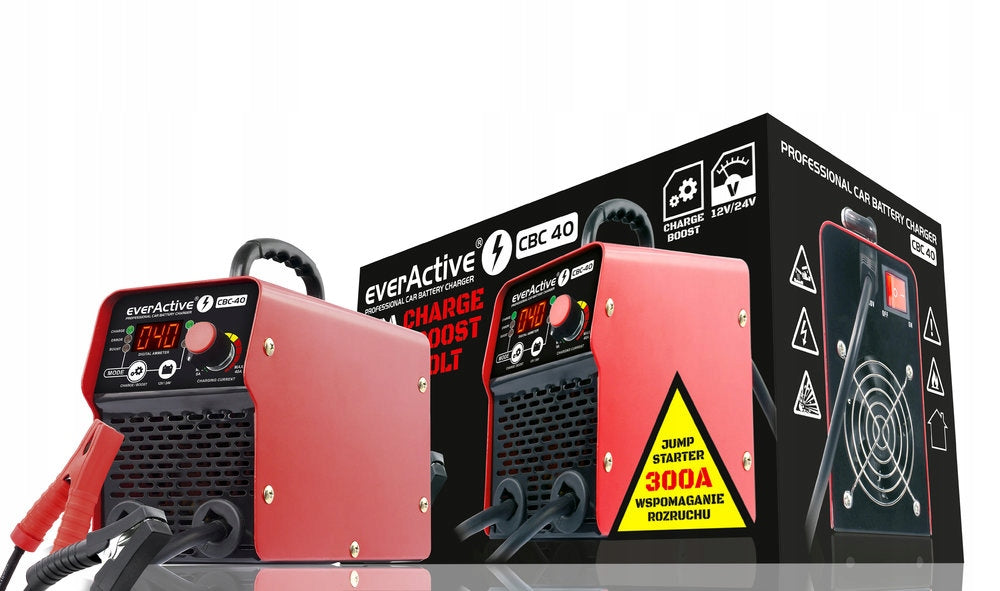

Akumuliatorių įkroviklis 12V/24V CBC-40 60A su paleidimo funkcija

Trumpai apie prekę

Prekė: Akumuliatorių įkroviklis 12V/24V CBC-40 60A su paleidimo funkcija. Kategorija: Baterijų įkrovikliai.

• Gamintojas: no brand

• Charging current (effective value): 8 - 40A (smoothly adjustable) for both 12V and 24V batteries.
• Charging current (maximum value): 60A.
• Current for start-up assistance (maximum value): 300A - for both 12V and 24V batteries.
• Maximum charging voltage: 14.8V / 29V (+0.4V) - the charger ensures full charging of the battery, guarantees the achievement of correct electrolyte density levels, and at the same time reduces the risk of battery overcharging.
• Supported battery capacities: from 25 Ah to 1000 Ah.
• The everActive inverter charger combines the best features of transformer rectifiers and pulse chargers (microprocessor) while eliminating their biggest drawbacks.
• Advanced inverter technology means many times smaller size and weight and much greater charging efficiency compared to traditional transformer chargers.
• The charger allows smooth, stepless adjustment of the effective charging current in the range of 8 - 40A, regardless of whether we connect a 12V or 24V battery.
• The maximum value of charging current is up to 60A. In addition, the product is equipped with a start-up support option, it has a maximum current of 300A(! ).
• The CBC 40 charger is designed for 12V/24V DC batteries manual selection of gel, lead-acid, AGM, VRLA, VLA, SLA, WET, GEL, Lead-Acid, EFB, Ca/Ca, Pb, etc.

Charging current (effective): steplessly adjustable 8. .40 [A] for 12V/24V

• Charging current (maximum): 60 A for 12V/24V
• Current for start-up assistance: above up to 300 A for 12V/24V
• Input voltage: AC 220-240V, 50Hz/60Hz (7A)
• Working temperature: -20. .40°C (power limitation at higher temps. )
• Other: built-in fan, AC power cable length approx. 1.8 m, total length of connections with crocodiles approx. 1.8 m
• Dimensions: 105 x 230 x 275 mm
• Product code: 19506

• 25-1000Ah for 12V/24V

• 14,80(+0.4V) for 12V batteries)
• 29,00(+0.4V) for 24V batteries)

• Gradually adjustable 5. .40 [A] for 12V/24V

• Metal solid housing with comfortable grip,
• Effective charging and regeneration of extremely discharged batteries,
• Electronically stabilized output voltage reduces the risk of battery overcharging,
• Charging batteries with the most safe method: CC (constant current) and after reaching the target voltage by CV method (constant voltage with automatic limitation of charging current up to 0A),
• Possibility of full charge of batteries with electrolyte density equalization throughout the battery, automatic desulphurisation mode,
• Smooth, stepless adjustment (limiting) of charging current in the range from 8A to 40A,
• Maintaining a high voltage at the output, even after charging is completed, promotes the achievement of an appropriate electrolyte density in each battery compartment (alignment charge),
• The same output current adjustment capabilities for both 12V and 24V batteries,
• The device has massive, fully insulated connections - crocodiles, with a length of 180 cm,
• After a break and resume power supply from the AC network, the charger will automatically start charging in 12V mode, with the previously set charging current,
• The charger is equipped with a digital ammeter, showing the approximate, current value of the charging current - allows you to quickly assess the status and degree of charge of the battery.

• Automatic charger everActive CBC-40 with connections

=Power cable

• User manual PL/EN/DE

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	no brand
Parametry	Maximum amperage	60 A
Parametry	EAN (GTIN)	5908117422218
Parametry	Batteries included	no
