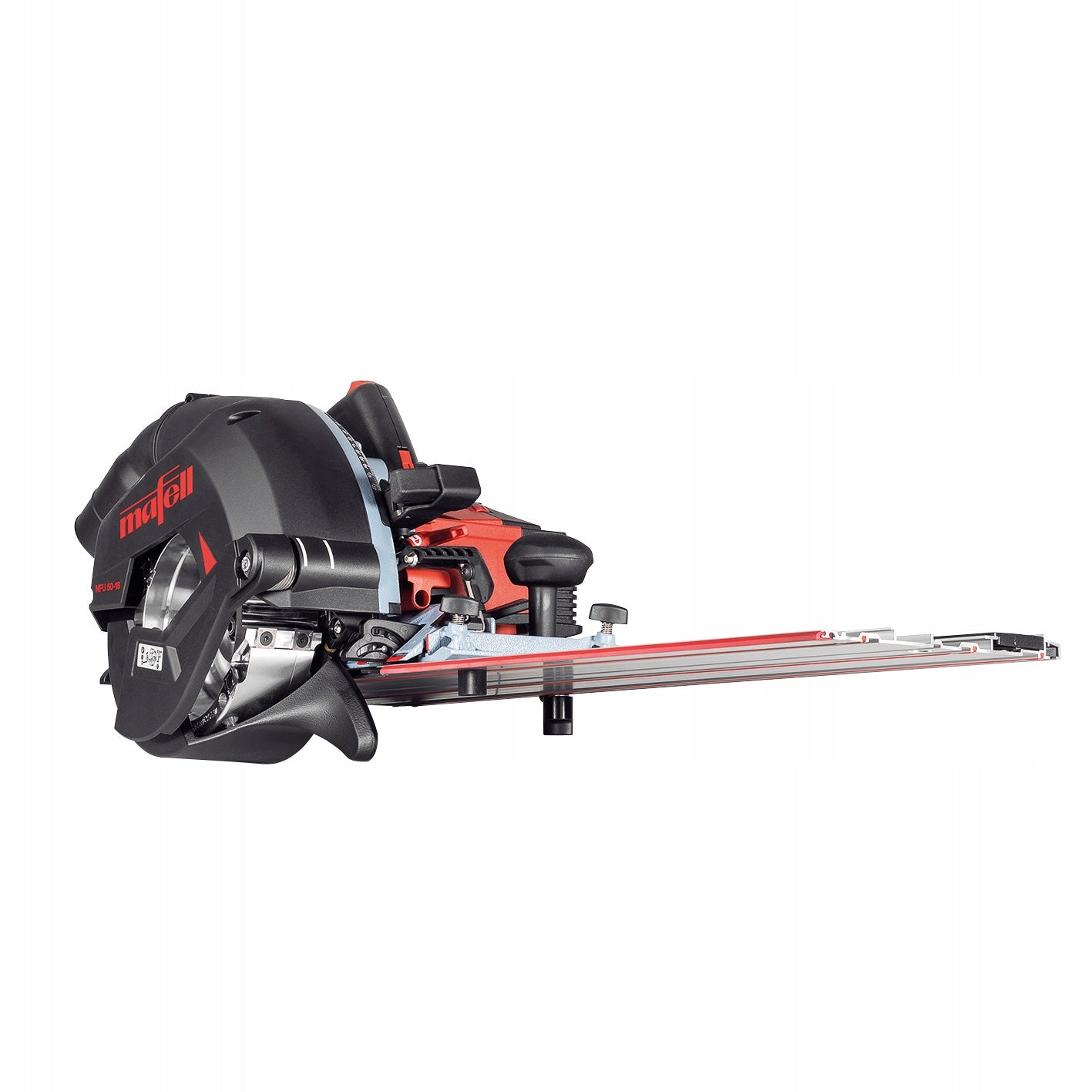

Akumuliatorinė frezavimo staklės NFU 50-18 PURE Mafell

Trumpai apie prekę

Prekė: Akumuliatorinė frezavimo staklės NFU 50-18 PURE Mafell. Kategorija: Frezos.

• Gamintojas: Mafell
• Modelis: 91F302

Technical information:

• Milling depth with guide rail at 0°: 0 – 44 mm
• Milling depth without guide rail at 0°: 0 – 50 mm
• Cutting Angle Range: 0 – 45 °
• Rotation speed: 4700 - 7100 1/min
• Weight (with battery): 10,3 kg
• Dimensions (W x Long x H) with guide L: 370 x 810 x 280 mm
• Milling length with guide L: 370 mm
• Short diameter of chip extraction Ø: 49 mm
• Voltage: 2 x 18 V

• 1 Head for framing, Ø 163 x 60 mm; cat. no. 091901
• 1 NFU-PA position indicator
• 1 Parallel guide
• 1 Side guide SA 625; cat. no. 207183
• 1 Guide L, max. diagonal cutting range 370 mm; cat. no. 208171
• 1 Allen wrench SW 6
• 1 Torx T 15 Allen Wrench
• in a carton

Product details

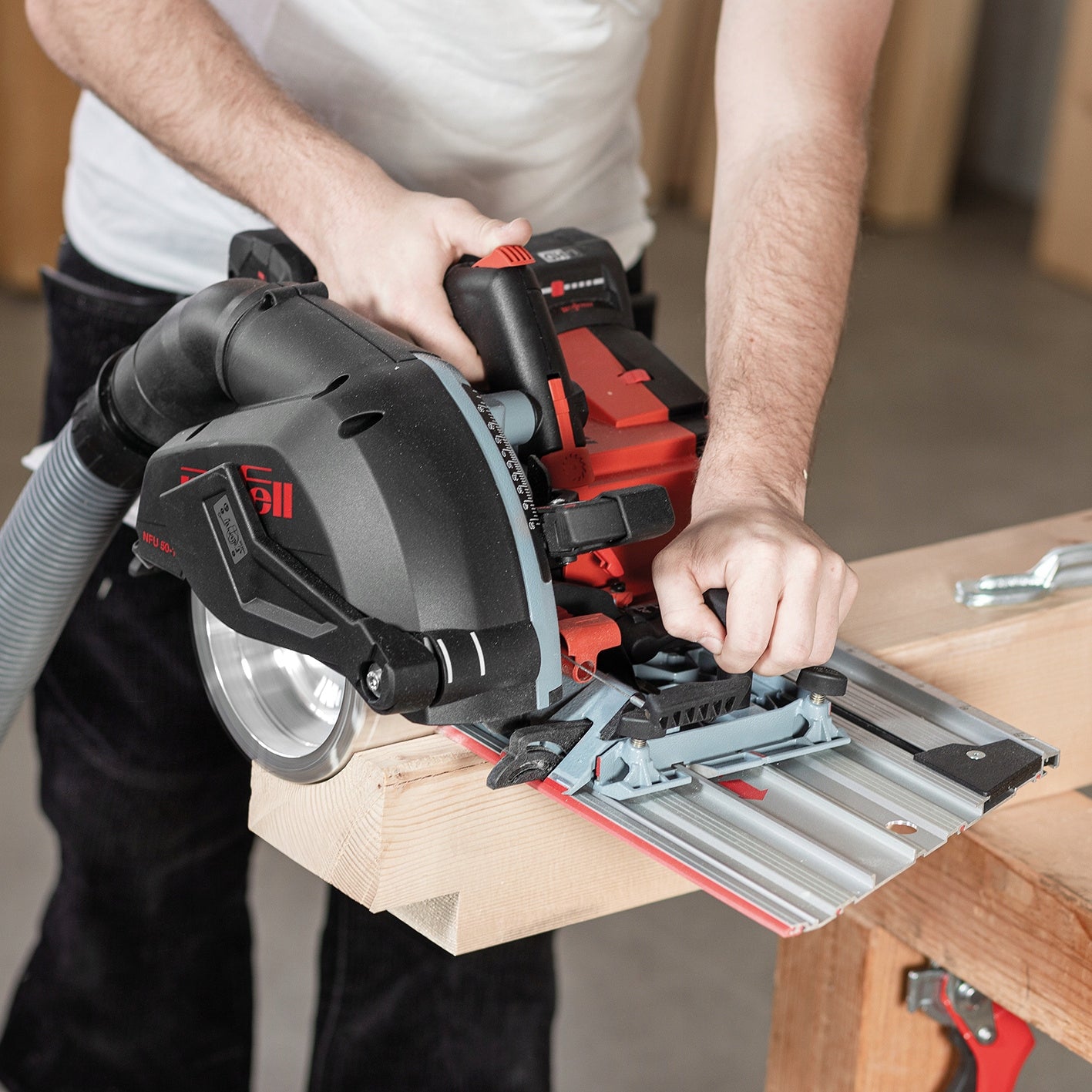

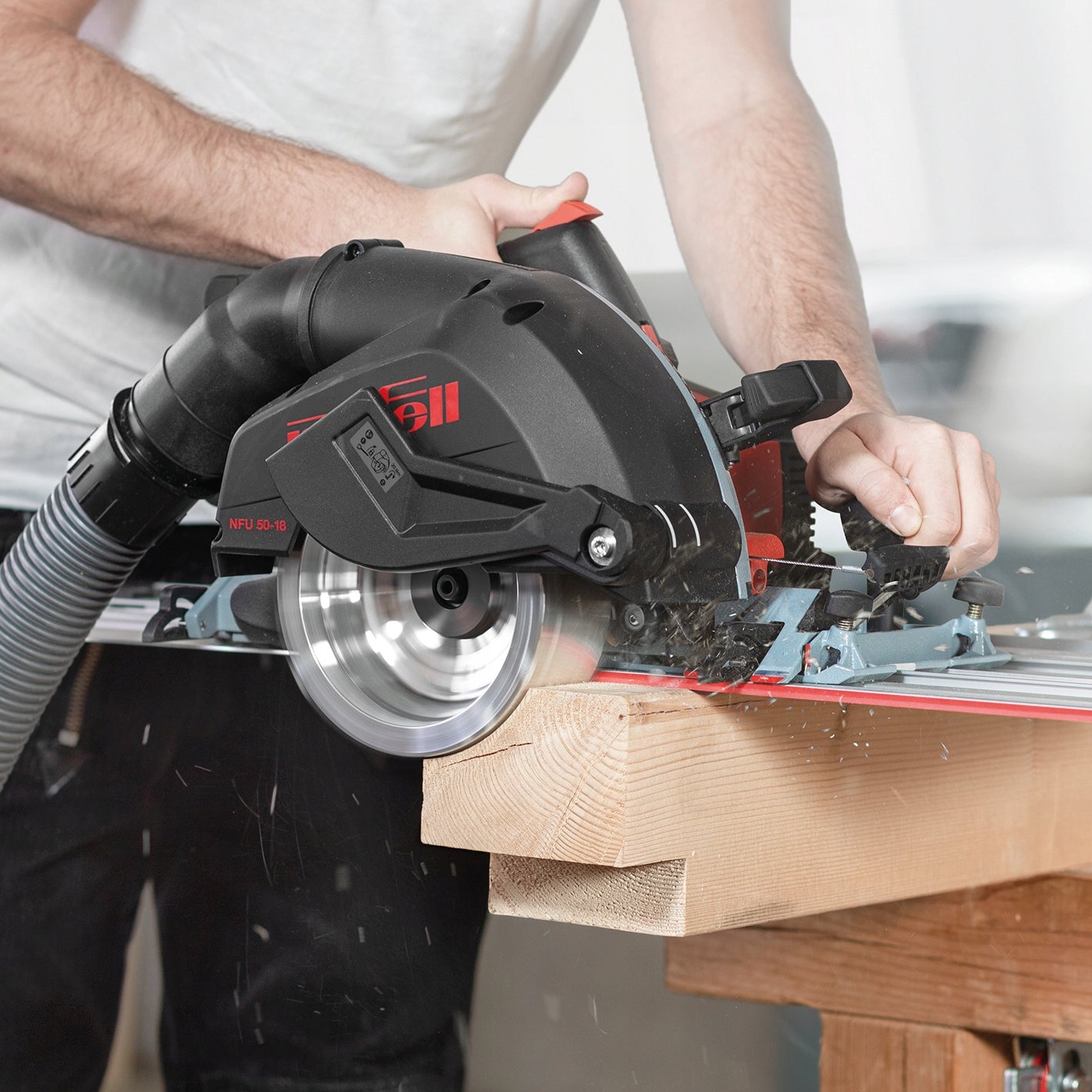

The NFU 50 frame milling machine offers flexibility in use and is a versatile device for performing a huge range of tasks related to the construction of wooden structures. A wide range of accessories opens up further possibilities for everyday work.

The NFU 50 design is characterized by the use of extremely durable, high-quality and precisely made parts, including a lightweight magnesium alloy housing and impact-resistant glass fiber reinforced plastic components. It also comes with clever technical details to help you meet the rigors of your work.

Application

• Longitudinal and transverse frames
• Fries
• Panels in buildings of the Prussian wall, false floors
• Connections up to 45°
• Spigots
• For joining solid wood, slats and wooden boards

Benefits

• Rotary hose connection at d. 58 mm for large amounts of dust can be set using the locking function.
• The 2-in-1 lock allows you to quickly and easily set the cutting depth.
• The groove cutter brake stops the motor within 3 seconds for optimal safety.
• remove the button from the cross-cutting guide, allowing the milling machine to be used either on the guide
• This product is part of the Cordless Alliance System. CAS means: one battery for everything. 100% compatibility for devices, batteries and chargers!
