Akumuliatoriaus lygintuvas motociklui, keturračiui, motoroleriu

Trumpai apie prekę

Prekė: Akumuliatoriaus lygintuvas motociklui, keturračiui, motoroleriu. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Sena
• Modelis: Battery Charger 4A

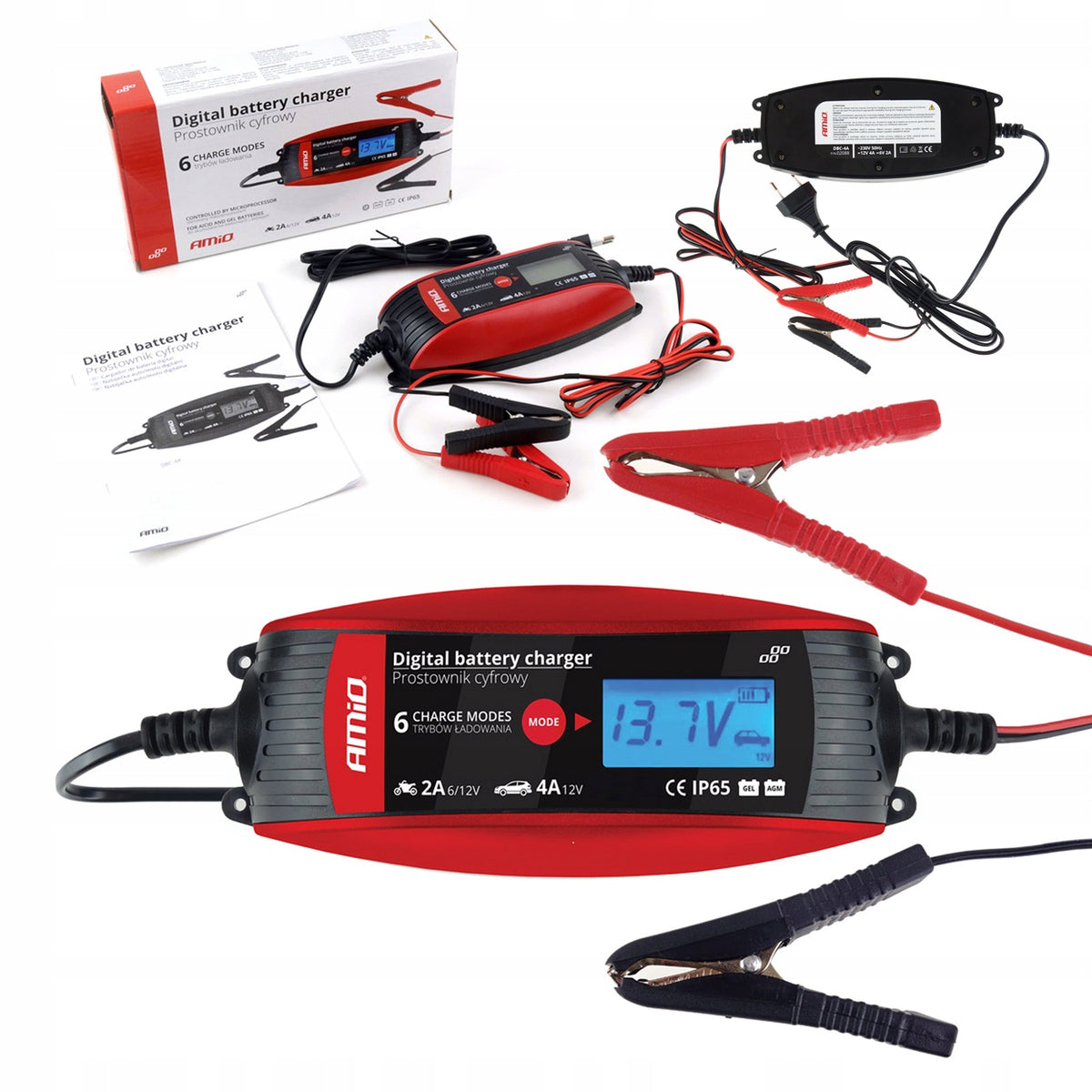

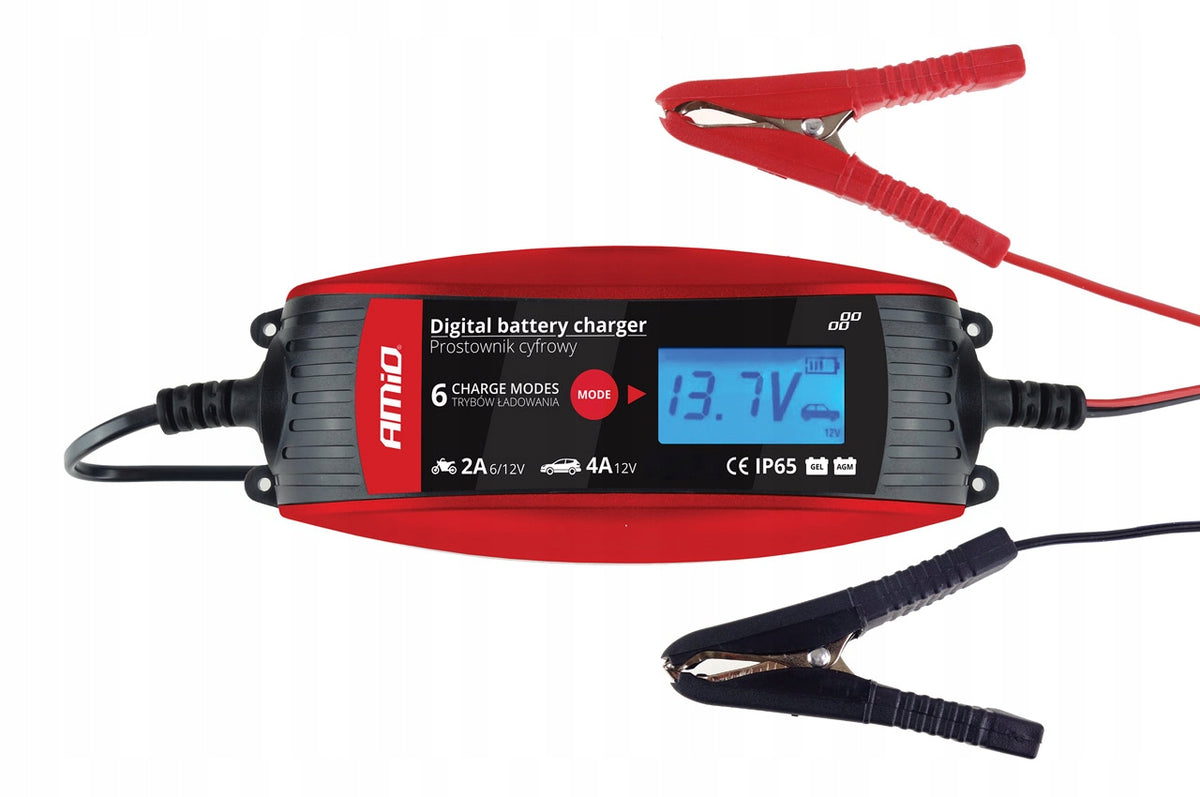

AMiO Digital Rectifier 6V/12V - 2A/4A - DVL DBC-4A

The DBC-4A rectifier can charge lead-acid batteries (regular and MF), Ca/Ca, AGM and gel batteries. It is a microprocessor rectifier, made in accordance with IP65 standard, which means resistance to dust and splashes and low pressure water jet dousing. It has protection against:

• short circuit
• reverse battery connection (reverse polarity)
• open circuit
• protection against sparks
• battery overcharging
• rectifier overload
• overheating of the rectifier

It has 6 charging modes:

Batteries 6V to 14Ah

• 7.2V do 2A
• 7.4V to 2A (low temperature charging)

12V to 14Ah batteries and deeply discharged

• 14.3V do 2A
• 14.7V to 2A (low temperature charging)

Batteries 12V over 14Ah

• 14.3V do 4A
• 14.7V to 4A (low temperature charging)

It shows the battery voltage and the degree of charge on an ongoing basis and adjusts the charging current depending on its needs. Once charged, it displays a FULL message and maintains the voltage on the battery.

Specification:

• Supply voltage 230V 50 Hz
• Output voltage: 6/12V
• Power consumption: about 60W (1W standby)

Maximum charging voltage:

• 7.4V (for 6V batteries)
• 14.7V (for 12V batteries)

Maximum charging current:

• 2A +/- 10%,
• 4A +/- 10%

Supported battery capacities:

• 6V - 1,2Ah do 14Ah
• 12V - 1.2Ah to 14Ah and 14Ah to 120Ah

Degree of protection: IP65

6 charging programs switchable by "WORKING MODE" button

• Display backlight

Gel batteries with a capacity of up to 14Ah used in motorcycles and scooters should be charged by selecting a program with the motorcycle icon on the display.

Charging with more electricity can damage the battery.
