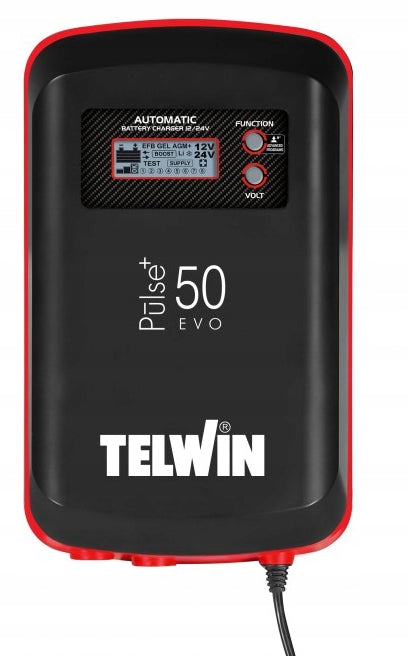

Akumuliatoriaus įkroviklis PULSE 50 EVO, 230V, 12/24V

Trumpai apie prekę

Prekė: Akumuliatoriaus įkroviklis PULSE 50 EVO, 230V, 12/24V. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Telwin
• Modelis: PULSE 50 EVO

We manufacture MIG/MAG welding equipment by econoMIG and electronic components for various types of welding and rectifier equipment. We try to rely on parts manufactured in our country, but this is not always possible.

We are looking for a supplier outside the country. If we choose a foreign supplier, despite the fact that in Poland also someone like him produces elements, it is only in a situation when he is the best in his specialty.

PULSE 50 EVO 12/24V is a multifunctional electronic rectifier for charging WET wet-acid, GEL gel, Lithium, AGM batteries with fiberglass mat (MF maintenance-free, spiral, for Start-Stop systems), for automatic charging and maintenance with PULSE-TRONIC technology. It is equipped with an advanced function for desulphurisation of batteries. It is very benchy to use thanks to the automatic recognition of the type of battery being charged and the friendly control panel.

The 8-step charging process ensures optimal battery charging conditions:

• TEST (control of battery charge status, checking the correctness of the set voltage),
• Desulfurization (detection and regeneration of sulphurized batteries)
• ANALYSIS (battery condition analysis detects defective battery)
• MAIN CHARGING (maximum current to reach 80% charge state)
• FINAL CHARGING (declining current to charge in 100%)
• CHECK (checking the operation, verifying whether the battery maintains the state of charge)
• Maintenance (constant voltage charging)
• PULSE (pulse regeneration).

Functions of the device:

CHARGING

• CHARGE AUTO – automatic charging: automatic selection of current during charging and maintenance depending on battery capacity
• CHARGE AUTO COLD – cold battery charging function: optimizes charging at very low temperatures (low temperatures can adversely affect the chemical structure of battery components)
• MAINTAIN – Maintenance charging: pulse charging via PULSE TRONIC technology
• MONITOR – charging status control: continuous control of charging phases
• BOOST – fast charging and automatic transition to the maintenance phase when charging is complete

REGENERATION

• DESULFATION – desulfurization: the impulse regeneration process of sulphurized batteries allows the removal of sulphates from lead plates and results in the recovery of battery capacity

POWER SUPPLY

• SUPPLY - function dedicated to maintaining the voltage in the car when replacing the battery.

TEST

• VOLT – battery voltage and charge status test
• START – battery start current test (CCA)
• ALTERNATOR – test of the correct operation of the alternator

PROTECTION – full safety and protection against reverse polarity, short circuit of terminals, overload and charging of a faulty battery

SAVINGS – minimum power consumption, automatic shutdown after a period of inactivity

Thanks to the magnets tightened on the back, the device can be attached to a dedicated wall mount or any ferromagnetic surface. (Magnets and handle are not part of the standard set and are available for purchase separately)

Price of the device with output cables 2m

Rated supply voltage 230V; 50Hz (1ph)

Power 610 W

Degree of protection IP33

Weight 3,13 kg

Charging voltage 12 / 24 V

Charging Current 45 / 23 A

Fast charging current (boost) 40 A

Rated battery capacity Ah 15h (min/max) 10 - 600 Ah

Rated charging current EN 60335-2-29 40 / 20 A

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Model	PULSE 50 EVO
Parametry	Brand	Telwin
Parametry	Maximum amperage	45 A
Parametry	Product weight with unit packaging	0.1 kg
Parametry	EAN (GTIN)	8056151814609
Parametry	Batteries included	no
Parametry	Packaging status	original
