Akumuliatoriaus įkroviklis Phoenix Smart IP43 12V 50A, 120/240V, 3 išėjimai

Trumpai apie prekę

Prekė: Akumuliatoriaus įkroviklis Phoenix Smart IP43 12V 50A, 120/240V, 3 išėjimai. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Victron energy
• Modelis: PSC125053095

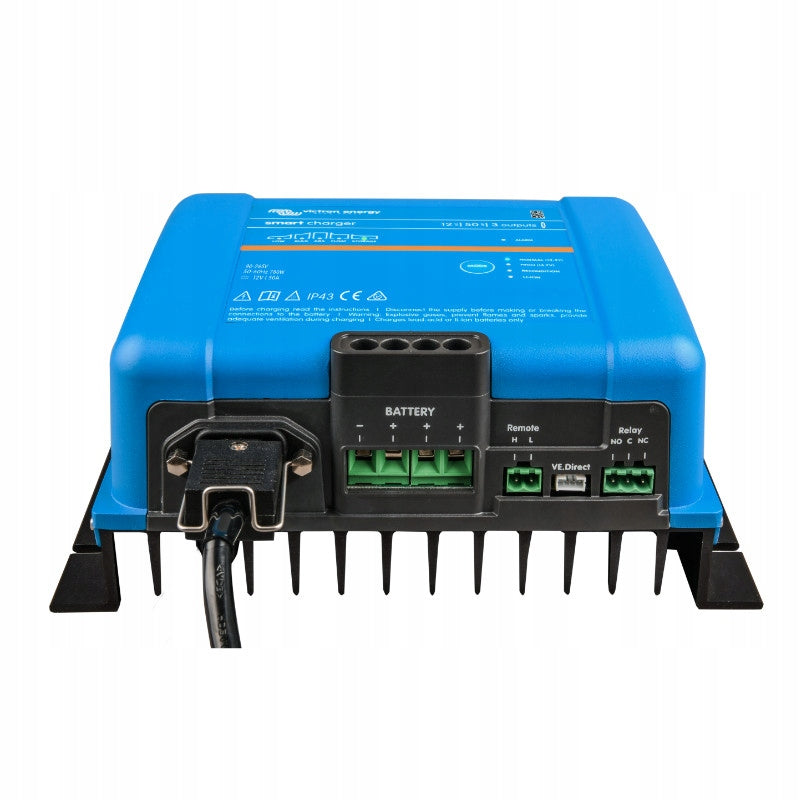

Phoenix Smart IP43 Charger 12/50 (3) 120/240V

Victron Energy charger. Voltage 12V. Current 50A. Charging 3 independent batteries. Managed by phone.

Phoenix Smart IP43 12/50 (3) 120/240V from Victron Energy is an advanced charging device that combines the latest technology with intelligent energy management. Thanks to three independent charging outputs, it is possible to simultaneously power up to three batteries, which makes the charger ideal for on-board systems of boats, motorhomes and other multi-battery installations. In addition, thanks to the Bluetooth Smart function, you can remotely manage and monitor the work of the charger from your phone or tablet, which significantly increases the comfort of use. Bluetooth also allows programming of operating parameters, such as the charging algorithm, which can be adapted to the type and capacity of batteries.

The high efficiency of the charger results from the use of automatic voltage equalization technology, which prevents voltage drops when the DC load increases. Thanks to this, the batteries are charged in an optimized way, without the risk of damage caused by excessive gas release. BatterySafe mode protects batteries when charging is done with high current and voltage, automatically limiting the rate of voltage increase when a critical level of gassing is reached. Moreover, the storage mode activates after 24 hours of battery inactivity, minimizing power consumption and prolonging the life of the electrodes.

Modern solutions tailored to each user The Phoenix Smart IP43 12/50 (3) charger is characterized by an adaptive 6-stage charging algorithm, which automatically adjusts the charging process to the degree of battery charge. Thanks to this, even after deep discharge, the battery is effectively regenerated, and with a slight discharge, the absorption process is shortened, which prevents overcharging. In addition, you can change charging parameters at any time thanks to Bluetooth and the VE.Direct interface, which allows you to precisely adjust the operation of the device to the specific needs of the user. The Color Control panel and the ability to connect wired to a computer are further advantages that make the Phoenix Smart a versatile and easy-to-use device.

High efficiency at the level of 94% and low power consumption in the unloaded state (only 1 W) make the charger extremely energy-efficient. It is a solution dedicated to users who value care for energy resources, and at the same time want to have full control over the charging process. The integrated low current mode allows you to limit the charging current to 25A, which is ideal for charging smaller batteries. Technical specification

• Model: Phoenix Smart IP43 12V 50A (3) 120/240V
• Input voltage: 230 VAC (range: 210 – 250 V)
• Direct current input voltage range: 90 – 375 VDC
• Frequency: 45 – 65 Hz
• Power factor: 1
• Reverse current drainage: No AC power: < 0,1 mA
• Power consumption with AC power supply and remote control disabled: < 6 mA
• Power consumption without load: 1 W
• Efficiency: 94%
• Charging voltage – Absorption / Maintenance / Storage:
• Normal: 14,4V / 13,8V / 13,2V
• High: 14,7V / 13,8V / 13,2V
• Lithium-ion: 14,2 V / N/D / 13,5 V
• Fully programmable: Yes, with Bluetooth and/or VE.Direct
• Number of battery connections: 3
• On-board battery charging current: 50 A
• Low current mode: 25 A
• Temperature compensation – Default values: -16 mV/°C
• Starter battery charging current: No
• Charging algorithm: 6-stage adaptive (3-stage for lithium-ion batteries)
• Protection: Reverse polarity of the battery (fuse, user does not have access) / Short circuit output / Overheating
• Can be used as a power source: Yes, the output voltage can be set via Bluetooth and/or VE.Direct
• Operating temperature range: -20°C to 60°C (full output current up to 40°C, linear reduction up to 20% at temp. 60°C)
• Moisture (without condensation): Max. 95%
• Remote on/off: Yes (2-pole connector)
• Relay (programmable): Rated DC: 5 A up to 28 VDC
• Bluetooth: Power supply: -4 dBm | Frequency: 2402 – 2480 MHz
• Material and colour: Aluminium (blue RAL 5012)
• Battery connection: 16 mm² (AWG6) screw terminals
• Alternating current connection: IEC 320 C14 inlet with retaining clamp (current cable with corresponding plug must be ordered separately)
• Degree of protection: IP43 (electronic components), IP22 (connection area)
• Weight: 2,7 kg
• Dimensions: 180 x 249 x 116 mm

Phoenix Smart IP43 12/50 (3) is a smart device that ensures safe and efficient charging of up to three batteries at the same time. Remote control, high energy efficiency and programmable charging algorithm make it an ideal solution for users who value modernity and reliability. The compact, robust design and advanced protective features make this charger a unique tool for special tasks.
