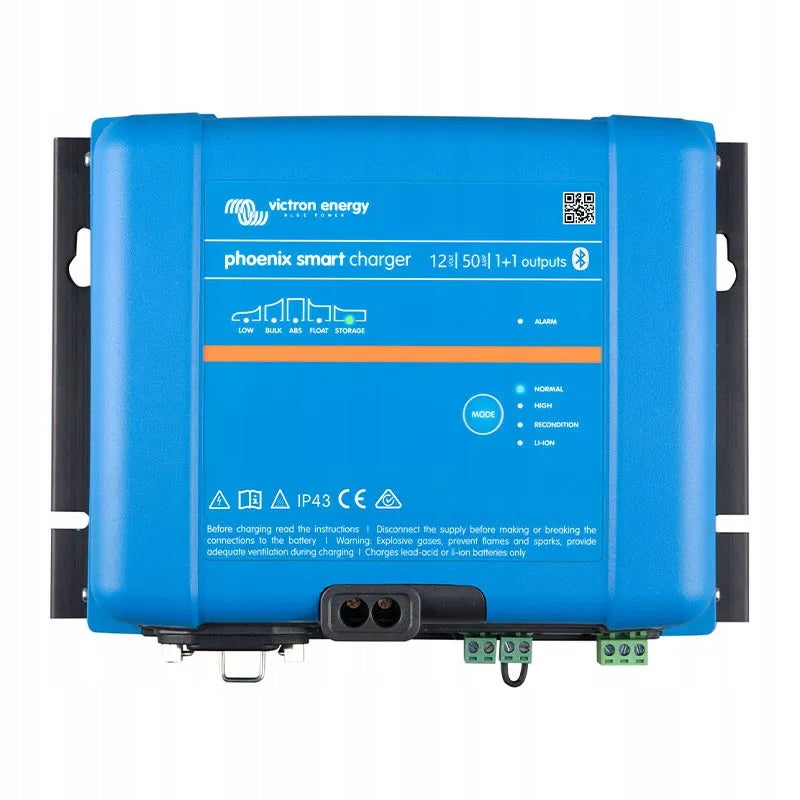

Akumuliatoriaus įkroviklis Phoenix Smart IP43 12V 50A (1+1)

Trumpai apie prekę

Prekė: Akumuliatoriaus įkroviklis Phoenix Smart IP43 12V 50A (1+1). Kategorija: Baterijų įkrovikliai.

• Gamintojas: Victron energy
• Modelis: 12/50(1+1)

The Phoenix Smart IP43 12V 50A (1+1) charger is an advanced device that combines modern technology and functionality to guarantee safe and efficient charging of batteries. Equipped with an intelligent charging algorithm and Bluetooth function, this charger allows full control over the charging process, both from the mobile device and via the VE.Direct. interface With programmable options and multi-stage protection, it is ideal for automotive, marine, and stationary applications.

Phoenix Smart IP43 12V 50A (1+1) offers a multi-stage, adaptive charging algorithm that automatically adjusts to the battery charge state. The charger carries out the process in six steps: mass charging, absorption, regeneration, buffering and storage to ensure optimal operating conditions for each type of battery. In addition, BatterySafe protects the battery from excessive gassing, reducing the increase in voltage at high charging current. The device is characterized by high efficiency of 94%, which minimizes energy loss. The no-load power consumption is only 1W, making them an extremely energy-efficient solution. The Phoenix Smart IP43 is fully programmable and allows for precise regulation of charging voltage, allowing you to adjust the parameters to the requirements of various batteries, including lithium-ion batteries. Thanks to the Bluetooth function, users can monitor the operation of the device from their smartphone or tablet on an ongoing basis. The Phoenix Smart charger is equipped with two outputs for charging batteries (1+1). The main output provides a full charging current of up to 50A, while the second, with a power of 3A, is dedicated to the starter battery, which makes the device ideal for vehicles with multiple battery packs. Additionally, the low-current mode (25A) allows you to adjust the device to smaller loads. Robust construction and protection The housing made of durable aluminium (blue RAL 5012) and IP43 rating ensure durability and resistance to harsh operating conditions. Protection against reverse polarity, short circuit and overheating further increases the level of safety of use. The device can operate in a wide temperature range, from -20°C to 60°C, with the output current fully preserved up to 40°C. Technical specification

• Model : Phoenix Smart IP43 12V 50A (1+1)
• Input voltage: 230 VAC (range: 210 – 250 V)
• Direct current input voltage range: 290 – 355 VDC
• Frequency: 45 – 65 Hz
• Power factor: 0,7
• Reverse current drain: < 0,1 mA in the absence of AC power
• Connected AC power and disabled remote control: < 6 mA
• Power consumption without load: 1 W
• Efficiency: 94%
• Charging voltage (Absorption / Maintenance / Storage):
• Normal: 14,4V / 13,8V / 13,2V
• High: 14,7V / 13,8V / 13,2V
• Lithium-ion: 14,2 V / N/D / 13,5 V
• Programmability: Yes, with Bluetooth and/or VE.Direct
• Number of battery connections: 2 (2-pole terminals, max. 3 (A)
• On-board battery charging current: 50 A
• Low current mode: 25 A
• Temperature compensation: -16 mV/°C
• Starter battery charging current: 3 A (for 1+1 models)
• Charging algorithm: 6-stage adaptive (3-stage for lithium-ion batteries)
• Security :
• Reverse polarity of the battery
• Short-circuit output
• Overheating
• Can act as a power source: Yes, output voltage configurable via Bluetooth and/or VE.Direct
• Operating temperature range: -20°C to 60°C (full output current up to 40°C, 20% reduction at 60°C)
• Moisture (without condensation): Max. 95%
• Remote on/off: Yes (2-pole connector)
• Relay (programmable): 5 A to 28 VDC
• Bluetooth: Power -4 dBm, frequency 2402 – 2480 MHz
• Material and colour: Aluminium (blue RAL 5012)
• Battery connection: 16 mm² (AWG6) screw terminals
• Alternating current connection: IEC 320 C14 inlet (cable to be ordered separately)
• Protection rating: IP43 (for electronics), IP22 (for connections)
• Weight: 3,5 kg
• Dimensions (H) x W x D. ) : 180 x 249 x 100 mm

The Phoenix Smart IP43 12V 50A (1+1) charger is a versatile device that can handle a variety of applications, offering advanced features, reliability, and ease of use.
