Akumuliatoriaus įkroviklis OSRAM BATTERYcharge 1005, 5 A, 6/12 V, 4–120 Ah

Kaina:
€71,09
Sandėlys:
Yra sandėlyje

Trumpai apie prekę

Prekė: Akumuliatoriaus įkroviklis OSRAM BATTERYcharge 1005, 5 A, 6/12 V, 4–120 Ah. Kategorija: Baterijų įkrovikliai.

  • Gamintojas: Osram

NAME: OSRAM BATTERYcharge 1005 - 5 A, 6/12 V, 4-120 Ah smart rectifier

MANUFACTURER: OSRAM

Product ID: 252104

Product Index: OEBCS1005

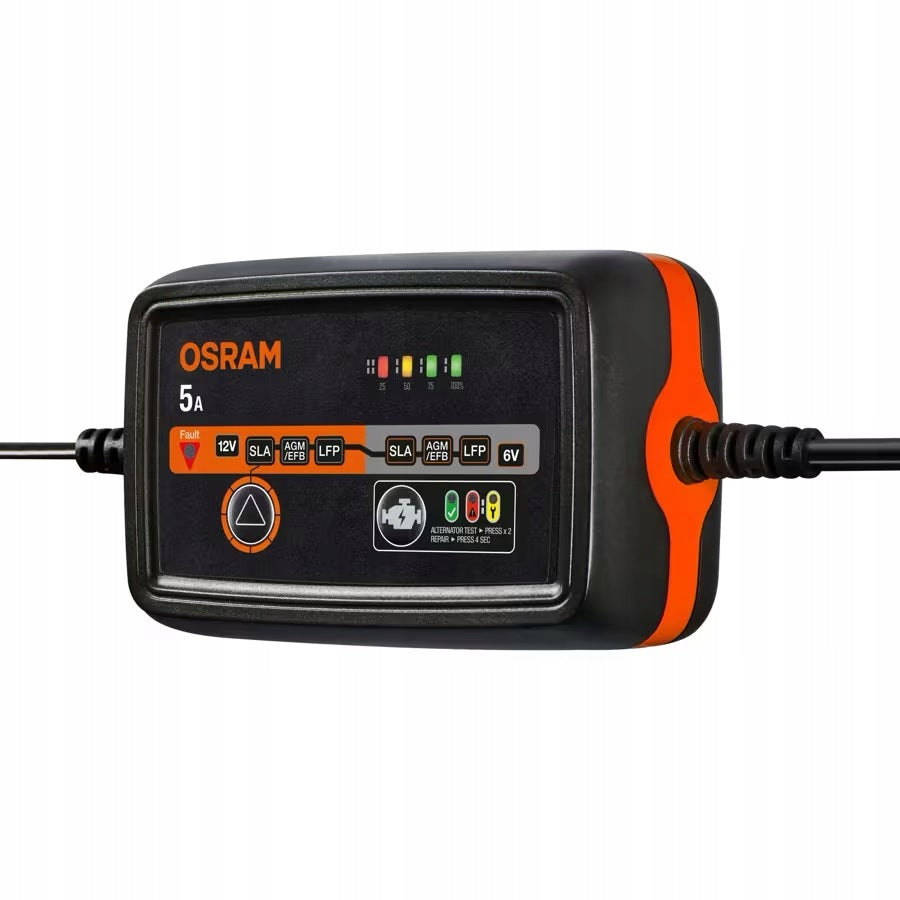

OSRAM BATTERYcharge 1005 – 5 A, 6/12 V, 4 – 120 Ah smart rectifier

OSRAM BATTERYcharge 1005 is an intelligent rectifier designed to charge and support batteries with a voltage of 6 V or 12 V and a capacity of 4 to 120 Ah. The device offers a maximum charging current of 5 A and works with lead-acid batteries, AGM, EFB and supported lithium batteries.

  • Charging current up to 5 A – for batteries with a capacity of 4 to 120 Ah.
  • Support for 6 V and 12 V installations – suitable, among others, for motorcycles and cars.
  • 9-degree charging cycle for lead-acid batteries, AGM and EFB.
  • 7-degree charging cycle for supported lithium batteries.
  • Compatibility with Start/Stop system.
  • Repair mode to operate the battery.
  • Alternative test to check the charging system.
  • Power Supply function.
  • Automatic backup mode activated after charging is complete.
  • Color LCD display to monitor the operation of the device.
  • Protection rating IP65.

Supported batteries

The rectifier supports batteries with a voltage of 6 V or 12 V and capacities from 4 to 120 Ah. For lead-acid batteries, AGM and EFB, a 9-degree charging process was used, while for supported lithium batteries a 7-degree charging cycle is available.

The manufacturer does not specify in the current product card the exact chemistry of the lithium batteries supported. Before connecting the lithium battery, check its designation and manufacturer's requirements and choose the appropriate operating mode.

Functions of the device

  • Repair mode – an additional function designed to operate the battery.
  • Alternative test – allows you to check the operation of the charging system.
  • Power Supply – power supply function.
  • Automatic maintenance – after charging, the device can go into backup mode.
  • Color LCD display – presents information about the work of the rectifier.

Connection

The battery can be connected using crocodile clamps or O-ring eyelet tips. Before starting work, select the mode appropriate to the voltage and type of battery and follow the recommendations of the vehicle and battery manufacturer.

Application

  • Motorcycles with 6 V or 12 V batteries.
  • Cars with batteries from 4 to 120 Ah.
  • Vehicles with Start/Stop system.
  • Smaller vehicles equipped with 6 V or 12 V installation.
  • Vehicles used seasonally or staying at a standstill for a long time.

Technical data

  • Manufacturer: OSRAM
  • Model: BATTERYcharge 1005
  • Product number / MPN: OEBCS1005
  • Maximum charging current: 5,0 A
  • Supported voltages: 6 V / 12 V
  • Battery capacity range: 4 – 120 Ah
  • Lead-acid batteries, AGM and EFB: 9-stage cycle
  • Lithium batteries: 7-stage cycle
  • Compatibility with Start/Stop system: yes
  • Repair mode: yes
  • Alternative test: yes
  • Power Supply function: yes
  • Backup mode: automatic
  • Display: color LCD
  • Protection rating: IP65
  • Dimensions: 126 × 84 × 52 mm
  • Power cable length: 1,8 m
  • Cable length on terminal side: 1,8 m
  • Battery connection: O-ring / crocodile clamps
  • EAN: 4062172426848

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With a VAT invoice
Parametry Brand Osram
Parametry Maximum amperage 4 A
Parametry EAN (GTIN) 4062172426848
Parametry Batteries included no
