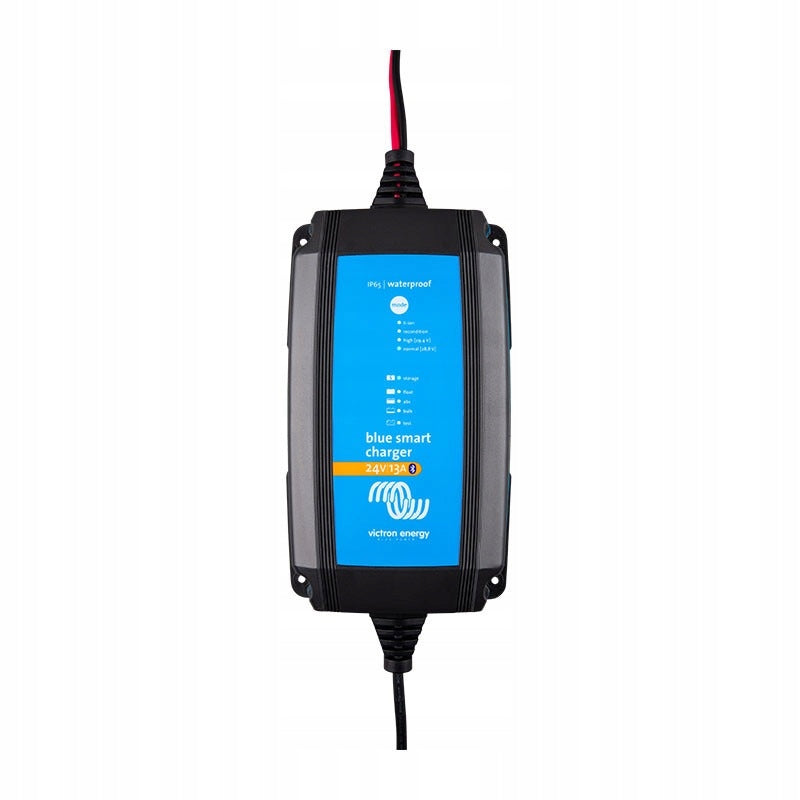

Akumuliatoriaus įkroviklis Blue Smart IP65 24V 13A su DC jungtimi

Trumpai apie prekę

Prekė: Akumuliatoriaus įkroviklis Blue Smart IP65 24V 13A su DC jungtimi. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Victron energy
• Modelis: Blue smart 24/13

The Blue Smart IP65 24V/13A charger by Victron Energy is an advanced 24V battery charging device that offers full control and remote management via the Victron Connect app. The integrated Bluetooth technology allows you to monitor and configure the charger from your smartphone, while the included crocodile connectors and M8 eye tips allow for easy and quick connection of the battery.

The Blue Smart IP65 charger has a built-in Bluetooth module that allows the user to fully manage the charging process without the need for physical access to the device. The Victron Connect application allows you to monitor the status of the battery and adjust charging parameters, which increases the convenience of use. With an intelligent seven-step charging algorithm, the device automatically adjusts parameters to optimize battery charging. The charger keeps the battery in perfect condition, improving its performance and prolonging its lifespan. The charger has the function of regenerating deeply discharged batteries, which allows you to restore batteries that other devices may consider damaged to full efficiency. This makes Blue Smart IP65 an ideal solution for low charge batteries. Storage mode To prevent the battery from aging too quickly, the device automatically goes into storage mode after 24 hours of inactivity. The backup voltage is reduced to minimize gassing and corrosion of the plates, which significantly extends the life of the battery. The Blue Smart IP65 24V/13A charger is protected against overheating – in case of temperature rise, the charging current automatically decreases to prevent damage. However, the device does not disconnect, ensuring continuity of operation. LiFePO4 battery support The charger is compatible with lithium iron phosphate (LiFePO4) batteries, allowing for widespread use in a variety of systems. The button on the case allows you to quickly switch to LiFePO4 charging mode. Technical specification:

• Model: Blue Smart Charger 24V/13A
• Input voltage range and frequency: 230 VAC
• Performance: 94%
• Standby power consumption: 0,5 W
• Minimum battery voltage: Starts charging at a voltage dropping up to 0 V
• Charging voltage "absorption":
• Normal: 28.8V
• High: 29.4V
• Li-ion: 28,4 V
• Charging voltage "buffering":
• Normal: 27.6V
• High: 27.6V
• Li-ion: 27,0 V
• Charging voltage in the "storage" phase:
• Normal: 26.4V
• High: 26.4V
• Li-ion: 27,0 V
• Charging current: 13 A
• Low current mode: 4 A
• Temperature compensation: 32 mV/ºC (only applicable for lead-acid batteries)
• Power supply mode: Yes
• Reverse current discharge: 0,7 Ah/month (1 mA)
• Protection: Reverse polarity, short circuit at the output, excessive temperature
• Working temperature range: From -40°C to +60°C (full rated capacity up to 30°C, flexible cables at low temperature)
• Moisture (without condensation): Max. 95%
• Charging algorithm: Intelligent, 7-step
• Bluetooth: -4 dBm, 2402 – 2480 MHz
• Battery connection: 1,5 meters long black and red cable
• Power connection 230 VAC: 1,5 meter long cable with CE 7/16, CE 7/17, BS 1363 (UK) or AS/NZS 3112 plug
• Protection category: IP65 (splashproof and dustproof)
• Weight: 1,9 kg
• Dimensions (H x width x D. ) : 75 x 140 x 240 mm

The Blue Smart IP65 24V/13A charger is the perfect solution for charging various types of batteries, offering advanced charging technology, protection, and the convenience of remote monitoring.
