Akiniai AGS AGS-A777 LynxPrime

Trumpai apie prekę

Prekė: Akiniai AGS AGS-A777 LynxPrime. Kategorija: Dronai ir multikopteriai.

• Gamintojas: no brand
• Modelis: AGS-A777

🔥 Modular FPV OLED goggles AGS-A777 LynxPrime

The AGS-A777 LynxPrime is a high-performance modular FPV headset with two OLED displays, adjustable focus and eye distance (IPD), built-in analog DVR and wide input voltage range. Ideal for FPV racing, freestyle, aerial photography and ground video surveillance.

✨ Key features

Modular design: Detachable master/slave receiver modules for easy upgrades and maintenance.

High contrast OLED displays: True natural color scheme and improved contrast.

Optical adjustments: Independent focus adjustments (± diopters) and IPD adjustment for clear and comfortable vision.

Built-in analog recorder: Record to MicroSD (up to 32 GB), MJPG @ 6 Mbps, 30 fps, AVI files.

Multiple input-output video interface: AV IN/AV OUT support for external video sources.

Comfort and fit: Replaceable face foam and arch inserts reduce light leakage and improve comfort.

Power control: Display power adjustment (0 to 100) — set ≤50 to extend battery life.

🎥 DVR recording

Supports analog video recording only. MJPG encoding, 720×480 (NTSC/PAL depending on input), 30 images per second.

Insert MicroSD card (maximum 32 GB) – glasses will detect the card automatically.

Long press of DVR buttons allows you to enter DVR mode; short press start/delay nagrywanie.LED indicates the recording status.

Card playback and formatting functions available from the DVR menu.

⚙ Specifications

Display Type

Dual OLED screen

Hunting of vision (FOV)

Approx.50° diagonal

IPD range

57 to 70 mm

Focus adjustment

2 to -6 diopters

Input voltage

7 V – 25 V (2S – 6S battery)

DVR memory

MicroSD (max. 32 GB)

Recording Bitumen

6 Mbps (MJPEG)

Interfaces

DC IN / AV IN / AV OUT / MicroSD

Power control

0 to 100 (regulated)

🛠 Operation and Regulation

5-way button to select the menu of image settings (brightness, contrast, sharpness, saturation).

Start by adjusting the focus, then precisely position the IPD to provide single, integrated imaging for both eyes.

The face foam and arch inserts can be customized or replaced to fit different face shapes and reduce light leakage.

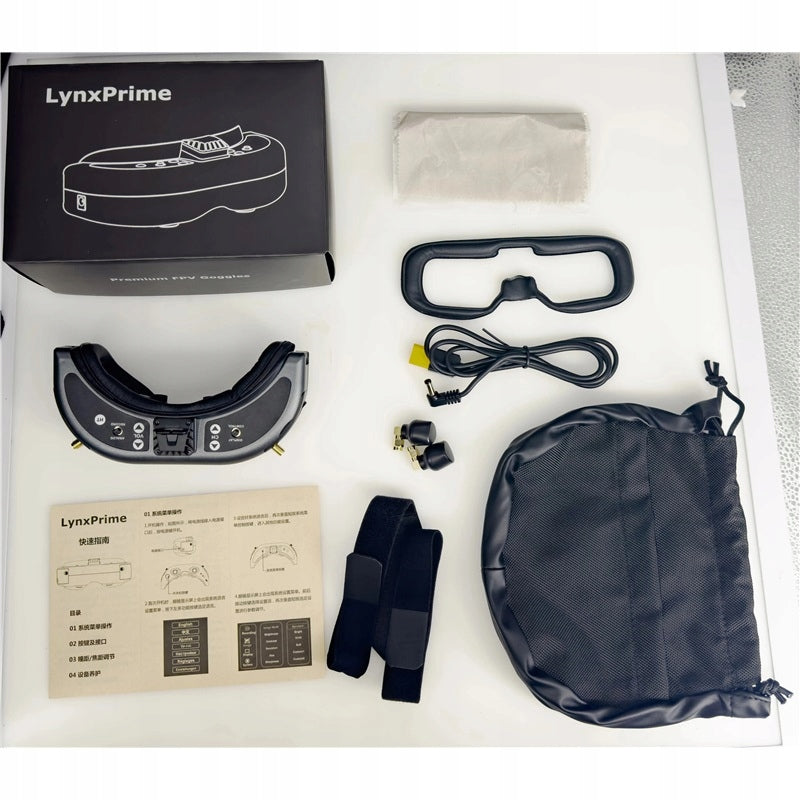

📦 Package Contents

1 × LynxPrime main FPV goggle module

1 × Head strap assembly

1 × Set of face foam and arch inserts

1 × Power cable

1 × User Manual (English)

💡 Notes and advice

Without sticking glasses directly under the sun, focused light through optics can damage OLED panels.

Format the MicroSD card in the DVR menu before first use to ensure stable recording.

We recommend using a 2S–4S battery during standard use; always check the correct polarity when connecting the power supply.
