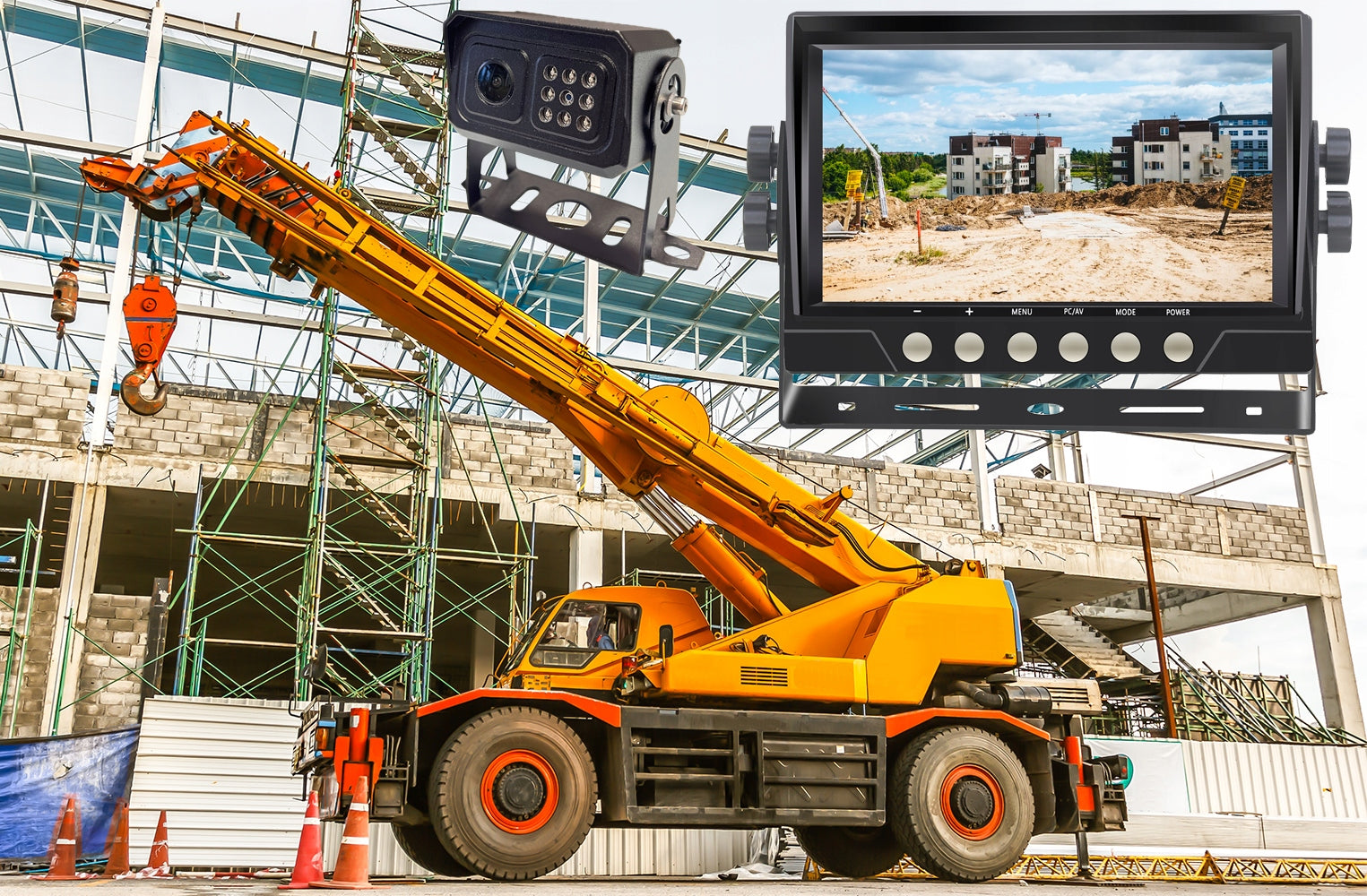

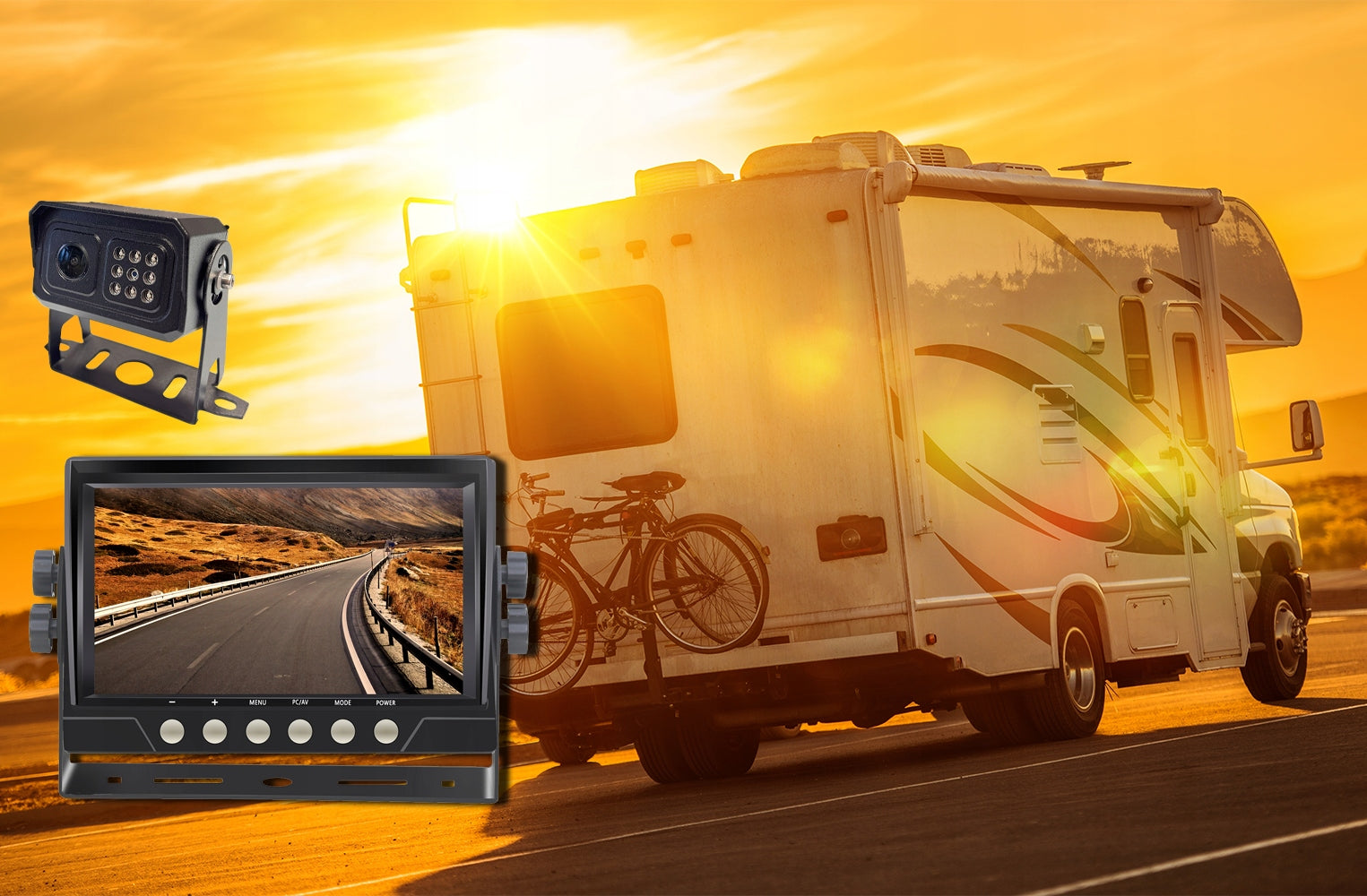

AHD7010 SONY Full HD vaizdo įrašymo sistema sunkvežimiams, autobusams, kombainams, traktoriams

Trumpai apie prekę

Prekė: AHD7010 SONY Full HD vaizdo įrašymo sistema sunkvežimiams, autobusams, kombainams, traktoriams. Kategorija: Automobilio vaizdo registratoriai.

• Gamintojas: no brand
• Modelis: AHD7010

High image quality, SONY optics.

HD wide angle camera

Reversing set with Full HD recording capability.

Optics of SONY

Advanced reversing set with recording system is a novelty in our offer.

Thanks to the use of 8 infrared emitters, the camera copes sensationally even in complete darkness.

The design of the cameras allows for a seamless, stable installation on the outside of the vehicle, and the gland installed on the cable ensures that the cable hole is sealed in case of drilling.

Perfect set for:

• buses
• tractors
• combines
• campers
• trailer
• machines
• forklifts

✅ New camera model! Wide-angle image

The wide-angle reverse camera increases safety during manoeuvres, allowing better visibility of the environment. It facilitates precise manoeuvres, minimizing the risk of collisions and damage to the vehicle and improving the overall efficiency of operations.

The camera has 8 built-in IR LEDs along with a light sensor turning them on with a minimum of 0 lux lighting. IP 69 tightness class allows you to use the camera even in the harshest weather conditions

1. Classic preview in HD.

2. Reversing kit with lines.

3. Preview from camera 1, preview from camera 2 while recording in a loop from both sources.

4. Classic recorder. After 1 minute, the monitor goes out and records the image from the cameras.

5. Classic recorder. After 1 minute, the monitor goes out and records the image from the cameras. When the reverse light is turned on, the monitor wakes up and goes to the image from the reversing camera automatically turning on the reversing lines.

The monitor has a built-in operating system, thanks to which we can set many operating modes. High-quality IPS matrix displays the image in HD.

The kit is prepared for installation in both 12V and 24V installations. It is a very versatile solution and will provide installation in virtually any equipment.

Possibility of recording images.

The set can be used m.in. In:

• Campervan
• Busie
• On the tow truck
• In the truck
• Semitrailer tira
• Tractor
• Combine harvester
• Excavators
• Tippers
• Garbage trucks
• Forklift truck
• ...and many, many other vehicles!

Installing a reversing kit in a truck brings many benefits, especially in the context of safety and convenience of the driver. First of all, it improves visibility in dead zones, which significantly reduces the risk of collisions when maneuvering on tight squares, parking lots or loading ramps.

The reverse camera facilitates precise positioning of the semi-trailer, which translates into faster and safer logistics operations. This system supports drivers in harsh weather conditions and with limited visibility. This reduces the number of vehicle damages and costly work stoppages .

Having this set at any time we can see what is happening with the goods on the semi-trailer or behind it while recording.

Installing a reversing kit in a construction machine significantly increases work safety on the construction site. The reverse camera improves visibility in dead zones, making it easier to maneuver among other machines, materials and workers. This allows the operator to perform tasks precisely even in tight or hard-to-reach places.

The system works well in conditions of limited visibility, e.g. with dust, rain or work after dark. Reduces the risk of collisions and damage, resulting in less downtime and lower repair costs. It is a practical support in everyday work on the construction site.

The set comes with a cable length 15 meters finished on both sides with an airtight plug. The advantages of such a solution are problem-free operation and relatively easy installation. Hermetic terminals are much more resistant to weather conditions and do not cause problems unlike ordinary RCA connectors.

The power beam of the camera has an airtight input and a module with a built-in overvoltage system.

The device allows you to install memory cards up to 128GB!

Possibility to turn off the reversing line

In the set it is possible to disable auxiliary reversing lines. Our equipment as a few gives this option. Most cameras on the market have built-in lines without this capability. Useful when the camera will only be used to preview the image.

Turn off the lines directly in the menu.

Built-in heater

The heater built into the reversing camera ensures proper operation of the transducer even at very low temperatures, while preventing the lens from fogging during a rapid temperature change (e.g. when you leave the warehouse for the cold).

Tell fairly useless cameras that quickly catch moisture, are fogged up and prevent effective viewing of the vehicle's surroundings. Bet on safety.

High quality HD

Technical specification of the monitor:

• Monitor 7" color, 1/3" CMOS, 800x480, NTSC/PAL, 2 independent channels CH1/CH2 (4pin connector), contrast: 500:1, brightness: 350cd/m2
• Card Size (up to 128Gb)
• Recording time: 128GB- 52h 64GB- 26h, 32GB- 13h, 16GB- 6,5h.
• Recording resolution 1920x1080
• Loop recording: YES
• Smooth (adjustable brightness - color- contrast)
• Display format 16:9
• Menu Language: English
• 1024x600 IPS resolution
• External dimensions of the monitor 181 x 124 x 20mm
• Weight 1000g
• PAL/NTSC system automatically
• 5W power consumption
• Power supply 9V-24V - (wires prepared for connection to the installation)

Technical specification of SONY optics camera:

• Night vision function (IR LEDs allow night vision)
• Advanced image sensor from SONY
• Automatic white balance
• Protection class IP69
• Weather-resistant, waterproof
• Rotating - the ability to adjust the viewing angles vertically
• Transducer: 1/2,7" 2.1M CMOS
• Number of pixels: 1928*1088
• Video output: AHD (720P 25fps, 1080P 25fps)
• Camera moisture resistance IP 67/68
• Horizontal resolution: 480 lines
• Twilight sensor, and IR diodes
• Minimum illumination colour: 0,1 LUX/F1,2 AGC ON
• Minimum illumination night: 0,01 LUX/F1,2 AGC ON
• Signal-to-noise ratio: < 48dB
• Video Output: 1.0V (p-p) / 75 Ohm
• Operating temperature from -30 to +75
• Power Supply: 9~24V
• dimensions 85x65x45 (mm)
• camera weight 245 grams

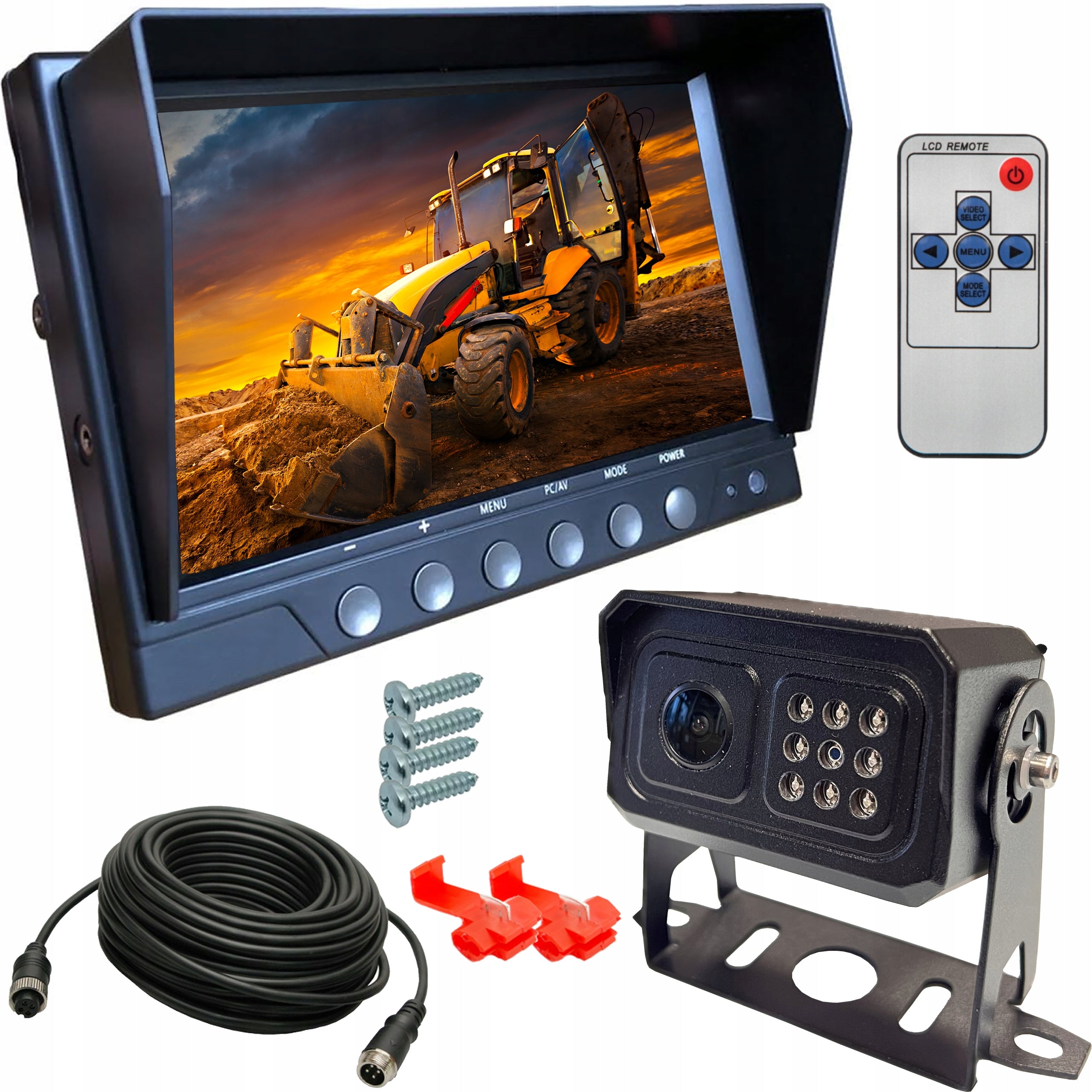

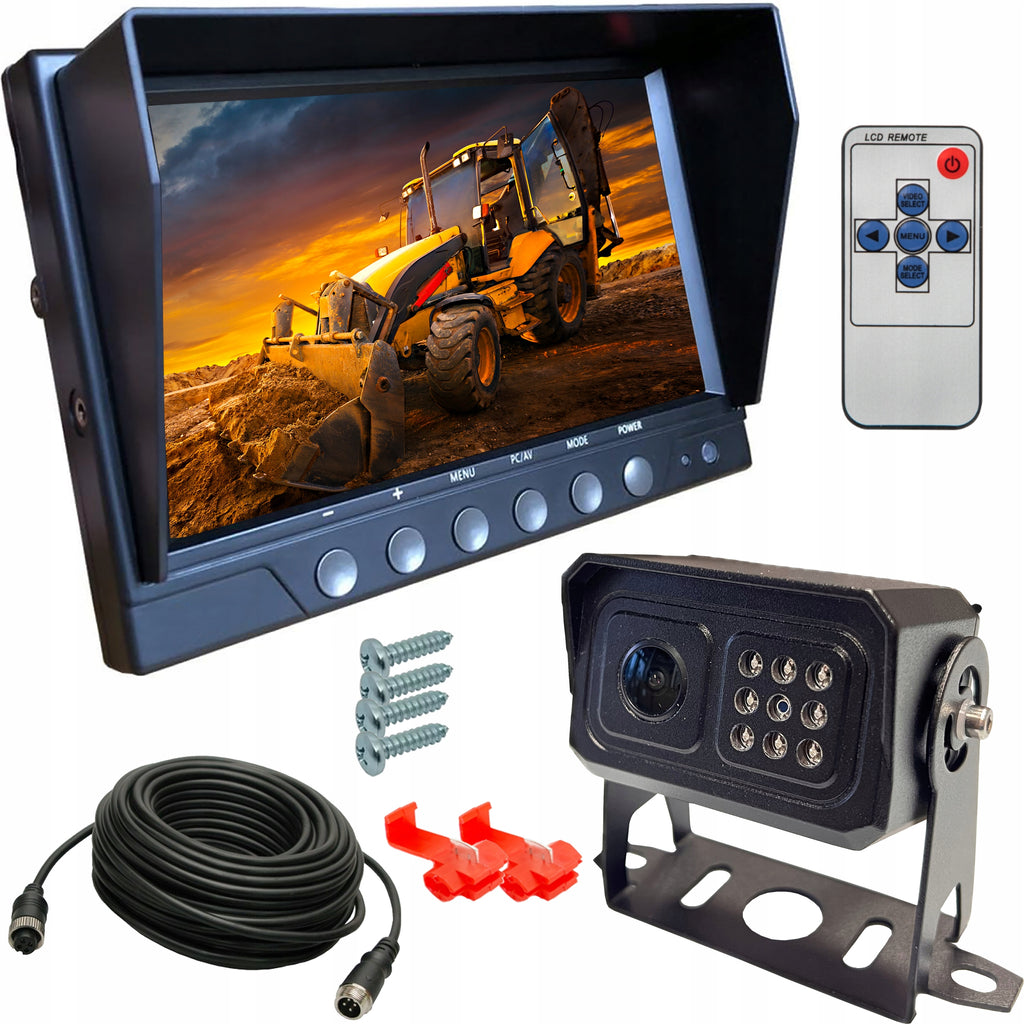

The set includes:

• LCD monitor 7" with recording
• 1x HD wide-angle camera with SONY optics and IR diodes
• 1x Camera connection cable 15m terminated with hermetic plug
• Monitor connection cable terminated with hermetic plug
• Remote control
• Mounting accessories (base, adhesive cables, etc. )
• Purchase document
• Instructions in Polish sent after purchase in PDF form

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Model	AHD7010
Parametry	Recording quality	Full HD (1920 x 1080)
Parametry	Screen diagonal	7"
Parametry	Memory card included	none
Parametry	EAN (GTIN)	5903815492761
Parametry	Manufacturer code	AHD7010
Parametry	Product weight with unit packaging	3 kg
Parametry	Additional features	automatic start,reversing camera,H.264 codec,sound recording,display
