Adapteris PCIe x1 į 2x M.2 Key B, žemo profilio, Delock 89473

Kaina:
€73,11
Sandėlys:
Yra sandėlyje

Trumpai apie prekę

Prekė: Adapteris PCIe x1 į 2x M.2 Key B, žemo profilio, Delock 89473. Kategorija: Tinklo plokštės.

  • Gamintojas: Delock
  • Modelis: 89473

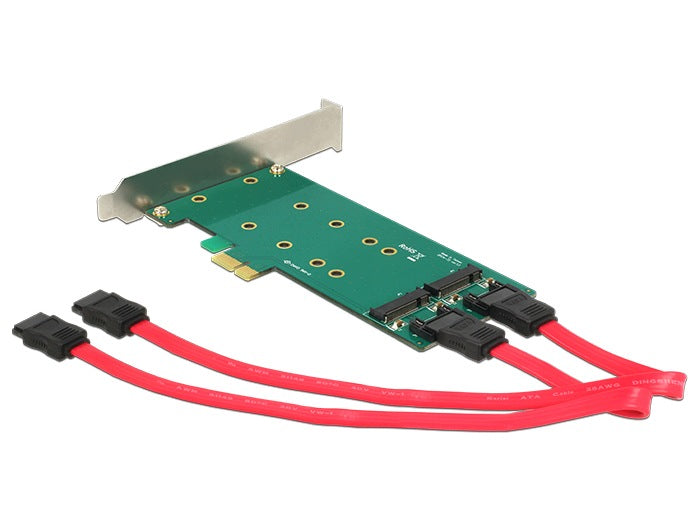

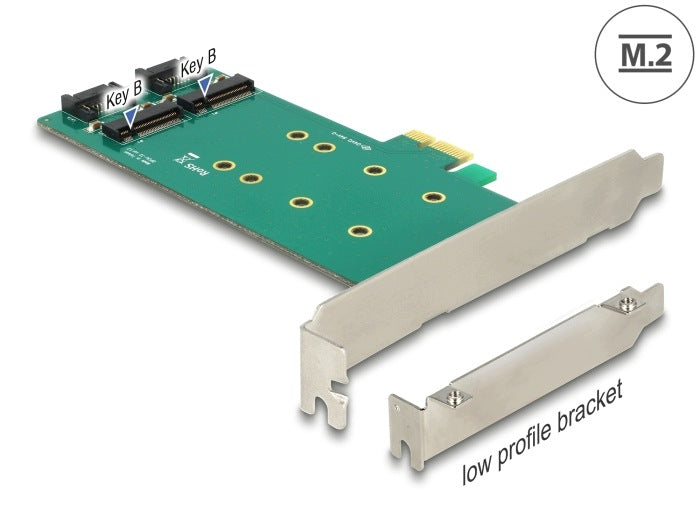

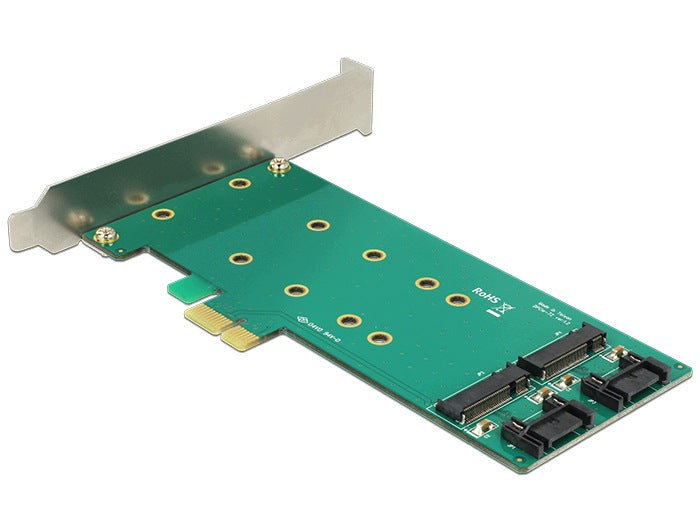

The Delock PCI Express card allows you to install two M.2 SATA drives on your computer, offering support for formats 2230 to 22110 with a B or B+M key. Each module connects to the motherboard with a separate SATA cable, which allows for flexible use of SSD media in systems without free M.2 slots. Ideal for upgrading computers and increasing storage capacity.

The Delock PCI Express card allows you to expand your computer with two M.2 SATA slots, allowing you to simultaneously install two M.2 SSDs in 2230, 2242, 2260, 2280 and 22110 formats. This is a practical solution for computers that do not have free M.2 slots on the motherboard.

Each M.2 SATA module is connected to the motherboard via a separate 7-pin SATA cable, which provides up to 6 Gbps bandwidth for each drive. The card supports both single-sided and double-sided modules and includes a low-profile herring for installation in compact enclosures.

Key features:

• Simultaneous support for 2 M.2 SATA drives

• M.2 Key B sockets

• Supports 2230, 2242, 2260, 2280 and 22110 formats

• Data transfer up to 6 Gbps per SATA channel

• Support for single-sided and double-sided modules

• Track low profile included

Technical specification:

• Connectors:

  • 2x M.2 67-pin Key B socket
  • 1x PCI Express x1
  • 2x SATA 6Gb/s 7-pin female connector

• Interface:

  • SATA

• Supported modules:

  • M.2 2230
  • M.2 2242
  • M.2 2260
  • M.2 2280
  • M.2 22110
  • Key B or B+M
  • SATA interface

• Maximum height of elements per module: 1,5 mm

• Support for single-sided and double-sided modules

• Maximum data rate:

  • Up to 6 Gbps per channel

System requirements:

  • Windows 7 / 8 / 8.1 / 10 (32-bit and 64-bit)
  • Linux Kernel 3.19 or later
  • Free PCI Express slot
  • One free 7-pin SATA port on the motherboard for each M.2 module

Set Contents:

  • PCI Express card
  • Track low profile
  • 2 mounting screws
  • 2 SATA cables (approx. 50 cm)
  • User manual

Packaging:

  • Cardboard box

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Manufacturer Delock
Parametry Interface PCI-E
Parametry Card type internal
Parametry Port type Ethernet (RJ-45)
Parametry Number of ports 2
Parametry Two-way transmission none
Parametry Maximum transmission speed 6 MB/s
Parametry EAN (GTIN) 4043619894734
Parametry Manufacturer code 89473
Parametry Packaging status original
