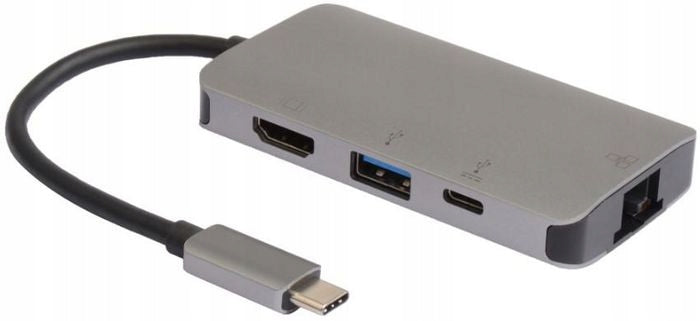

Adapteris MicroConnect USB-C į USB 3.0, RJ45, HDMI, USB-C

Trumpai apie prekę

Prekė: Adapteris MicroConnect USB-C į USB 3.0, RJ45, HDMI, USB-C. Kategorija: USB šakotuvai.

• Gamintojas: Microconnect
• Modelis: USB3.1CCOM16

MicroConnect USB-C - USB3.0 A RJ45 HDMI USB-C

Technical data:

- 4-in-1 USB-C hub with HDMI, USB-A, RJ45 and USB-C female port, providing an ideal solution for extending the USB-C/Thunderbolt 3 host port (PC/laptop/mobile phone, etc. ) . )

- Supported operating system: Windows XP/Vista/Win 7/8/8.1/10/Mac OS 10.5 or later

- Compatible with Thunderbolt 3

- Power delivery up to 100W

- HDMI resolution up to 4k60Hz

- 1000Mbps network

- Works on all supported USB-C hosts in DP Alt mode.

• Condition: New
• Manufacturer: MicroConnect
• Number of ports: 4
• Cable length: 0.15m
• EAN: 5704174799528
• Length: 0,15m
• Cable length (m): 0,15
• Manufacturer code: USB3.1CCOM16
• Country of origin: CN

Premium USB-C to USB 3.2 Gen 1 A, RJ45, HDMI, USB-C Hub

This is a 4-in-1 USB-C hub with HDMI, USB-A, RJ45 and Type-C female port, providing the perfect solution for extending the Type-C/Thunderbolt 3 host port (PC/Laptop/Mobile phone, etc. ), especially for those hosts with the only USB-C port. This hub uses the latest chip supporting DP1.4 Alt mode, allowing HDMI video output with a maximum resolution of 4k/60Hz, while transferring USB 3.1 data at a maximum speed of 5Gbps. RJ45 helps the host access super high-speed Ethernet. In addition, the USB-C female port supports PD 3.0 with a maximum PD 100W charging when connecting a PD adapter and supports a maximum data transfer of 5Gbps when connecting a USB-C device. It can work with all Type-C hosts supporting DP Alt mode.

Specification for USB3.1CCOM16

Network

Ethernet LANTak Ethernet LAN Ports (RJ-45)1Data Speeds Ethernet LAN10/100/1000 Mbit/sReady Wake-on-LANYes

Operating conditions

Relative humidity during operation (H-H)10 - 90 %Temperature during operation (T-T)0 - 45 °CRelative humidity during storage (H-H)10 - 90 %Temperature during storage (T-T)-10 - 70 °C

Package dimensions

Gross weight (packaging, kg)0,05 kgHeight (packaging, cm)1,6 cmWidth (packaging, cm)27,9 cm

Performance

Integrated card readerNoFCC, CEPlug and PlayTakCard readerColor of productGrey

Ports and interfaces

Connectivity TechnologyWiredNumber of HDMI ports1Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-CMicrophone inputNo USB 3.2 Gen 1 (3.1 Gen 1) Type-A1Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C1Type of USBUSB Type-CUSB Power Delivery (USB PD) YesUSB Power Delivery up to100 W

Power supply

Output current1,5 ANoutput voltage5 VType of power connectorUSB Type-CType of power sourceUSB

Product dimensions

Net weight (product, kg)0,04 kg

Brand name

MicroConnect

Network

• Ethernet LAN: Yes
• Ethernet LAN ports (RJ-45): 1
• Ethernet LAN data speeds: 10/100/1000 Mbit/s
• Wake-on-LAN readiness: Yes

Operational conditions

• Relative humidity during operation (H-H): 10 - 90 %
• Temperature in progress (T-T): 0 - 45 °C
• Relative storage humidity (H-H): 10 - 90 %
• Temperature in storage (T-T): -10 - 70 °C

Package Dimensions

• Gross weight (packaging, kg): 0,05 kg
• Height (packaging, cm): 1,6 cm
• Width (packaging, cm): 27,9 cm

Efficiency

• Integrated card reader: No
• Certification: FCC, CE
• Plug and Play: Yes
• Product color: Grey

Ports and interfaces

• Communication technology: Wired
• Number of HDMI ports: 1
• Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
• Microphone input: No
• Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 1
• Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
• USB connector type: USB Type-C
• USB Power Delivery (USB PD): Yes
• USB Power Delivery up to: 100 W

Power supply

• Output current: 1,5 A
• Output voltage: 5 V
• Power connector type: USB Type-C
• Power source type: USB

Product Dimensions

• Net weight (product, kg): 0,04 kg
• Brand Name: MicroConnect

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Microconnect
Parametry	Product weight with unit packaging	0.05 kg
Parametry	EAN (GTIN)	5704174799528
Parametry	Manufacturer code	USB3.1CCOM16
Parametry	Number of ports	4
Parametry	Number of LAN (RJ-45) ports	4
