Adapterio plokštė NVMe M.2 (PCIe x4 į 1x) Delock 89381

Trumpai apie prekę

Prekė: Adapterio plokštė NVMe M.2 (PCIe x4 į 1x) Delock 89381. Kategorija: Tinklo plokštės.

• Gamintojas: Delock
• Modelis: 89381

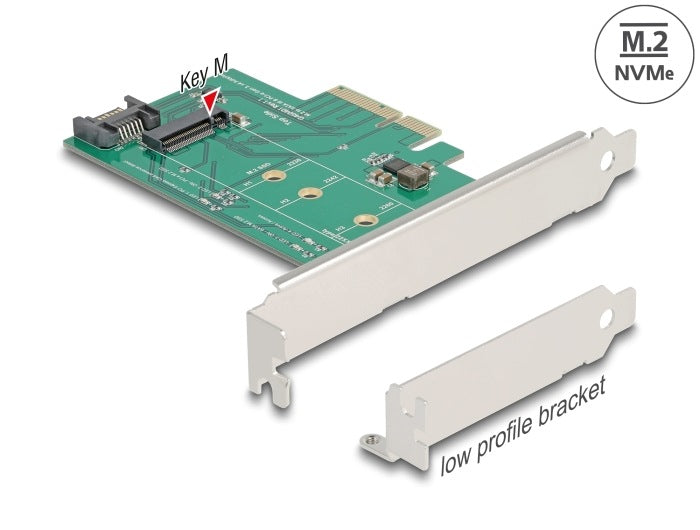

The Delock PCI Express card allows you to connect an M.2 NVMe or SATA drive in a variety of formats, offering support for both interfaces and LED indicators to indicate activity. It provides fast data transmission, compatibility with any system and simple installation without the need for driver installation.

The Delock PCI Express card allows you to expand your computer with one M.2 slot, supporting both PCIe (NVMe) and SATA SSDs. The adapter works with M.2 modules in 2230, 2242, 2260 and 2280 formats, providing flexible storage expansion.

For M.2 SATA drives, it is required to connect the SATA cable to the motherboard. The card supports booting from SATA (Bootable) drives, works with NVMe drives and is equipped with four LEDs informing about the type of module installed and its activity.

Key features:

• Supports M.2 PCIe (NVMe) and M.2 SATA drives

• M.2 Key M socket

• Supports 2230, 2242, 2260 and 2280 formats

• Supports PCIe x2 and PCIe x4 drives

• Bootable feature for SATA drives

• NVM Express (NVMe) support

• 4 LEDs to indicate interface type and disk activity

• Installation without the need for additional drivers

Technical specification:

• Connectors:

• 1x M.2 67-pin Key M socket
• 1x SATA 6Gb/s 7-pin male connector
• 1x PCI Express x4

• Interface:

• PCI Express
• SATA

• Supported modules:

• M.2 2230
• M.2 2242
• M.2 2260
• M.2 2280
• Key M or B+M
• PCIe or SATA interface

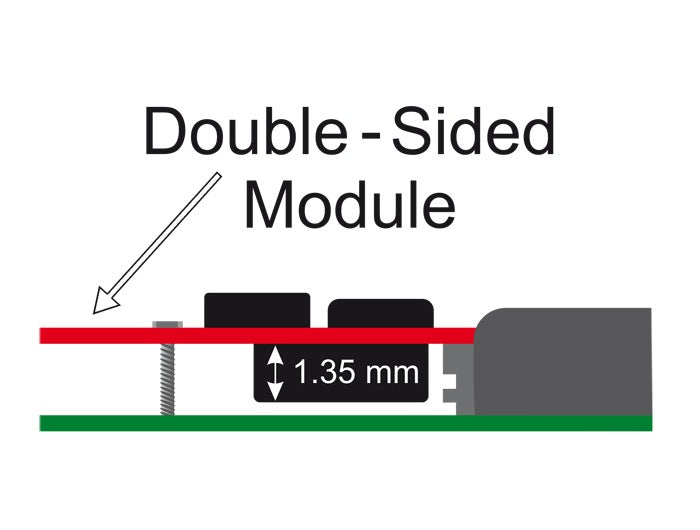

• Maximum height of elements per module: 1,35 mm

• Support for double-sided modules

• Supports PCI Express x2 and x4 modules

• LED Indicators:

• 4 LEDs informing about SATA or PCIe mode and disk activity

• Bootable function:

• Yes (for SATA modules)

• NVM Express (NVMe) support

• Compatibility:

• Installation does not require additional drivers
• Compatible with any operating system
