8 kamerų IP PoE komutatorių rinkinys ATTE IP-8-20-R5U0

Trumpai apie prekę

Prekė: 8 kamerų IP PoE komutatorių rinkinys ATTE IP-8-20-R5U0. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: 21311

Product Description:

Set for 8 cameras IP switch PoE 8P+2G ATTE IP-8-20-R5U0

Model: IP-8-20-R5U0

Purpose

IP-8-20-R5U0 is a ready-made set, dedicated to power the IP CCTV system consisting of 8 IP cameras. Electronic protection of PoE outputs ensures continuity of operation of the entire system when short-circuiting or overloading individual power branches, and automatic return of voltage after failure. The device is used in systems requiring increased network bandwidth, such as 4K Ultra HD CCTV monitoring.

PoE switch kits are designed to work with IP cameras and other network devices powered in the PoE 802.3at/af and PoE PASSIVE standard.

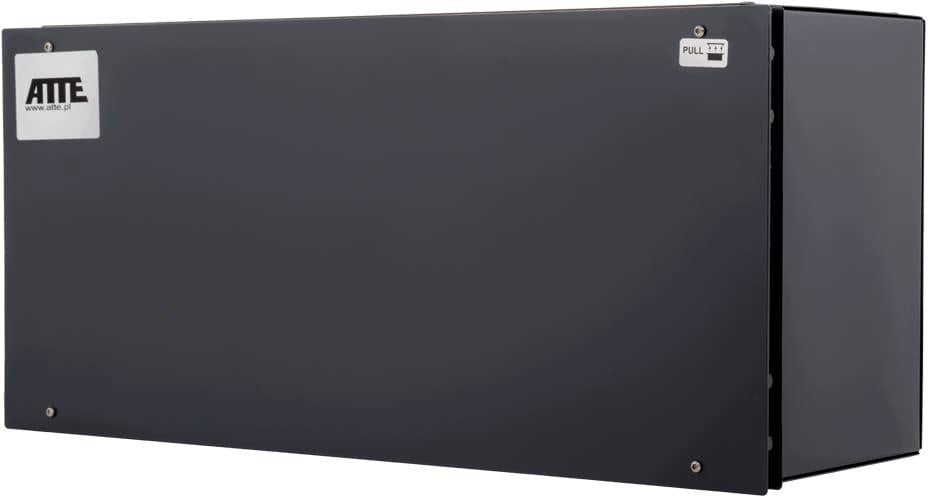

The ABOX-R5U0 enclosure allows for installation in the RACK telecommunication cabinet of the full ATTE product range, previously dedicated to internal and external enclosures of the ABOX series. Thoughtful and unique on the Polish market design, allows installation in one housing of devices, along with buffer power supply and batteries. The body is made of steel sheet, and the masking cover is made of lightweight aluminum sheet. Both elements are powder coated in semi-matte graphite RAL 7024. Production using a modern technological line ensures the highest quality and precision. ABOX-R5U0 has a special hole in the pitch of 10,8mm. It is compatible with the mounting hole spacing of built-in modules. The system solution allows for vertical or horizontal installation of selected devices in any open part of the housing.

Key features and functions

Support for 4K Ultra HD cameras

possibility of powering 8 PoE 802.3at/af or PASSIVE receivers

electronic fuse independently for each PoE channel (auto return)

possibility of switching off power on PoE ports

clear optical indication of power supply and data transmission status

wide range of input voltage (10...56VDC)

Output voltage = Input voltage

up to 40W power on PoE ports (LAN_1 to LAN_8)

easy and quick start-up without the need to configure parameters

high efficiency of the power supply module (>90%)

easy and quick installation service thanks to modular design

easy expansion and scaling of the system by attaching additional xPoE / IP series switches and IPB / IPUPS

installation of modules in any open part of the housing (raster system)

main cable culverts on the back of the housing

additional cable pass provides a gap between the body and the housing cover

convenient, tool-free installation and removal of the masking cover (press-on)

graphite color selected in such a way that the housing fits both dark and light cabinets

housing equipped with connector and electric cube with fuse

possibility of maintaining the supply of cables inside the housing

Technical specification

LAN ports 10 RJ45 ports(8xLAN+PoE 10/100Mbps, 2x Gigabit UpLink)

Supported PoE receivers (standard / power max) 802.3af - up to 15,4W LAN_1...LAN_8 (Vin > 48VDC)

802.3at - up to 30W LAN_1...LAN_8 (Vin > 48VDC)

PoE PASSIVE - up to 40W LAN_1...LAN_8

PoE outputs (standard / power mode) LAN_1...LAN_8

PoE PASSIVE, mode B (4,5+) (7,8-)

PoE output protection (overcurrent / short circuit) LAN_1...LAN_8

0,75A / electronic (auto-return)

Microswitches SW1 (DIP switch) switches 1...8 "PoE ON/OFF"

PoE power supply on LAN_1...LAN_8 ports

AC adapter (type/type) SMPS/APS-90-480-OF switching

Power supply output protection (overcurrent / short circuit) 9A, electronic (power supply restart may be required after short circuit)

Thermal protection of TSD (thermal shutdown) 130°C power supply, needs restart

Power Supply Input Voltage Range / Input Protection 180...240VAC / T3,15A Fuse F1

Power Supply Output (Continuous) 96W

Power Supply Efficiency 92% @90W

Power supply output voltage (PoE camera power supply) 48V +/-2%

Housing mounting cabinet RACK 19", M6 screws (included)

Installation of devices inside the housing system hole 4,8mm in pitch 10,8mm

Operating temperature range -10°C...+40°C

Obud
