Trumpai apie prekę
Prekė: 5 mm nerūdijančio plieno apkaba virvei, rūgštims atspari, A4. Kategorija: Palapinių virvės ir įtempikliai.
- Gamintojas: Bejmet
- Modelis: zpoj-5-1-BN
- Ilgis: 0 m

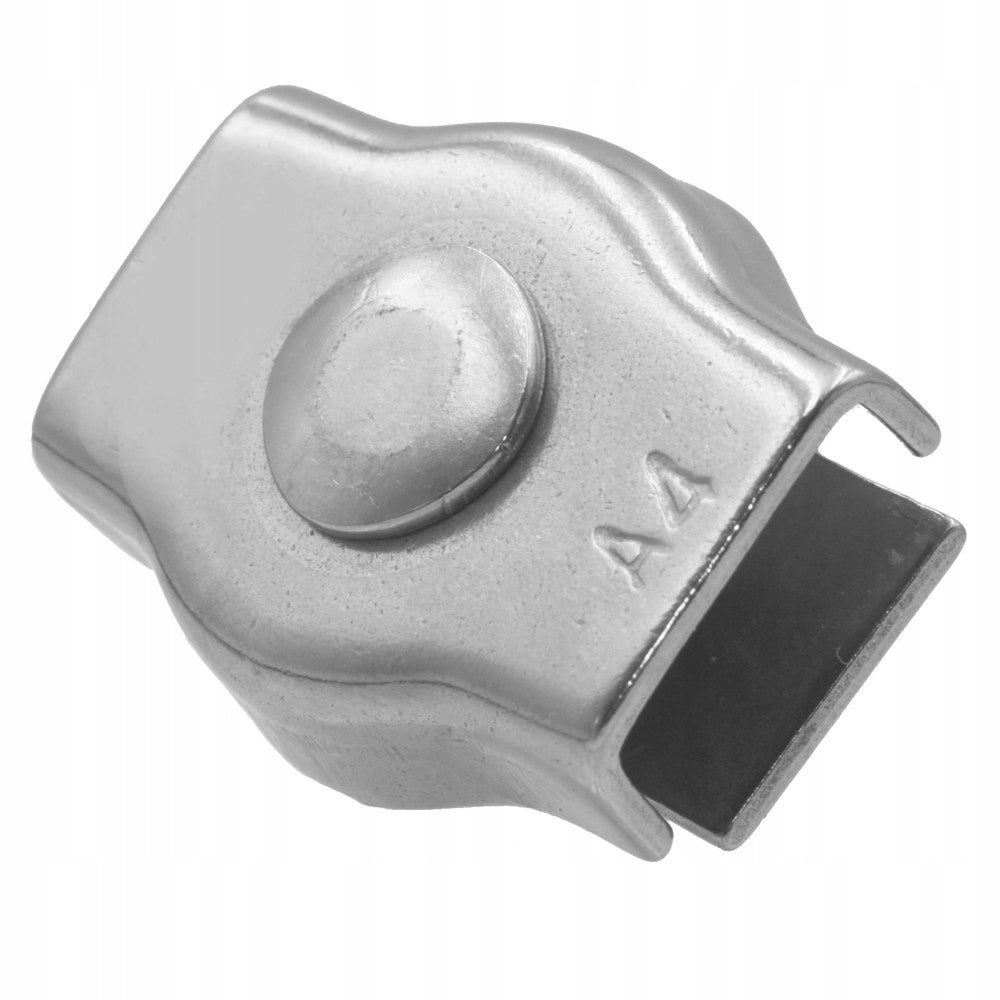

SINGLE SADDLE CLAMP STAINLESS ACID RESISTANT A4
TECHNICAL SPECIFICATION
Material: stainless steel resistant AISI316 / GAT.1.4401
Size: 5mm
Execution standard: ART8330
Rope Dimension: 5mm
For use with steel, synthetic and natural ropes.
Auction applies to: 1 piece
Dimensions given in millimeters:
- Rope Ø - [mm]: 5,0
- Thread - M5
- B1 - [mm]: 20,0
- H2 - [mm]: 17,0
- L - [mm]: 25,0
Method of installation
The body should always be placed on the supporting part of the rope, while the headband should be placed on the passive (short) part of the rope.
Single saddle clamp is an element used to crimp and connect steel or plastic ropes, forming a loop or connecting two sections of rope. It consists of a body with screws, plate and nuts that, when tightened, compress the rope, ensuring a secure and safe attachment. It is commonly used in construction, shipping, industry, and gardening. After placing the rope in the clamp, tightening the nuts causes the rope to squeeze through the body and plate. 2mm, 3mm) is usually half the width of the place through which the rope is guided, which corresponds to the diameter of the rope with which the clamp can be used.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With a VAT invoice |
| Parametry | Brand | Bejmet |
| Parametry | Length | 0 m |
| Parametry | Manufacturer code | zpoj-5-1-BN |
| Parametry | Model | zpoj-5-1-BN |
| Parametry | Number of pieces | 1 pcs |
| Parametry | EAN (GTIN) | 4043377127259 |
| Parametry | Packaging status | original |
