Trumpai apie prekę
Prekė: 5" lietimui jautrus HDMI LCD ekranas, 800x480, tinka Raspberry Pi 4/3, PC, Jetson. Kategorija: Priedai.
- Gamintojas: no brand
- Modelis: 254504

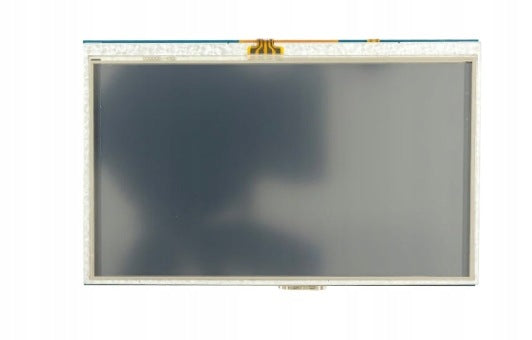

AZDelivery 5" TFT LCD HDMI touchscreen display (800 × 480 px)
Universal, 5-inch touch screen by AZDelivery equipped with a hardware interface HDMI for direct image transfer and GPIO connector for touch panel operation. It offers a clear resolution of 800× 480 pixels and works with popular minicomputers (Raspberry Pi 4B, 3B+, Banana Pi, Jetson Nano) and PCs with Windows 10 / 8 / 7 system.
An excellent module for building retro minikonsols, 3D printer control panel, smart thermostat, weather station or handheld service monitor.
Main advantages:
- Hardware HDMI input: Stable and clear image without lag and without unnecessary CPU load by SPI bus.
- Resolution 800 × 480: Clear, sharp image for comfortable work with graphical interfaces and terminal applications.
- Resistive touch panel: Intuitive and precise operation of the interface with your finger or the included stylus.
- Physical backlight switch: The option to turn off the matrix backlight allows you to save energy in battery-powered projects.
- Wide system compatibility: Supports Raspberry Pi OS (Raspbian), Ubuntu MATE, Kali Linux, RetroPie and Windows distributions (as an HDMI monitor).
Compatibility:
- Raspberry Pi: 4 Model B, 3 Model B+, 3 Model B, 2 Model B+ and later (requires appropriate HDMI adapter/cable)
- Developer boards: NVIDIA Jetson Nano, Banana Pi, BeagleBone Black
- PCs/Laptops: Windows 11 / 10 / 8.1 / 8 / 7 (image transfer via HDMI)
Technical specification:
- Manufacturer: AZDelivery
- Screen diagonal: 5,0 inches
- Matrix type: TFT LCD
- Resolution: 800 × 480 pixels
- Video interface: HDMI
- Touch interface: GPIO
- Touch panel type: Resistive (resistance)
- Power supply: 5 V (from GPIO pins or power port)
- Backlight switch: Yes (ON/OFF)
Contents of the set:
- 1 × AZDelivery 5" HDMI Touch LCD Display Module
- 1 × HDMI connector / adapter
- 1 × Touch stylus
- Set of screws and mounting distances
- Factory protective packaging
New product. Factory packed.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 254504 |
| Parametry | Manufacturer | no brand |
| Parametry | Kind | Display |
| Parametry | EAN (GTIN) | 4016987508299 |
| Parametry | Product weight with unit packaging | 0.16 kg |
| Parametry | Batteries included | no |
