44 mm stūmoklio cilindras su tarpinėmis, tinkantis NAC, HECHT krūmapjovėms

Trumpai apie prekę

Prekė: 44 mm stūmoklio cilindras su tarpinėmis, tinkantis NAC, HECHT krūmapjovėms. Kategorija: Cilindrai.

• Gamintojas: LSP
• Modelis: 50-127U
• Skersmuo: 44 mm

Product description:

Repair kit for combustion scythe. Mounted in combustion scythes with the following markings:

BC, CG, CYG, 26, 260, 33, 330, 43, 415, 430, 520 o engine capacity from 25cc to 43cc.

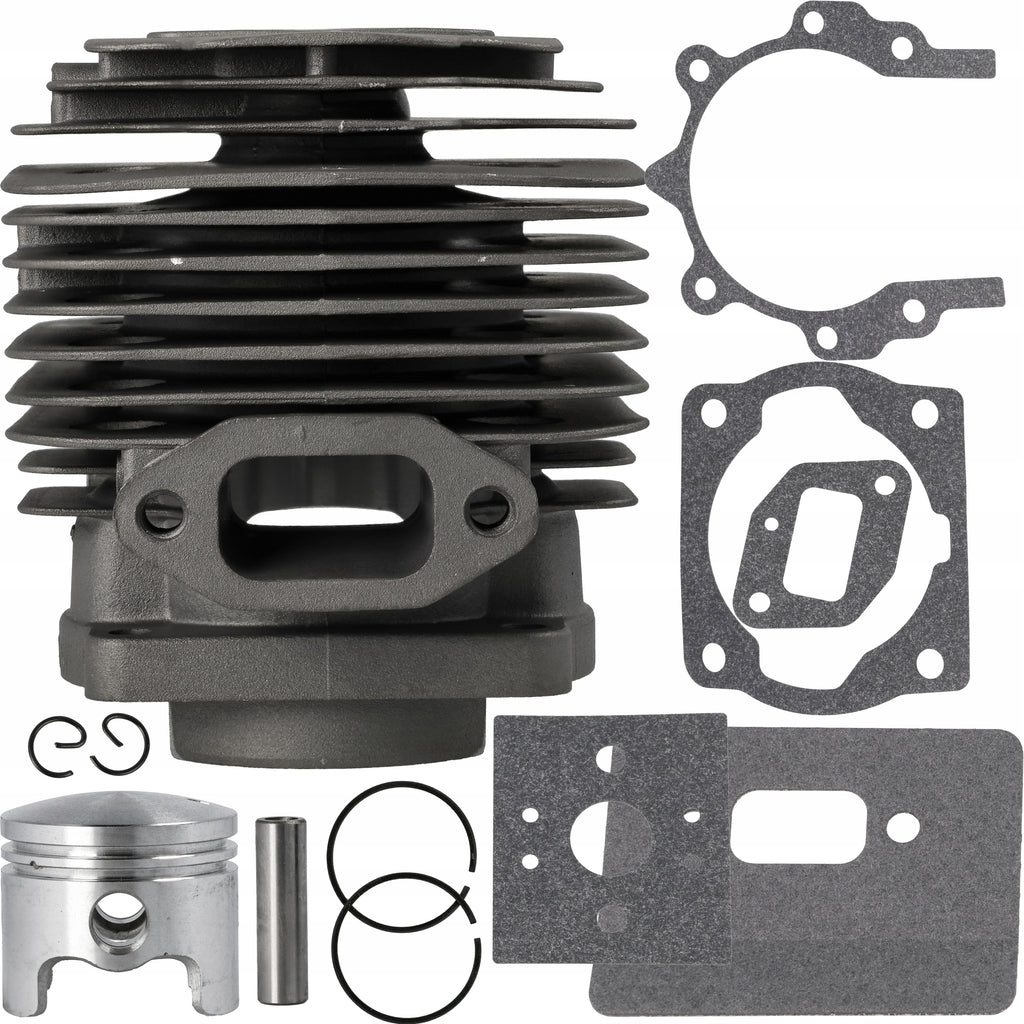

The set includes:

- Piston FI 44 mm

- Pin

- 2 x security

- 2 x rings

- gaskets:

carburetor base

cylinder seal

carburetor gasket

engine gasket

silencer seal

Product index : 50-127U

Used in brands: Demon, John Gardener, Nac, Falontech, Mastiff, Geko, March Power, Eurotec and many others.

When buying the whole set, you are guaranteed fit elements and proper engine operation without the option of blurring at work!

THE CYLINDER WAS NOT MADE OF HALF PRODUCTS. THE BEST POSSIBLE MATERIAL WAS USED TO MAKE IT.

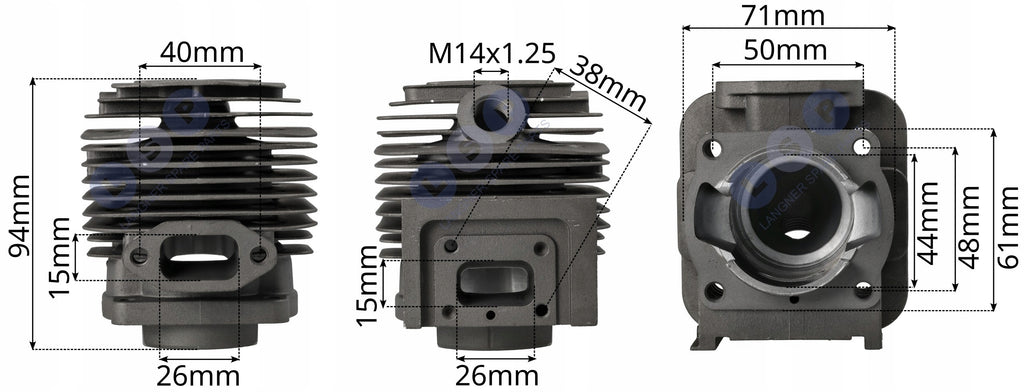

Technical parameters:

Mounting holes 50 x 48MEASURED FROM CENTER TO CENTER

Piston Diameter: 44 MM

Piston height: 39 MM

Pin Thickness: 10 MM

Pin height: 33 MM

Overall cylinder height: 94 MM

Cylinder width: 92 MM measured in the middle of the cylinder

Technical data of gasket:

Set of gaskets for scythes and trimmers.

The set includes:

- Engine gasket

- Carburetor gasket

- Cylinder seal

- Silencer seal

- Carburetor base gasket

Gasket dimensions:

Carburetor base

• screw spacing - 38 mm throat size - 26 x 15 mm

Carburetor

• screw spacing - 31 mm throat diameter - 15 mm

Cylindra

• screw spacing - 49 x 47 mm flange - 50 mm

Suppressor

• screw spacing - 40 mm throat size - 26 x 15 mm

Engine

• Suitable for engines with piston diameters - 40 and 44 mm

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	LSP
Parametry	Type	top hat
Parametry	Manufacturer code	50-127U
Parametry	Diameter	44 mm
Parametry	Kind	service kit
