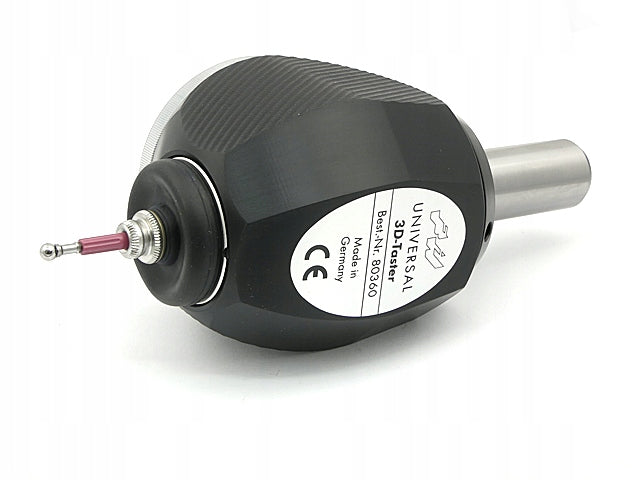

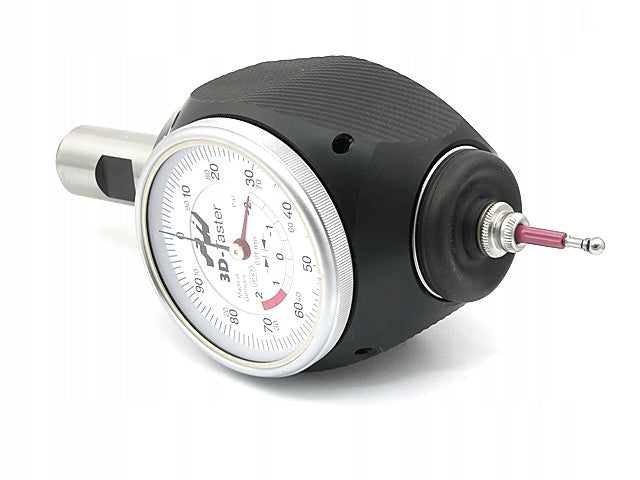

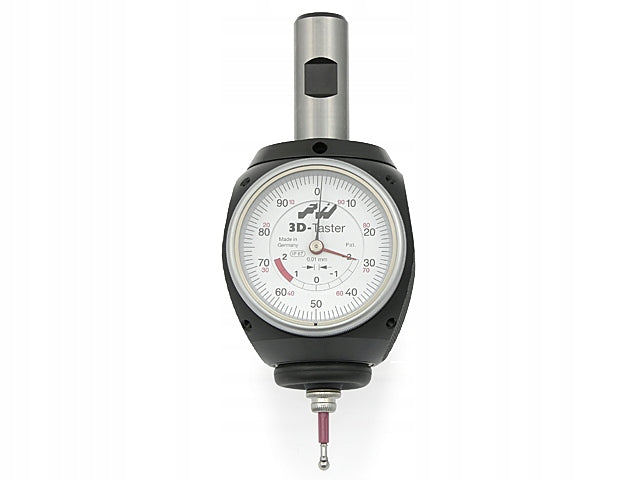

3D clock sensor universal accurate IP67 fi 20 mm HAIMER 80.360.00.FHN
3D clock sensor universal accurate IP67 fi 20 mm HAIMER 80.360.00.FHN Packaging status original
3D clock sensor universal accurate IP67 fi 20 mm HAIMER 80.360.00.FHN Manufacturer code 80.360.00.FHN
3D clock sensor universal accurate IP67 fi 20 mm HAIMER 80.360.00.FHN
3D clock sensor universal accurate IP67 fi 20 mm HAIMER 80.360.00.FHN Packaging status original
3D clock sensor universal accurate IP67 fi 20 mm HAIMER 80.360.00.FHN Manufacturer code 80.360.00.FHN
Paslinkite virš paveikslėlio, kad priartintumėte Spustelėkite paveikslėlį, kad priartintumėte
3D clock sensor universal accurate IP67 fi 20 mm HAIMER 80.360.00.FHN3D clock sensor universal accurate IP67 fi 20 mm HAIMER 80.360.00.FHN Packaging status original3D clock sensor universal accurate IP67 fi 20 mm HAIMER 80.360.00.FHN Manufacturer code 80.360.00.FHN3D clock sensor universal accurate IP67 fi 20 mm HAIMER 80.360.00.FHN3D clock sensor universal accurate IP67 fi 20 mm HAIMER 80.360.00.FHN Packaging status original3D clock sensor universal accurate IP67 fi 20 mm HAIMER 80.360.00.FHN Manufacturer code 80.360.00.FHN

3D laikrodinis jutiklis IP67, fi 20 mm, HAIMER 80.360.00.FHN

Kaina:
€475,93
Sandėlys:
Yra sandėlyje

Trumpai apie prekę

Prekė: 3D laikrodinis jutiklis IP67, fi 20 mm, HAIMER 80.360.00.FHN. Kategorija: Pasukimo ir nuolydžio jutikliai.

  • Gamintojas: Haimer
  • Modelis: 80.360.00.FHN

▶ Producer: HAIMER

▶ Properties and application:

  • The universal 3D sensor is a precision measuring instrument that can be used to set milling machines and electrocutors.
  • Quick and accurate positioning of the milling spindle in relation to the workpiece or clamping clamp.
  • Possibility of accessing the sensor measuring tip in 3 axes: X, Y, Z.
  • Cylindrical grip Ø20 (1).
  • Degree of protection IP67.
  • Replaceable measuring pin (7).
  • Thanks to the use of the Haimer 3D sensor, efficiency increases, reduces preparatory and final time, reduces costs, operators are relieved.
  • Measurements: angular, height, length, center of the hole.
  • Includes in Polish instruction manual.

▶ Technical data:

  • Length without handle (L): 113 mm
  • Grip Length (Ls): 50 mm
  • Width (B): 65 mm
  • Grip (D): Ø20 mm
  • Diameter of measuring steel ball (d): 4 mm
  • Sensor depth (T): 25 mm
  • Weight: 0,9 kg

▶ Legend:

  1. Grip
  2. Adjustment screw
  3. Scaled ring
  4. Scale
  5. Housing
  6. Protective bellows
  7. Measuring pin
  8. Steel measuring ball

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Brand Haimer
Parametry Product weight with unit packaging 0.94 kg
Parametry Manufacturer code 80.360.00.FHN
Parametry EAN (GTIN) 4034221006806
Parametry Measurement range 0.01–1 mm
Parametry Measurement accuracy 0.01 +/- mm
Parametry Shank diameter 20 mm
Parametry Dial diameter 65 mm
Parametry Packaging status original
