Žirklinis keltuvas OMCN 718, iki 3,5 t

Trumpai apie prekę

Prekė: Žirklinis keltuvas OMCN 718, iki 3,5 t. Kategorija: Keltuvai stulpams.

• Gamintojas: no brand
• Modelis: 718

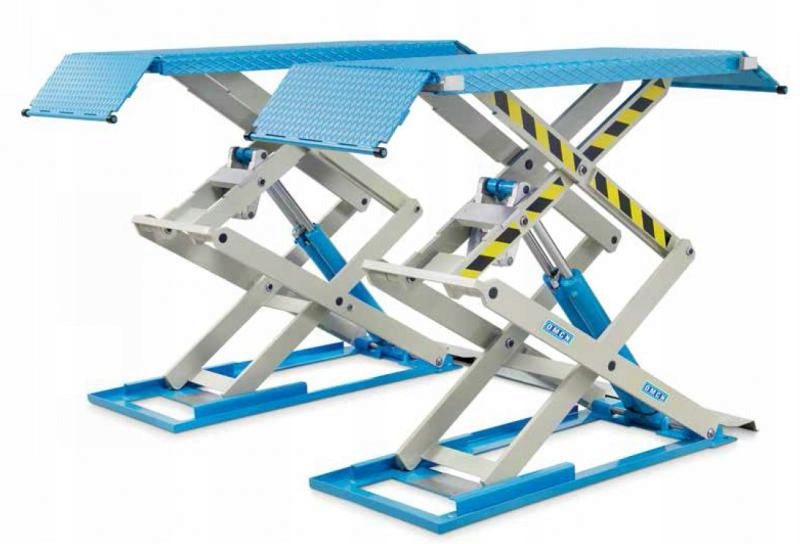

OMCN 718 LIFT:

• Scissor, electro-hydraulic lift made of the highest quality materials.
• Lifting with two synchronized hydraulic cylinders powered by one electro-hydraulic system.
• Lifting system equipped with overload valves.
• Lifting synchronization regardless of the distributed load, controlled by solenoid valves.
• Free lowering, without the participation of a supply pump, adjustable safety valves, to control the speed of lifting and falling.

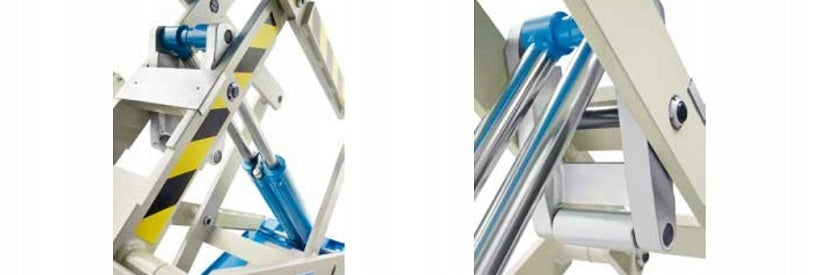

• Double synchronized hydraulic cylinders do not require mechanical locks, protecting against uncontrolled fall of the lift (do not require pneumatic connection).
• Electrical low voltage (12V) control system.
• The lift is made of thick steel cross-sections, guaranteeing strength and stability painted with powder epoxy paint.
• Equipped with rubber backings for the car.

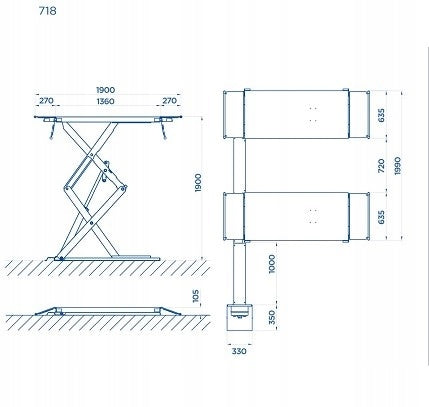

TECHNICAL DATA:

Leverage: 3500 kg

Equipment version: yes

Minimum height: 105 mm

Lifting height: 1795 mm

ID: 4031748 lift length: 1360 mm

- Subwoofer lift length: 1900 mm

Width of lifting ramps: 2x 653 mm

Width of lift: 1990 mm

Power supply: 400 V/50 Hz

Engine power: 3,3 kW

Weight of lift: 930 kg

Catalog number: 203-0718 (OMCN 718, seated)

Requirements for the preparation of the substrate for the installation of lifts:

The lift shall be mounted on an even, leveled surface capable of carrying the working load, i.e. lift with load. Minimum requirements for flooring:

a) Concrete used: R'bk 250 (B-25) or higher

b) Minimum floor thickness without any divisions, constituent pieces (uniform) : 15 cm (25 cm recommended)

c) Upper and lower reinforcement with steel welded mesh Φ4 x 150 mm or similar, with an eye of not more than 250 mm. Distance between the outer plane of the concrete and the mesh (top and bottom) not more than 25 mm2

d) Surface load capacity not less than 1,3 kg/cm

The above requirements must be met for the area of min. lift size without cracks and expansion joints.

If the lift is used on its own support frame, no reinforcement is required, other requirements as above.

ATTENTION! In order to properly perform the installation of the lift, it is required to make the floor in accordance with the instructions provided. In the event that the substrate is prepared improperly, we reserve the right to charge the lift user with the costs of re-access and installation.
