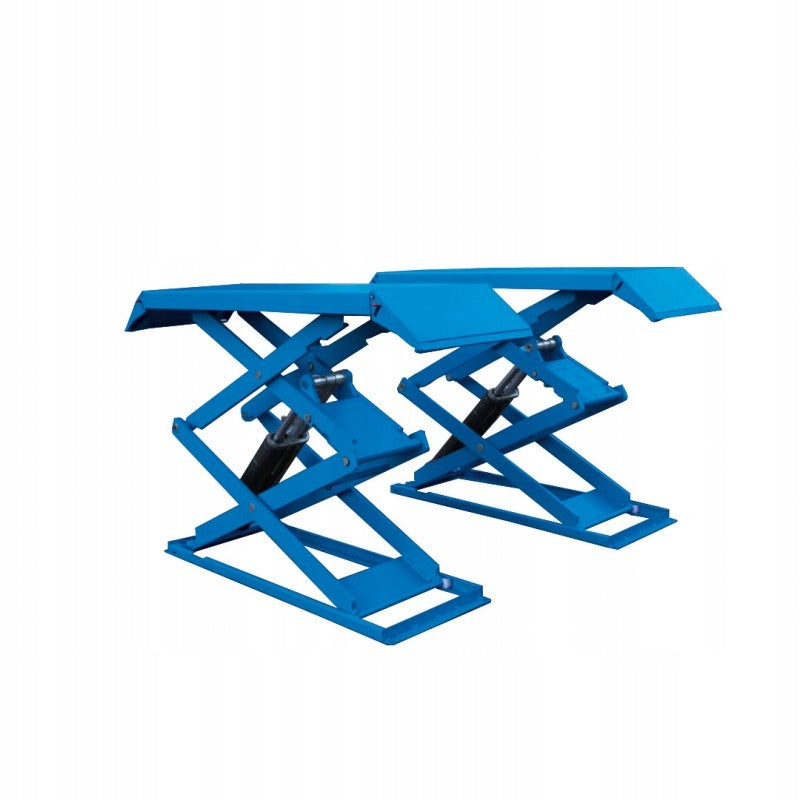

Žirklinis keltuvas 3800 kg MFC-100-230V

Trumpai apie prekę

Prekė: Žirklinis keltuvas 3800 kg MFC-100-230V. Kategorija: Žirkliniai keltuvai.

• Gamintojas: Castex
• Modelis: MFC-100-230V

Code: MFC-100-230V

The lift is designed to work with passenger and delivery vehicles whose total weight does not exceed 3800 kg.

The innovative design of the lift combines the advantages of low-lift scissor lifts, the advantage of which is the lack of the need for installation on the floor surface (such as the QJY-S3 and QJY-S2E models) and the advantages of scissor lifts installed in a floor with a high maximum lifting height of the vehicle, such as the QJY 3.2-1 model.

This jack is mounted on the floor, without the need to prepare a special excavation and screed. Its maximum lifting height is 1800mm, while maintaining a very low minimum height of 105mm. The lift is equipped with safety locks - hydraulic locks integrated with the cylinders. Their main goal is to constantly remain in a protective position. Unlocking only occurs when the operator presses a button. When the button is released, the locks return to the safety position. This solution prevents accidental deactivation of the security system and eliminates the possibility of uncontrolled leaving of the vehicle.

The device uses a number of proven solutions to optimize the pace of your workshop, such as: automated control, electrohydraulic unit and safety lock system.

Installation has been simplified by pre-installing most elements already at the production stage, and the lift includes a set of mounting anchors.

Together with the lift, the customer receives complete documentation necessary for proper use and maintenance, enabling the lift to be reported from the Office of Technical Inspection.

Characteristics of functionality

Features:

• lifting capacity 3800kg,
• construction of the lift and control unit adapted for mounting on the floor,
• maximum working height 1800mm,
• 4 hydraulic cylinders,
• solid construction,
• power supply 230V,
• CE certificate.

• Capacity: 3800 [kg]
• Engine power: 2,2 [kW]
• Max. lift height: 1900 [mm]
• Raising/lowering time: 40 / 40 [s]
• Oil pressure: 200 [Bar]
• Power supply: 230 [V]
• Noise level: ≤ 70 [dB]
• Net / gross weight: 904 / 924 [kg]
• Locking system: hydraulic

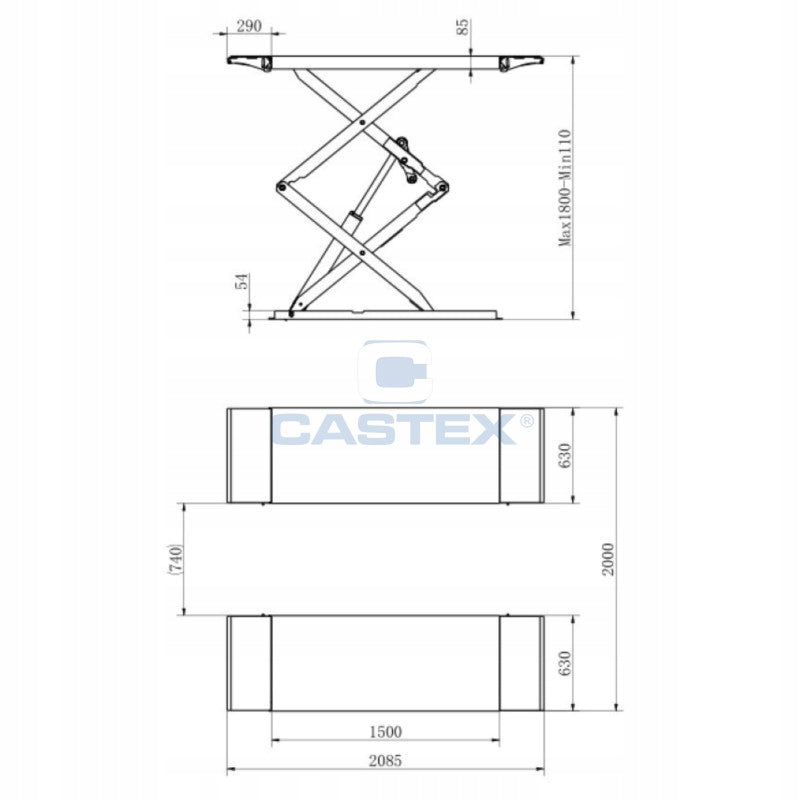

• Total width of the lift: 2050 [mm] + control box
• Overall lift height: 105 [mm]
• Height relative to floor level: 105 [mm]
• Length of inruns: 1450 mm
• Inrun width: 600 mm
