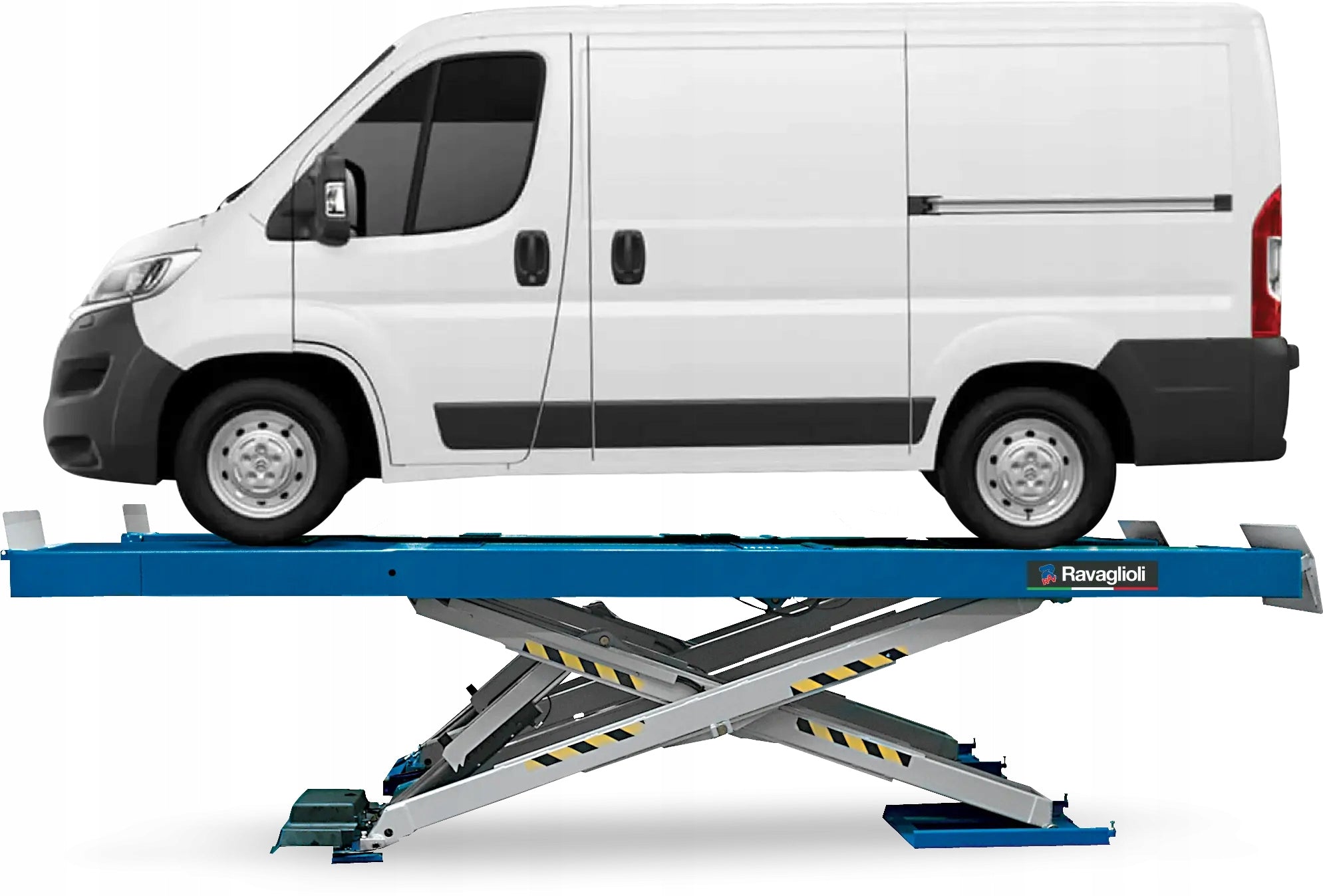

Žirkliniai keltuvai Ravaglioli RAV.640N1, plokščios platformos, 4,2 t

Trumpai apie prekę

Prekė: Žirkliniai keltuvai Ravaglioli RAV.640N1, plokščios platformos, 4,2 t. Kategorija: Žirkliniai keltuvai.

• Gamintojas: Ravaglioli
• Modelis: RAV.640N1.193278

The company RAVAGLIOLI SpA was established in 1958 in Italy as a manufacturer of equipment for car workshops, both for passenger cars and commercial vehicles.Since 2015, it has been one of the world’s leading companies in the workshop equipment industry.leading European manufacturer of lifts and one of the main manufacturers of tire testing equipment.The company has a distribution network covering more than 150 countries around the world,including branches in the United States, United Kingdom,Germany , France , Belgium and Spain . The equipment is characterized primarily by high quality and niezawodność.Jej the main products are currently car lifts, wheel balancers, tire fitters.

Lifts with large platforms, structured and designed for maximum stability even under heavy loads on large vehicles.

• Very versatile: the same lift can be mounted on par with the floor or on the floor
• Easy installation
• Wide range of applications: suitable for various operations in different types of vehicles

• Large wheel stop for high work safety.

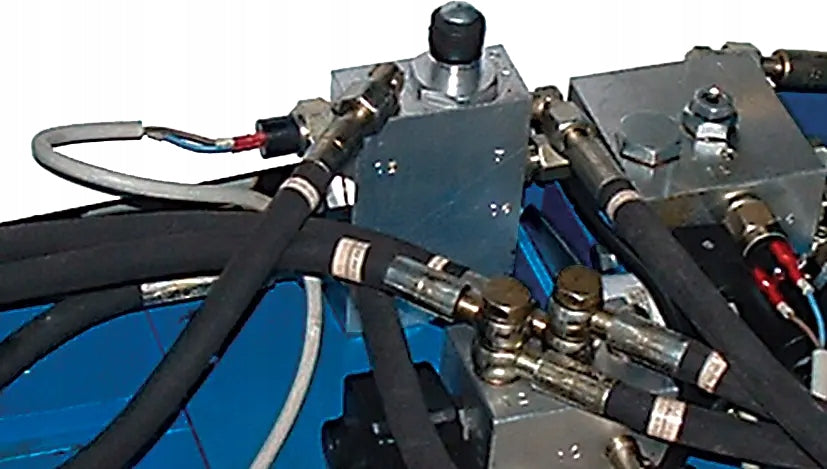

• Hydraulic synchronization of platform movements is independent of load distribution and is guaranteed by a patented hydraulic synchronization device.
• All rotary points are equipped with maintenance-free self-lubricating bushings.
• Base plates with leveling system for easy installation.

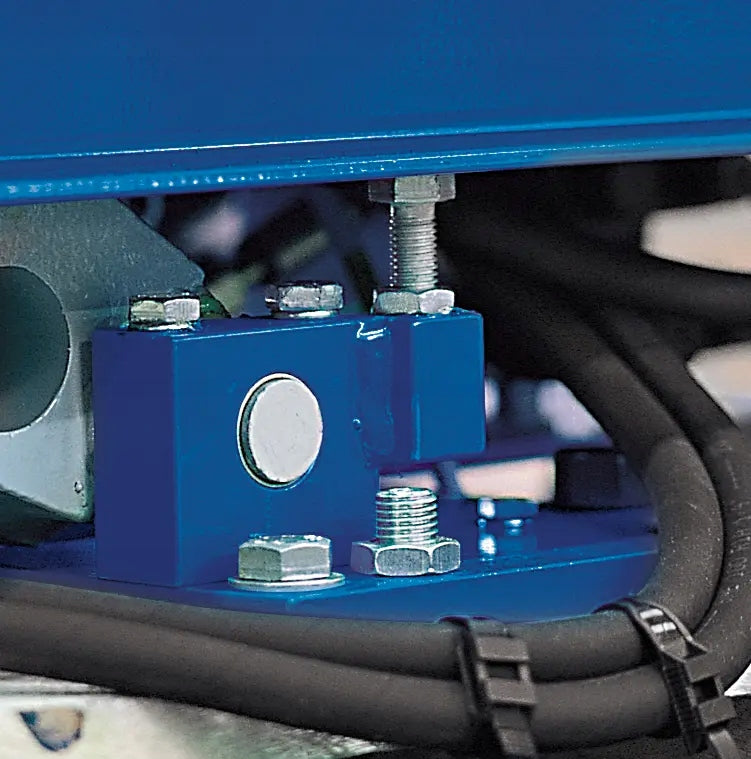

• Mechanical locking device with automatic pneumatic switching and release, ensuring maximum safety when the lift is in the parking position.
• Greater lifting height.

• All lifts are supplied in a recessed version – a set for mounting on the floor (optional)

TECHNICAL DATA

• Lift type: Overrun shear
• Type: electrohydraulic
• Type of installation: mounted under the floor
• Rated load capacity: 4200 kg
• Maximum lifting height: 2070 mm
• Maximum lifting height at floor level: 1800 mm
• Lifting time: 40s
• Reduce charging time: 40s
• Surface coating: Powder coated
• Adjustment of wheel geometry: is not possible
• Platform length: 4600 mm
• Platform width: 615 mm
• Platform space: 870 mm
• Axle crane: is not possible
• Drive power: 2,6kW
• Power supply: 230 V | 50 Hz
• Airflow: 280 bar
• Length: 4600 mm
• Width: 2100 mm
• Weight: 1213 kg
• Installation depth: 270 mm
