Žastinis kraujospūdžio matuoklis Omron M4 Connect Afib, 1 vnt., 3 pakuotės

Trumpai apie prekę

Prekė: Žastinis kraujospūdžio matuoklis Omron M4 Connect Afib, 1 vnt., 3 pakuotės. Kategorija: Kraujospūdžio matuokliai.

• Gamintojas: Omron
• Modelis: M4 Connect AFib

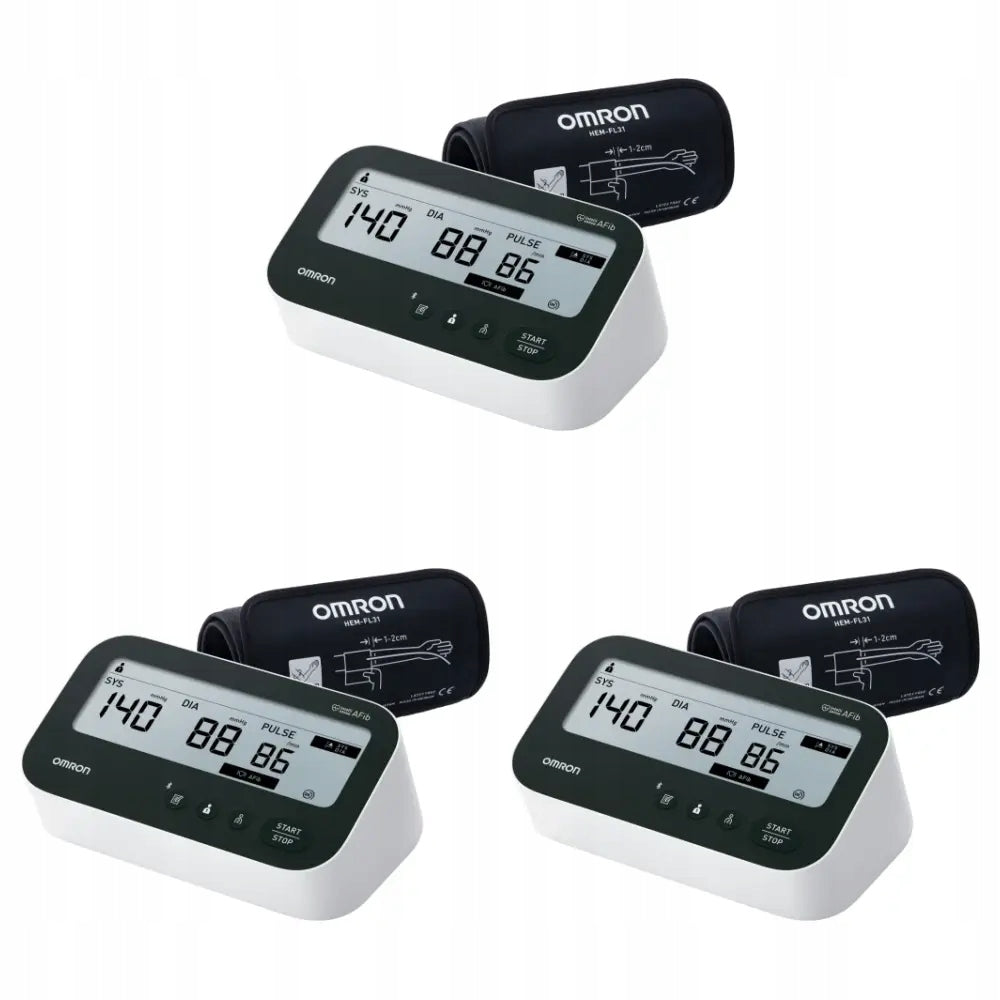

Omron M4 Connect Afib, shoulder blood pressure monitor with connection to mobile application

Omron M4 Connect Afib is a medical device in the form of a blood pressure monitor for self-control of blood pressure at home. The device was tested in controlled medical conditions, which confirmed its accuracy and reliability also in pregnant women and people with diabetes. Automatic shoulder blood pressure monitor that detects possible atrial fibrillation with each pressure measurement. With a mobile app for easy monitoring of results.

Automatic shoulder blood pressure monitor Omron M4 Connect Afib

OMRON M4 Connect AFib is an intelligent shoulder blood pressure monitor that combines accurate measurements with early detection of atrial fibrillation (AFib). With its Intelli Wrap 360° cuff and Intellisense technology, it provides comfortable and precise readings. Bluetooth sync with the OMRON Connect app and memory for 2 users make it easy to track results and manage your heart health in the long term.

• Guide to putting on a cuff
• Memory 60 measurements
• Detection of irregular heart rhythm
• Detection of body movement
• Atrial fibrillation detection (AFib)
• Easy blood pressure level indicator
• Advanced position sensor during measurement
• Intellisense
• Comes with a storage case
• Cuff type - Intelli Wrap (22 to 42 cm)
• Measurement averaging function

How to measure pressure with Omron M4 Connect Afib blood pressure monitor?

• Sit comfortably with your feet flat on the floor and your back supported. Wait a few minutes in peace.
• Place the cuff on your shoulder, it cannot be too loose or too tight.
• Press the "START" button for a few seconds, "AF" will appear on the screen
• The device will start a series of three measurements, between which there will be 30-second breaks.
• At the end of the series, the average result will be displayed.
• The results are automatically submitted to the app, allowing you to track your blood pressure over time and share data with your doctor.

When measuring pressure, remember to:

• Always measure the pressure on the same arm, usually the left.
• Place the elbow on the table so that the cuff is at the height of the heart.
• The hand should be open and the air duct must not be bent or crushed.

• Warranty: 5 years (includes main unit, cuff 1 year)
• Memory: 60 measurements per user (mode for 2 people)
• Model: HEM-7196T1-FLE

This is a medical device. Use it according to the instructions for use or label.

https://www. omron-healthcare.com/storage/im1_2_web-hem-7196t1-fle-e2-pl-02-11-2024.pdf

Product category

Electronic sphygmomanometers

Product Description

Automatic shoulder blood pressure monitor

Model (code)

M4 Connect AFib (HEM-7196T1-FLE)

Display

LCD Digital Display

Pressure range for cuff

0 to 299 mmHg

Range of blood pressure measurement

SYS: 60 to 260 mmHg

DIA: 40 to 215 mmHg

Heart rate measurement range

40 to 180 strokes/min

Accuracy

Pressure: ±3 mmHg

Heart rate: ±5% of the indicated reading

Measurement method

Oscillometric method

Method of data transmission

Bluetooth® Low Energy

Wireless communication

Frequency Range: 2,4 GHz

(2400 – 2483,5 MHz) / modulation: GFSK

Effective radiation power: < 20 dBm

Operating mode

Continuous work

IP classification

Blood pressure monitor: IP21

Optional power supply: IP21 (HHP-CM01 / HHP-AM01) or IP22 (HHP-BFH01)

Rated values

DC 6 V; 4 W

Power source

4 AA 1,5 V batteries or optional power supply (alternating current, input voltage 100 – 240 V, 50/60 Hz

0,12 TO 0,065 (A)

Battery life

Approximately 900 measurements (when using new alkaline batteries and cuff included; depending on the type of battery and cuff).

Service life (use life)

Blood pressure monitor: 5 years or the moment of reaching 30 000 use. / Cuff: 5 years

or the moment of reaching 10 000 use. / Optional power supply: 5 years

Working conditions

From +10° to +40°C / from 15 to 90% relative humidity (non-condensing) / from 800 to 1060 hPa

Storage/transport conditions

-20° to +60°C / 10 to 90% relative humidity (non-condensing)

Weight

Blood pressure monitor: about 350 g (without battery)

Cuff: about 163 g

Dimensions

Blood pressure monitor: approximately 165 mm (W) ) × 70 mm (H) ) × 98 mm (L. ) /

Cuff: approximately 145 mm × 532 mm (air conductor: 750 mm)

Cuff circumference adapted to the blood pressure monitor

From 22 to 42 cm

Memory

Write up to 60 readings of each user

Contents

Blood pressure monitor, cuff (HEM-FL31), 4 AA batteries, user manual 1 and 2, cover, pressure measurement card

Protection against electric shock

ME equipment internally powered (only for battery power)

Class II electrical medical equipment (when using an optional power supply)

Part coming into contact with the patient's body

Type BF (cassette)

• M4 Connect AFib blood pressure monitor,
• Intelli Wrap cuff included (22 to 42 cm),
• Operating instructions 1 and 2,
• 4 AA batteries, Case.

Specifications
