Veidrodinis fotoaparatas Panasonic DC-S5M2XKE LUMIX

Trumpai apie prekę

Prekė: Veidrodinis fotoaparatas Panasonic DC-S5M2XKE LUMIX. Kategorija: Beveidrodiniai fotoaparatai.

• Gamintojas: Panasonic
• Modelis: DC-S5M2XKE
• Spalva: black
• Komplektacija: body

DC-S5M2XKE

• New 24,2 MP converter with Dual Native ISO technology and next generation mechanism
• Phase detection autofocus and active image stabilization technology
• Unlimited recording in 10-bit C4K/4K 60p/50p 4:2:2
• RAW video data output, ProRes video, ALL-Intra video, recording to an external USB-SSD

Master your creative universe.

Advanced features such as PDAF and I.S. (image stabilization) make using the LUMIX S5IIX a truly rewarding experience. Capture high-quality photos and videos with unlimited recording and enjoy greater mobility with this compact, full-frame mirrorless camera.

LUMIX design philosophy: shaping emotions

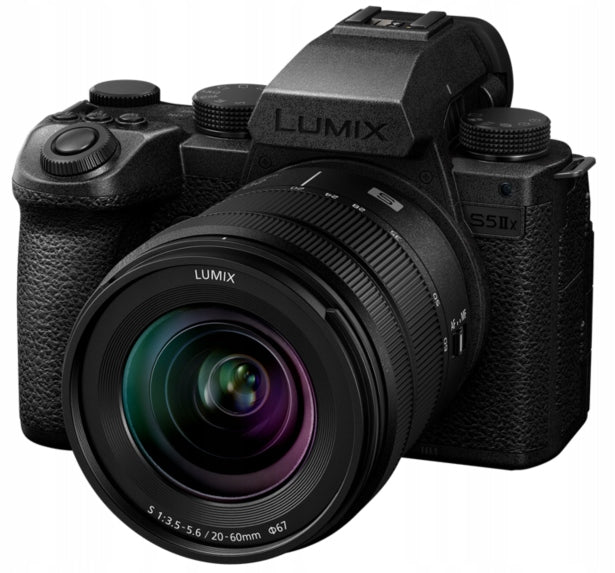

The new all-black design of the LUMIX S5IIX is designed to encourage the developer to immerse themselves in capturing the object without paying attention to the tools they use. It is designed to harmonize with the environment in which photography takes place and prevent reflections on the aperture or recording medium, thus supporting artistic creativity.

Video data output in RAW format

The LUMIX S5IIX allows you to transfer RAW video data via HDMI to save it as ProRes RAW on ATOMOS NINJA V+, NINJA V and Shogun CONNECT HDR* monitors/recorders. Blackmagic RAW data can also be recorded on a 12G HDR Video Assist device**.

* [ProRes RAW] ･Information on the appropriate firmware version of ATOMOS Ninja V+, ATOMOS Ninja V or ATOMOS Shogun CONNECT can be found on the ATOMOS website. ･ Software that supports ProRes RAW format is required to edit RAW video recorded using ATOMOS Ninja V+, ATOMOS Ninja V or ATOMOS Shogun CONNECT. Apply the LUT (mapping table) available on the customer support site below to give the same color gradation as the V-Log/V-･ modes Depending on the situation, some features may not be available. ** [Blackmagic RAW] ･Visit the Blackmagic Design website for information about the corresponding version of the Blackmagic Video Assist 12G HDR firmware. ･DaVinci Resolve or DaVinci Resolve Studio is required to play and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects that use Blackmagic RAW data with a resolution exceeding 3840x2160. ･Depending on the situation, some functions may not be available.

Record to an external USB-SSD

The LUMIX S5IIX allows you to record and play back using an external SSD via a USB connection. In addition, the ability to record content in ProRes 422 HQ format (up to 1,9 Gbps) and 10 bit 4:2:2 quality with compression directly on SSDs has contributed to improved portability and capacity, increasing the efficiency of backup and post-processing support.

Ability to start broadcasting anytime, anywhere

Choose your favorite streaming approach to share the latest events in real time! When used outdoors, wireless live streaming (RTMP/RTMPS) can be easily configured using the LUMIX Sync app. Wired live streaming (RTP/RTSP) with high stability is also available indoors.

Generally, it is possible to stream live to RTMP/RTMPS compliant platforms (compliance with all platforms is not guaranteed). In some cases, live streaming may not be possible as a result of changes to the service on the platform. More information can be found in the terms and conditions of the platform. ･Since the speed of live streaming depends on the internet connection, smartphone performance and other factors, it is worth conducting a transmission test in advance. To convert the USB Type-C terminal available on the DC-S5IIX into a LAN terminal, a commercially available USB Ethernet adapter is required. Products compatible with USB Ethernet adapter:

Ready for the most ambitious photo shoots

The most important thing about autofocus is that it is reliable. The new phase hybrid AF provides speed and accuracy, helping you capture your target subject even in the most challenging scenes involving multiple people, as well as in environments with rear lighting or dimly lit.

The new Active I.S. system allows you to shoot and film while walking. The Active I.S. system determines the vibration status of the camera and optimizes correction factors, so it can compensate for even serious camera vibrations by about 200%* better than conventional systems.

* Compared to the LUMIX S5 model. 20 mm focal length when using the S-R2060 lens.

Heat management allows for unlimited recording time

Unlimited recording time* in 10-bit 4:2:2 C4K/4K 60p/50p quality. With the compact housing of the LUMIX S5IIX, comparable to the S5, the new optimized heat dissipation structure allows recording for extended periods of time, even materials that put a heavy strain on the camera (e.g. high definition video over 4K or HFR video).

* The camera may stop recording when used at a temperature lower or higher than the recommended operating temperature (0 to 40 degrees).

Recording stops when the continuous recording time exceeds 30 minutes with the following settings: [MOV] in [6K/29.97p] [6K/25.00p] [5.9K/29.97p] [5.9K/25.00p] or [ProRes] in [5.8K/29.97p] [5.8K/25.00p] [C4K/59.94p] [C4K/50.00p] when the heat management option is set to Standard.

LUMIX commitment to delivering the highest image quality

The new mechanism provides more realistic colors, better resolution and a natural three-dimensional effect, and in combination with Dual Native ISO technology, effective noise suppression even when recording material with high sensitivity, while maintaining fidelity to reproduction even in dark areas.

Easy color gradation with REAL TIME LUT

Photos and videos with the LUT table used can be recorded internally without special software. Even if you don’t have specialized editing skills, the camera will help you expand your expression range to the desired degree.

TYPE

• Type: Mirrorless digital camera
• Lens mount: L-Mount mount

IMAGE SENSOR

• Type: Full-frame 35 mm CMOS sensor (35,6 mm x 23,8 mm)
• Effective number of pixels / Total number of pixels: 24,20 megapixels / 25,28 megapixels
• Anti-glare coating: Yes
• Proportions / Color filter: 3:2 / Basic color filter
• Dust reducing system: Type with matrix offset

RANGE

• Over 14-step characteristics (V-Log)

PHOTOS

• File format: JPEG (DCF, Exif 2.31), RAW
• Aspect Ratio: 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
• File size (in pixels) when using full-frame lenses
• 3:2: 6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL)* / 8496x5664(LL)* *High resolution mode.
• 4:3: 5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* / 7552x5664(LL)* *High resolution mode.
• 16:9: 6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL)* / 8496x4784(LL)* *High resolution mode.
• 1:1: 4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL)* / 5664x5664(LL)* *High resolution mode.
• 65:24: 6000x2208(L)
• 2:1: 6000x3000(L)
• File size (in pixels) when using APS-C/Super 35 mm lenses
• 3:2: 3984x2656(L) / 2880x1920(M) / 2064x1376(S)
• 4:3: 3536x2656(L) / 2560x1920(M) / 1840x1376(S)
• 16:9: 3984x2240(L) / 2880x1624(M) / 1920x1080(S)
• 1:1: 2656x2656(L) / 1920x1920(M) / 1376x1376(S)
• Image quality: RAW / RAW+Fine / RAW+Standard / Fine / Standard (High Resolution mode: Combined / RAW / RAW+Fine / Fine)
• Color space: sRGB, AdobeRGB

STREAMING

Wi-Fi / Protocol

• RTMP / RTMPS

Wi-Fi / 59,94 Hz

[FHD] 1920x1080

• 59,94p, 16 Mbps* / 8 Mbps (H.264) * No choice when setting RTMPS.
• 29,97p, 6 Mb/s / 3 Mb/s (H.264)

[HD] 1280x720

• 59,94p, 6 Mb/s (H.264)
• 29,97p, 4 Mb/s (H.264)

Wi-Fi / 50,00 Hz

[FHD] 1920x1080

• 50,00p, 16 Mbps* / 8 Mbps (H.264) * No choice when setting RTMPS.
• 25,00p, 6 Mb/s / 3 Mb/s (H.264)

[HD] 1280x720

• 50,00p, 6 Mb/s (H.264)
• 25,00p, 4 Mb/s (H.264)

USB Tethering / Protocol

• RTMP / RTMPS

USB tethering / 59.94 Hz

[4K] 3840x2160

• 29,97p, 12,5 Mb/s (H.264)

[FHD] 1920x1080

• 59,94p, 16 Mb/s / 8 Mb/s (H.264)
• 29,97p, 6 Mb/s / 3 Mb/s (H.264)

[HD] 1280x720

• 59,94p, 6 Mb/s (H.264)
• 29,97p, 4 Mb/s (H.264)

USB tethering / 50.00 Hz

[4K] 3840x2160

• 25,00, 12,5 Mb/s (H.264)

[FHD] 1920x1080

• 50,00p, 16 Mb/s / 8 Mb/s (H.264)
• 25,00p, 6 Mb/s / 3 Mb/s (H.264)

[HD] 1280x720

• 50,00p, 6 Mb/s (H.264)
• 25,00p, 4 Mb/s (H.264)

Cable LAN connection / Protocol

• RTP/RTSP
• Cable connection LAN / 59,94 Hz

[4K] 3840x2160

• 59,94p, 50 Mb/s / 25 Mb/s (H.265)*
• 59,94p, 50 Mb/s / 25 Mb/s (H.264)*
• 29,97p, 25 Mb/s / 12.5 Mb/s (H.265)
• 29,97p, 25 Mb/s / 12.5 Mb/s (H.264)
• * When the video area is set to APS-C or PIXEL/PIXEL.

[FHD] 1920x1080

• 59,94p, 20 Mb/s / 16 Mb/s (H.265)
• 59,94p, 16 Mb/s / 8 Mb/s (H.264)
• 29,97p, 12 Mb/s / 6 Mb/s (H.265)
• 29,97p, 6 Mb/s / 3 Mb/s (H.264)

[HD] 1280x720

• 59,94p, 6 Mb/s (H.264)
• 29,97p, 4 Mb/s (H.264)

Cable connection LAN / 50,00 Hz

[4K] 3840x2160

• 50,00p, 50 Mb/s / 25 Mb/s (H.265)*
• 50,00p, 50 Mb/s / 25 Mb/s (H.264)*
• 25,00p, 25 Mb/s / 12.5 Mb/s (H.265)
• 25,00p, 25 Mb/s / 12.5 Mb/s (H.264)
• * When the video area is set to APS-C or PIXEL/PIXEL.

[FHD] 1920x1080

• 50,00p, 20 Mb/s / 16 Mb/s (H.265)
• 50,00p, 16 Mb/s / 8 Mb/s (H.264)
• 25,00p, 12 Mb/s / 6 Mb/s (H.265)
• 25,00p, 6 Mb/s / 3 Mb/s (H.264)

[HD] 1280x720

• 50,00p, 6 Mb/s (H.264)
• 25,00p, 4 Mb/s (H.264)

VIEWFINDER

• Type: OLED Live View Finder
• Pixels: About 3,68 million points
• Field of view / Magnification: About 100% / About 0,78x with 50mm lens set to infinity; -1,0m-1 when aspect ratio is set to 3:2
• Viewing distance / Diopter adjustment: About 21 mm when set to infinity; -1,0 m-1 / -4,0 - +2,0 (dpt)
• Eye sensor: Yes
• Display speed: 120 fps. /s / 60 kl. /s

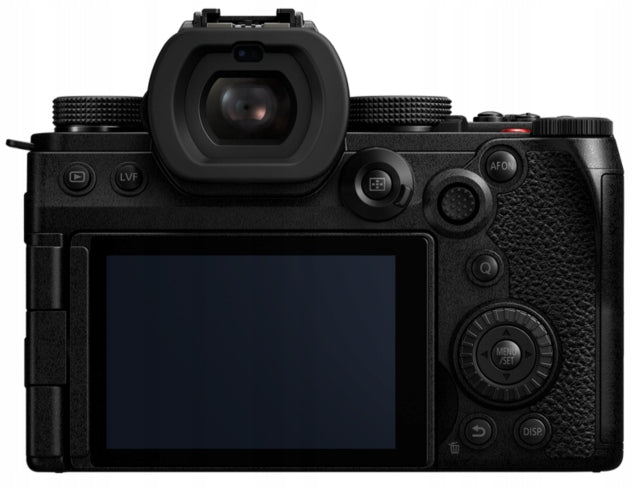

REAR DISPLAY

• Type: TFT LCD display with static touch panel

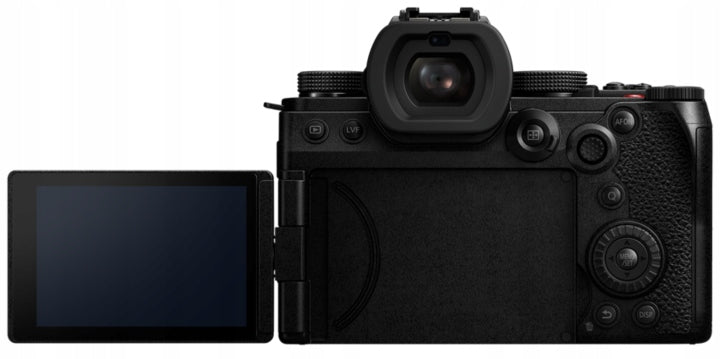

• Monitor size: About freely adjustable angle, 7,6cm (3 inches), 3:2 aspect ratio
• Pixels: About 1,84 million points
• Field of view: About 100%

STATE LCD DISPLAY

• -

FOCUS ADJUSTMENT (*³)

• Type: Phase Detection Autofocus System / Contrast Detection Autofocus System
• DFD technology: Yes
• Focus mode: AFS (single) / AFC (continuous) / MF
• AF Mode: Tracking / Full AF Area / Zone (Vertical/Horizontal) / Zone / 1-Area+ / 1-Area / Pinpoint * Automatic detection can be enabled to switch between Human / Face / Eyes / Animal+Man modes. Except for Pinpoint enabled.
• AF detection range: EV -6 - 18 (F1,4, equivalent to ISO100, AFS)
• Custom AF setting: AF sensitivity, AF area switching sensitivity, object forecasting in motion
• AF Assist Lamp: Yes
• AF lock: Set the Fn button in the custom menu to AF lock
• Focus ring control: Non-linear / Linear (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum)
• Other: AF-ON, AF-ON: Close, AF-ON: Do dali,Focus Limiter, Focus Peaking, 1-area AF swipe speed,Micro, continuous AF (when recording videos), focus/snapshot priority,vertical/horizontal focus switching, AF/AE lock holding,AF+MF, MF Assist, MF Guide, focus ring lock,display/hide AF mode, AF shutter, release shutter when pushing the button halfway,fast AF, AF with eye proximity detection, loop focus frame,enlarged live display (video), touch shutter,Touch AF/AE function, AF touch panel, lens focus recovery

EXPOSURE CONTROL

• Light measurement system: 1 728-zone multi-point detection system
• Light measurement mode: Multiple / Centrally weighted / Point / Highlighted weighted
• Measurement range: EV 0-18 (F2,0 lens, equivalent to ISO100)
• Mode knob: AE program (P) / AE aperture priority (A) / AE shutter priority (S) / Manual exposure (M) / Creative Video (P/A/S/M)* / Custom 1, 2, 3, 4 / intelligent automatic * The same exposure operations are available as in P/A/S/M mode.
• Exposure compensation: 1/3 EV step ±5EV (±3EV for movies)
• ISO sensitivity (standard output sensitivity): [Normal] Auto / 50* / 100-51200 / 102400* / 204800* (step 1/3 or 1 EV) * Extended ISO
• [V-Log]: Auto / 320* / 640-51200 (step 1/3 or 1 EV) * Extended ISO
• [HLG]: Auto / 400-51200 / 102400* / 204800* (step 1/3 or 1 EV) * Extended ISO
• Double native ISO
• [Normal], Native ISO: 100, 640, Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO, Low: Auto /50* / 100-800 *Extended ISO, High: Auto / 320* / 640-51200 / 102400* / 204800* *Extended ISO
• [V-Log]: Native ISO: 640, 4000, Auto: Auto /320* / 640–51200 * Extended ISO, Low: Auto /320* / 640-5000 * Extended ISO, High: Auto /2000* / 4000–51200 * Extended ISO
• [HLG]: Native ISO: 400, 2500, Auto: Auto / 400–51200 / 102400* / 204800* *Extended ISO, Low: Auto / 400–3200, High: Auto / 2500–51200 / 102400* / 204800* * Extended ISO
• [Cinelike D2 / Cinelike V2]: Native ISO: 200, 1250, Auto: Auto / 100* / 200–51200 / 102400* / 204800* * Extended ISO, Low: Auto /100* / 200-1600 * Extended ISO, High : Auto / 640* / 1250–51200 / 102400* / 204800* * Extended ISO
• AE lock: Set the Fn button in the custom menu to AE lock

IMAGE STABILIZATION SYSTEM

• B.I.S. (5 axes / 5 points*) * According to the CIPA standard [direction of deviation: focusing distance f=60 mm when using the S-R2060 lens].
• Dual I.S. 2 (6,5 points*) * According to CIPA standard [direction of deviation: focusing distance f=200 mm when using S-E70200 lens].

WHITE BALANCE

• White balance: AWB / AWBc / AWBw / daylight / cloudy / shadow / bulb / flash / white setting 1, 2, 3, 4 / color temperature setting 1, 2, 3, 4
• White balance adjustment: blue/amber staining, magenta/green staining
• Color temperature setting: 2500 – 10000 K in 100 K

SNAPSHOT

• Type: Slot shutter
• Shutter speed: Photos: Bulb (max. 30 minutes), 1/8 000 – 60, Electronic front curtain: Bulb (max. 30 minutes), 1/2 000 – 60, Electronic aperture: Bulb (max. 60 s), 1/8000–60, Videos: 1/16 000–1/25, Creative Video Mode M / MF Mode: 1/16 000–1/2
• Self-timer: 10 s, 3 images / 2 s / 10 s / custom time
• Remote control: Remote control via DMW-RS2 (sold separately)
• Silent mode / Shutter mode: Yes / Yes (Automatic / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKETING

• AE range: 3, 5, 7 photos with step 1/3, 2/3 or 1 EV, max. ±3 EV, single/serial
• Bracketing aperture: 3, 5 or all positions
• Focus bracketing: 1–999 photos, focus steps can be set in 10 levels
• White balance range: Three images in blue/amber axis or magenta/green axis, color temperature setting

TAKING SERIAL PHOTOS

• Speed of continuous shooting
• Mechanical / electronic front curtain aperture: H: 9 kl. /s (AFS/MF), 7 frames /s (AFC) (with Live View), M: 5 fps. /s (AFS/MF) (with Live View), 5 fps. /s (AFC) (with Live View), L: 2 fps. /s (AFS/AFC/MF) (with Live View)
• Electronic aperture: SH30: 30 fps. /s (AFS/AFC/MF), H: 9 fps. /s (AFS/MF), 8 frames /s (AFC) (with Live View), M: 5 fps. /s (AFS/MF) (with Live View), 5 fps. /s (AFC) (with Live View), L: 2 fps. /s (AFS/AFC/MF) (with Live View)

Number of images recorded

• H/M/L*
• RAW+JPEG: more than 200 photos
• RAW: more than 200 photos
• JPEG: more than 300 photos
• * Until the speed of continuous shooting drops. When registering under the test conditions specified by Panasonic.
• * When using an SD card with speed class "UHS-II Speed Class 3 (U3)".
• SH
• RAW / RAW+JPEG / JPEG: 200 photos

FLASH

• Type of flash: External TTL flash (sold separately)
• Sync speed: Under 1/250 s * The guide number decreases at 1/250 s. Only when M or S mode is set.
• Flash mode: Auto* / Auto/Reduction of red eyes* / On. extortion / On. forcing/Reduce red eyes / Slow synchronization / Slow synchronization/Reduce red eyes / Off. extortion * Only in iA mode.
• Sync flash: Sync on 1. Curtain, synchronization on 2. curtain
• Adjustable flash power: 1/3 EV with step ±3 EV
• Wireless control: Yes (when using DMW-FL200L / FL360L / FL580L lamp (optional)), wireless channel: 1 can./2 can./3 can./4 can.

VIRTUAL ZOOM RANGE INCREASE

• 2,0x (EX S) (when using full-frame lenses), 1,9x (EX S) (when using APS-C / Super 35 mm lenses), 1,4x (EX M) * Only when recording photos.

COLOR SETTINGS

• Photo Styles: St Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log / REAL TIME LUT / Like2100 (HLG) / Like2100 (HLG) Full Range* / My Photo Style 1-4 (5-10)* * Set to ON. in Show/Hide Photo Style to Select.
• Image adjustment: Contrast / Light / Shadow / Saturation / Color shade / Shade / Filter effect / Grain effect / Color noise / Sharpness / Noise reduction / ISO / WB / LUT *Settings available for adjustment vary depending on the Photo Style mode.
• Filter: Expressive (Expression) / Retro / Old Days (Old Photography) / High Key (High Tones) / Low Key (Low Tones) / Sepia / Cross Process (Movie Filter) / Bleach Bypass
• LIB library LUT Library: Vlog_709 / Set 1 to 10 *REAL TIME LUT in Photo Style, Apply LUT in Fn Button, Apply LUT in RAW Processing, LUT View Assist in V-Log View Assist, LUT can be applied from these settings.

VIDEO RECORDING FUNCTION

• Time-lapse photography: Yes
• Time-lapse animation: Yes
• Live cropping: Yes (support clipping from 5,9K video (FULL) 30p/25p/24p to 4K/FHD size)
• SS/amplification mode: Snapshot/ISO / Angle/ISO / Shutter/dB
• Luminance level: 8 bits: 0-255 / 16-235 / 16-255, 10 bits: 0-1023 / 64-940 / 64-1023
• Sync scanning function: Yes
• Master Pedestal function level: 31 degrees
• Color bars / 1 kHz test area: Yes (SMPTE / EBU / ARIB) / Yes
• LUT preview: Supported file types: . vlt, . cube, Display / HDMI
• HLG preview: Display (MODE1/MODE2/OFF. ) / HDMI (AUTO / MODE1 / MODE2 / OFF. )
• Anamorphic view with Desqueeze function: 2,0x / 1,8x / 1,5x / 1,33x / 1,30x / OFF
• Way Monitor / Vector Range: Selectable
• Knee Control: Yes (in Like709 mode)
• Red recording frame indicator: On. / off.

INFORMATION ON HORIZONTAL POSITION

• Photo/Film (ON. / OFF. )

LEVELLING RATE

• Yes

FUNCTION BUTTON

• RECORDING: Comp. exposure / Dual Native ISO / Sensitivity / White Balance / Photo Style / Apply LUT / Measurement Mode / Proportions / Image Quality / Image Size / Spot Measurement 1 Photo / Long Exposure NR/Min. shutter speed / 1 photo RAW+JPG / i.Dynamic range /Color shading compensation / Filter effect / Disposable AE /Touch Controlled AE / AWB Lock / Exposure Mode /Sync Scan / AF Mode / AF Detection Setting/ Object Detection /Custom AF setting (photos) / Custom AF setting (video) /Focus Limiter / Focus Limiter / Focus Peaking / Focus Limiter /Focus Peaking Sensitivity / 1-Area AF Swipe Rate /Focus ring lock / AE LOCK /AF/AE/AF-ON/AF-ON LOCK:close / AF-ON: to distance / Setting focus zone /Enlarged live display (video) / Flash mode /Flash adjustment / Wireless flash configuration /Setting the drive mode / Bracketing / Silent mode /Image Stabilization / Shutter Type / External. teleconverter / Recording - file format / Video recording quality /Video recording quality (my list) / Setting slow and fast /Timecode display / Sound information /Displaying sound recording level / Mute sound source /Adjustable sound recording level / Sound recording quality /Sound recording level limitation / 4-channel microphone input /XLR Microphone Adapter Setting / Sound Monitoring Channel /Image Stabilization / Electronic Image Stabilization (Video) / Boost I.S. (video) / Video area / Focus transition / Live cropping / Q.MENU / Recording/Playback Switch / Video Recording /Video recording (Creative Video mode) / Viewfinder/display switch /Operation lock / Knob operation switch / Preview /Aperture Preview / Fixed Preview / Level Indicator /Histogram / Point measurement of luminance / Video frame marker /Photo grid lines / Improving the quality of live view /Monochrome Live View / Night Mode / Viewfinder/Display Setting /Display with video priority / Zebra pattern / LUT View Assist (display) /LUT View Assist (HDMI) / Selection of LUT / HLG View Assist (display) /HLG View Assist (HDMI) / Sheer Overlay / State Range I.S. Range vector/WFM / Anamorphic view with Desqueeze function /Color bars / Focus ring control / Micro-adjustable AF /Lens Information / Target Card Slot / Wi-Fi /Fan mode / Write to custom mode /No setting / Disabled (disable the "press and hold" function) /Restore default settings

PLAYBACK

• Zoom from AF point / LUT View Assist function (display) /HLG View Assist function (display) / anamorphic view with Desqueeze function /RAW treatment / removal of individual elements / protection / evaluation 1,2, 3, 4, 5 / copying / recording/playback switch /viewfinder/display switch / video recording /video recording (Creative Video mode) night mode /change of card slot / sound monitoring channel /Wi-Fi / fan mode / image sending (smartphone) /LUT View Assist (HDMI) / HLG View Assist (HDMI) /no setting / Disabled (disable the "press and hold" function) /Restoring default settings

INTERFACE

• USB: USB Type-C (SuperSpeed USB 10 Gb/s (second generation USB 3.2))
• HDMI: HDMI type A, Audio: ON. / OFF, MP4 2 channels, MOV: 2 channels (when [4-channel microphone input] is off), 4 channels (when [4-channel microphone input] is on. )
• Transmission of signal to monitor: 4:2:2 10 bits (when [Rec Quality] is set to [4:2:2 10 bits] or [4:2:0 10 bits]. ), 4:2:2 8 bits (when [Rec Quality] is set to [4:2:0 8 bits]. )
• Playback: 59.94Hz: C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p*, 50.00Hz: C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p*, 24.00Hz: C4K/24p / 4K/24p / 1080p *During playback only.
• Remote control input: φ2,5 mm

Audio

• Built-in microphone: Stereo, Wind noise reduction: OFF. / Standard / High
• Input of external microphone/external audio device: φ3,5 mm for external microphone/external audio device, MIC (Plug-in Power) / MIC / LINE, Wind reduction: Off / Low / Standard / High * After connecting the 3,5 mm microphone (sold separately). , Special Microphone: Stereo / Directional * When connected DMW-MS2 (sold separately).
• XLR microphone: Yes, with DMW-XLR1 (sold separately)
• 4-channel microphone input: Yes, with DMW-XLR1 (sold separately)
• Speaker: Monophonic
• Headphone output: φ3,5 mm

Socket for SD card

• Socket 1,Socket 2, SD memory card / SDHC memory card* /SDXC memory card* *Compliant with UHS-I/UHS-II UHS Speed Class 3 standard for SDHC/SDXC memory cards and with UHS-II Video Speed Class 90 standard for SDXC memory cards.

Timecode input/output slot

• Counting: Rec Run / Free Run
• Timecode mode: Drop Frame / Non-Drop Frame mode (at the selected system frequency [59,94 Hz]).
• HDMI timecode output: On. / off.

FAN

• Auto1 / Auto2 / Fast / Normal / Slow* / Off**
• * This option cannot be selected if the resolution is higher than C4K or the frame rate exceeds 60p.
• ** Off option can be set in iA/P/A/S/M mode.

WIRELESS TECHNOLOGY

• Wi-Fi: 2.4GHz bands (STA/AP) (IEEE802.11b/g/n), 5GHz bands (STA) (IEEE 802.11a/n/ac), Security: WPA/WPA2/WPA3
• Bluetooth: Bluetooth® 5.0 (Bluetooth Low Energy (BLE))

PROTECTION AGAINST DUST AND SPLASHES*

• Yes
• * Dust and splash resistance does not guarantee that damage will not occur if the camera is exposed to direct contact with dust and water.

POWER

• Battery: Lithium-ion battery (7,2 V, 2200 mAh, 16 Wh) (included), USB powered, USB charging, USB Power Delivery
• Battery life (CIPA standard)
• When using SD memory card: About 370 photos, 1 250 photos (LVF in power saving mode*) with S-R2060, Approximately 370 photos, 1 200 photos (LVF in power saving mode*) with S-S50 * Under the test conditions specified by Panasonic according to CIPA standard. When the transition time to sleep mode is set to 1 second.
• When using an external USB-SSD: About 300 photos with S-R2060 lens, About 300 photos with S-S50 lens
• Continuous recording time (videos) (*¹): MP4 [4K/60p]: Approx. 90 min (APS-C), MP4 [FHD/60p]: Approx. 130 min (FULL) * For S-R2060/S-S50 lens. When the battery is fully charged.
• Actual recording time (videos) (*¹): MP4 [4K/60p]: Approx. 45 min (APS-C), MP4 [FHD/60p]: Approx. 65 min (FULL) *For S-R2060/S-S50 lens. When the battery is fully charged.
• Battery holder: DMW-BGS5 (sold separately)

DIMENSIONS / WEIGHT

• Dimensions (Width x H x D. ): About 134,3 x 102,3 x 90,1 mm (body itself, without projections), Approx. 134,3 x 102,3 x 157,0 mm (with S-R2060 lens, without projections), Approx. 134,3 x 102,3 x 151,8 mm (with S-S50 lens, without projections)
• Weight: About 740 g (body, hot shoe cover, battery, SD x 1 memory card) (without lens cap), Approx. 657 g (body, hot shoe cover) (without lens cap)

WORKING ENVIRONMENT

• Working temperature: From 0℃ to 40℃
• Humidity in operation: Relative humidity from 10% to 80％

STANDARD ACCESSORIES

• Software
• Recording: LUMIX Tether ･This software is used to control the digital camera of Panasonic using a computer. It allows you to change different camera settings, perform remote recording and save remotely taken photos on your computer. Visit the following website to download and install the software.
• LUMIX Sync ･This software is used to control the digital camera of Panasonic using a smartphone. Visit the following website to download and install the software.
• Play/edit ･The software for processing RAW files on your computer is not supplied with the camera. The SILKYPIX Developer Studio software you need can be downloaded from the Ichikawa Soft Laboratory website using a computer connected to the Internet.

Standard accessories

• DC-S5M2X Kit: Body Cover, Hot Foot Cover, Handle Connector Cover with Battery, Shoulder Strap, Rechargeable Battery
• DC-S5M2XK Kit / DC-S5M2XC Kit: Body Cover, Hot Foot Cover, Handle Connector Cover with Battery, Shoulder Strap, Rechargeable Battery, Lens Cover, Lens Sunshade, Lens Mount Cover
• DC-S5M2XW Kit: Body Cover, Hot Foot Cover,handle connector cover with battery, shoulder strap,battery, lens hood x 2, lens sun visor x 2,lens mount cover x 2 ･The user manual for advanced functions is available for download on the support page for LUMIX products from Panasonic using a PC,smartphone or tablet connected to the Internet.

Attention

(*1) Applicable to video recording

- Cards that can be used for recording vary depending on the bitrate of the video and format.

Videos with a bitrate of 72 Mbps or less: External USB-SSD, SD memory card with Class 10 speed class or Class 10 video speed class or higher

Videos with a bit rate of 200 Mbps or less: External USB-SSD, UHS-I/UHS-II SD memory card with UHS Class 3 (U3) speed class or Video Speed Class 30 or higher

Videos with a bitrate of 400 Mbps or less: External USB-SSD, SD memory card with Video Speed Class 60 or higher

Videos with a bitrate of 600 Mbps or less: External USB-SSD, SD memory card with Video Speed Class 90 higher

Videos with a bitrate of 800 Mbps or greater or ProRes: External USB-SSD

- If the continuous recording time exceeds the following values, a new file will be created to continue recording.

Videos with a bitrate of less than 72 Mbps: 30 minutes

Videos with a bitrate of 72 Mbps or more: 3 hours 4 minutes

- If the file size exceeds the following values, a new file will be created to continue recording.

[MP4] at [FHD] resolution]: 4 GB

[MP4] at [4K] resolution]: 96 GB

[MOV] with a bitrate of 600 Mbps or less: 192 GB

[MOV] with a bitrate of 800 Mbps: 640 GB

[ProRes] at [5,7K] resolution: 640 GB

- If the resolution is higher than C4K, the frame rate exceeds 60p, or the ProRes format is set, the camera can stop recording to protect itself. Wait until the camera cools down.

Recording stops when the continuous recording time exceeds 30 minutes with the following settings.

[MOV] in [6K/29,97p] [6K/25,00p] [5,9K/29,97p] [5,9K/25,00p] mode if Standard value is set for heat management option.

[ProRes] in [5,8K/29,97p] [5,8K/25,00p] [C4K/59,94p] [C4K/50,00p] mode if Standard value is set for heat management option.

(*2) High-resolution audio is only available when using a Φ3,5 mm microphone or DMW-XLR1 adapter (sold separately).

(*3) Information about AF

- Automatic detection is not available for recording videos with high frame rates: above 60p (100p or 120p).

- Tracking and Automatic Detection features are not available when using an HDMI cable or USB connection cable to record videos with high frame rates above 60p (100p or 120p).

(*4) Use a Premium High Speed HDMI cable (Type A–Type A plug) to transfer videos in 4K or higher resolution.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Panasonic
Parametry	Model	DC-S5M2XKE
Parametry	Resolution	24.2 Mpx
Parametry	Included	body
Parametry	Sensor type	CMOS
Parametry	Sensor size	other
Parametry	Color	black
Parametry	Stabilization	digital
Parametry	Video quality	4K
Parametry	ISO sensitivity	50–204800
Parametry	Supported memory cards	SDXC
Parametry	Communications	Bluetooth
Parametry	Product width	13.43 cm
Parametry	Product height	10.23 cm
Parametry	Product depth	9.1 cm
Parametry	Product weight	740 g
Parametry	EAN (GTIN)	5025232951857
Parametry	Manufacturer code	DC-S5M2XKE
Parametry	Batteries included	no
Parametry	Ports	audio 3,5 mm,USB typ C
