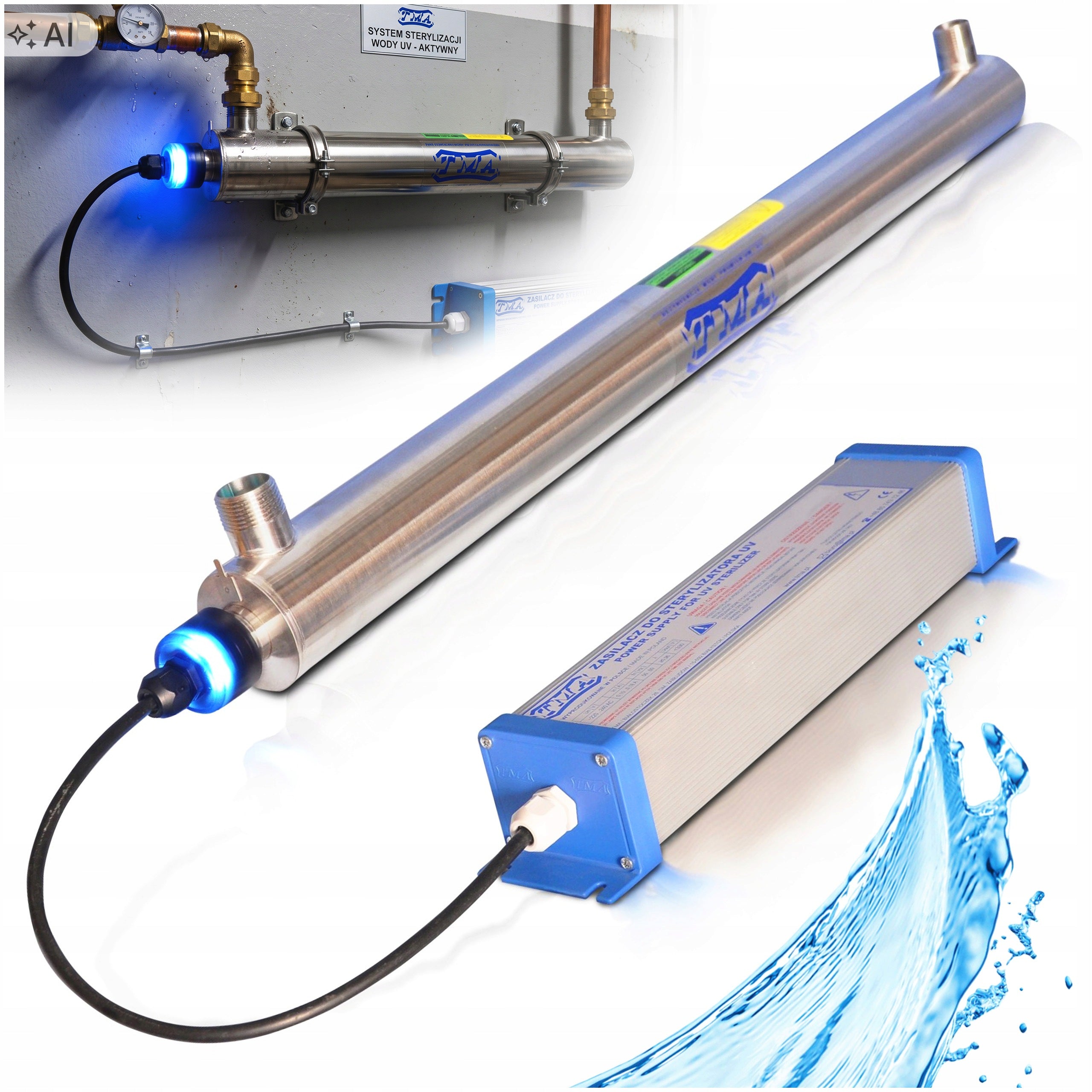

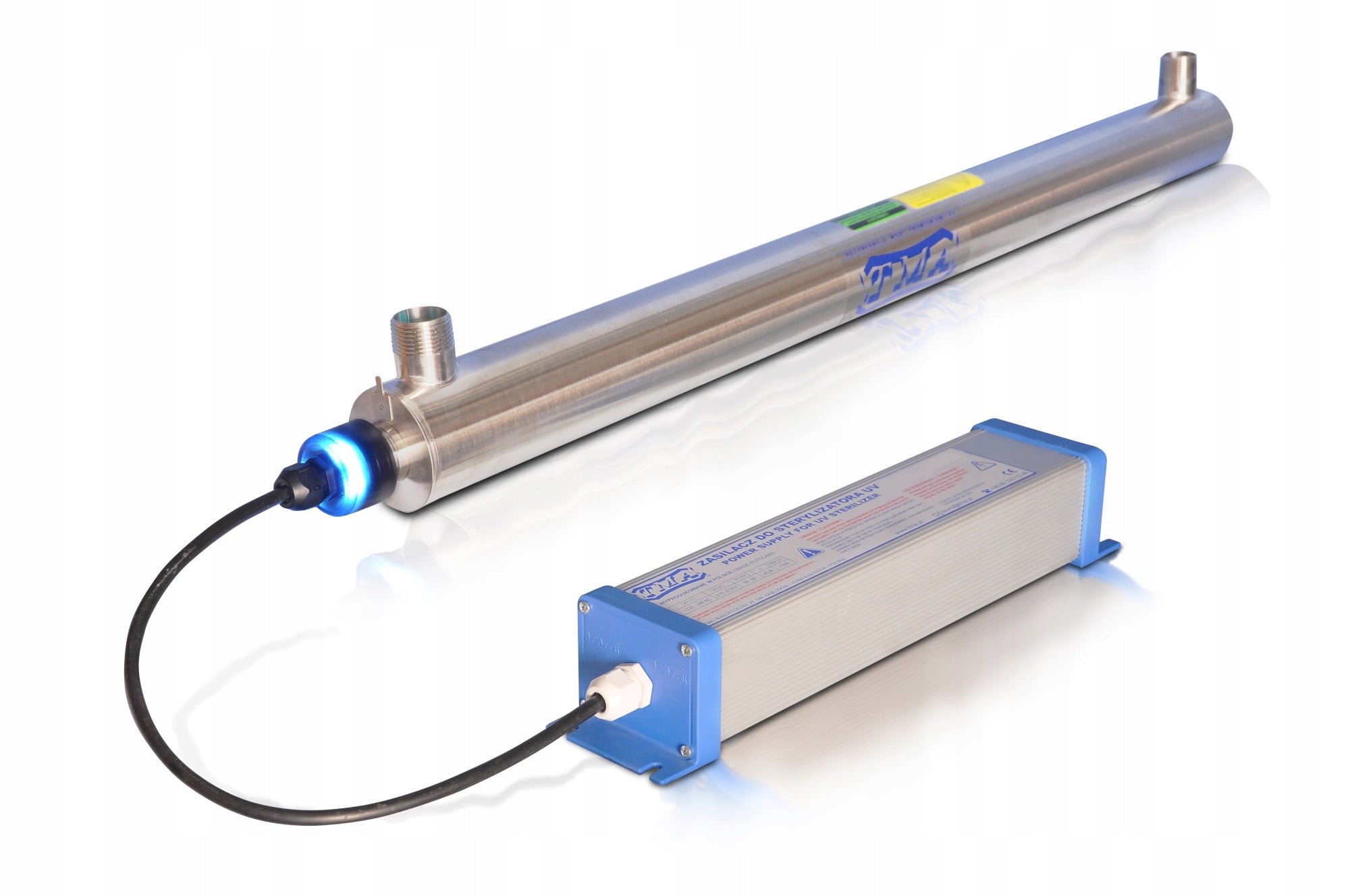

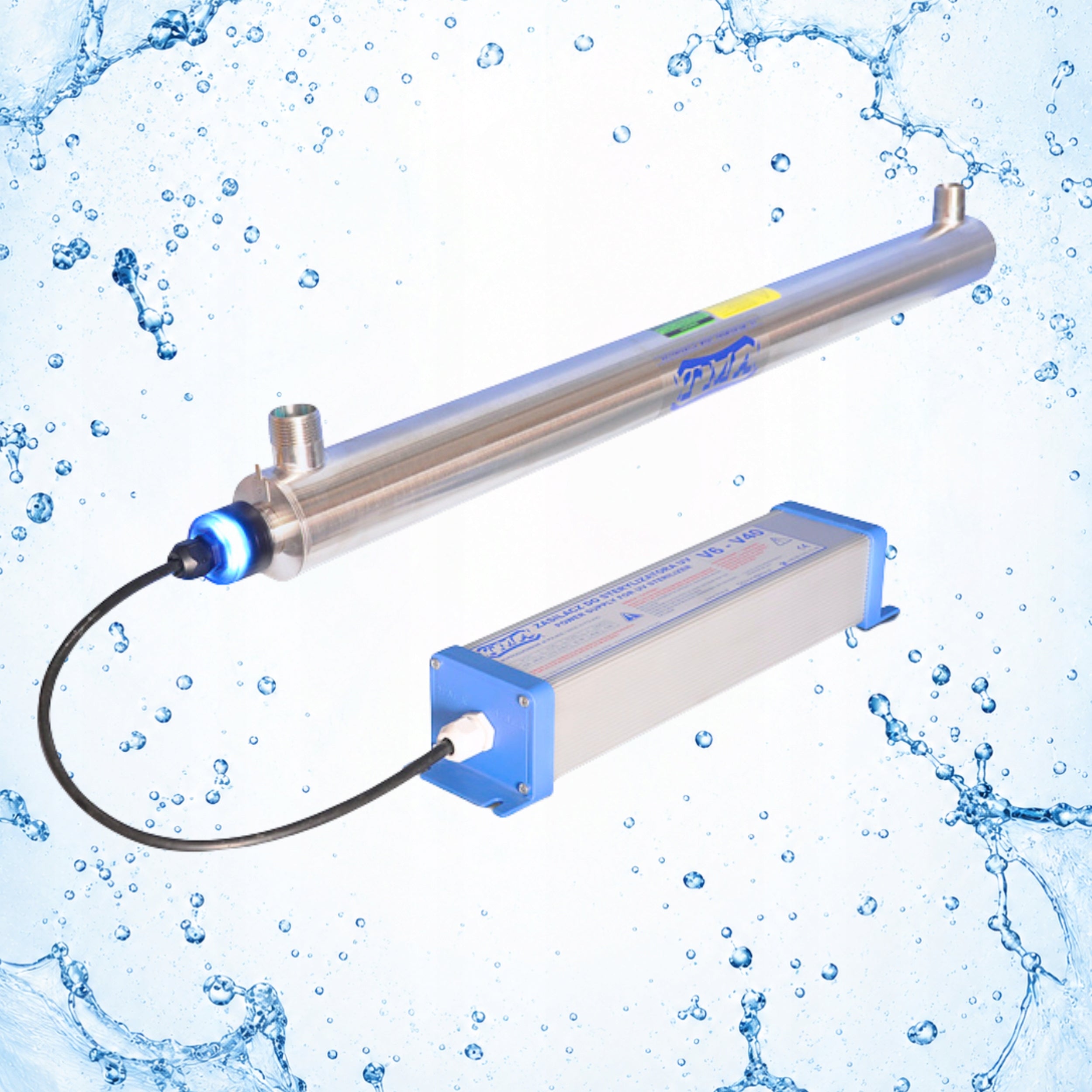

Vandens sterilizatorius UV lempa TMA D8 2,1 m³/h (V25)

Trumpai apie prekę

Prekė: Vandens sterilizatorius UV lempa TMA D8 2,1 m³/h (V25). Kategorija: Vandens filtrai ir minkštikliai.

• Gamintojas: TMA
• Modelis: D8
• Talpa: 2100 l

⭐ UV STERILIZER FOR WATER TMA D8 – CAPACITY 2,10 m³/h

✅ The TMA D8 UV Sterilizer is a powerful device designed for disinfection of water in small installations. It will work well in single-family houses equipped with up to two bathrooms, holiday homes, apartments, offices and small commercial facilities.

✅ The device uses UV radiation with a wavelength of 254 nm, which neutralizes bacteria, viruses and other microorganisms found in flowing water. The process takes place without the addition of chemicals, so it does not affect the taste, smell or basic physicochemical properties of water.

⭐ The most important advantages of the sterilizer

✅ Disinfection without chemicals – UV radiation neutralizes microorganisms without the need to dispense chlorine or other preparations.

✅ Nominal flow rate 2,10 m³/h – the device is suitable for smaller domestic and utility installations.

✅ UV radiator with a power of 42 W – ensures the right dose of radiation while maintaining specific flow parameters and water quality.

✅ Durability up to 16 000 hours – corresponds to about 666 days, or about 22 months of continuous work.

✅ An acid-resistant steel – the reaction chamber is resistant to corrosion and adapted to contact with water.

✅ Connections DN25 R1” – allow you to connect the device to popular water installations.

✅ Working pressure up to 10 bar – enables use in typical pressure installations.

✅ Vertical or horizontal mounting – allows you to adjust the position of the lamp to the available installation space.

✅ Simple replacement of the radiator – the service does not require unsealing of the hydraulic part of the device.

✅ Power supply with operating indicator – allows you to control the operation of the UV radiator.

⭐ Application of TMA D8 sterilizer

✔ Single-family houses equipped with up to two bathrooms.

✔ Cottages and apartments using their own water source.

✔ Offices and small commercial facilities where it is necessary to protect the installation from microorganisms.

✔ Gastronomy and hospitality, as part of a properly designed water treatment system.

✔ Food and chemical industry, in installations with parameters consistent with the capabilities of the device.

✔ Wells and own shots, after performing appropriate tests and applying the required pre-filtration.

✔ Ponds and ponds, where UV radiation helps to limit the growth of bacteria and algae found in flowing water.

⭐ Disinfection of water with UV radiation

✔ The TMA D8 sterilizer uses UV C ultraviolet radiation with a wavelength of 254 nm.

✔ Water flowing through the chamber is exposed to radiation, which damages the genetic material of microorganisms and limits their ability to continue multiplying.

✔ With properly selected flow, radiation dose and proper water quality, the device can provide reduction of microorganisms up to 99,9%.

✔ The lamp supports neutralizing, among others, Bacteria of the Coli group, Escherichia coli, fecal streptococci, Legionella and Clostridium perfringens.

✔ The disinfection process takes place without changing the taste and smell of water and without leaving chemical by-products in it.

✔ UV sterilization does not remove deposits, metals, chemical compounds or mechanical impurities from the water, so the device should work with a properly selected filtration system.

⭐ Installation in water system

✔ The device can be mounted in vertical, horizontal or angle position, depending on the installation layout and installation recommendations.

✔ The included handles allow you to securely attach the lamp in the prepared place.

✔ Connections DN25 R1” allow you to incorporate the device into the water system of the appropriate diameter.

✔ The design allows you to replace the radiator without opening the water chamber, which reduces the risk of unsealing the installation during servicing.

✔ At the installation site, leave adequate space to remove the radiator and quartz cover.

✔ The sterilizer requires connection to the electrical system 220 – 230 V, 50/60 Hz.

✔ The maximum temperature of water entering the device is 45°C.

⭐ Technical specification

✔ Nominal flow rate: 2,10 m3/h (with T transmission 10= 95%, dose 400 J/m2)

✔ Connection diameter: DN25 (R1”)

✔ Number of radiators: 1 x 42 W

✔ Radiator life: 16000 h (approx. 666 days)

✔ Material: Acid-resistant steel

✔ Weight with control system: 4,7 kg

✔ Power supply: 220V – 230V 50/60Hz

✔ Connection power: 43 W

✔ Protection class: IP 41

✔ Material: ALUMINIUM/ ABS

✔ Dimensions(L x sz x H ): 390x83x70 mm

✔ Set composition: Lamp TMA D8, Radiator, Quartz cover, Power supply with work indicator

⭐ FAQ – Frequently Asked Questions

❓What applications is the TMA D8 UV lamp suitable for?

✅ UV lamp TMA D8 is ideal for disinfecting water in small installations, such as single-family houses (up to 2 bathrooms), holiday homes, apartments, offices or ponds.

❓What is the efficiency and power of the TMA D8 radiator?

✅ TMA D8 has a 42 W radiator and provides a nominal flow rate of 2,10 m³/h with T10=95% transmission and a dose of 400 J/m².

❓What microorganisms does the TMA D8 sterilizer eliminate?

✅ UV lamp TMA D8 effectively removes bacteria of the group Coli, Escherichia coli, fecal streptococcus, Legionella, Clostridium perfringens and other bacteria and viruses present in the water.

❓How long does the UV radiator work in the TMA D8 model?

✅ The manufacturer declares the durability of the radiator at the level of 16 000 hours, which corresponds to about 666 days of continuous operation.

❓Is the installation and servicing of the TMA D8 complicated?

✅ UV lamp TMA D8 is characterized by simple installation and servicing. It can be installed vertically, horizontally or at an angle, and replacing the radiator does not require the use of tools.
