Vandens minkštinimo filtras WATERCLEAN 1/2-3/4" su dozatoriumi FERDOM ir raktu

Trumpai apie prekę

Prekė: Vandens minkštinimo filtras WATERCLEAN 1/2-3/4" su dozatoriumi FERDOM ir raktu. Kategorija: Filtrai ir vandens minkštikliai.

• Gamintojas: Ferdom
• Modelis: COMBO FD402
• Talpa: 0.3 l

WATERCLEAN 402 - pre-filter and polyphosphate doser (in one) FERDOM

+ free key for venting radiators

Product of the British company FERDOM

Catalog number: FD402

COMBO - The filter is equipped as standard with a reusable stainless steel cartridge (2 pieces) (40 µm), and the dispenser has an anti-limestone effect and prevents corrosion.

The FD402 Filter/Donizer Kit is designed for boilers, heaters, faucets, dishwashers, washing machines, water treatment plants. The filter traps deposits, sand, dirt, rust, etc., and the polyphosphate from the Dosonator softens the water.

FD402 has a built-in filter – stainless steel mesh (2 pieces included) with sizes: height 85mm x diameter 35mm. The mesh size is 40 microns (μm), which corresponds roughly to the thickness of a human hair. On the basis of filtration, it retains solid impurities, insoluble such as sediments, sand, dirt, rust, etc. The net is reusable - it should be periodically cleaned, washed under water and cleaned, e.g. With a nylon toothbrush. The durability of one filter cartridge 18 to 36 months depending on the water quality. Replacement cartridges are available.

COMBO FD402 works on the principle of a dispenser, which largely prevents the formation and limescale deposits on heaters, pipes and fittings. Protects washing machines, dishwashers, heaters, heat exchangers, etc. against excessive sediments. By rinsing, the device dispenses minimal amounts of special food polyphosphate with chelating and sequestering effects. The preparation is placed inside the filter mesh. The kit contains 2 polyphosphate (polyphosphate) cartridges for about 20-25m³ of water.

The FD402 filter is easily installed for water installation. It is recommended to mount it in an upright position (blue head at the top), but the manufacturer allows horizontal installation. The water supply can only be connected from the blue side of the head. For washing machine installation, use the 2 included 1/2” to 3/4” adapters (DN15 to DN20). Simply unscrew the washing machine or dishwasher hose from the shut-off valve and screw the FD402 into its place. When connecting to other devices, use either 1/2” or 3/4” depending on the situation.

TECHNICAL DATA:

Case:

• Appearance and material: Clear housing (SAN plastic), blue head (ABS plastic)

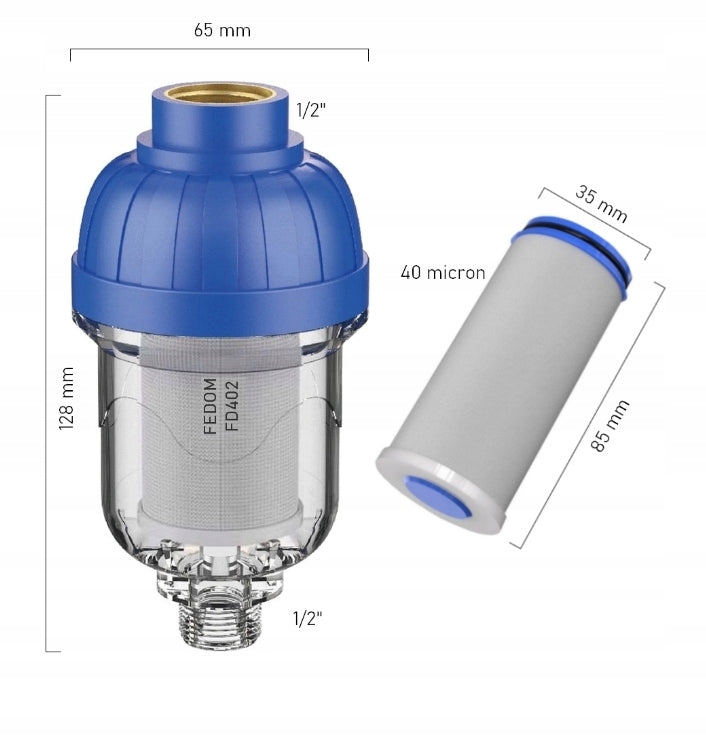

• Housing size: height 128mm x 65mm diameter
• Weight: 0,2kG
• Operating pressure: 1-4bar
• Flow rate: max 0,5m³/h
• Water temperature: 1-55°C
• Water connections: 1/2” and 3/4” (DN15/DN20)

Filter:

• Material: SS316L stainless steel
• Micron: 40μm
• Size: height 85mm x 35mm diameter
• Package contents: 2 filters
• 1 filter life: 18 to 36 months depending on water quality

dispenser:

• Preparation Type: Polyphosphate Salt (Polyphosphate)
• Preparation cartridge: 50g
• Package contents: 2 cartridges x 50g
• Capacity with 2 cartridges: about 20-25m³
• Number of washes with 2 cartridges: about 400-500
• Number of washes with 2 cartridges: about 1000-1500
• Available stocks: separately exposed FERDOS polyphosphate with product code FD805

Note: performance may decrease e.g. along with a higher temperature of feed water.

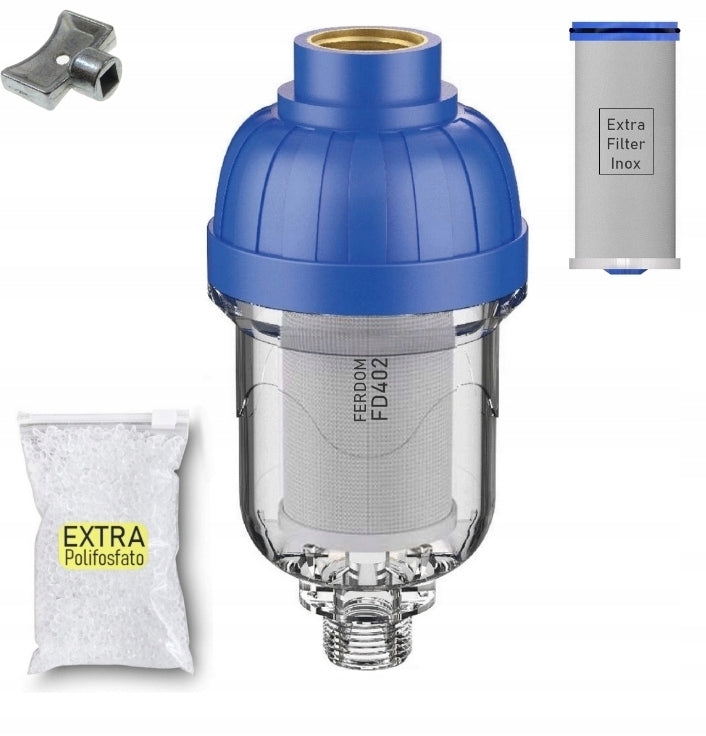

Contents of the set: in the last photo.

There are elements from the offered set. Including 2 reductions to change connection diameters: from 1/2"gw to 3/4"gw and from 1/2"gz to 3/4"gz.

Description of the technical drawing:

1. Head made of PC
2. Polyphosphate (set of 2x50 grams)
3. Polyphosphate tank
4. Filter inox 40 microns (μm) - 2pcs
5. Sealing ring
6. Transparent housing

NOTE - Many manufacturers of washing machines, dishwashers, heaters now recommend securing the water system when the water is hard or very hard and exceeds: 20 degrees Clark (UK), 15 degrees HH (Germany), 28 degrees (France), 100 mg / l. calcium.

Key of the Belgian company ROFIX

Catalog number: 50004887
