Vandens filtro korpusas Big Blue 20" su manometro sriegiu 1" AQUAfilter

Trumpai apie prekę

Prekė: Vandens filtro korpusas Big Blue 20" su manometro sriegiu 1" AQUAfilter. Kategorija: Kraniniai ir po plautuve montuojami filtrai.

• Gamintojas: Aquafilter
• Modelis: FH20B1-B-WB

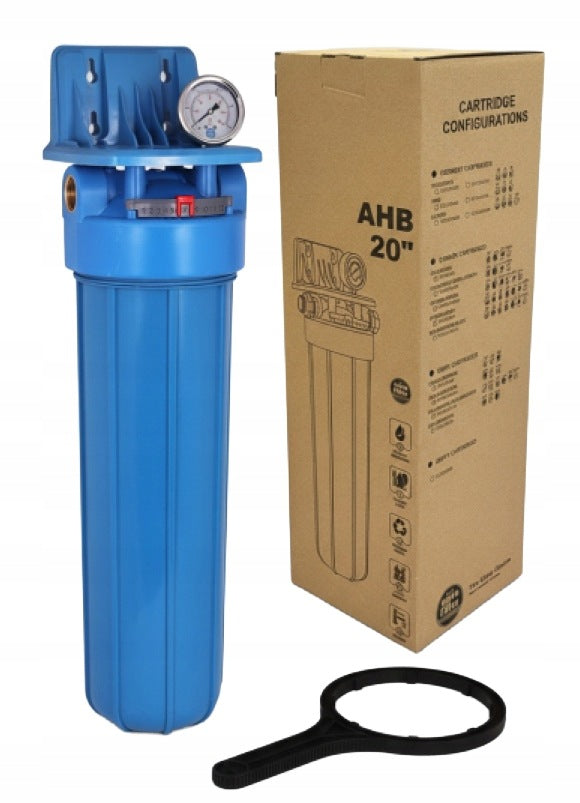

20” Big Blue in-line kit: Big Blue body with blue shade and vent, plate, wrench, blood pressure monitor and bacteriostatic centering disc.

20” Big Blue in-line kit: Big Blue body with blue shade and vent, plate, key, blood pressure monitor, bacteriostatic centering disc, manual and colorful packaging. The body is available for sale with brass plugs with a diameter of: 1" BSP. The filter head is equipped with a vent that helps to release the air left after replacing the cartridge.

• Height: approx. 61 cm
• Water pressure: up to 6 bar
• Water temperature: 2 - 42°C
• Diameter: 18,5 cm
• Thread diameter: 1 inch

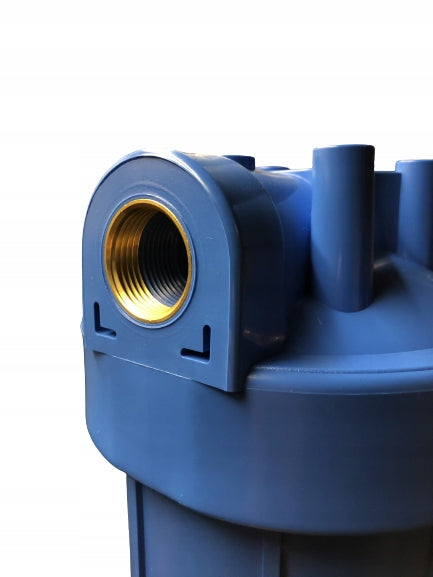

Big Blue 20 inch Dimensional Standard In-line Filter for Cold Water Treatment on Main Connections in Single Family Homes. Made of high quality PP plastic (polypropylene). Inch internal threads are reinforced with brass plugs.

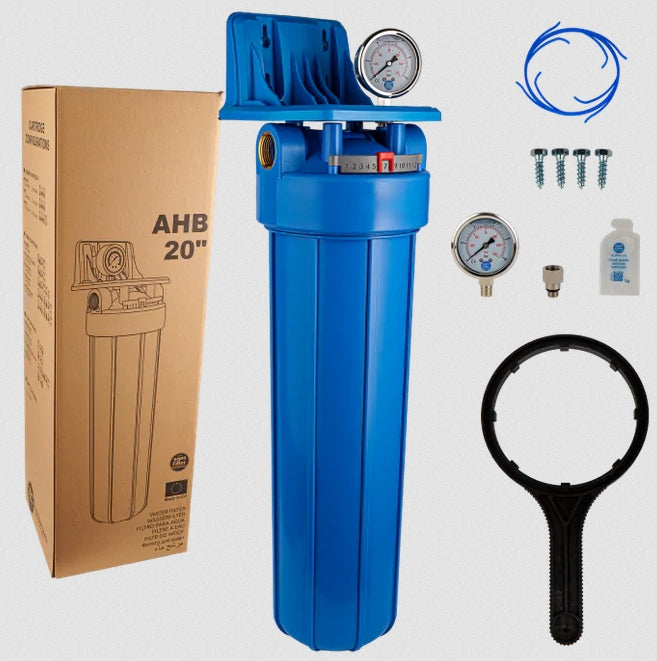

A complete filter set consisting of the following elements:

• BB20 standard filter body
• key for unscrewing the bottom of the filter when replacing the cartridge
• pressure gauge for assessing the pressure drop on the cartridge and thus determining the right moment to replace it
• mounting plate with screws, designed to attach the filter to the wall
• installation instructions

There is a vent in the body head to remove the air accumulating under the head (e.g. after the exchange of contribution).

Aquafilter FH20B1-B-WB (HB2B-FH20B1-B-WB) has threaded holes (inlet and outlet) - the 1 inch thread diameter provides adequate water flows for the entire large single-family house, where the filter can be used for preliminary mechanical water purification and for treatment on carbon, softening, iron removal cartridges, etc.

The lower part of the complete body is twisted. The twisted connection is secured with an EPDM seal, which ensures a perfect seal.

Enclosures can be twisted into filter sets (nipples), thus obtaining the required number of filtration stages. A filter set based on Aquafilter FH20B1-B-WB bodies can be an alternative to central treatment columns (e.g. using water softening cartridges).

Filter housing for BB20 standard cartridges in. All sedimentary, carbon and specialty cartridges can be used in it. Filtration efficiency is sufficient for an apartment and a single-family house.
