Prekė: Valdymo plokštė su mikrokontroleriu RP2040-LCD-0.96-M. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: Waveshare 20891

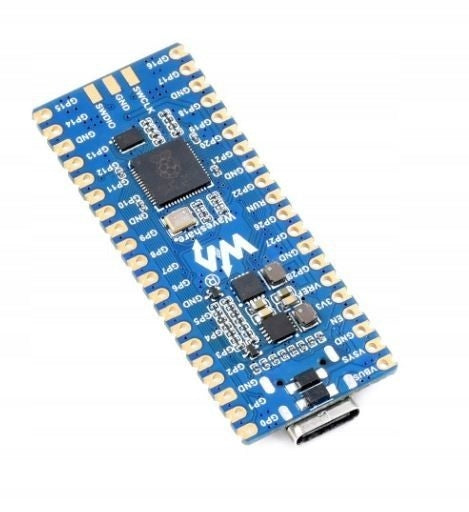

RP2040-LCD-0.96-M - board with RP2040 microcontroller and LCD (with connectors)
Description
Board equipped with RP2040 microcontroller designed by Raspberry Pi foundation. The chip has two ARM Cortex M0+ cores operating at up to 133 MHz and 264 kB of RAM. The microcontroller is not equipped with flash memory, but there is an external memory with a capacity of 2 MB connected via the QSPI interface on the board.

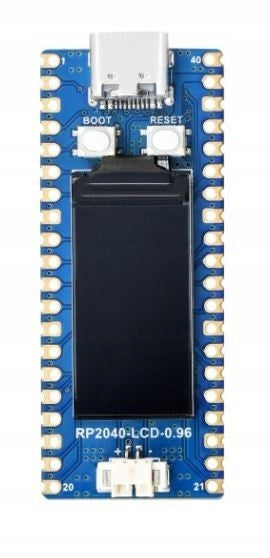

1. USB Type C 7. ETA6096 LiPo charging system
2. BOOT button 8. RP2040
3. RESET button 9. NOR-Flash memory 2 MB W25Q16JVUXIQ
4. 0.96inch IPS LCD 10 Display DEBUG test pads
5. MX1.25 11 battery connector. Description of exits
6. DC-DC converter TPS63000
In addition to the RP2040 chip and Flash memory, the user has at his disposal a 3,3 V voltage converter, Boot and Power buttons, LCD display, USB Type-C connector for power supply and programming the module and GPIO outputs, on which such peripherals as 12-bit ADC, PWM, I2C, SPI and UART inputs have been derived. In addition, the module has a built-in LiPo/Li-Ion charger and a connector for connecting the battery.
The platform supports popular MicroPython and C/C++ programming languages. Programs can be uploaded to memory via USB interface or via SWD connector. A guide with examples of use is available on the product page.
Comparison table of boards with microcontroller RP2040
Product
Raspberry Pi Pico (original)
RP2040-Zero
RP2040-LCD-0.96
RP2040-Plus
Microcontroller RP2040
Stabilizer/Converter RT6150 (DC-DC, 800mA) ME6217 (LDO, 800mA) TPS63000 (DC-DC, 1800mA)
USB Micro USB Type-C
Flash 2MB 4MB
Battery connector N/A YES (with charging system)
Display N/A 0.96inch IPS LCD N/A
Properties
- RP2040 microcontroller designed by Raspberry Pi
- Two ARM Cortex-M0+ cores with clock speeds up to 133 MHz
- 264 kB of built-in SRAM memory
- DC-DC Converter 3,3 V 1800 mA
- Built-in USB-C connector for programming and power supply
- IPS LCD Display 0,96" 160x80 pixels
- 26 x GPIO Multifunction Pins
- 3 x 12-bit ADC inputs with temperature sensor
- 16 x PWM
- 2 x UARTs
- 2 x I2C
- 2 x SPI
- Power and Boot Buttons
- User LED
- 2 MB external flash memory
- LiPo and Li-Ion charging circuit (ETA6096)
- MX 1.25 connector for battery
- Supported programming languages: MicroPython and C/C++
- Dimensions: 51 x 21 mm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | Waveshare 20891 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Display |
| Parametry | EAN (GTIN) | 5904978304557 |
| Parametry | Batteries included | no |
